Hazard Warning Switch Circuit

HAZARD WARNING SWITCH CIRCUIT

CIRCUIT DESCRIPTION

The hazard warning switch sends a signal to the driver side J/B ECU.

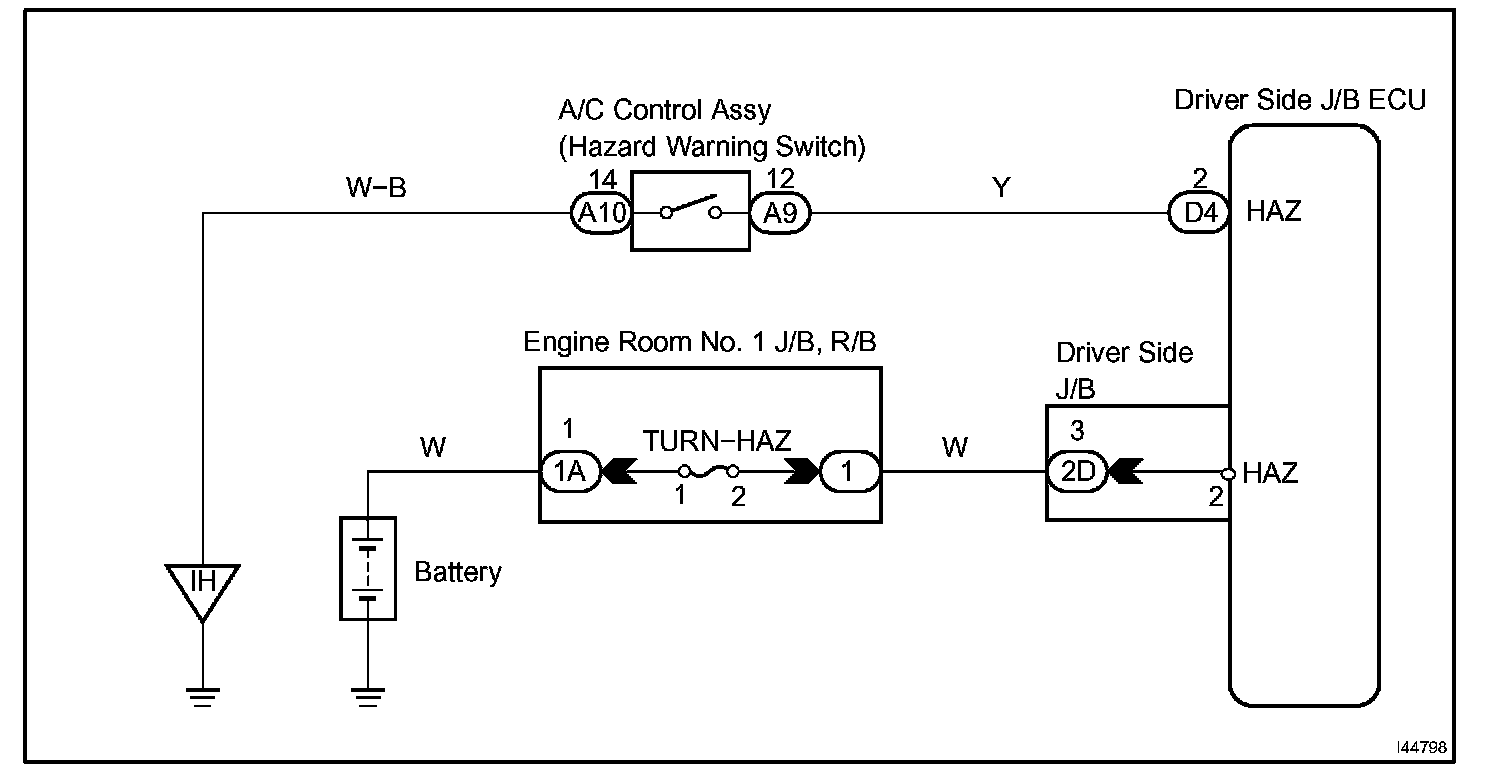

Wiring Diagram:

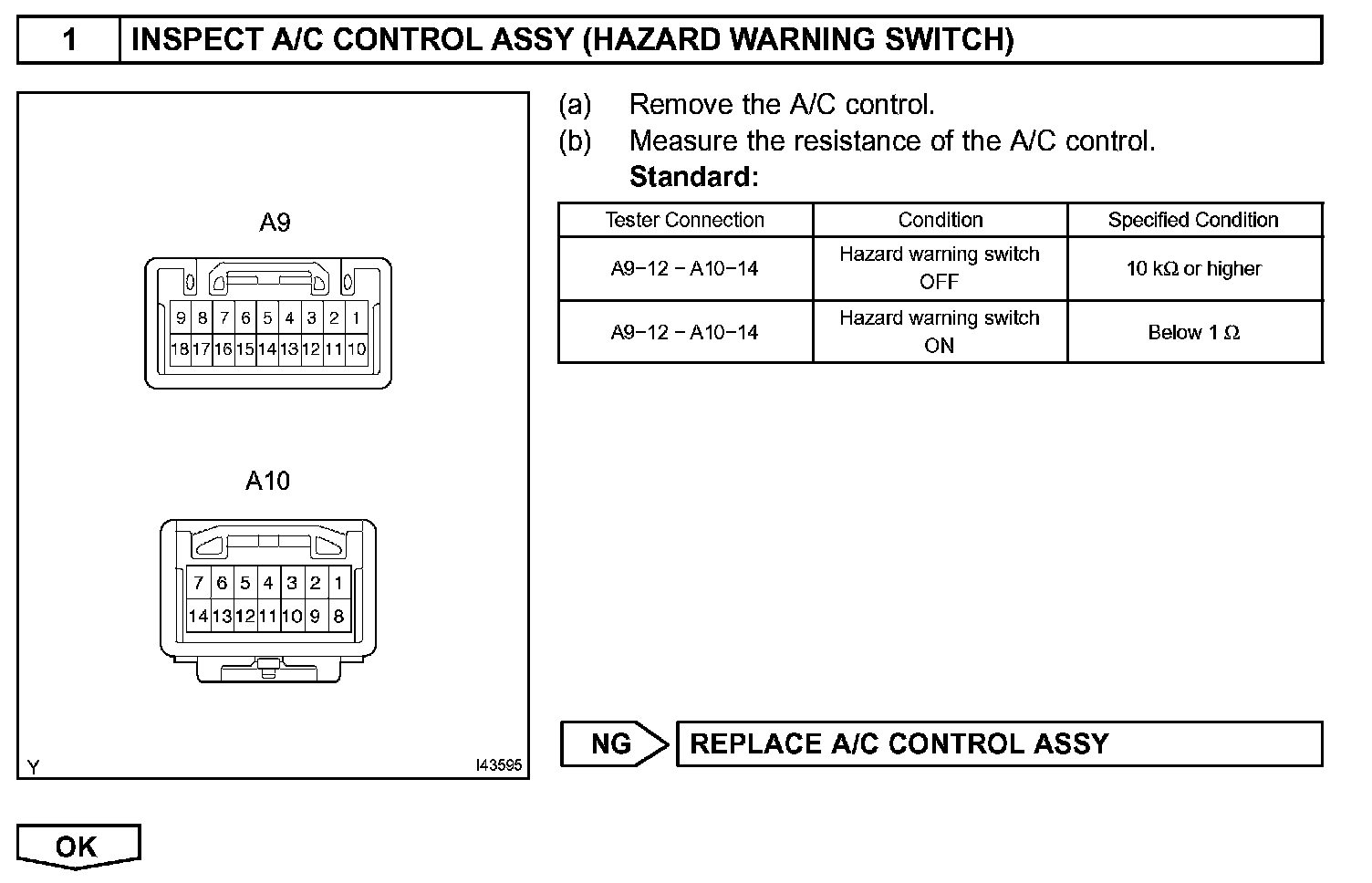

Step 1:

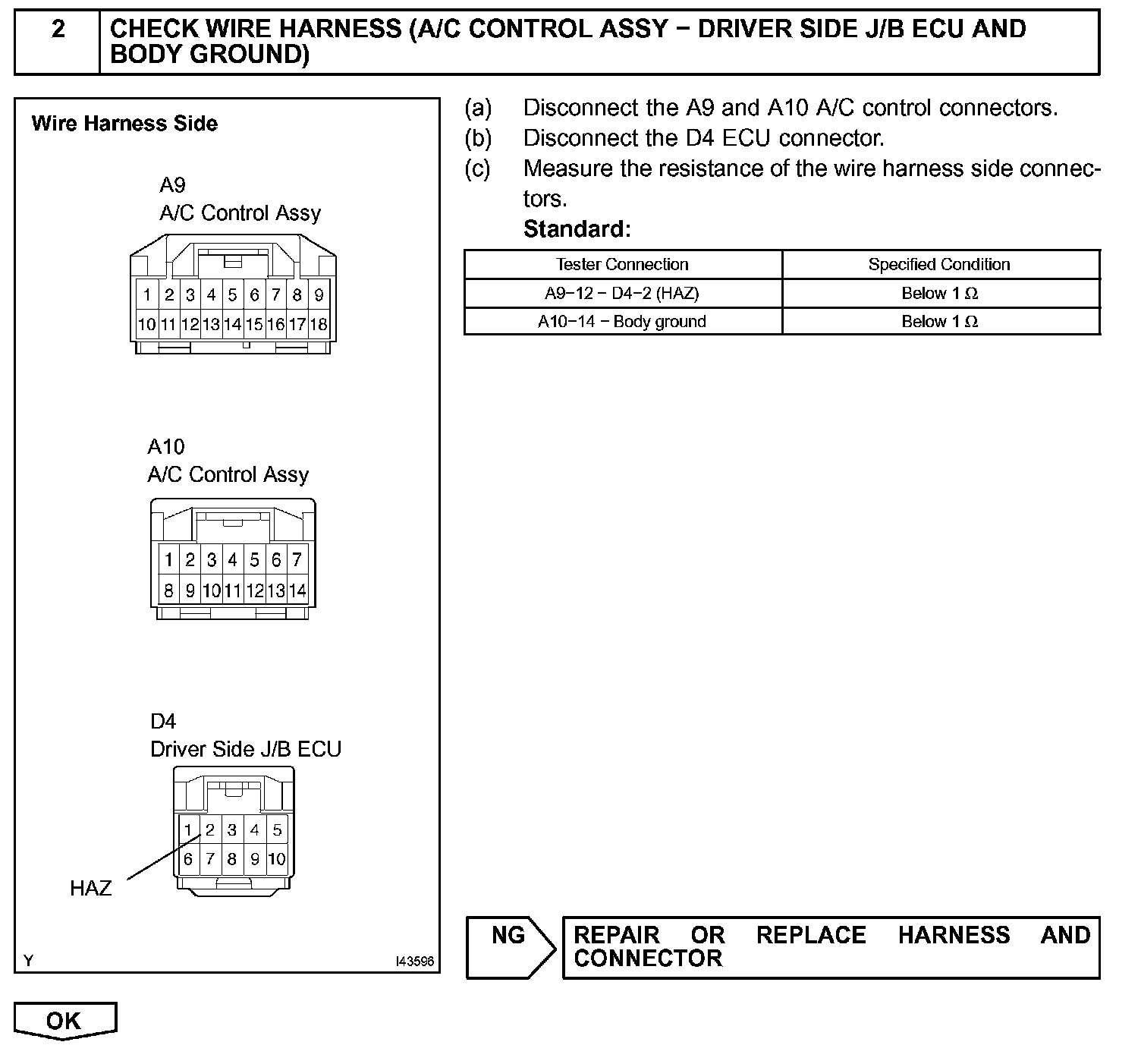

Step 2:

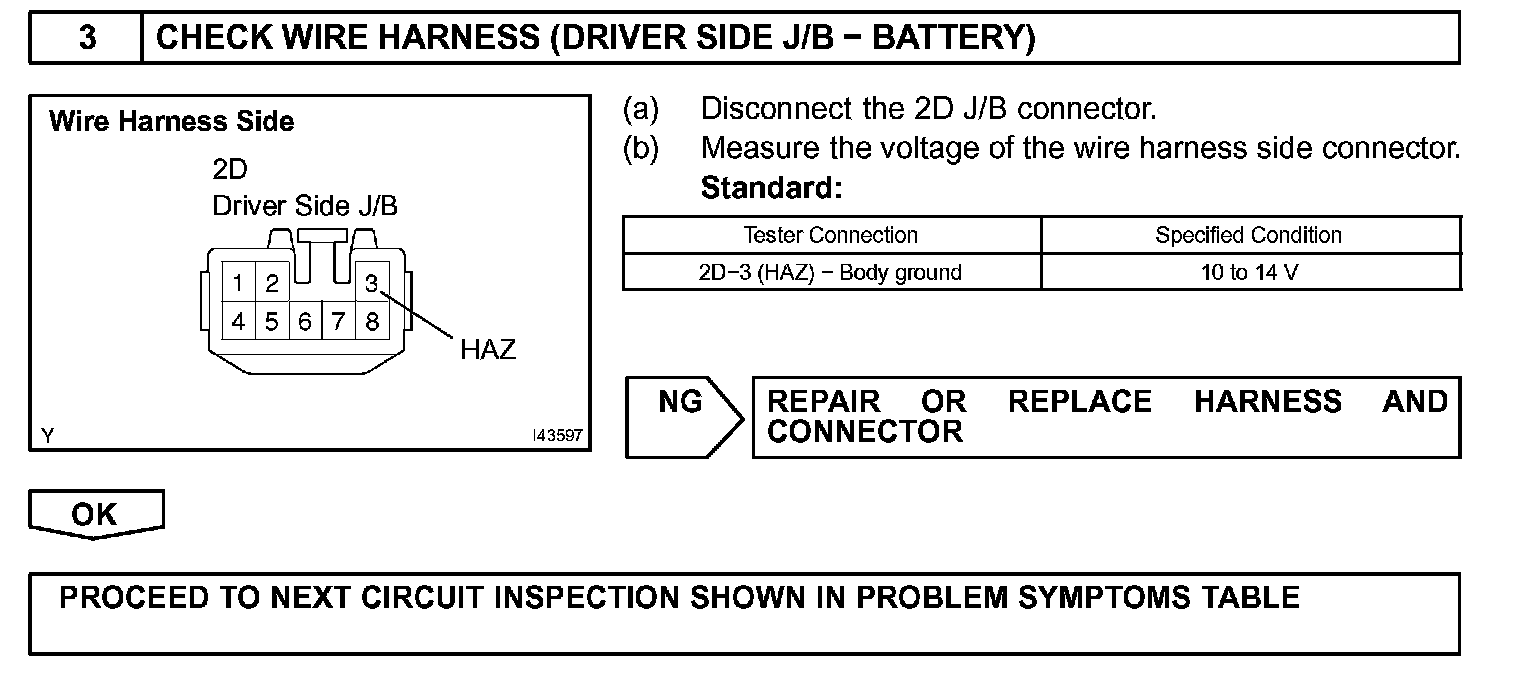

Step 3:




INSPECTION PROCEDURE
