Combination Switch Power Source Circuit

COMBINATION SWITCH POWER SOURCE CIRCUIT

CIRCUIT DESCRIPTION

This circuit provides power to operate the combination switch.

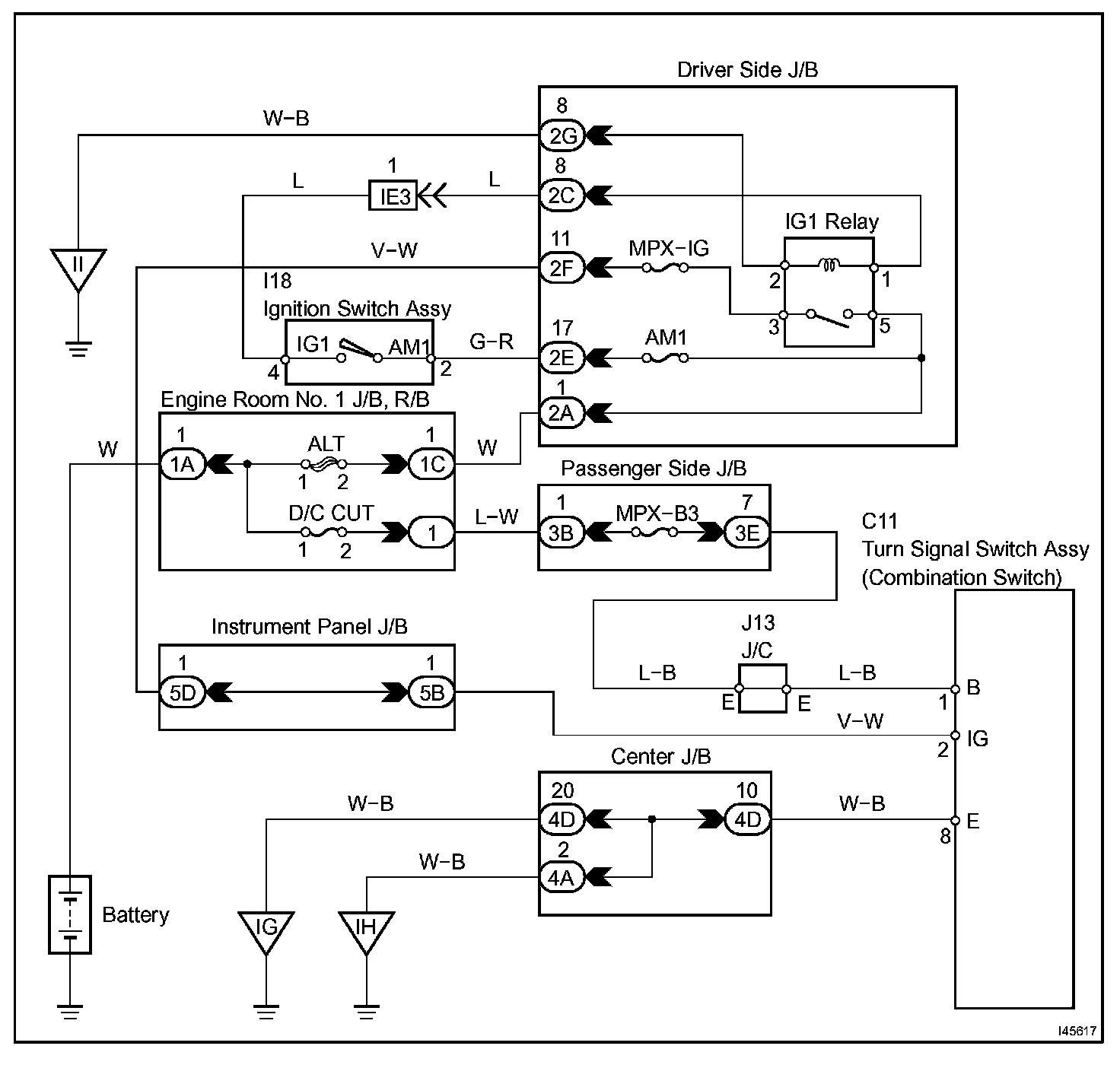

Wiring Diagram:






Step 1:

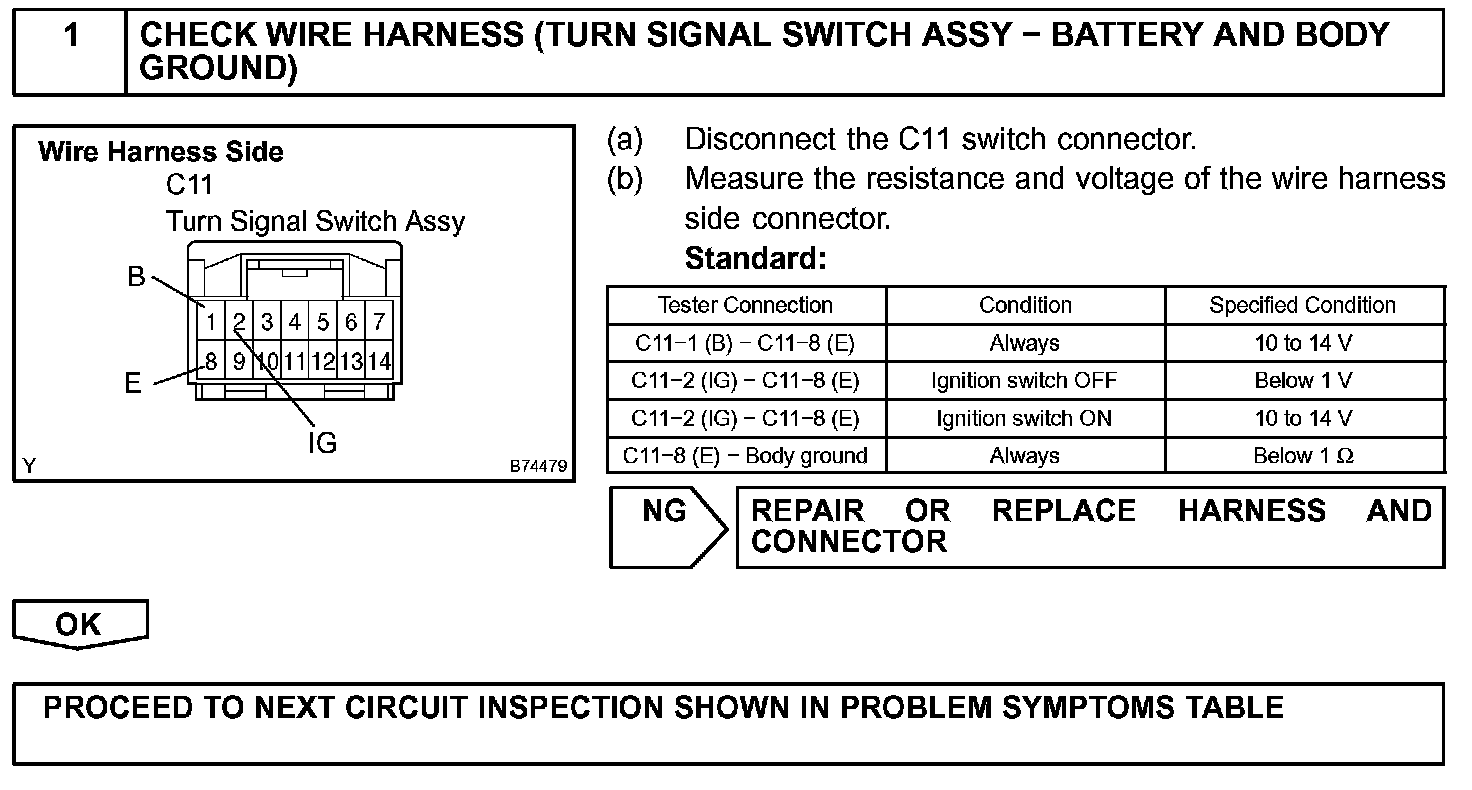

INSPECTION PROCEDURE
