Combination Lamp Control Switch Circuit

COMBINATION LAMP CONTROL SWITCH CIRCUIT

CIRCUIT DESCRIPTION

This circuit detects the state of the turn signal switch (combination switch) switch and sends it the to driver side J/B ECU.

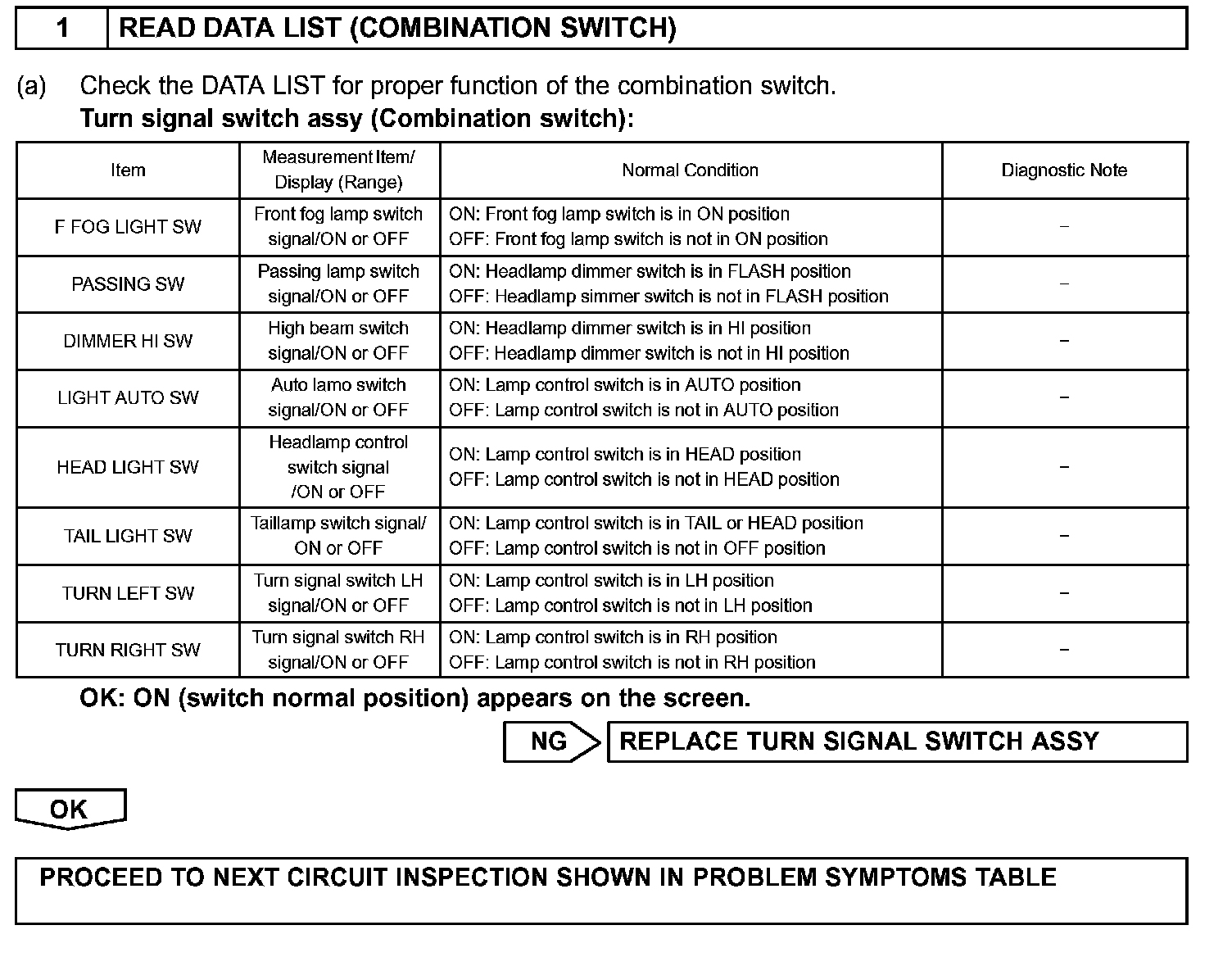

Step 1:




INSPECTION PROCEDURE
