Clearance Lamp Circuit

CLEARANCE LAMP CIRCUIT

CIRCUIT DESCRIPTION

The front lamp ECU receives turn signal switch information from the combination switch, and illuminates the clearance lamps

Wiring Diagram:

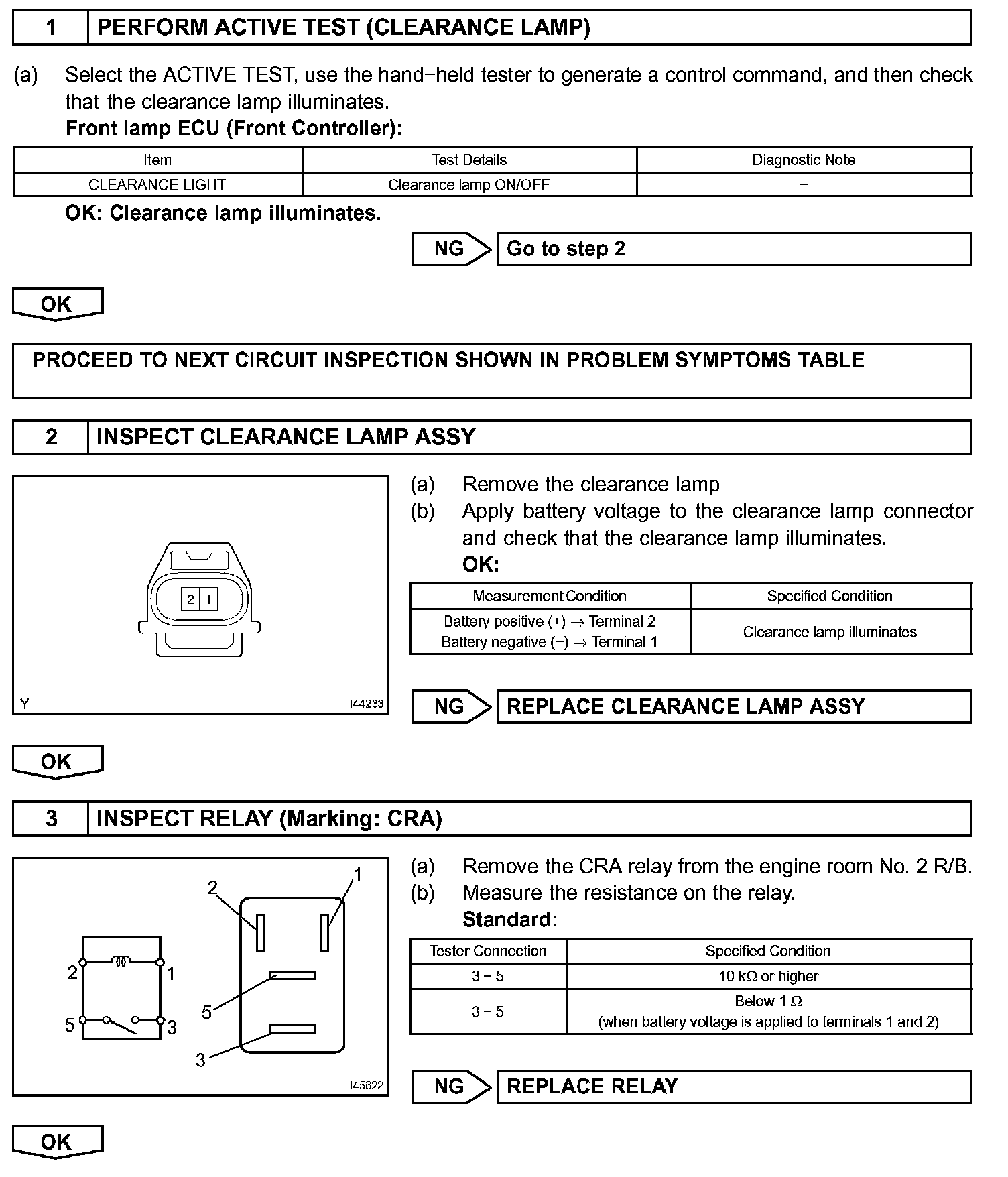

Step 1-3:

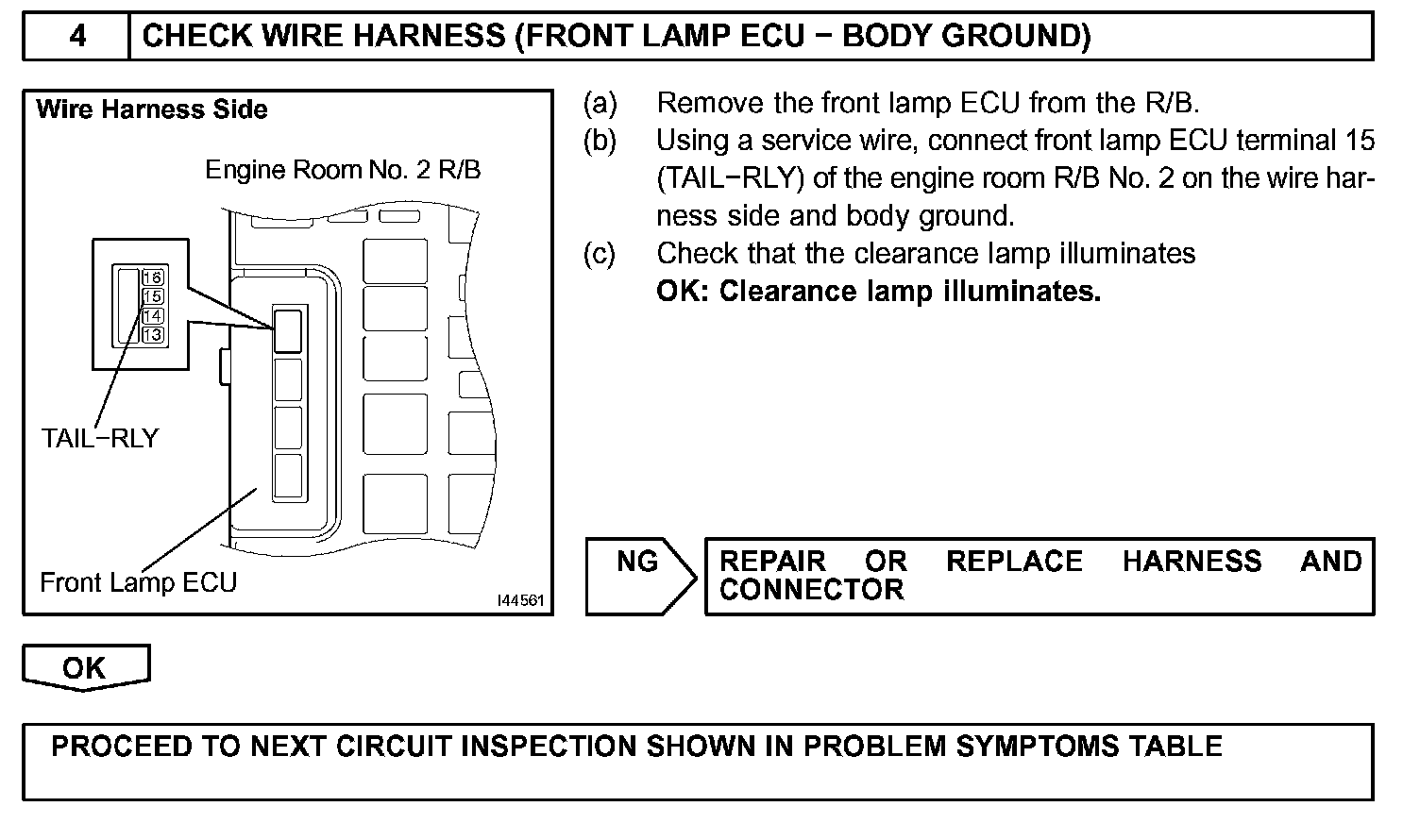

Step 4:




INSPECTION PROCEDURE
