Back-Up Lamp Circuit
BACK-UP LAMP CIRCUITCIRCUIT DESCRIPTION
When the PNP switch R position signal is received from the luggage room J/B ECU, the back-up lamp illuminates.

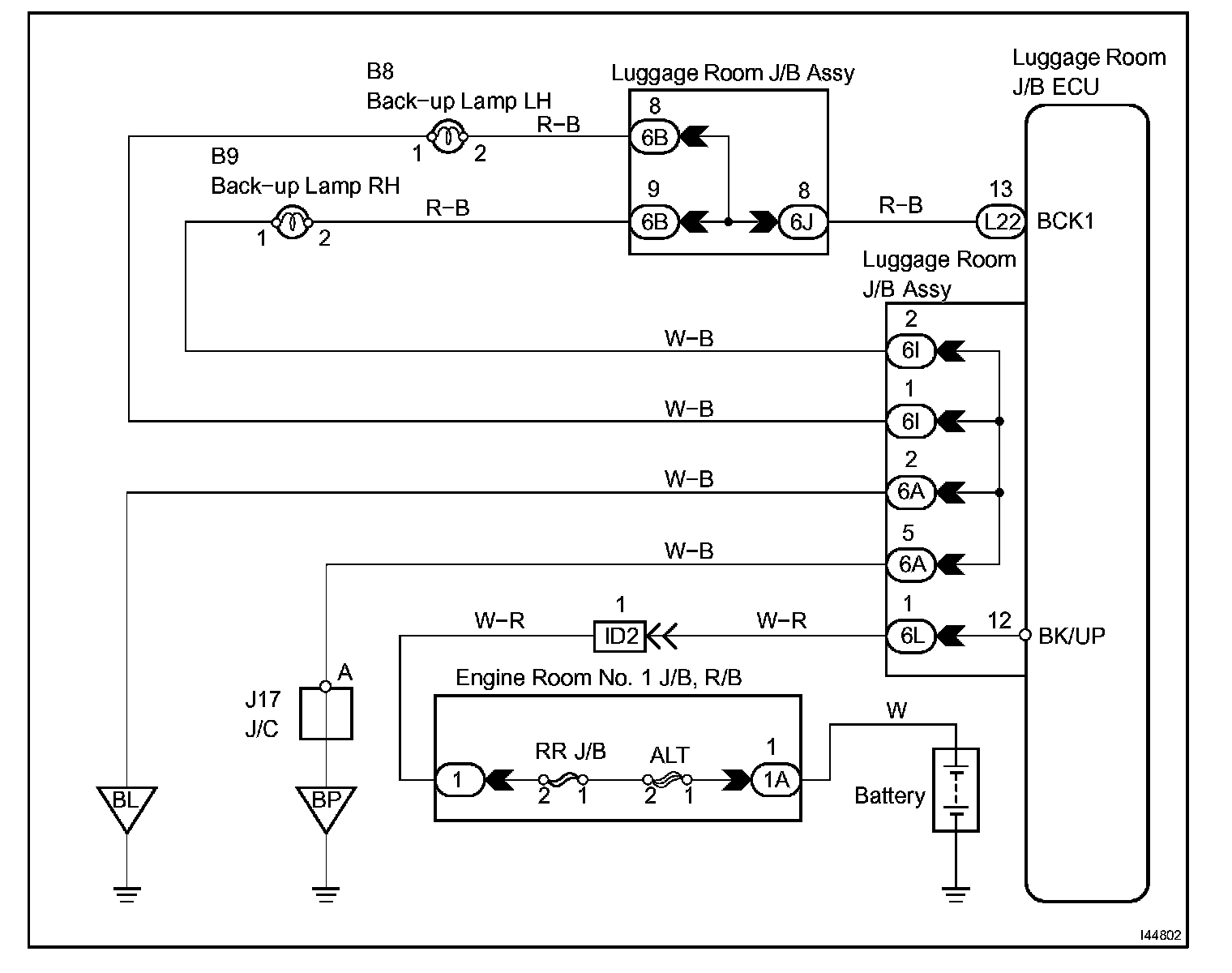

Wiring Diagram:

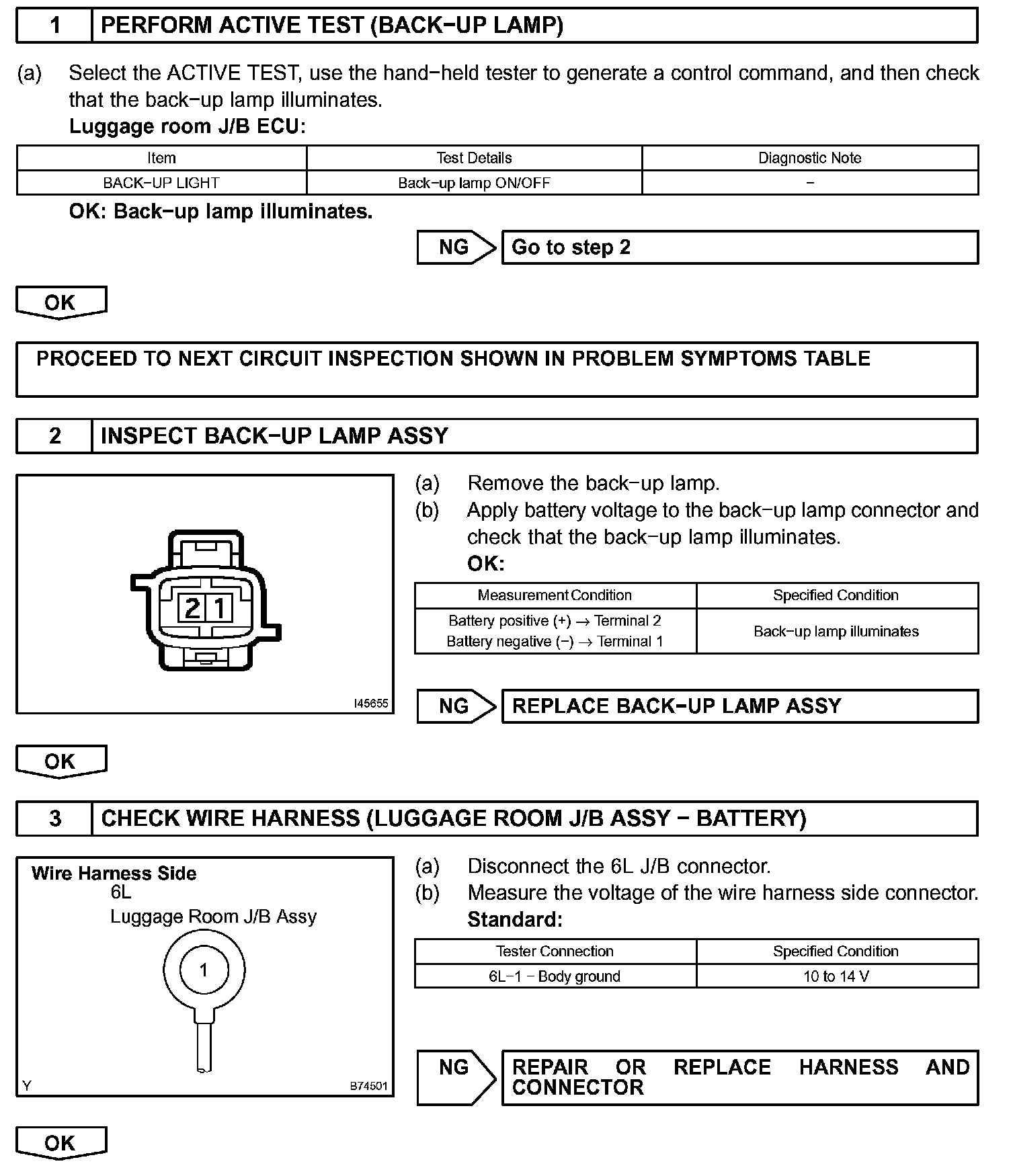

Step 1-3:

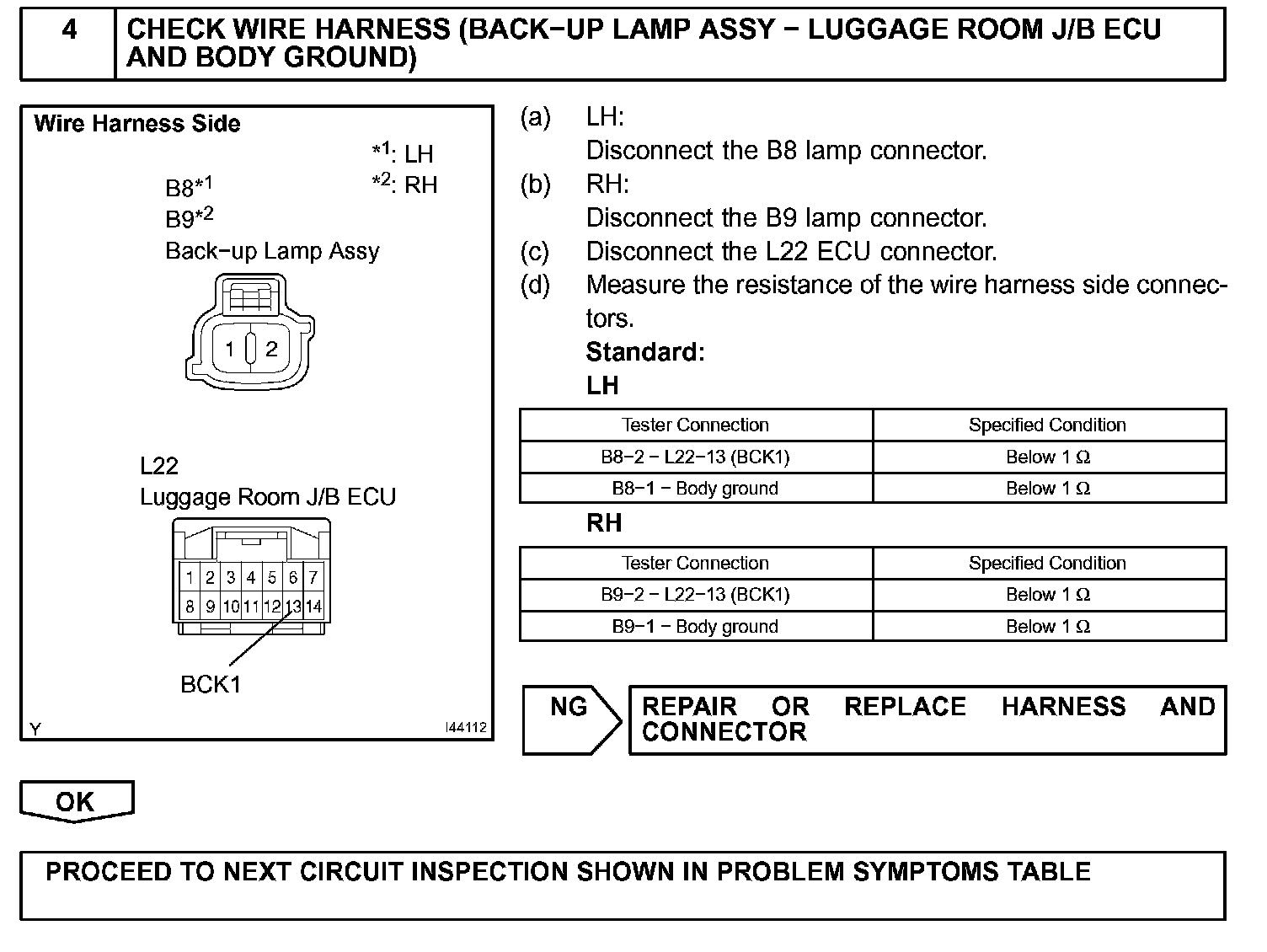

Step 4:
INSPECTION PROCEDURE
CIRCUIT DESCRIPTION
When the PNP switch R position signal is received from the luggage room J/B ECU, the back-up lamp illuminates.
INSPECTION PROCEDURE
