AFS Off Switch Circuit

AFS OFF SWITCH CIRCUIT

CIRCUIT DESCRIPTION

The information corresponding to the AFS OFF switch state is sent to the AFS ECU.

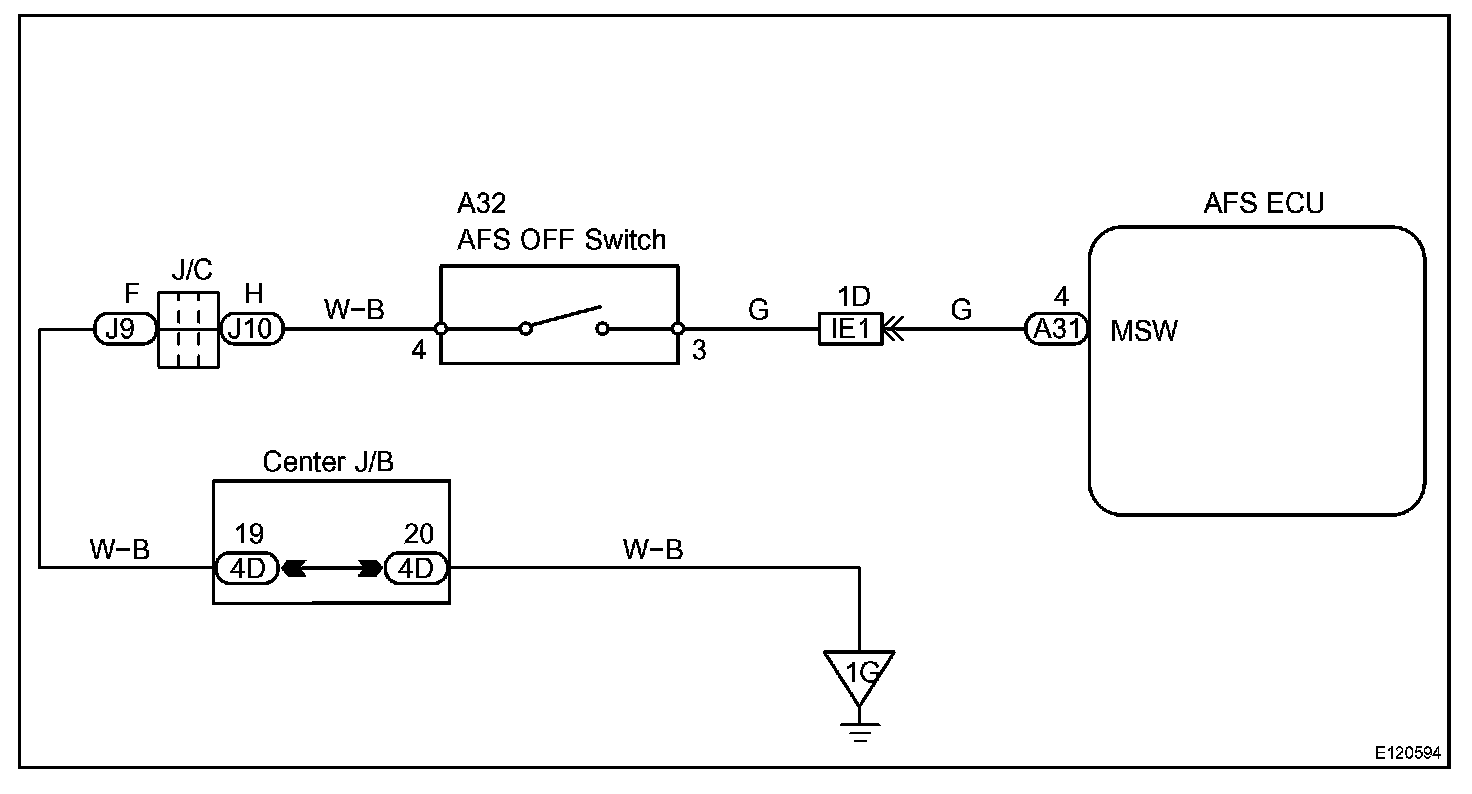

Wiring Diagram:






Step 1-2:

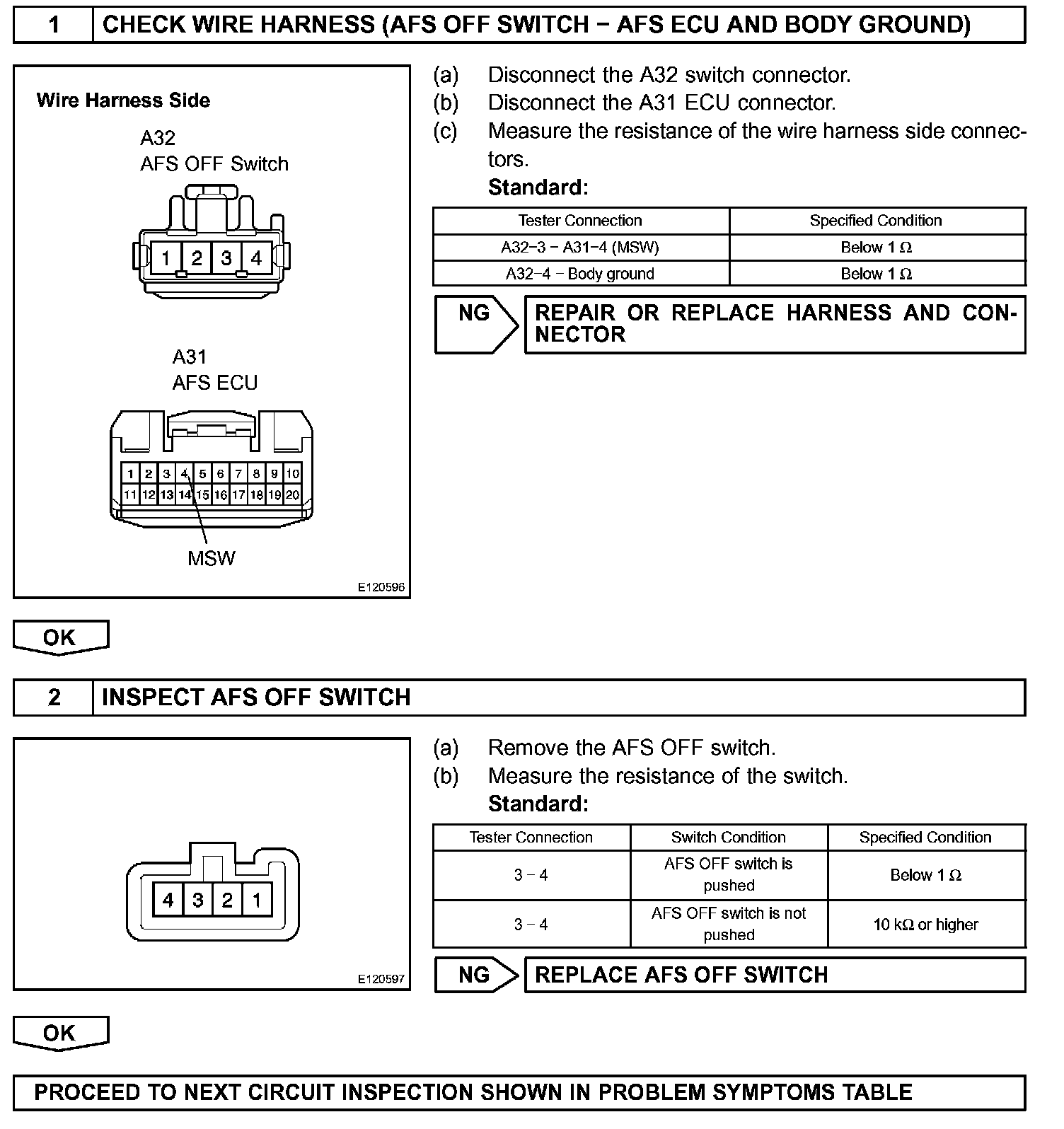

INSPECTION PROCEDURE
