Rear

Rear Combination Lamp Lens:

REAR SIDE MARKER LAMP LENS

REPLACEMENT

HINT:
- The installation procedures are the removal procedures in reverse order. However, only installation procedures requiring additional information are included.
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

1. REMOVE TONNEAU COVER STOPPER SUB-ASSEMBLY LH
2. REMOVE TONNEAU COVER STOPPER SUB-ASSEMBLY RH
3. REMOVE REAR FLOOR FINISH PLATE
4. REMOVE LUGGAGE COMPARTMENT FLOOR MAT
5. REMOVE LUGGAGE COMPARTMENT TRIM COVER LH
6. REMOVE LUGGAGE COMPARTMENT TRIM COVER RH
7. REMOVE SPARE WHEEL COVER ASSEMBLY
8. REMOVE TOOL BOX COVER
9. REMOVE LUGGAGE COMPARTMENT TRIM COVER SUB-ASSEMBLY REAR
10. REMOVE TONNEAU COVER ASSEMBLY
11. REMOVE LUGGAGE COMPARTMENT TRIM COVER INNER LOWER
12. REMOVE LUGGAGE COMPARTMENT TRIM COVER FRONT
13. REMOVE LUGGAGE COMPARTMENT TRIM COVER SIDE LH
14. REMOVE LUGGAGE COMPARTMENT TRIM COVER SIDE RH
15. REMOVE REAR BUMPER COVER

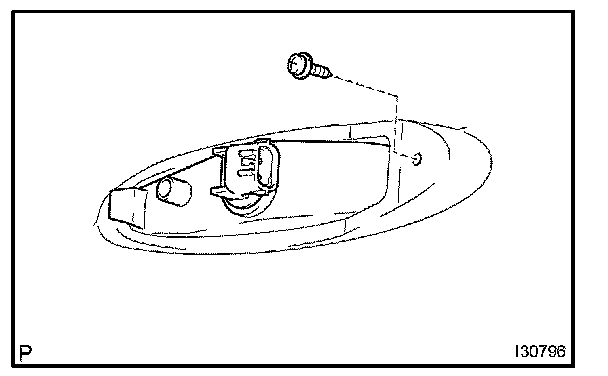

16. REMOVE REAR SIDE MARKER LAMP LENS LH
a. Remove the screw and lens.
