Front

HeadLamp Assy:

FRONT MARKER LAMP LENS

REPLACEMENT

HINT:
- The installation procedures are the removal procedures in reverse order.
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

1. REMOVE RADIATOR GRILLE
2. REMOVE FRONT MARKER LAMP ASSEMBLY LH
3. REMOVE FRONT FENDER LINER RH
4. REMOVE FRONT FENDER LINER RH




5. REMOVE FRONT MARKER LAMP LENS LH

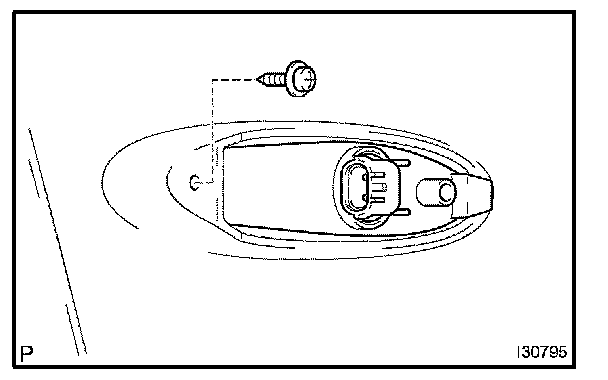

a. Remove the screw and lens.
