License Plate Lamp: Service and Repair

Rear Combination Lamp Lens:

LICENSE PLATE LAMP

REPLACEMENT

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE REAR FLOOR FINISH PLATE
3. REMOVE SPARE WHEEL COVER ASSEMBLY
4. REMOVE SPARE TIRE
5. REMOVE LUGGAGE COMPARTMENT FLOOR MAT
6. REMOVE LUGGAGE COMPARTMENT TRIM COVER RH
7. REMOVE LUGGAGE COMPARTMENT TRIM COVER LH
8. REMOVE TOOL BOX COVER
9. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY
10. REMOVE LUGGAGE COMPARTMENT TRIM COVER SUB-ASSEMBLY REAR
11. REMOVE TONNEAU COVER STOPPER SUB-ASSEMBLY RH
12. REMOVE TONNEAU COVER STOPPER SUB-ASSEMBLY LH
13. REMOVE TONNEAU COVER ASSEMBLY
14. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY
15. REMOVE LUGGAGE COMPARTMENT TRIM COVER INNER LOWER
16. REMOVE REAR FLOOR FINISH SIDE PLATE RH
17. REMOVE REAR FLOOR FINISH SIDE PLATE LH
18. REMOVE LUGGAGE COMPARTMENT TRIM COVER FRONT
19. REMOVE LUGGAGE COMPARTMENT TRIM COVER SIDE RH
20. REMOVE LUGGAGE COMPARTMENT TRIM COVER SIDE LH
21. REMOVE REAR BUMPER COVER




22. REMOVE LICENSE PLATE LAMP LH

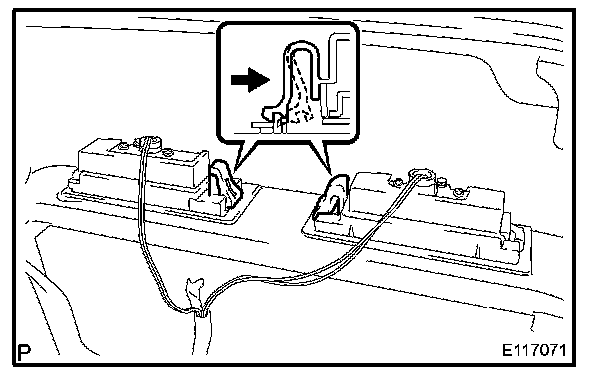

a. Detach the claw and remove the license plate lamp.

23. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
24. PERFORM INITIALIZATION

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
