Backup Lamp: Service and Repair

Rear Combination Lamp Lens:

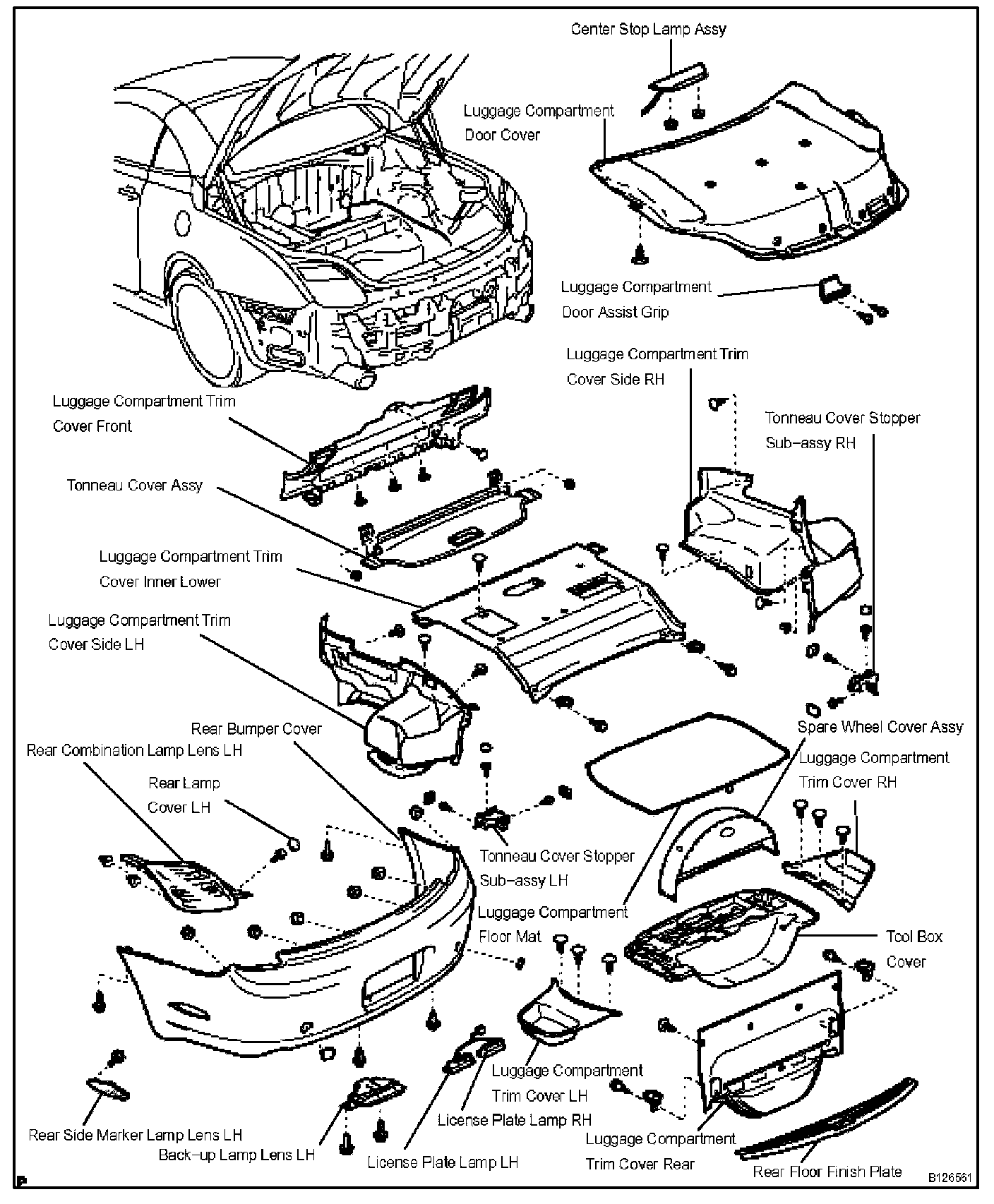

BACK-UP LAMP LENS

REPLACEMENT

HINT:
- The installation procedures are the removal procedures in reverse order.
- Use the same procedures for the RH side and LH side.
- The procedures listed for the LH side.
- A bolt without a torque specification is shown in the standard bolt chart.

1. REMOVE BACK-UP LAMP LENS LH




a. Disconnect the connector.

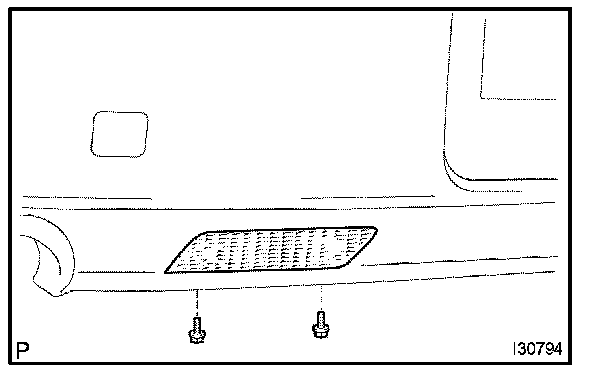

b. Remove the 2 bolts and lens.
