Operating Lamp Control Rheostat Does Not Change Lamp Brightness
Operating Lamp Control Rheostat Does Not Change Lamp Brightness
OPERATING LAMP CONTROL RHEOSTAT DOES NOT CHANGE LAMP BRIGHTNESS

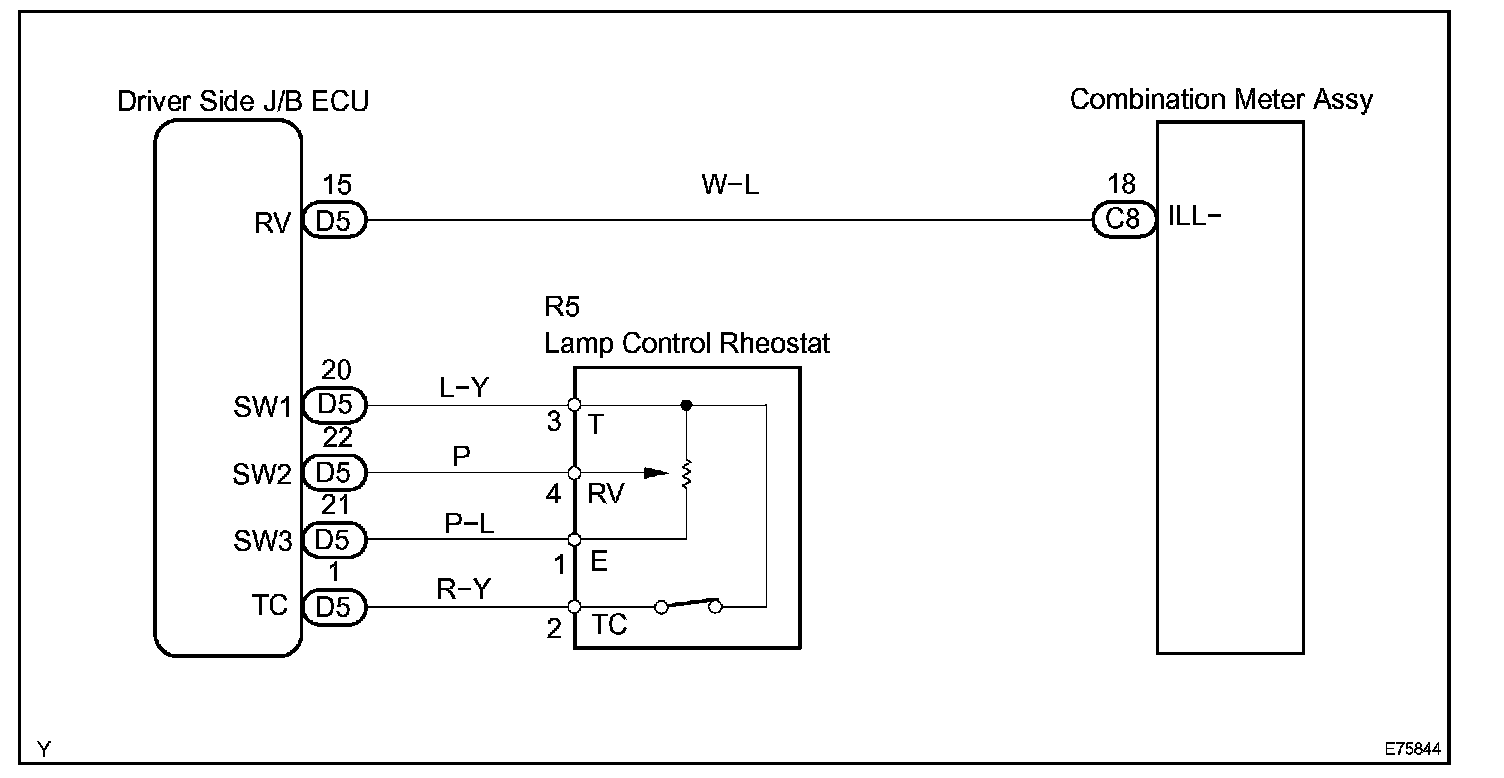

Wiring Diagram:

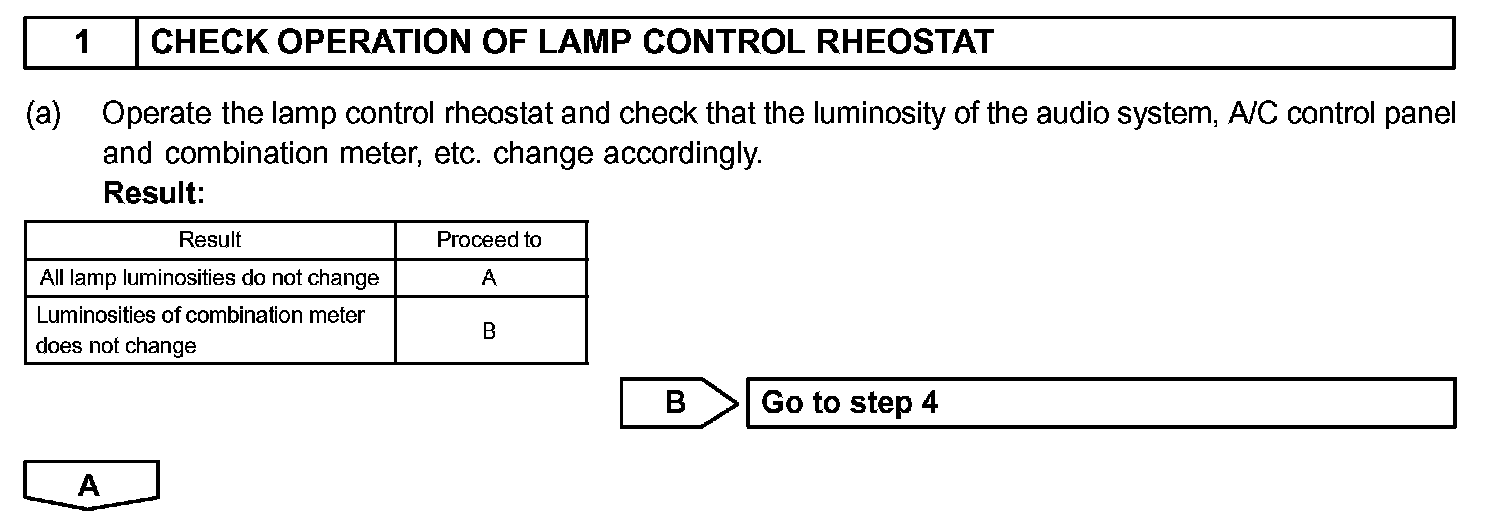

Step 1:

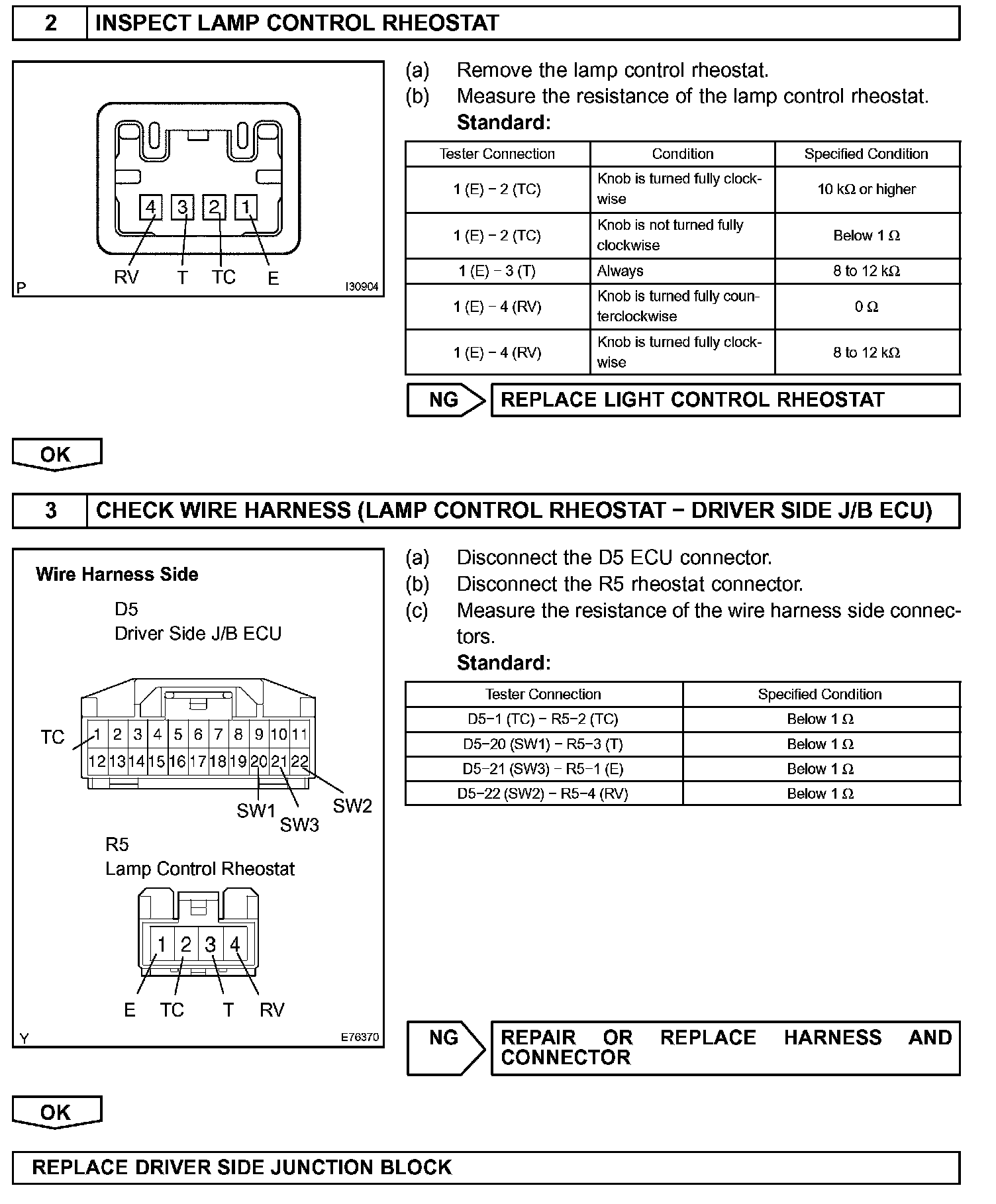

Step 2-3:

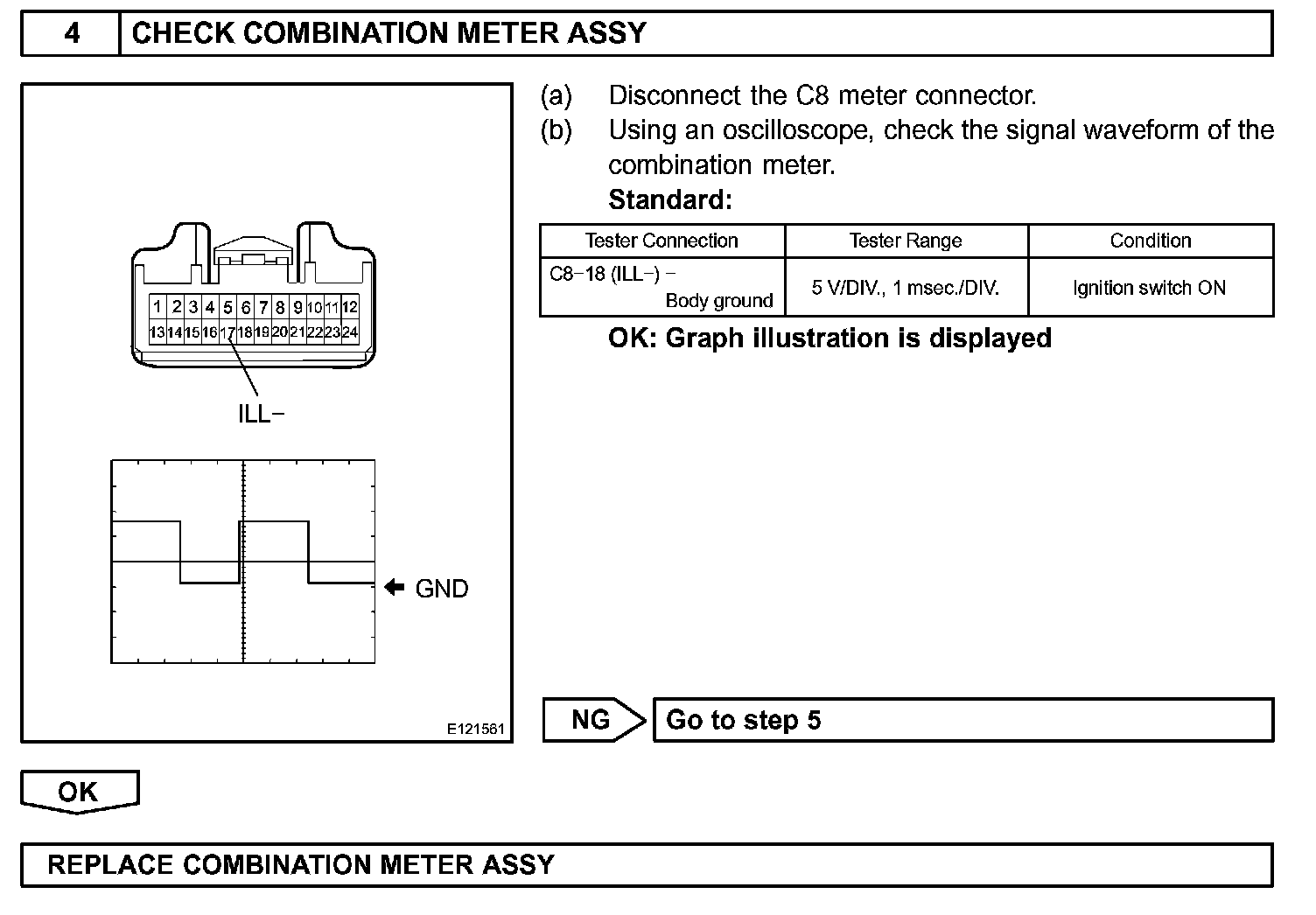

Step 4:
Step 5:
INSPECTION PROCEDURE
