Check DLC3

CHECK DLC3

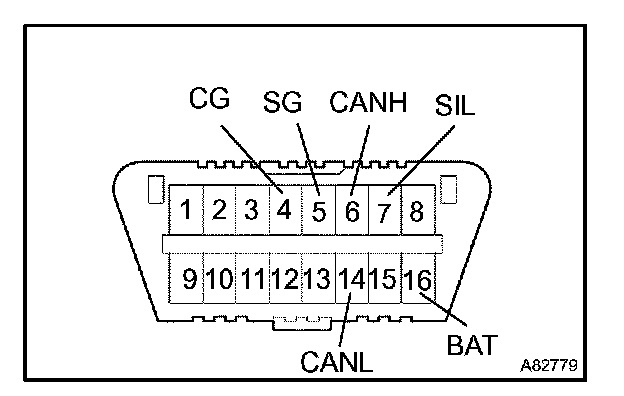

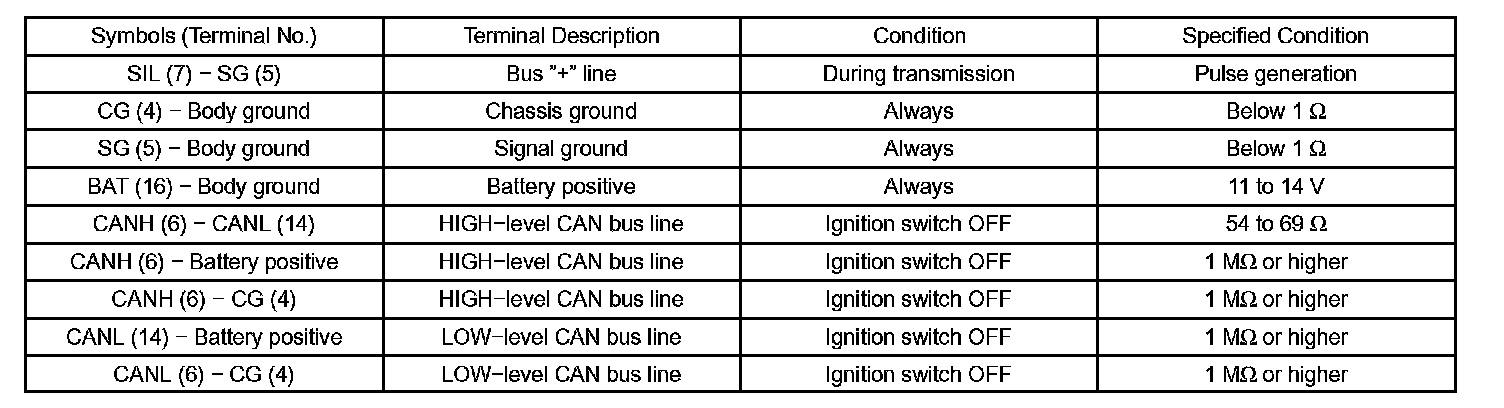

The vehicle's ECM uses ISO 15765-4 for communicating. The terminal arrangement of the DLC3 complies with SAE J1962 and matches the ISO 15765-4 format.

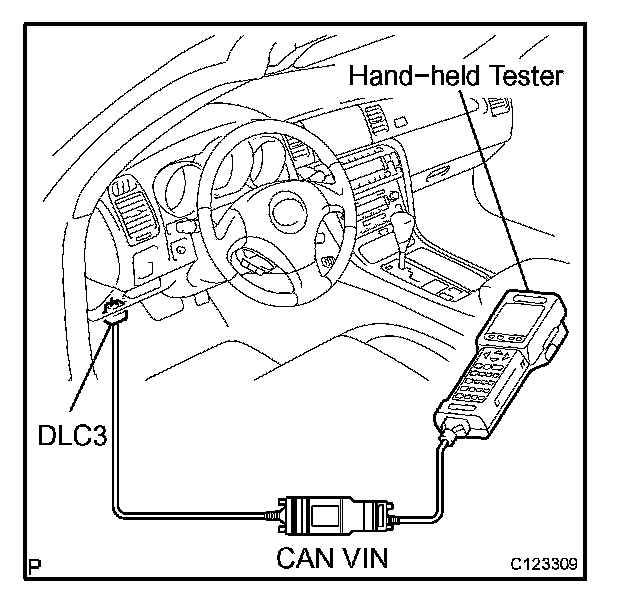

HINT: Connect the cable of the hand-held tester to the DLC3, turn the ignition switch ON and attempt to use the tester. If the display indicates that a communication error has occurred, there is a problem either with the vehicle or with the tester.
- If communication is normal when the hand-held tester is connected to another vehicle, inspect the DLC3 on the original vehicle.
- If communication is still not possible when the tester is connected to another vehicle, the problem is probably in the tester itself. Consult the Service Department listed in the tester's instruction manual.
