Instrument Panel, Gauges and Warning Indicators: Description and Operation

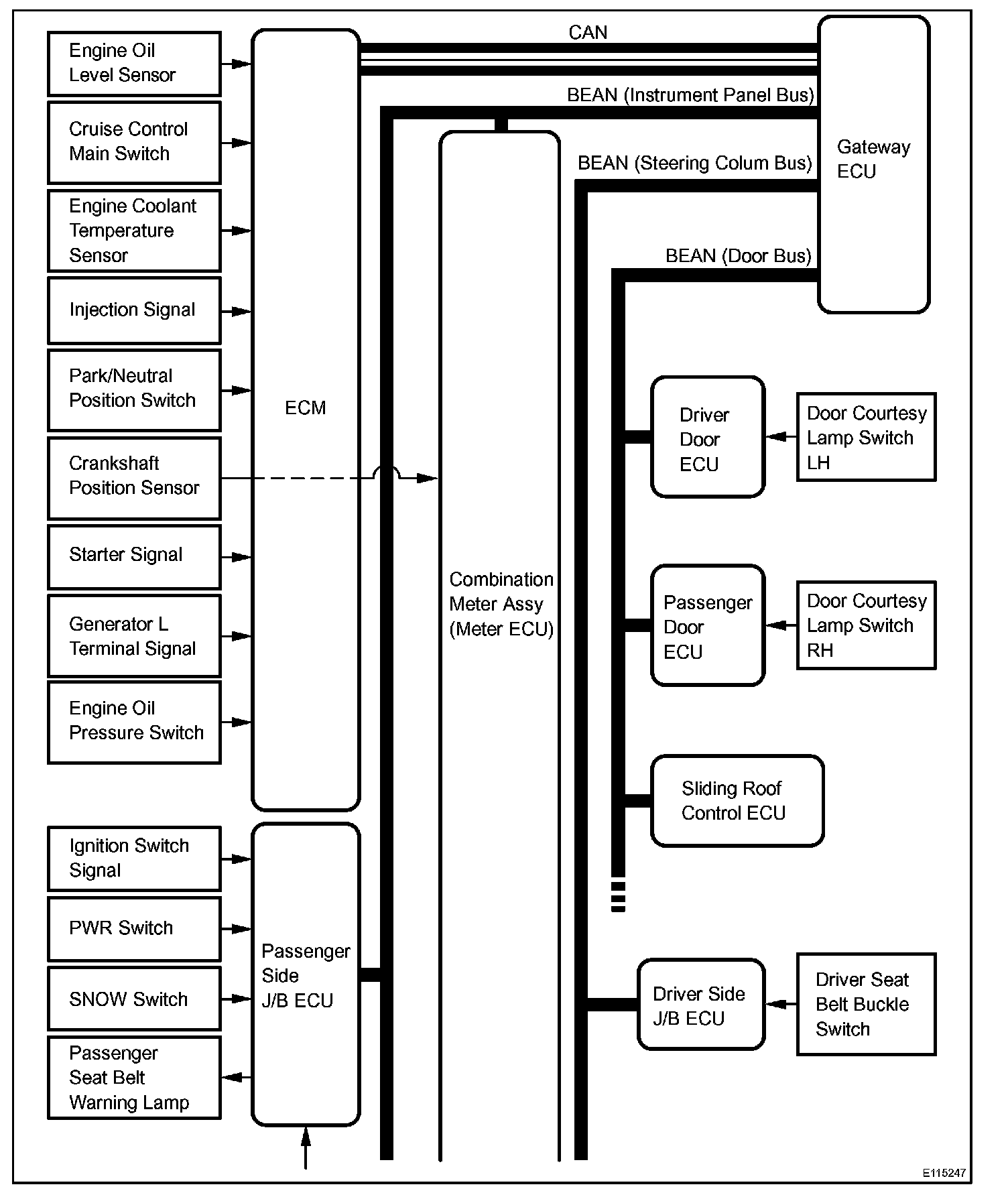

System Diagram (Part 1):

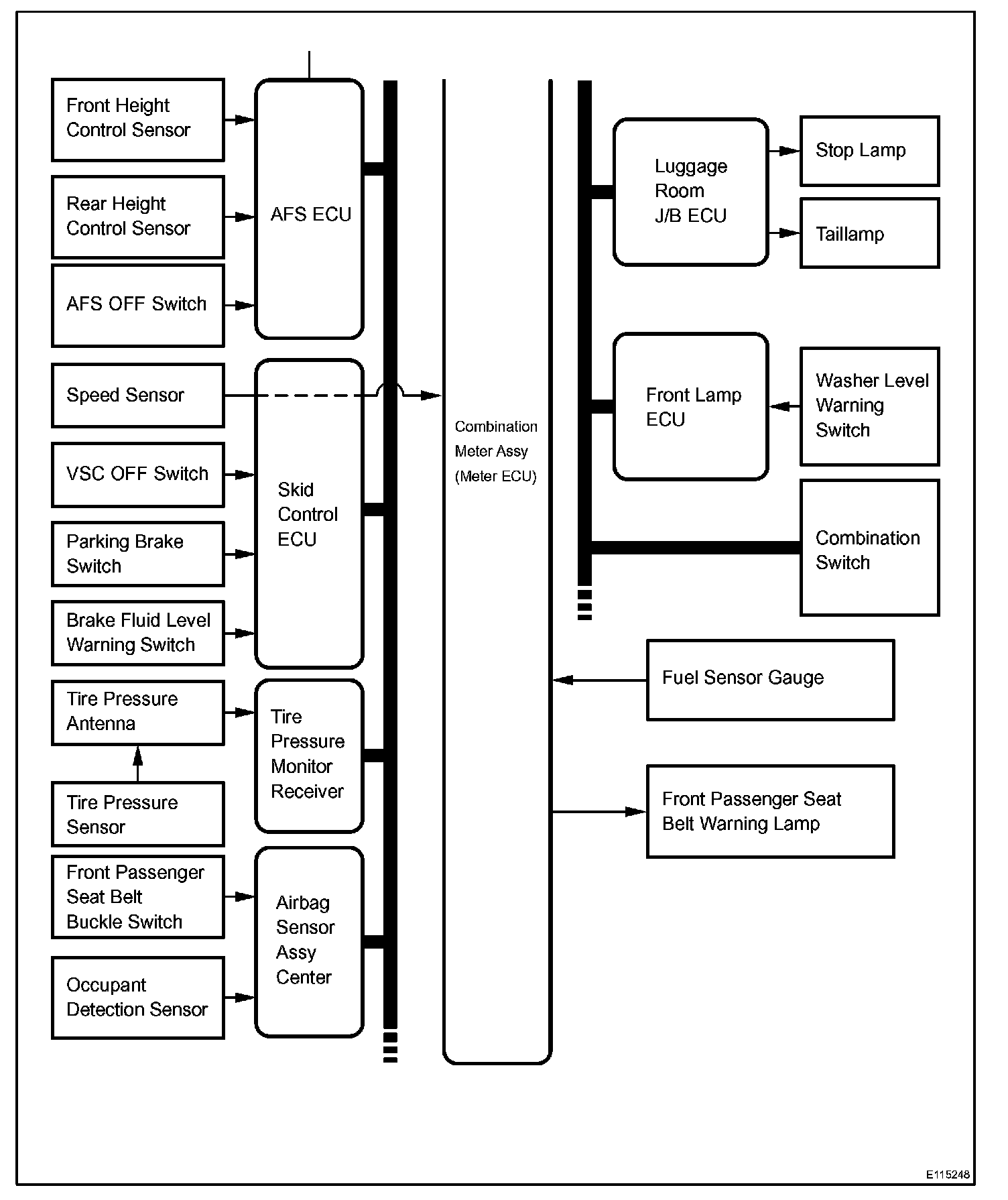

System Diagram (Part 2):
SYSTEM DESCRIPTION

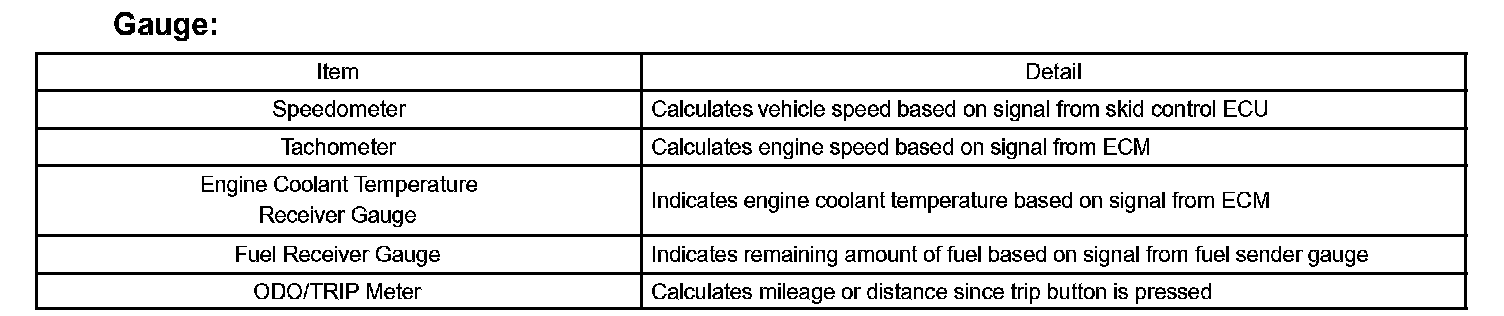

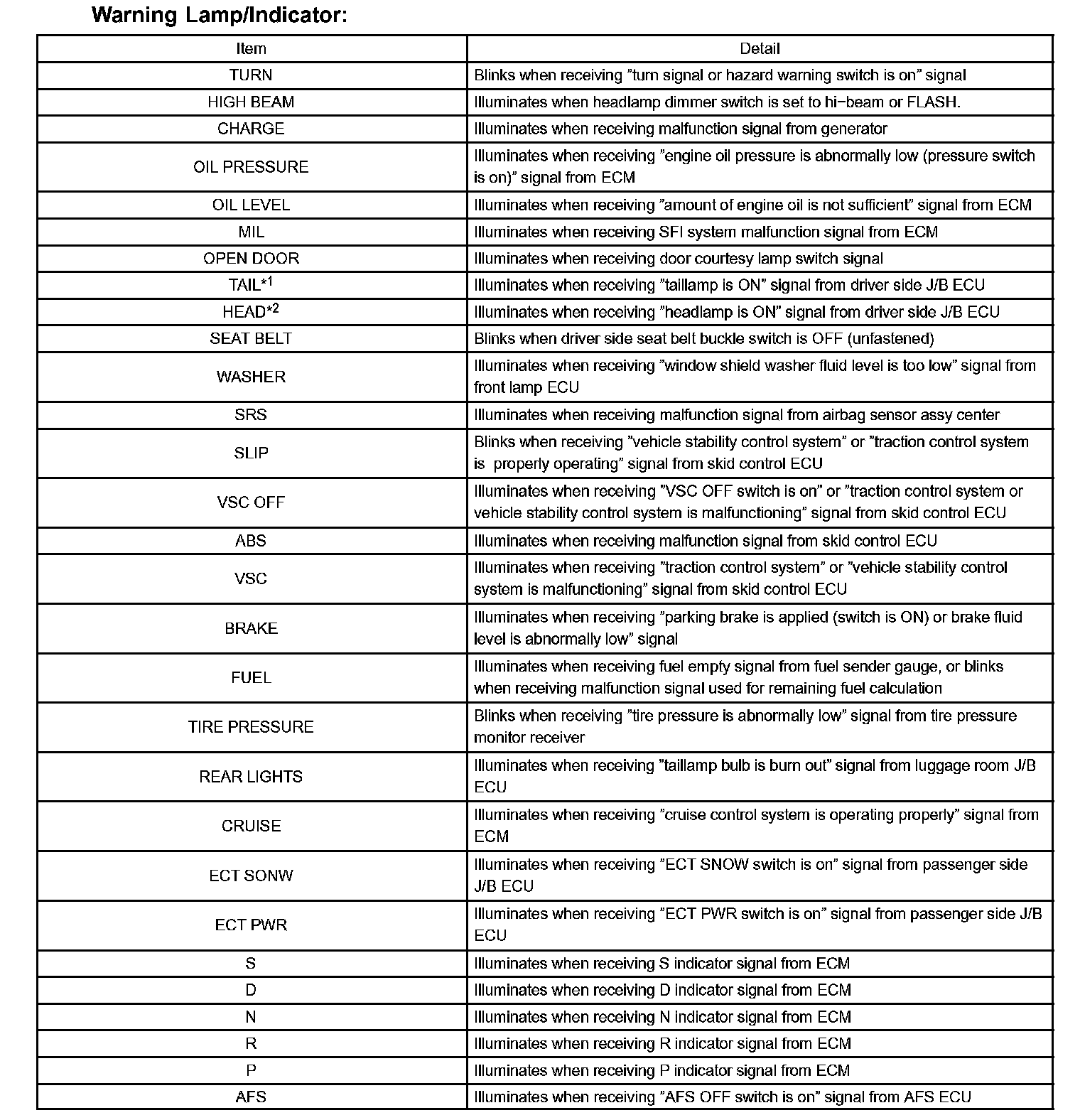

METER GAUGE AND WARNING LAMP/INDICATOR
HINT:
*1: Vehicles for Canada
*2: Vehicles for countries other than Canada
