Transponder Key ECU Power Source Circuit

TRANSPONDER KEY ECU POWER SOURCE CIRCUIT

CIRCUIT DESCRIPTION

This circuit provides power to operate the transponder key ECU.

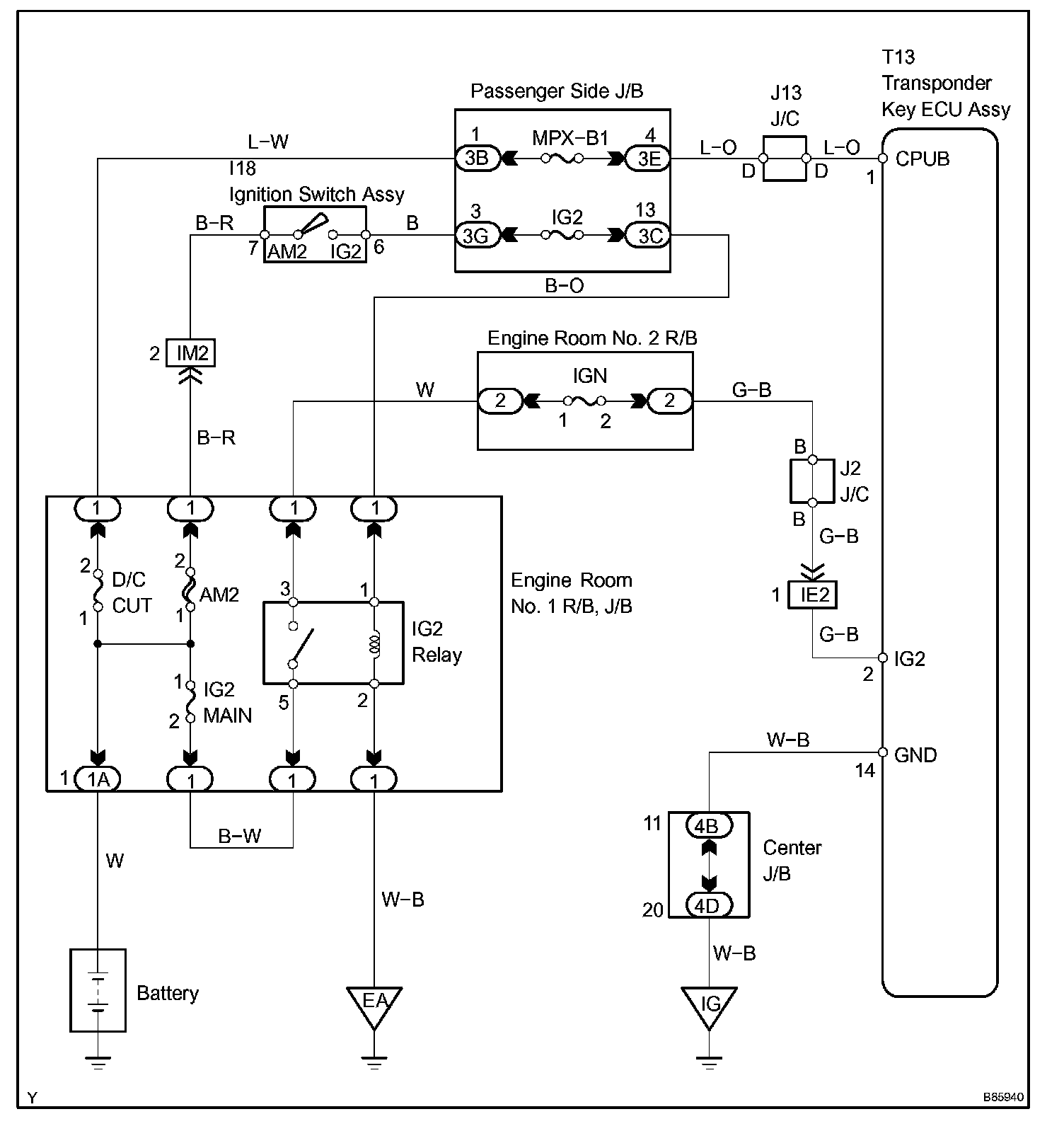

Wiring Diagram:

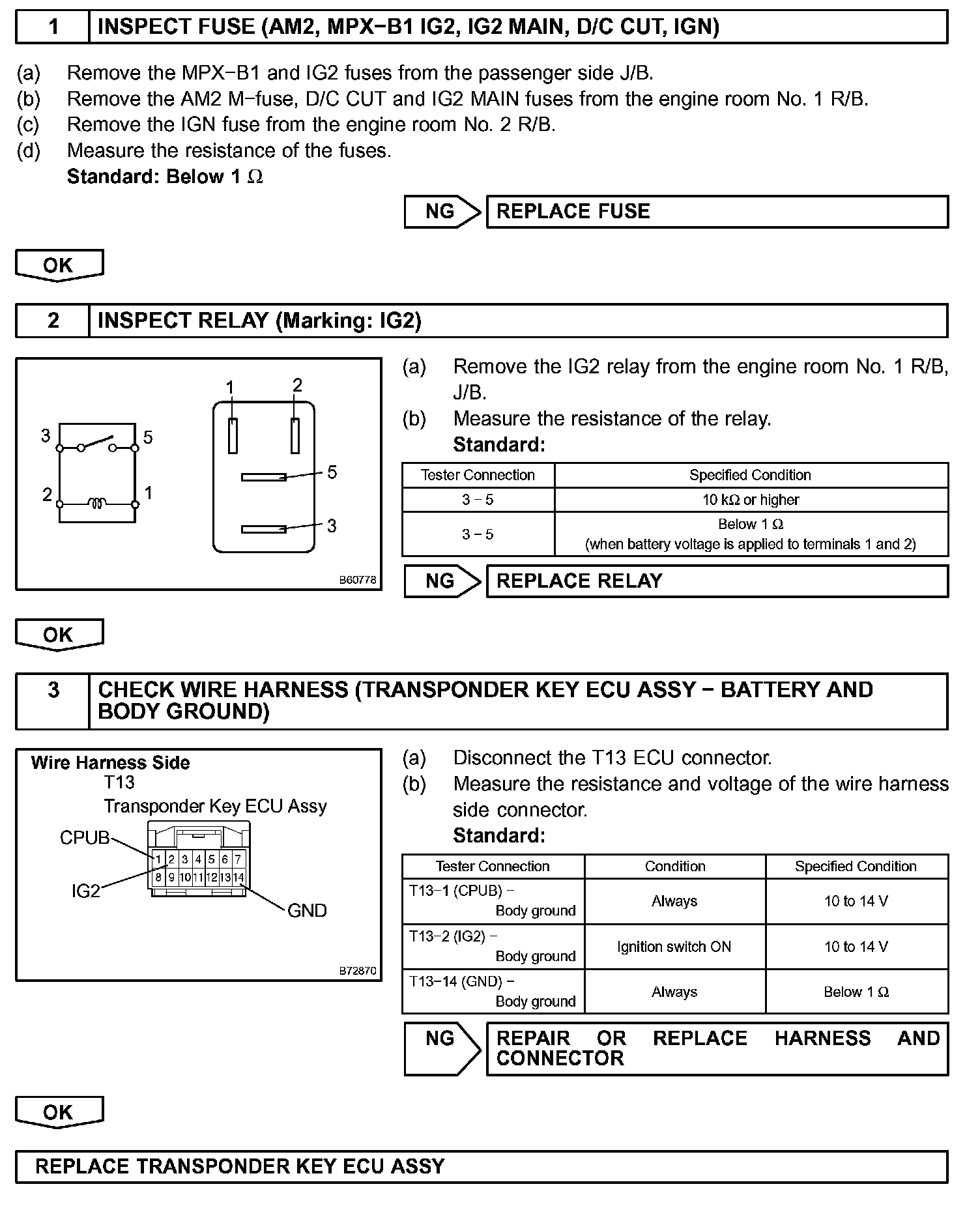

Step 1-3:




INSPECTION PROCEDURE
