On Vehicle Inspection

ON-VEHICLE INSPECTION

CHECK PRESSURE SWITCH










a. Disconnect the switch connector.
b. Set the manifold gage.
c. Turn the ignition switch ON.

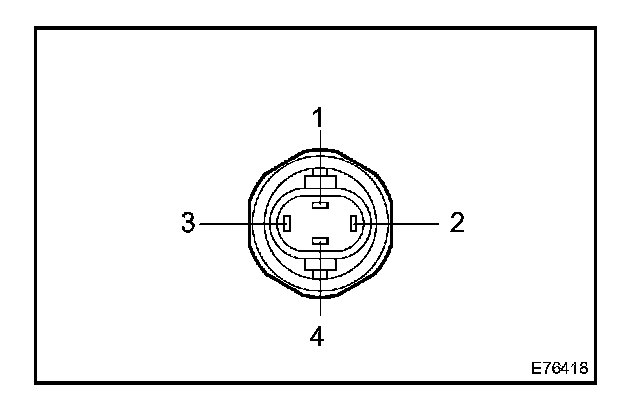

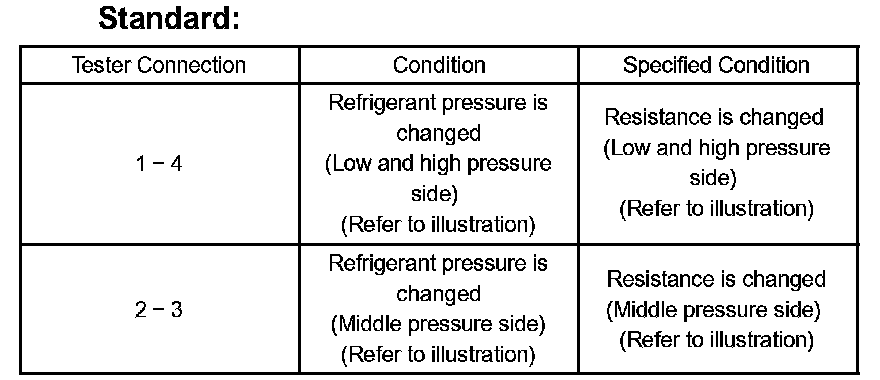

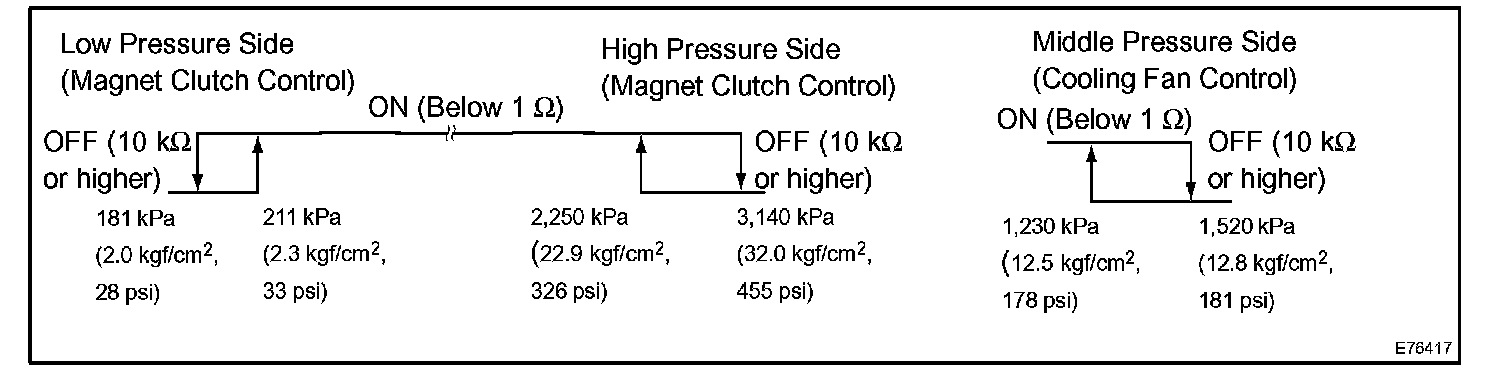

d. Measure the resistance of the switch.

If the result is not as specified, replace the switch.
