List of Operation Methods

DIAGNOSIS SYSTEM

LIST OF OPERATION METHODS

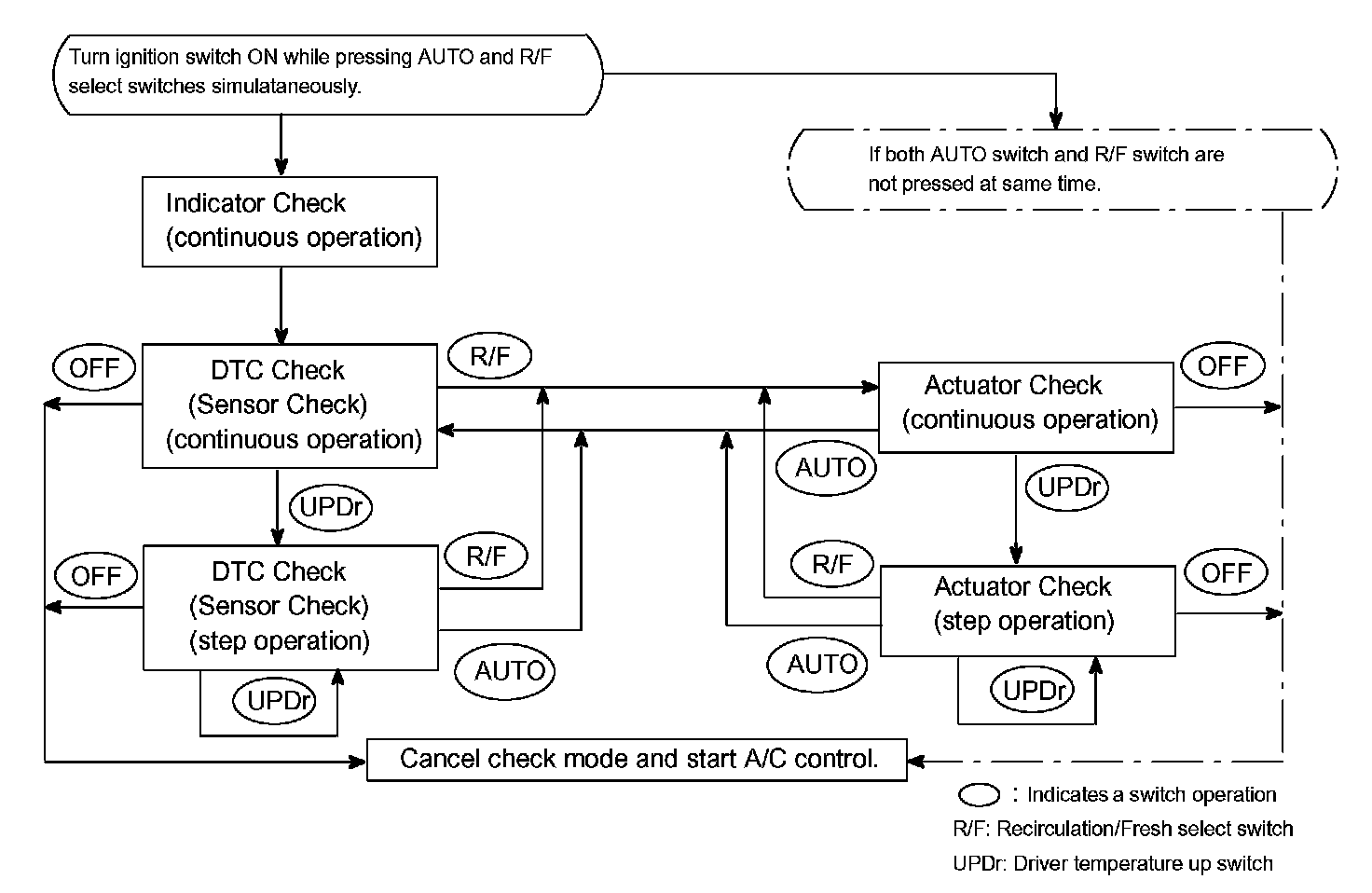

By operating the A/C control switches as shown in the diagram, it is possible to enter the diagnostic check mode.
