AC Back-up Power Source Circuit

BACK-UP POWER SOURCE CIRCUIT

CIRCUIT DESCRIPTION

This circuit supplies a back-up power source for the A/C amplifier. Power is supplied even if the ignition switch is OFF and is used for diagnostic trouble code memory, etc.

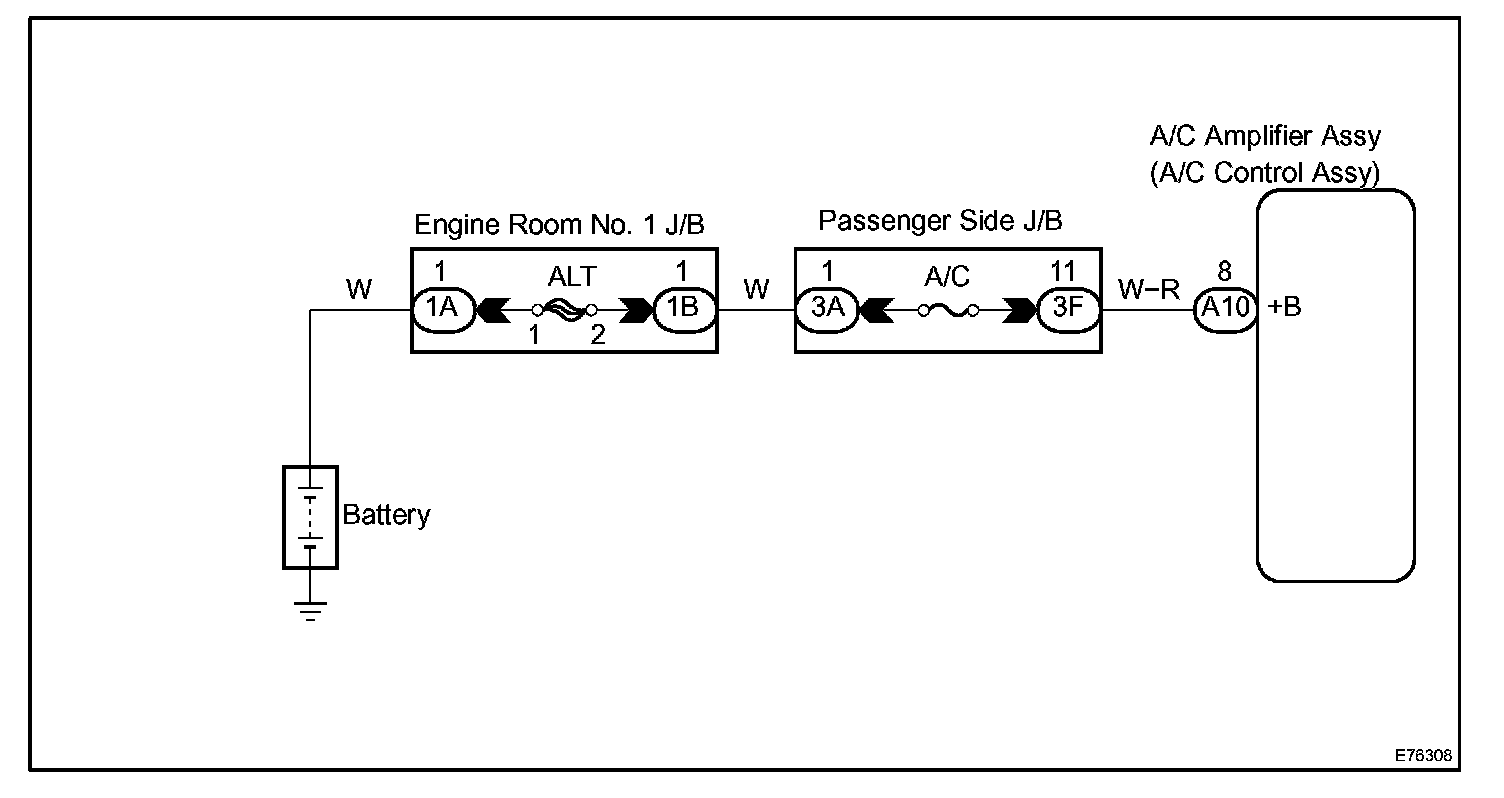

Wiring Diagram:

Step 1-2:

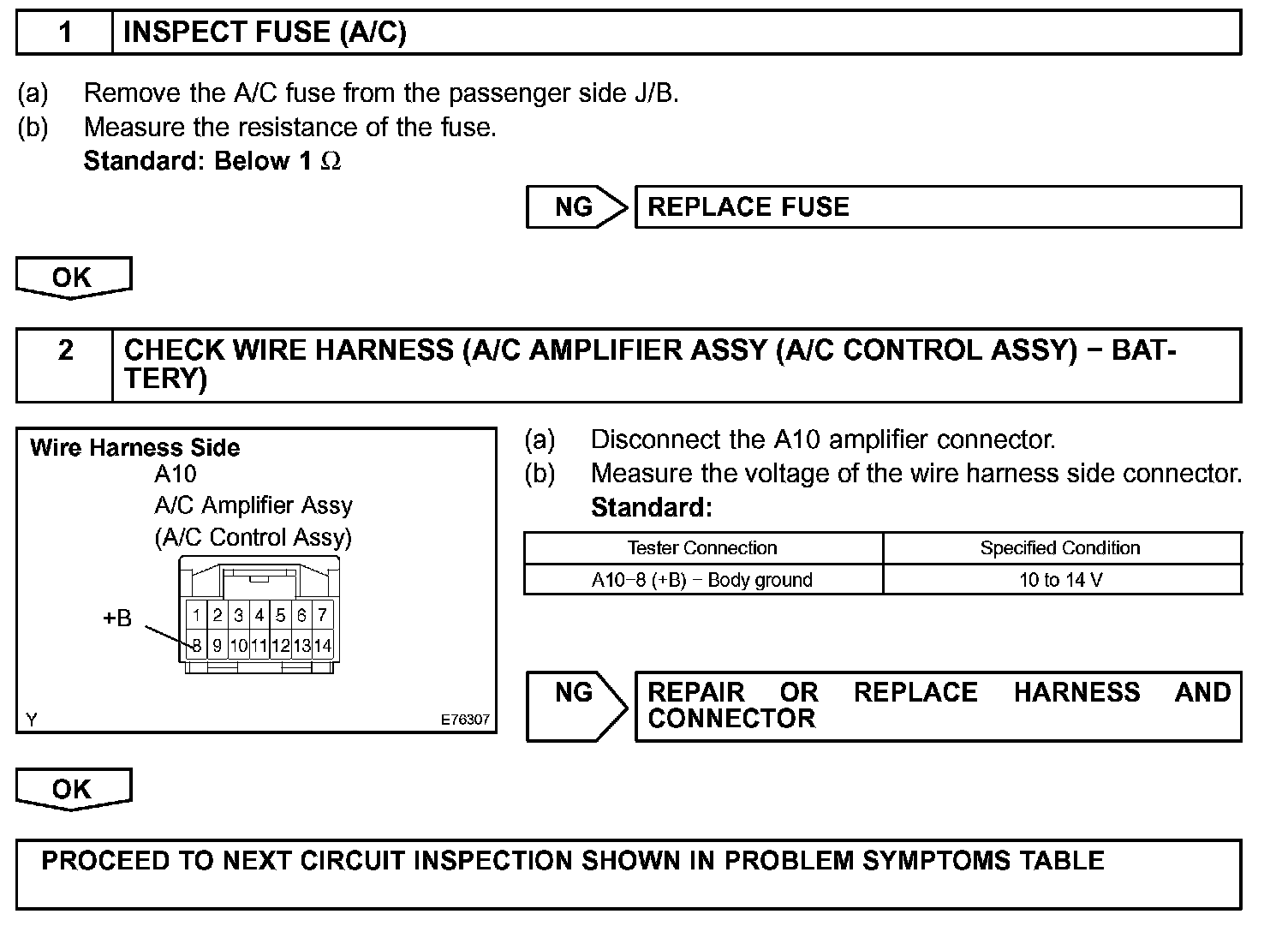

INSPECTION PROCEDURE
