Heating and Air Conditioning: Description and Operation

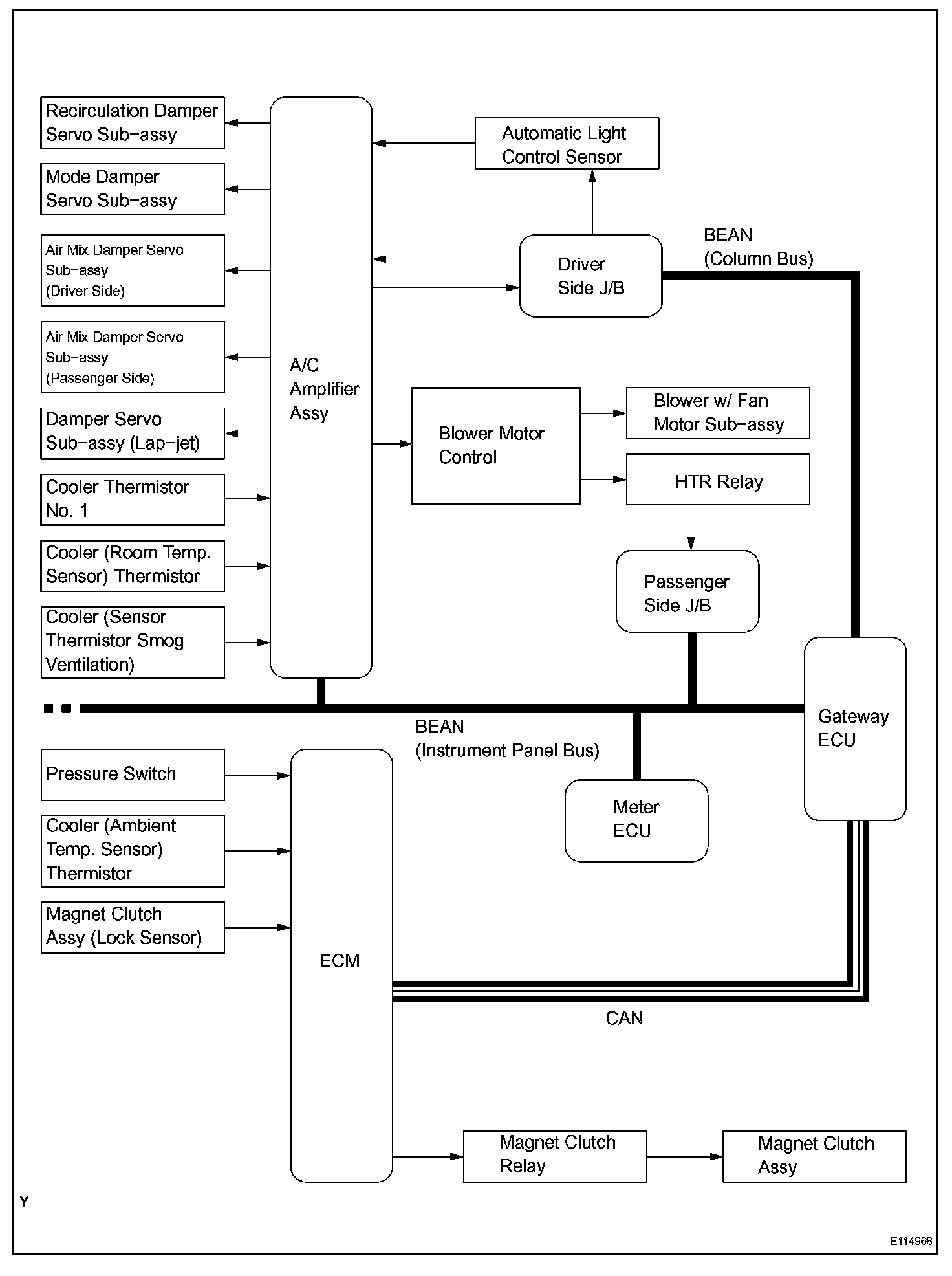

System Diagram:

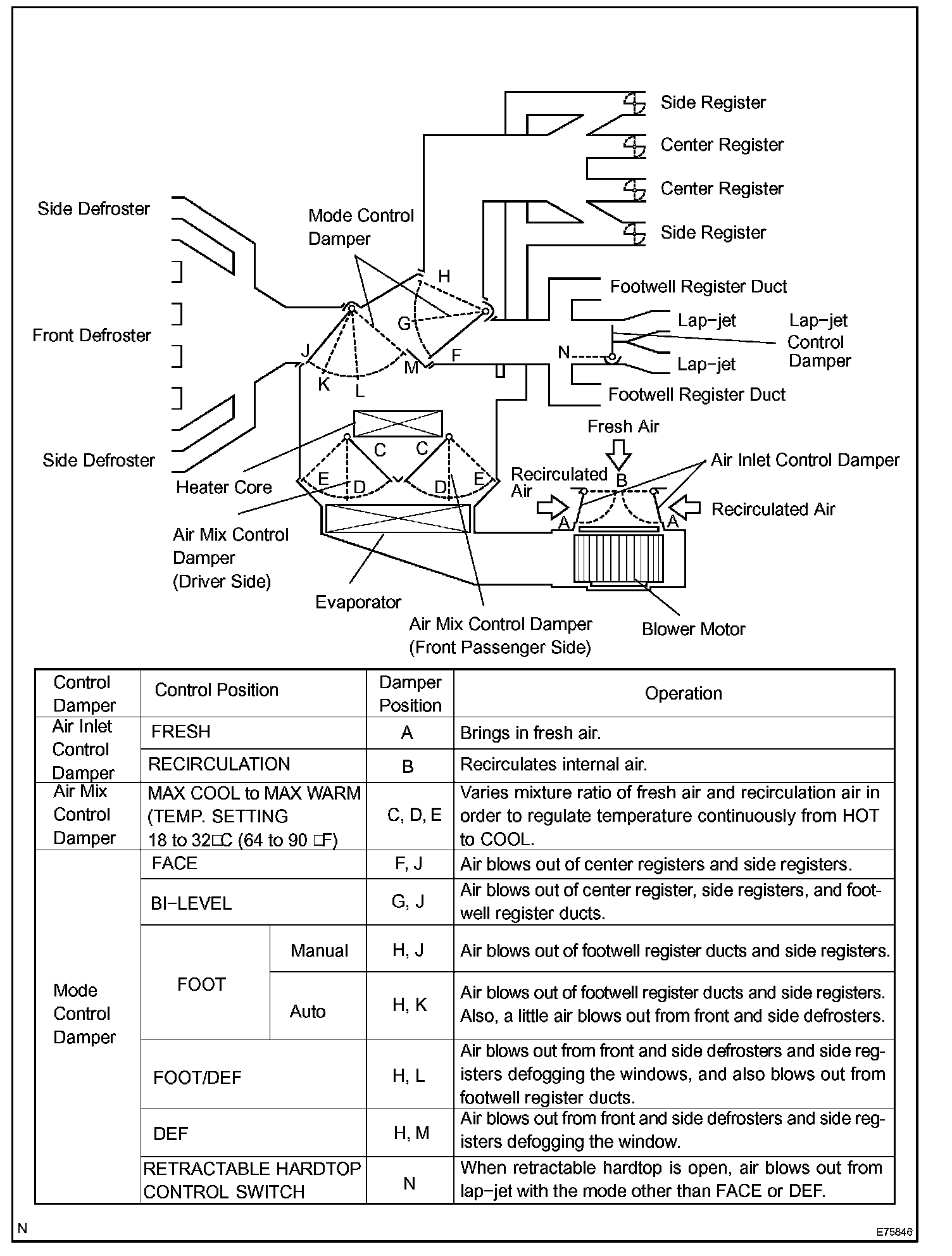

Mode Position And Damper Operation:

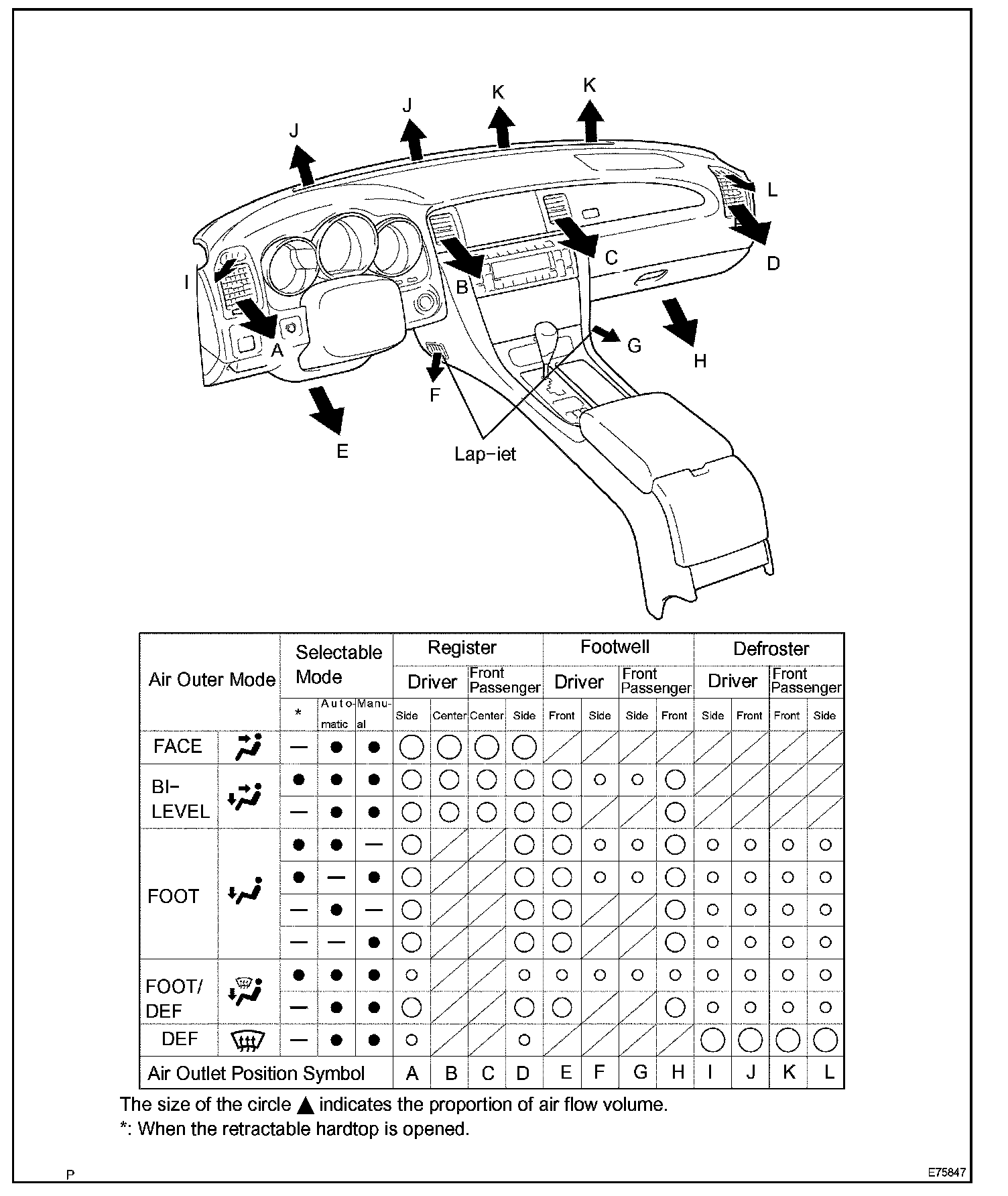

Air Outlets And Air Volume Rations:

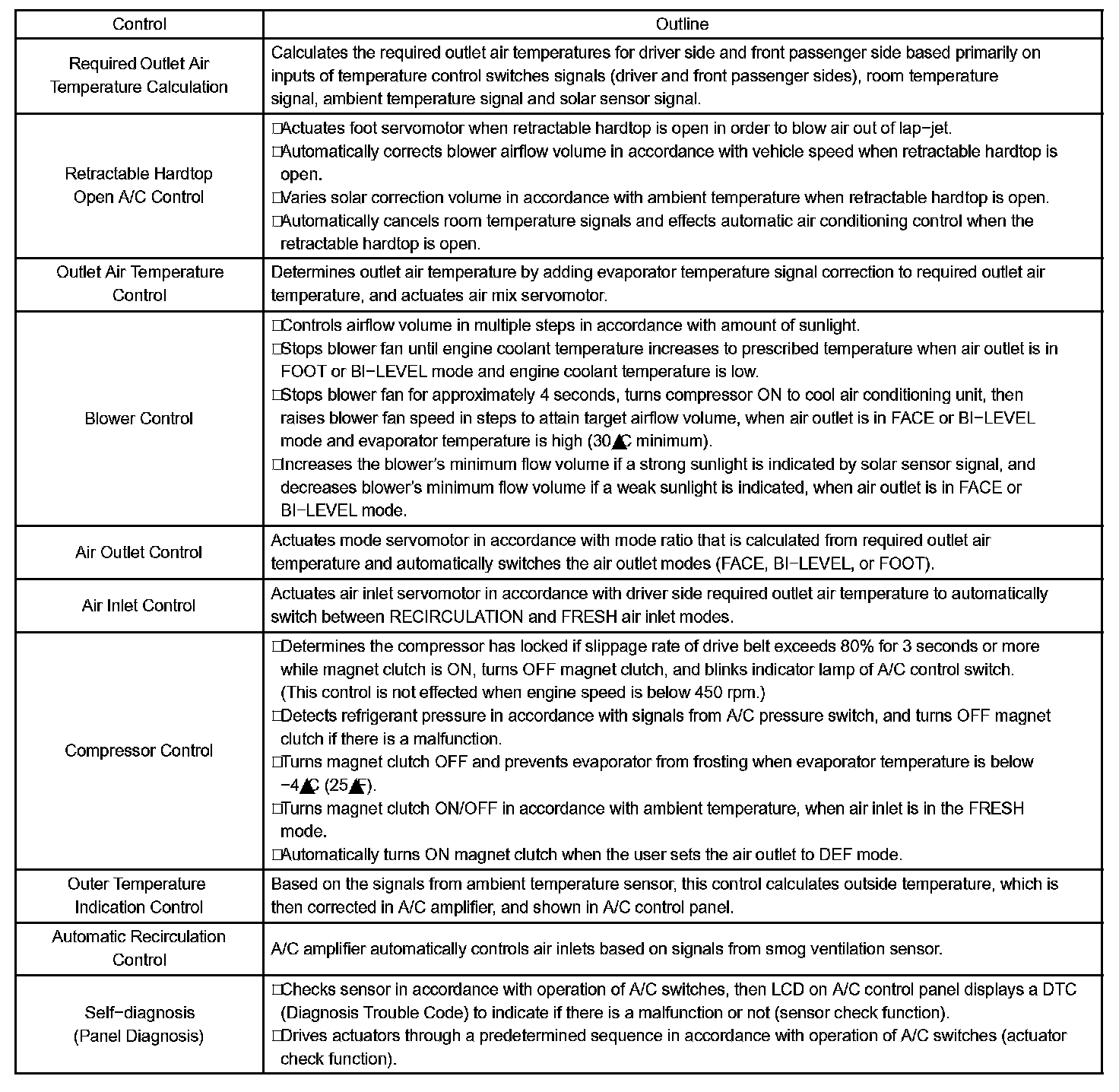

System Control:
