Camshaft (RH)
REPLACEMENT1. DISCHARGE FUEL SYSTEM PRESSURE
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
3. REMOVE TIMING BELT
4. REMOVE IGNITION COIL ASSEMBLY
5. REMOVE CYLINDER HEAD COVER SUB-ASSEMBLY

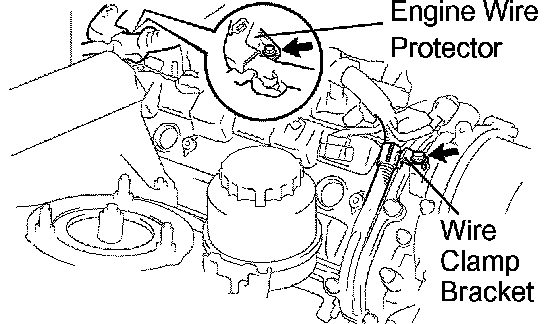

a. Remove the bolt, and disconnect the wire clamp bracket from the camshaft bearing cap.
b. Remove the bolt, and disconnect the engine wire protector from the cylinder head.
c. Remove the 9 bolts, 9 seal washers and cylinder head cover.
6. PISTON & VALVE BREAK PREVENT WORK

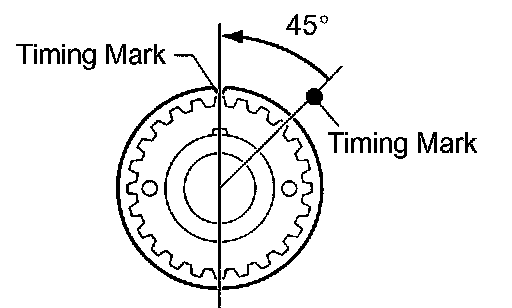

a. Turn the crankshaft timing pulley counterclockwise by 45° and match the cut part with the illustrated position.
HINT: When the No. 1 cylinder is positioned at 45° BTDC, the valve and piston do not interfere with each other even when the valve is fully open.
NOTICE: Be sure to match the cut part by turning it counterclockwise.
7. REMOVE CAMSHAFT TIMING PULLEY

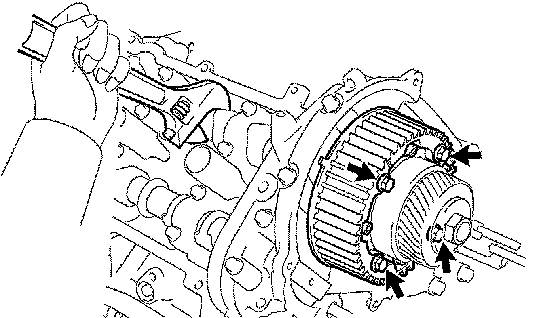

a. Hold the crankshaft with a wrench, and remove the 4 bolts and timing pulley.
8. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY
9. REMOVE CAMSHAFT
NOTICE: Since the thrust clearance of the camshaft is small, the camshaft must be kept level while it is being removed. If the camshaft is not kept level, the portion of the cylinder head receiving the shaft thrust may crack or be damaged, causing the camshaft to seize or break. To avoid this, the following steps should be carried out.

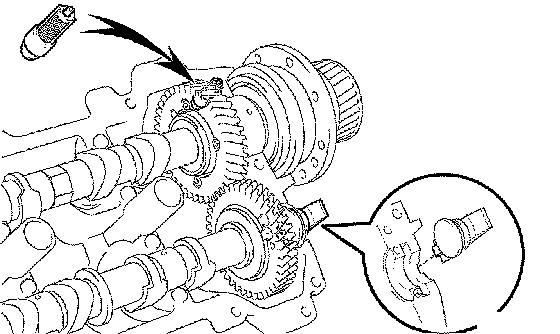

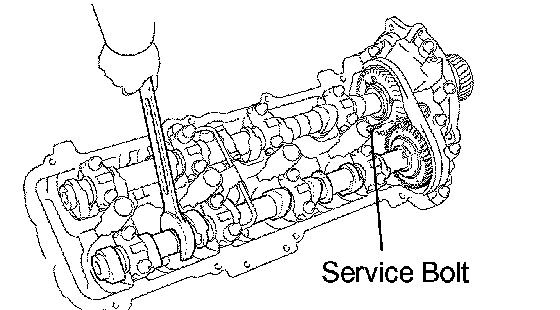

a. Bring the service bolt hole of the sub gear upward by turning the hexagon wrench head portion of the No. 2 camshaft with a wrench.

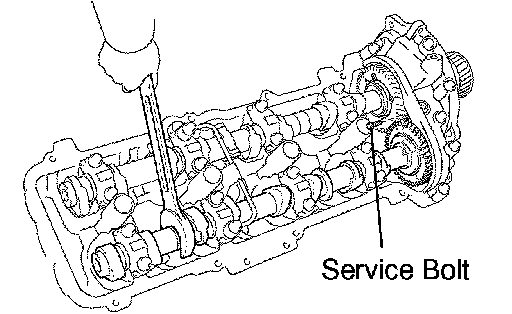

b. Secure the sub gear to the main gear with a service bolt.

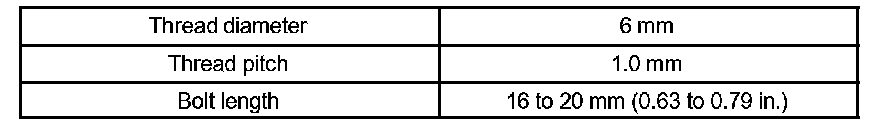

Recommended service bolt
HINT: When removing the camshaft, make sure that the torsional spring force of the sub gear has been eliminated by the above operation.

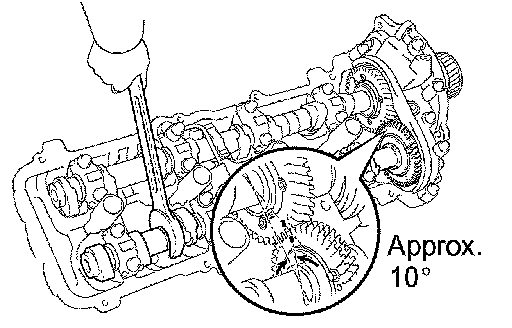

c. Set a wrench to the hexagon head portion of the No. 2 camshaft. Rotate the wrench so that the timing mark (1 dot mark) on the camshaft main gear is moved approximately 10°, as shown in the illustration.
d. Uniformly loosen the 22 bearing cap bolts in several passes in the sequence shown in the illustration.
e. Remove the 22 bearing cap bolts, 4 seal washers, oil feed pipe, 9 bearing caps, camshaft housing plug, oil control valve filter and 2 camshafts.
NOTICE:
^ Do not pry the camshaft with a tool by applying excessive force to it.
^ Do not damage the reception part of the thrust on the cylinder head side.

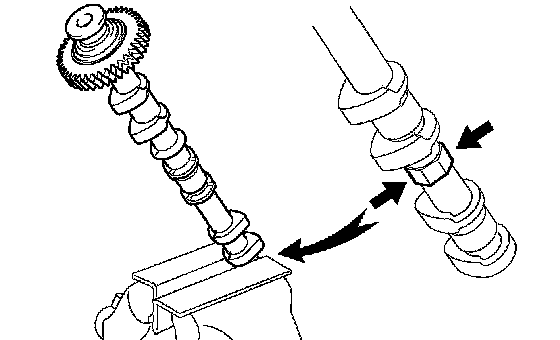

f. Mount the hexagon wrench head portion of the camshaft in a vise.
NOTICE:
^ Be careful not to damage the camshaft.
^ Do not remove the 4 bolts shown in the illustration. The bolts determine the backlash of the gear in the timing tube. If any of the bolts are removed, install a new timing tube assembly.
g. Remove the screw plug and seal washer.

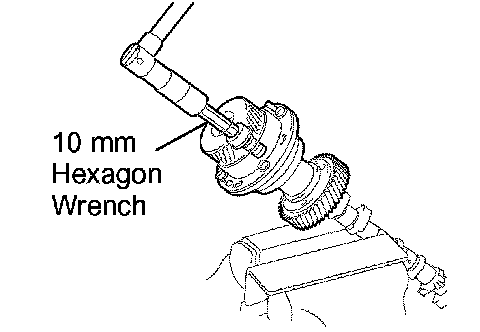

h. Using a 10 mm hexagon wrench, remove the bolt.
i. Pull out the timing tube and drive gear from the camshaft.

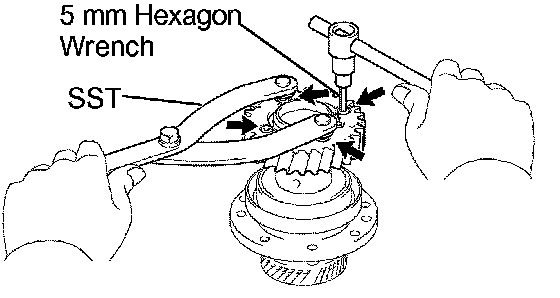

j. Using SST and a 5 mm hexagon wrench, remove the 4 bolts, drive gear and oil seal.
SST 09960-10010 (09962-01000, 09963-00500)
NOTICE: Be careful not to damage the timing tube.
10. REMOVE CAMSHAFT SUB GEAR
a. Mount the hexagon wrench head portion of the camshaft in a vise.
NOTICE: Be careful not to damage the camshaft.

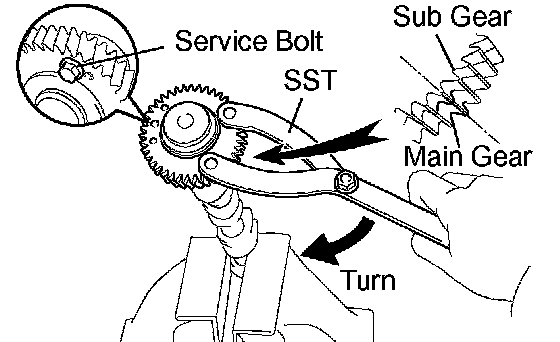

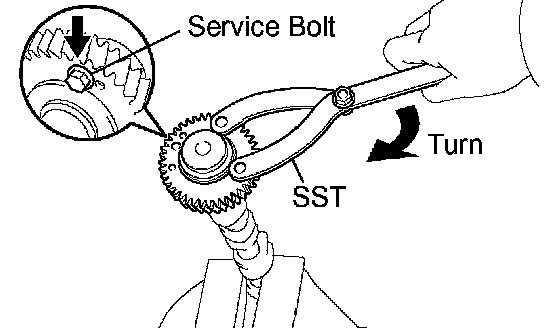

b. Using SST, turn the sub gear clockwise and remove the service bolt.

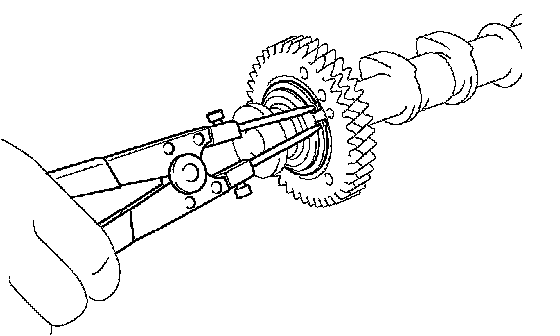

c. Using snap ring pliers, remove the snap ring.
d. Remove the wave washer, sub gear and bolt washer.
HINT: Arrange the driven sub gears and bolt washers (RH and LH sides).

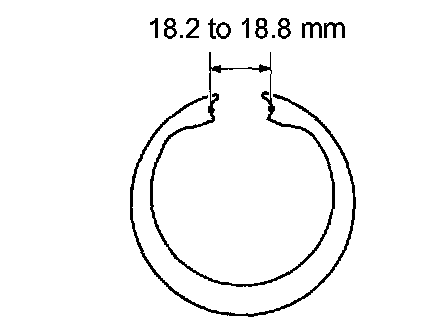

e. Using a vernier caliper, measure the free distance between the washer ends.
Free distance: 18.2 to 18.8 mm (0.712 to 0.740 inch)
If the free distance is not as specified, replace the washer.
11. INSTALL CAMSHAFT SUB GEAR

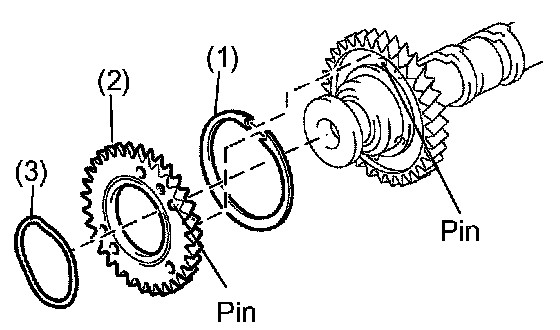

a. Install the bolt washer (1), sub gear (2) and wave washer (3)
HINT: Attach the pins on the gears to the gear bolt washer ends.

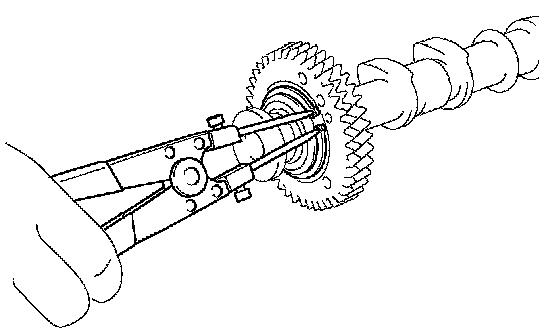

b. Using snap ring pliers, install the snap ring.
c. Mount the hexagon wrench head portion of the camshaft in a vise.
NOTICE: Be careful not to damage the camshaft.
d. Using SST, align the holes of the driven main gear and sub gear by turning the sub gear clockwise. Temporarily install a service bolt.
e. Align the gear teeth of the driven main gear and sub gear, and tighten the service bolt.
12. INSTALL CAMSHAFT TIMING TUBE ASSEMBLY

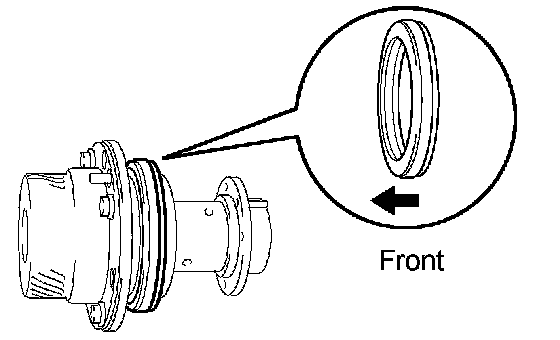

a. Insert a new oil seal into the camshaft timing tube until it reaches the stopper.
NOTICE:
^ Be careful of the installation direction.
^ Do not turn over the oil seal lip.
b. Align the timing tube knock pin with the knock pin groove of the drive gear, and temporarily install the drive gear with the 4 bolts.
c. Using SST and a 5 mm hexagon wrench, uniformly tighten the 4 bolts in several passes.
SST 09960-10010 (09962-01000, 09963-00500)
Torque: 7.5 Nm (76 kgf-cm, 66 inch lbs.)
NOTICE: Be careful not to damage the timing tube.

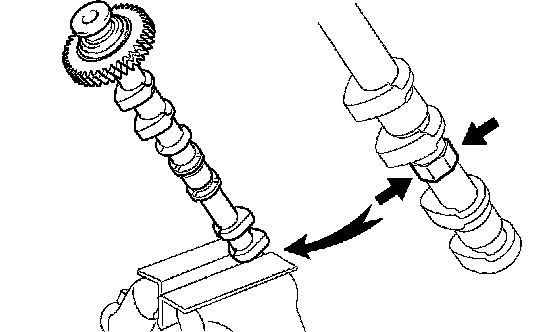

d. Mount the hexagon wrench head portion of the camshaft in a vise.
NOTICE: Be careful not to damage the camshaft.

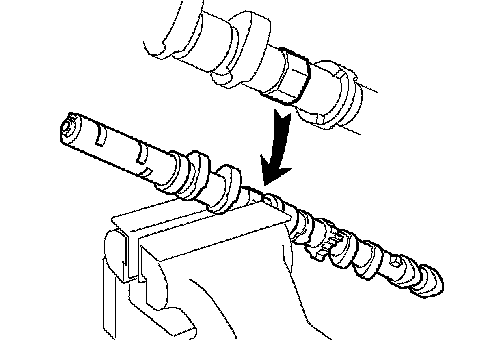

e. Align the camshaft knock pin with the knock pin groove of the timing tube, and push the timing tube by hand until you feel it touch the bottom.

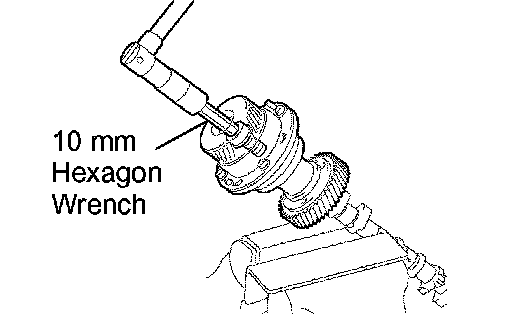

f. Using a 10 mm hexagon wrench, install the bolt.
Torque: 78 Nm (795 kgf-cm, 58 ft. lbs.)
g. Install the seal washer and screw plug.
Torque: 15 Nm (152 kgf-cm, 11 ft. lbs.)
13. INSTALL CAMSHAFT
NOTICE: Since the thrust clearance of the camshaft is small, the camshaft must be kept level while it is being installed. If the camshaft is not kept level, the portion of the cylinder head receiving the shaft thrust may crack or be damaged, causing the camshaft to seize or break. To avoid this, the following steps should be carried out.
1. Apply engine oil to the cam and gear of the camshaft and also the journal of the cylinder head.
2. Align the timing marks (1 dot mark each) of the camshaft drive and driven main gears, and place the intake and exhaust camshafts.

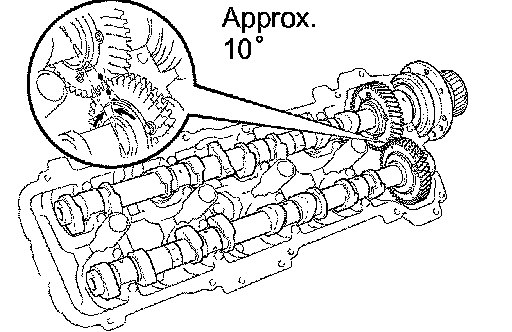

3. Set the timing mark (1 dot mark each) of the camshaft drive and driven main gears at an angle of approximately 10°.
4. Apply seal packing to the camshaft housing plug.
^ Remove the old packing (FIPG) material.

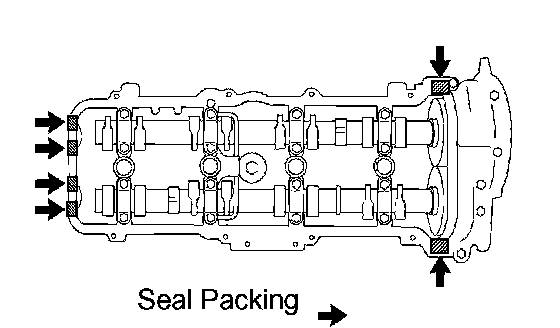

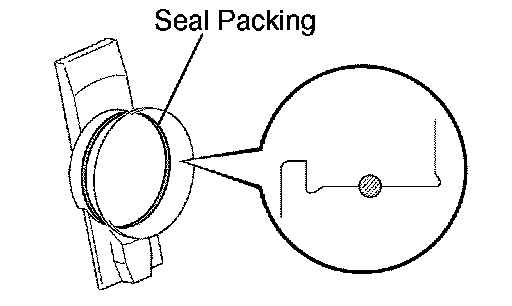

^ Apply seal packing to the housing plug as shown in the illustration.
Seal packing: Part No. 08826-00080 or equivalent

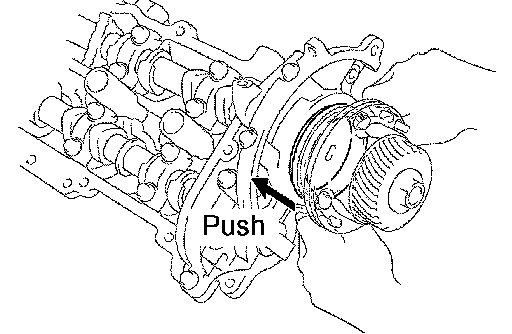

5. Install the camshaft housing plug to the cylinder head as shown in the illustration.
6. Install the oil control valve filter to the cylinder head.
NOTICE: Be careful of the installation direction.
7. Apply seal packing to the front bearing cap.
^ Remove any old packing (FIPG) material.

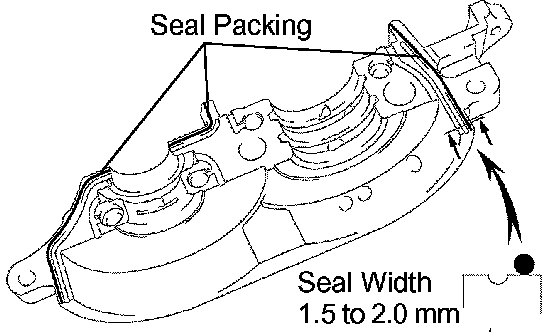

^ Apply seal packing to the bearing cap as shown in the illustration.
Seal packing: Part No. 08826-00080 or equivalent
Seal width: 1.5 to 2.0 mm (0.059 to 0.079 inch)
NOTICE: Do not apply seal packing to the front bearing cap grooves.
8. Install the front bearing cap.
HINT: Installing the front bearing cap will determine the thrust portion of the camshaft.
9. Install the other bearing caps in the sequence shown with the arrow mark facing forward.
10. Push in the camshaft oil seal.
11. Install 4 new seal washers to the bearing cap bolts (1 to 4).
12. Apply a light coat of engine oil on the threads and under the heads of the bearing cap bolts (5 to 22).
NOTICE: Do not apply engine oil under the heads of the bearing cap bolts (1 to 4).
13. Install the oil feed pipe with the 22 bearing cap bolts.

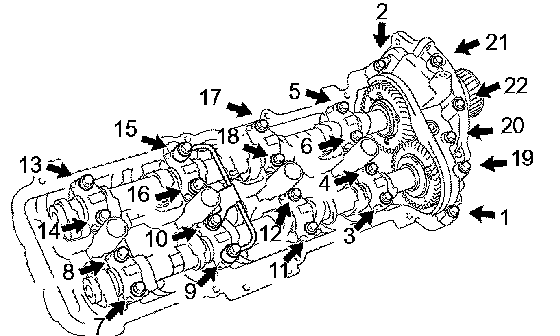

14. Uniformly tighten the 22 bearing cap bolts in several passes, in the sequence shown in the illustration.
Torque:
7.5 Nm (76 kgf-cm, 66 inch lbs.) for bolts 21 and 22
16 Nm (163 kgf-cm, 12 ft. lbs.) for other bolts
15. Remove the service bolt.
14. INSTALL CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY
15. INSTALL CAMSHAFT TIMING PULLEY
a. Align the camshaft timing tube knock pin with the knock pin groove of the timing pulley.

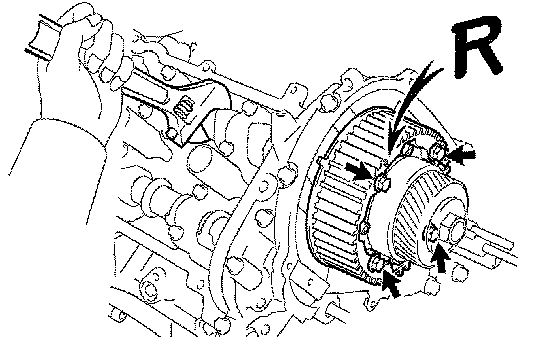

b. Attach the timing pulley to the camshaft timing tube. Face the timing pulley's R mark forward.
c. Hold the camshaft with a wrench and install the 4 pulley bolts.
Torque: 7.5 Nm (76 kgf-cm, 66 inch lbs.)
16. INSTALL CYLINDER HEAD COVER SUB-ASSEMBLY
a. Remove any old packing (FIPG) material.
b. Apply seal packing to the cylinder heads as shown in the illustration.
Seal packing: Part No. 08826-00080 or equivalent
NOTICE:
^ Remove any oil from the contact surface.
^ Install the oil pan within 5 minutes after applying seal packing.
^ Do not start the engine within 2 hours after installing.
c. Install the gasket to the cylinder head cover.
d. Install the seal washer to the bolt.
e. Install the cylinder head cover with the 9 bolts. Uniformly tighten the bolts in several passes.
Torque: 6.0 Nm (61 kgf-cm, 53 inch lbs.)
f. Install the wire clamp bracket on the engine wire to the cylinder head.
g. Install the wire clamp bracket on the engine wire to the camshaft bearing cap.
17. INSTALL IGNITION COIL ASSEMBLY
Torque: 7.5 Nm (76 kgf-cm, 66 inch lbs.)
18. INSTALL TIMING BELT
19. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
20. PERFORM INITIALIZATION
NOTICE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
