On-Vehicle Cleaning

ON-VEHICLE CLEANING
1. INSPECT FINS BLOCKAGE

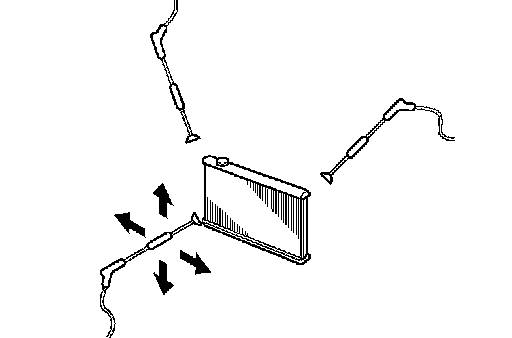

a. Check that the radiator and condenser are not blocked with leaves, dirt, or insects, and clean the hose connection.





If the fins are clogged, wash them with water or a steam cleaner and dry with an air compressor.

NOTICE:

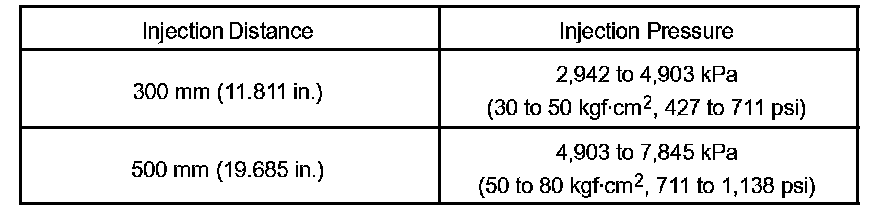

^ Maintain the following injection distance. If the distance between the steam cleaner and the core is too close, there is a possibility of damaging the fin.





Standard

^ If the fins are bent, straighten them with a screwdriver or pliers.
^ Never apply water directly onto the electronic components.
