Headlamp Alignment Sensor

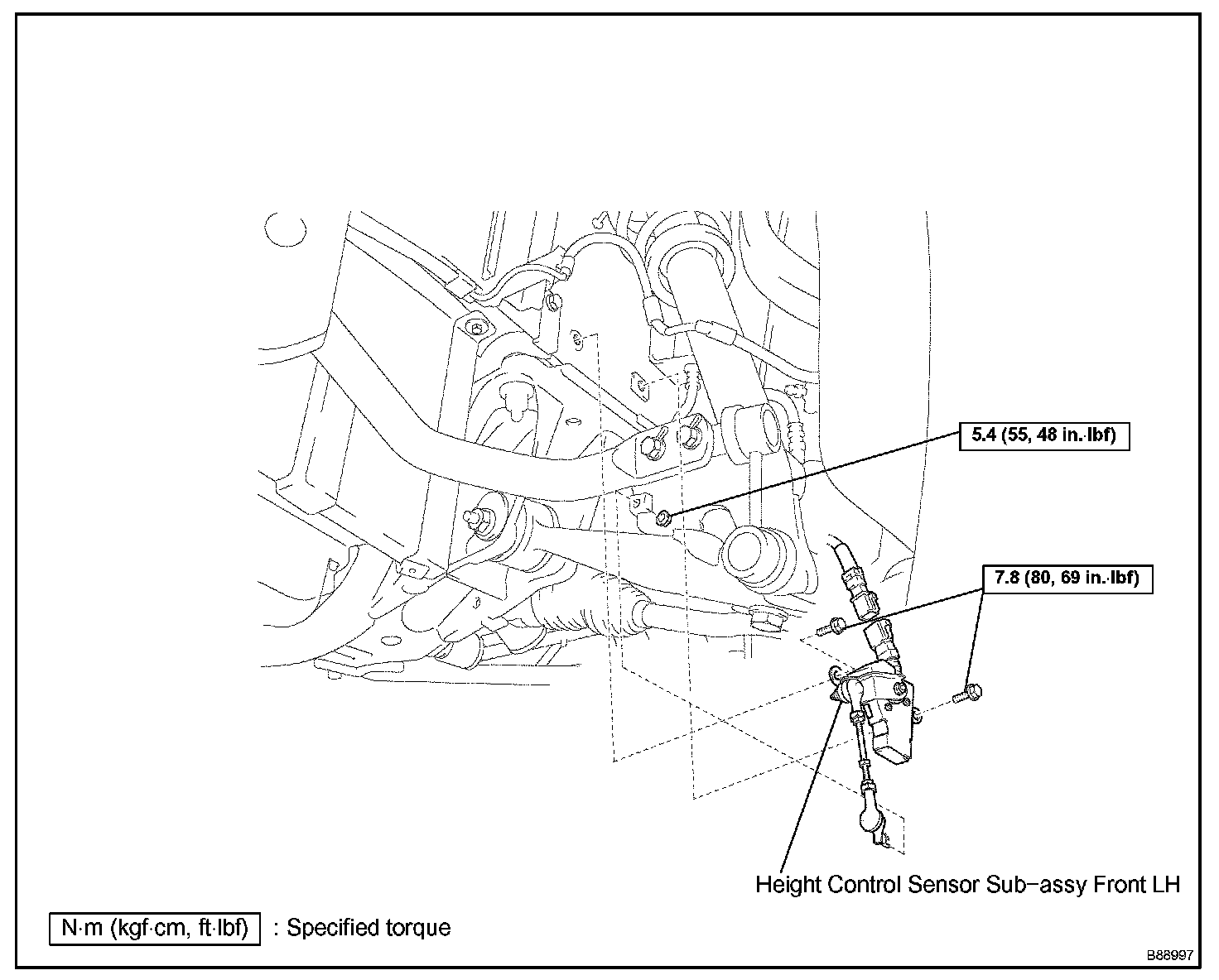

Height Control Sensor Sub-Assy Front:

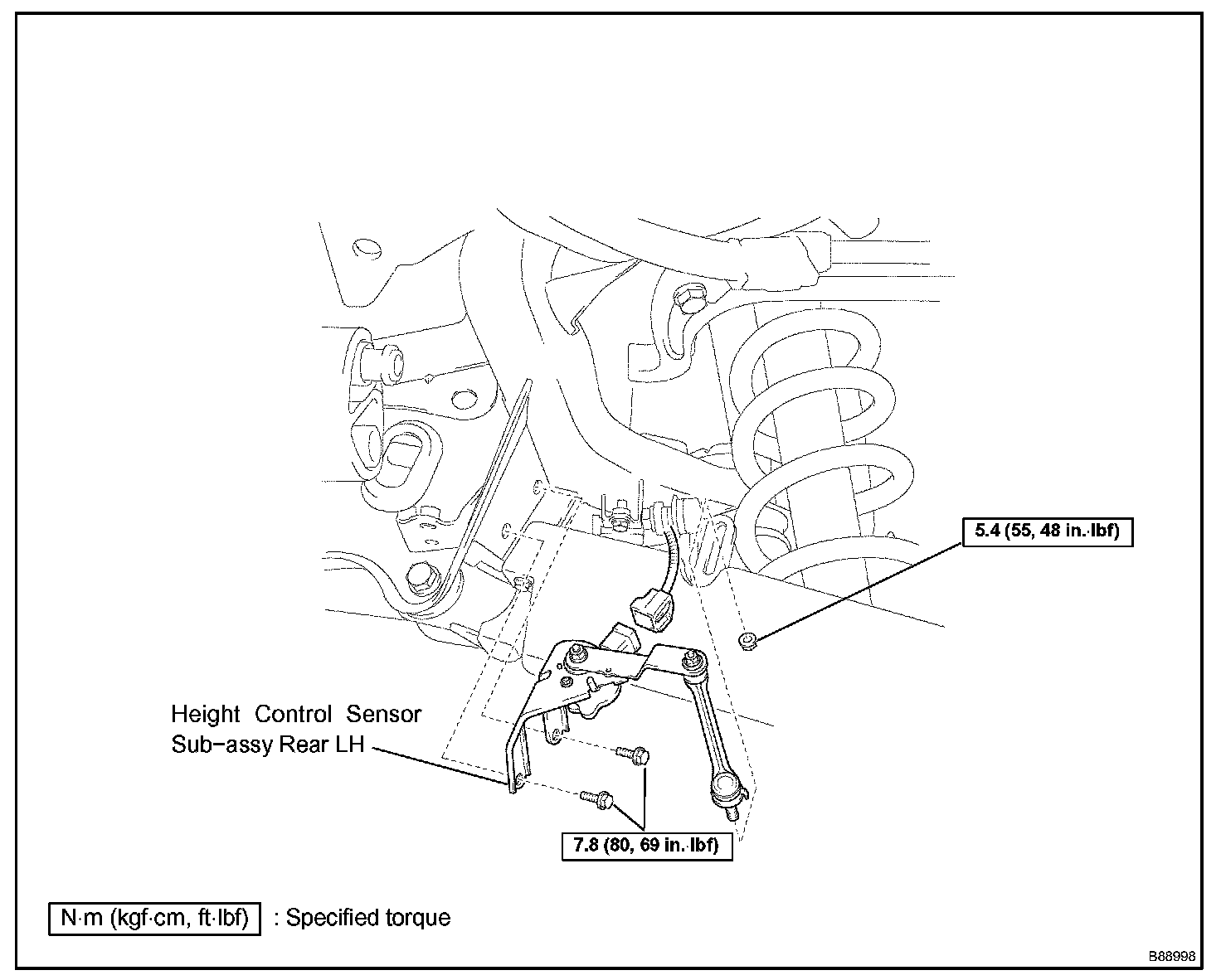

Height Control Sensor Sub-Assy Rear:
