TC Terminal Circuit

TC TERMINAL CIRCUIT

CIRCUIT DESCRIPTION

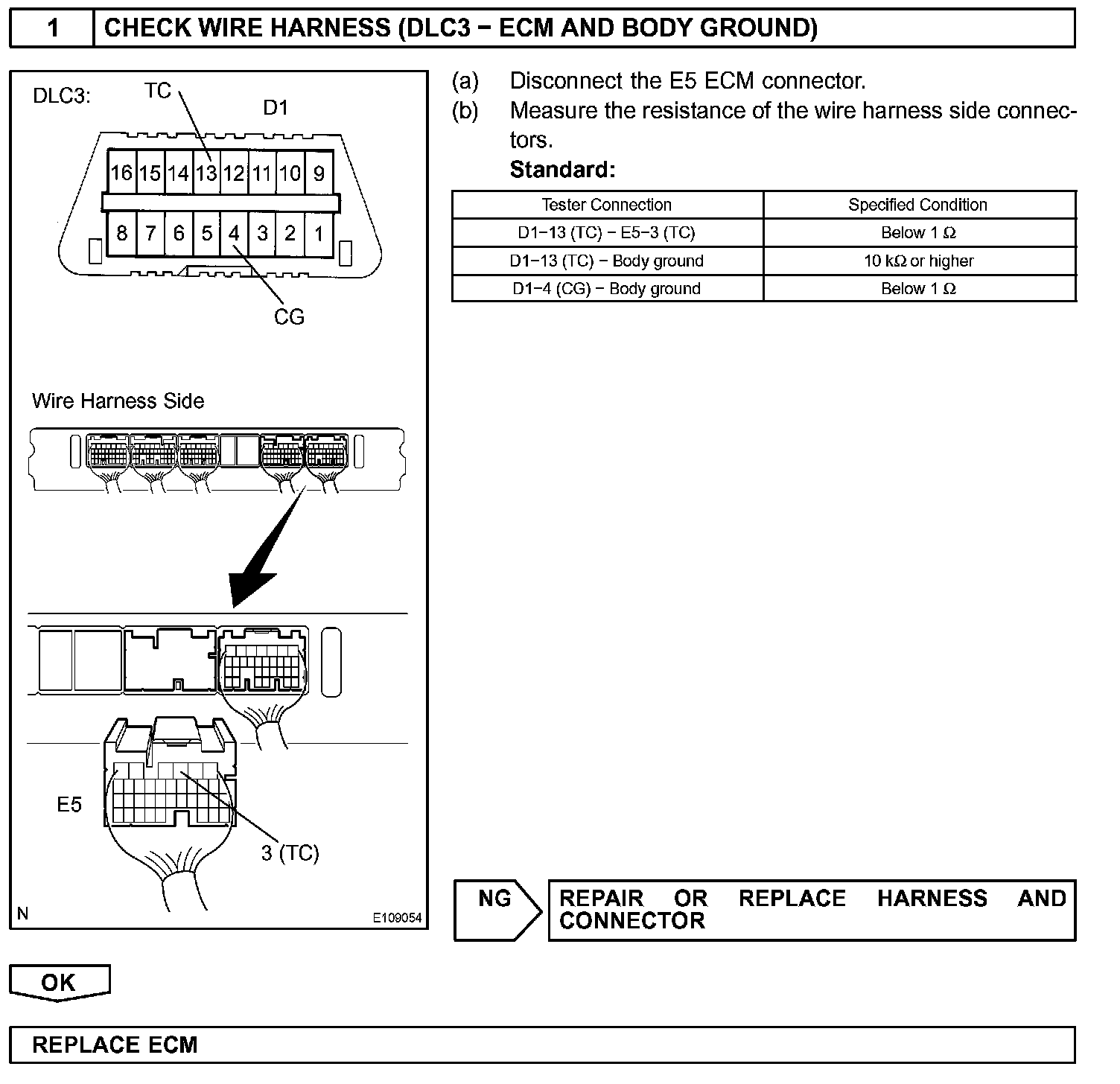

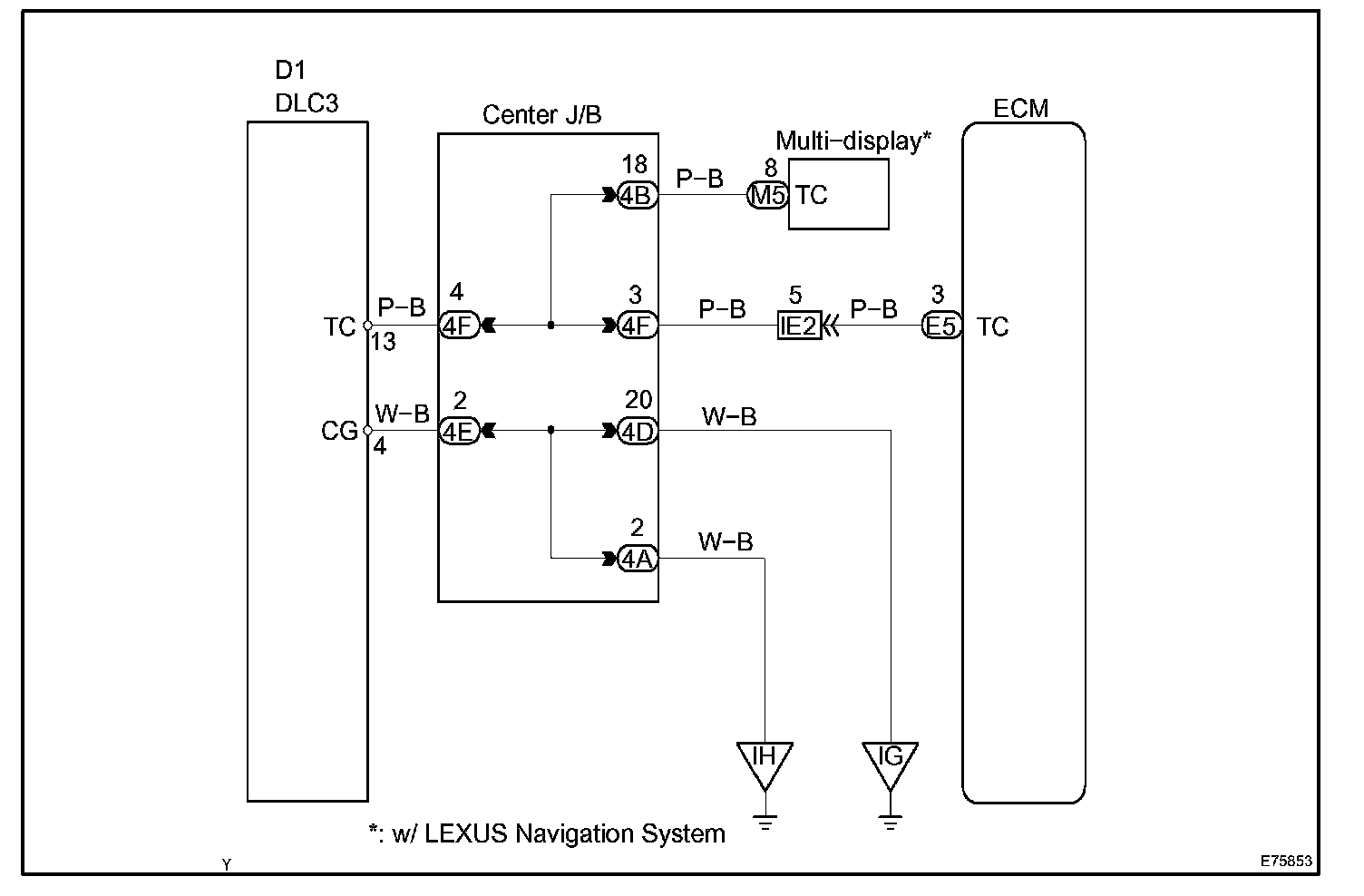

Connecting terminals TC and CG of the DLC3 enables DTCs to be read through blinking patterns of the combination meter's CRUISE main indicator lamp.

HINT: When a warning lamp of the combination meter stays blinking, terminal TC of the DLC3 or an ECU may have a ground short.
