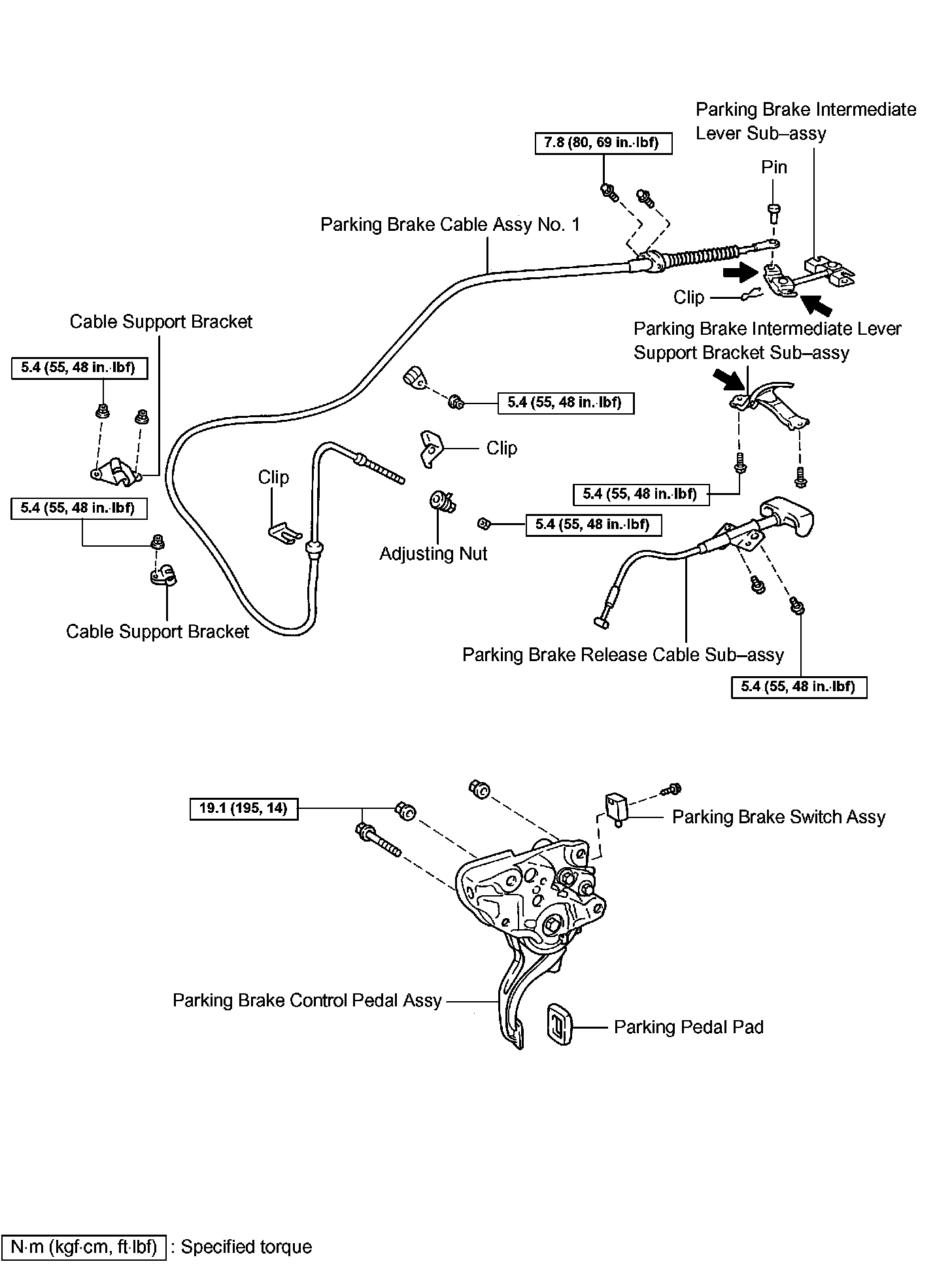

Parking Brake Cable Assembly No. 1

REPLACEMENT

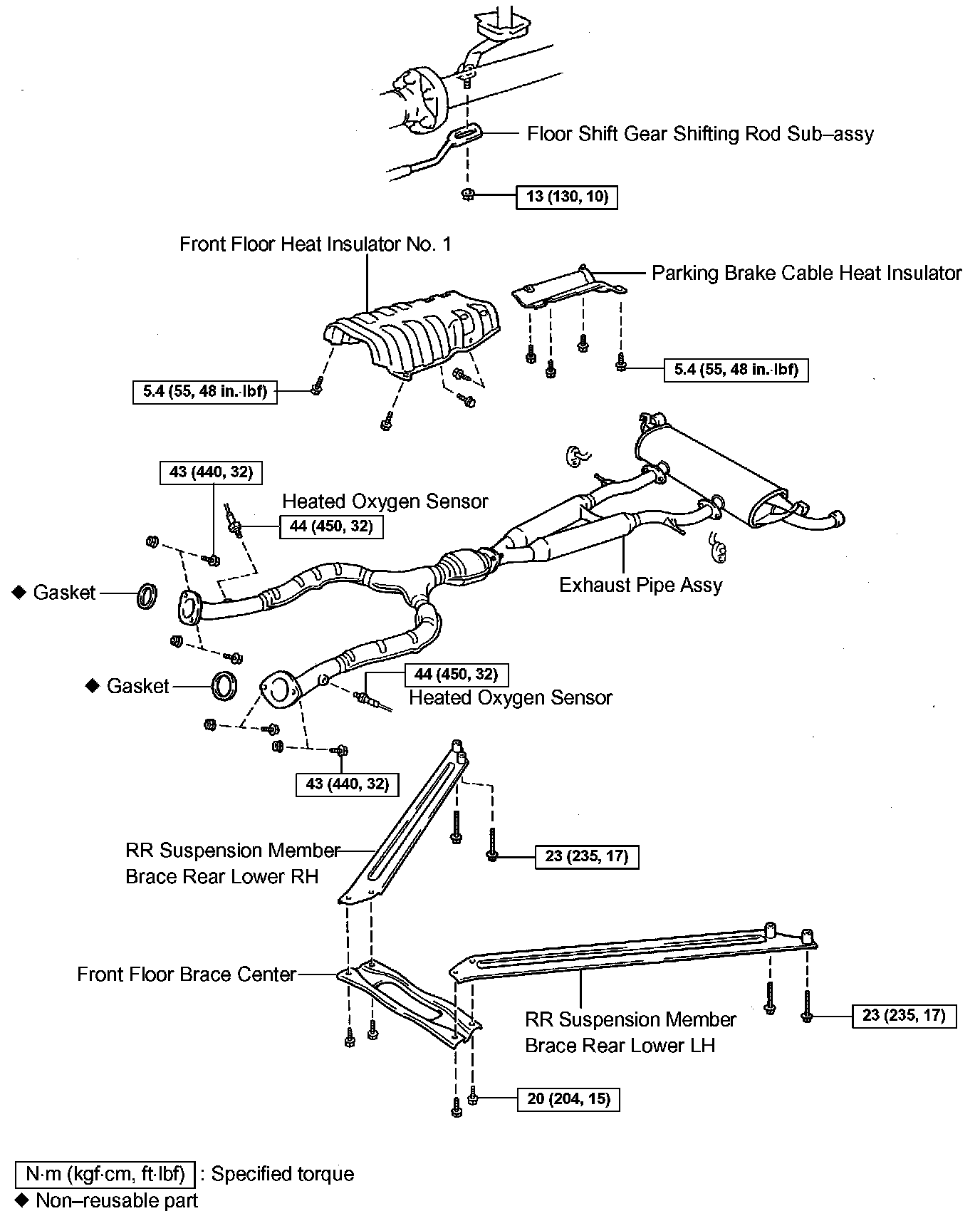

1. REMOVE FRONT FLOOR BRACE CENTER
2. REMOVE RR SUSPENSION MEMBER BRACE REAR LOWER LH
3. REMOVE RR SUSPENSION MEMBER BRACE REAR LOWER RH
4. DISCONNECT HEATED OXYGEN SENSOR
5. REMOVE EXHAUST PIPE ASSEMBLY
6. REMOVE PARKING BRAKE CABLE HEAT INSULATOR
7. REMOVE FRONT FLOOR HEAT INSULATOR NO. 1
8. DISCONNECT FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY





9. DISCONNECT PARKING BRAKE CABLE ASSEMBLY NO. 1

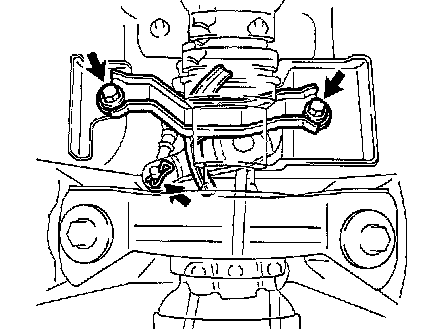

a. Remove the 2 bolts and intermediate lever support bracket from the floor panel.
b. Remove the clip and pin.
c. Disconnect the cable from the intermediate lever.
10. SHIP MODE SETTING
11. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

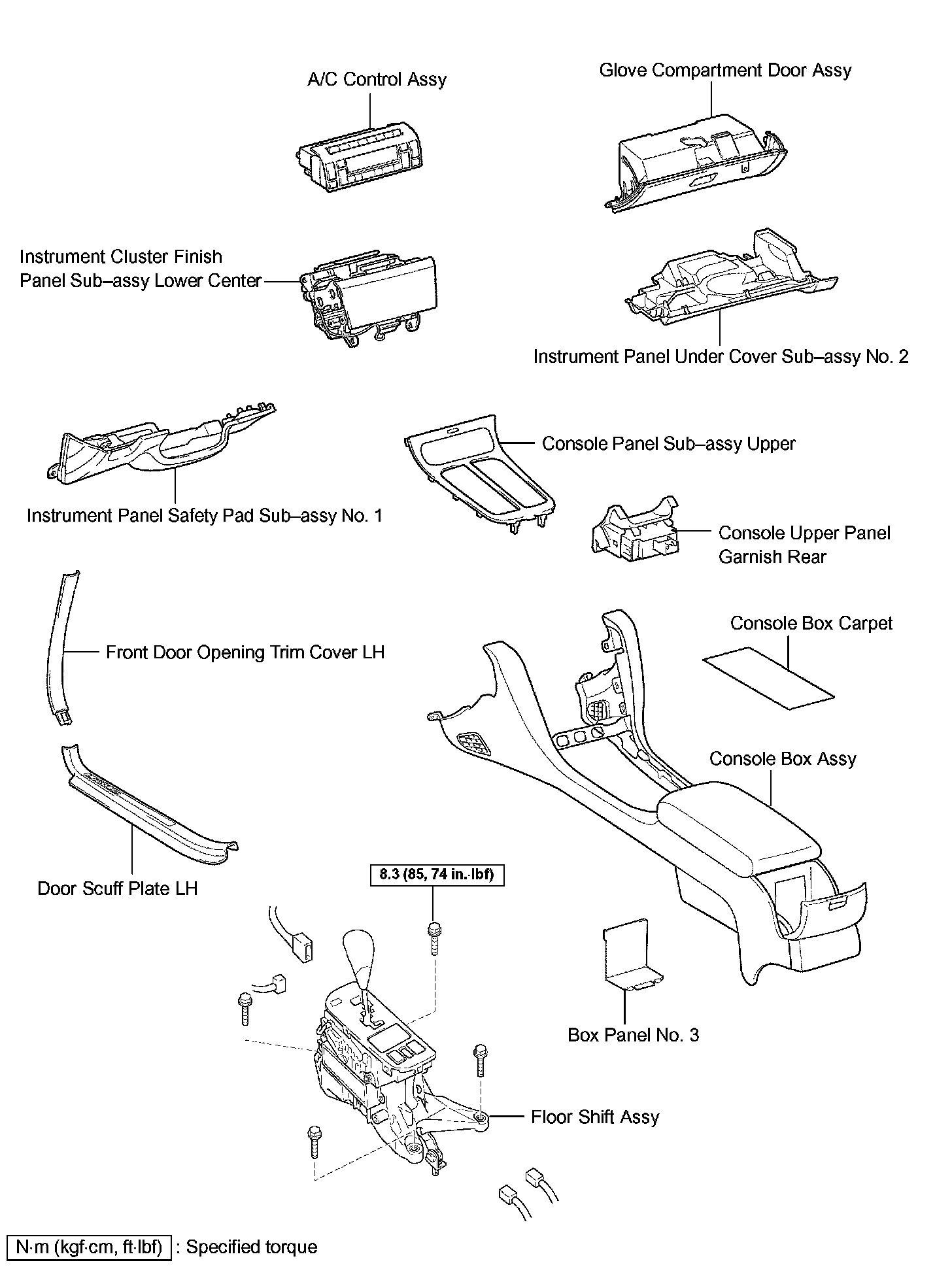

12. REMOVE DOOR SCUFF PLATE ASSEMBLY LH
13. REMOVE FRONT DOOR OPENING TRIM COVER LH
14. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY NO. 1
15. REMOVE CONSOLE UPPER PANEL GARNISH REAR
16. REMOVE CONSOLE PANEL SUB-ASSEMBLY UPPER
17. REMOVE AIR CONDITIONER CONTROL ASSEMBLY
18. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY LOWER CENTER
19. SHIP MODE CONFIRMATION
20. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY NO.2
21. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
22. REMOVE CONSOLE BOX CARPET
23. REMOVE BOX PANEL NO.3
24. REMOVE CONSOLE BOX ASSEMBLY
25. REMOVE PARKING BRAKE CONTROL PEDAL ASSEMBLY
26. REMOVE FLOOR SHIFT ASSEMBLY





27. REMOVE PARKING BRAKE CABLE ASSEMBLY NO. 1

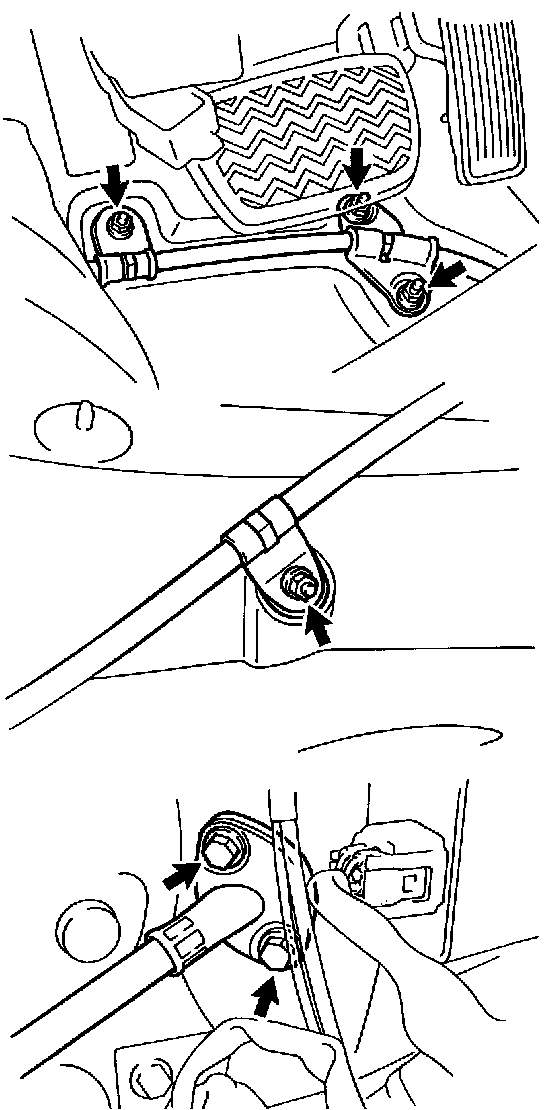

a. Remove the 4 nuts, 2 bolts and cable.
28. INSTALL PARKING BRAKE CABLE ASSEMBLY NO. 1
a. Install the cable with the 2 bolts and 4 nuts.
Torque:
7.8 Nm (80 kgf-cm, 69 inch lbs.) for bolt
5.4 Nm (55 kgf-cm, 48 inch lbs.) for nut
29. INSTALL PARKING BRAKE CONTROL PEDAL ASSEMBLY
30. INSTALL FLOOR SHIFT ASSEMBLY
31. INSTALL FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY
32. ADJUST SHIFT LEVER POSITION





33. CONNECT PARKING BRAKE CABLE ASSEMBLY NO. 1
a. Apply MP grease to the sliding part of the cable against the intermediate lever.
b. Install the cable to the intermediate lever with the clip and pin.

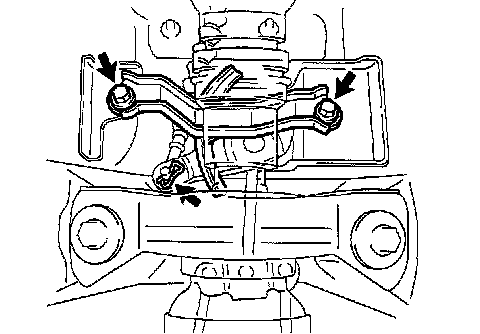

c. Install the intermediate lever support bracket to the floor panel with the 2 bolts.
Torque: 5.4 Nm (55 kgf-cm, 48 inch lbs.)
34. INSTALL PARKING BRAKE CABLE HEAT INSULATOR
35. INSTALL FRONT FLOOR HEAT INSULATOR NO. 1
36. INSTALL EXHAUST PIPE ASSEMBLY
37. INSTALL HEATED OXYGEN SENSOR
38. INSTALL RR SUSPENSION MEMBER BRACE REAR LOWER RH
39. INSTALL RR SUSPENSION MEMBER BRACE REAR LOWER LH
40. INSTALL FRONT FLOOR BRACE CENTER
41. REMOVE REAR WHEEL
42. ADJUST PARKING BRAKE SHOE CLEARANCE
43. INSTALL REAR WHEEL
a. Install the wheel with the 5 nuts.
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
b. Install the ornament with the 10 bolts.
Torque: 20 Nm (204 kgf-cm, 15 ft. lbs.)
44. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
45. PERFORM INITIALIZATION

NOTICE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

46. CHECK PARKING BRAKE PEDAL TRAVEL
47. ADJUST PARKING BRAKE PEDAL TRAVEL
48. INSPECT SHIFT LEVER POSITION
49. CHECK FOR EXHAUST GAS LEAKS
