VSC Warning Light Circuit (Does Not Illuminate)

VSC WARNING LIGHT CIRCUIT (DOES NOT ILLUMINATE)

CIRCUIT DESCRIPTION

If the ECU stores DTC, the VSC warning light turns on the combination meter.

Wiring Diagram:

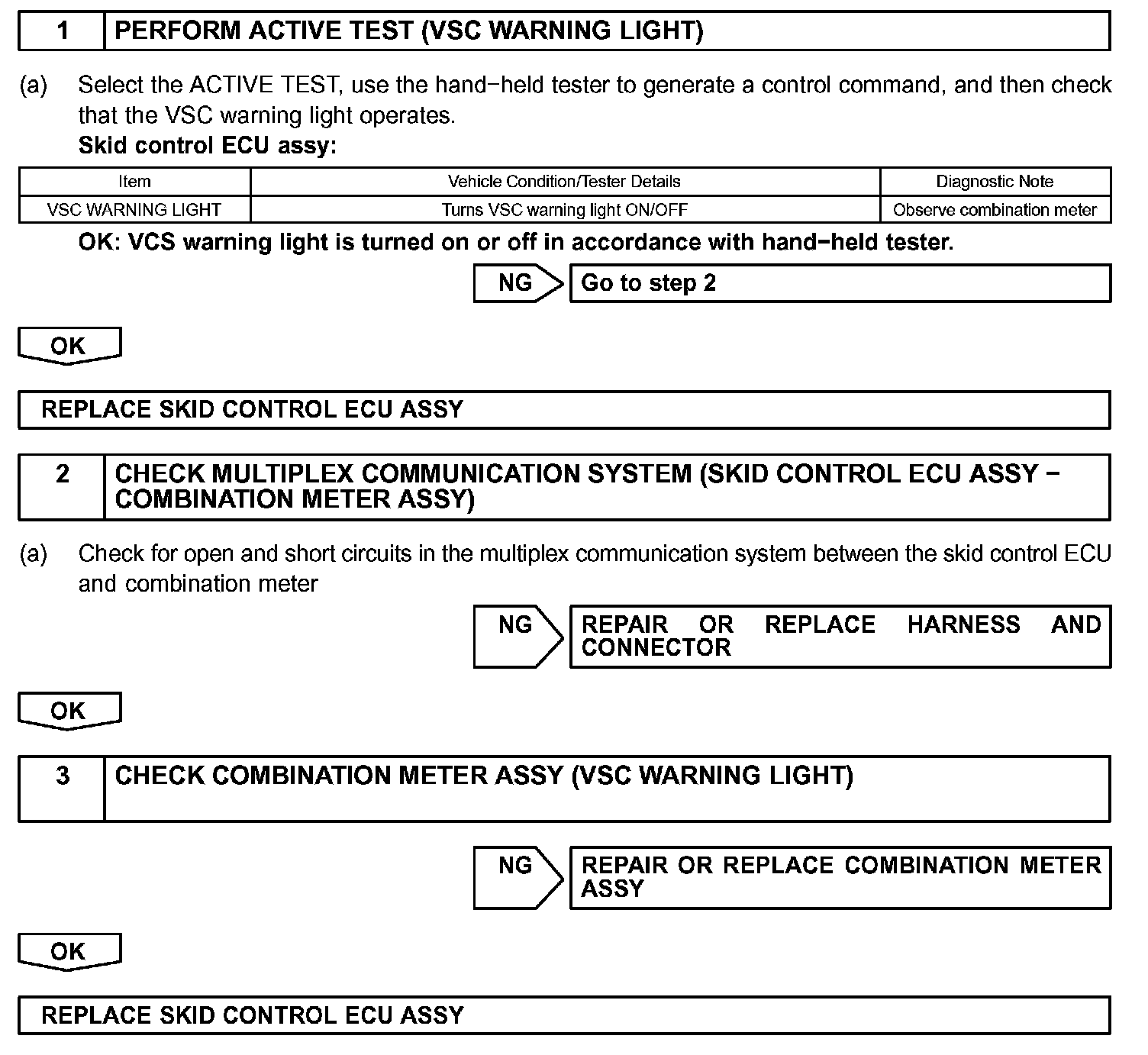

Step 1-3:




INSPECTION PROCEDURE
