ABS Warning Light Circuit (Does Not Come on)

ABS WARNING LIGHT CIRCUIT (DOES NOT ILLUMINATE)

CIRCUIT DESCRIPTION

If the ECU detects trouble, the ABS warning light is illuminated at the same time prohibiting ABS control. At this time, the ECU records a DTC in memory. Connect terminals TC and CG of the DLC3 to make the ABS warning light blink and output the DTC.

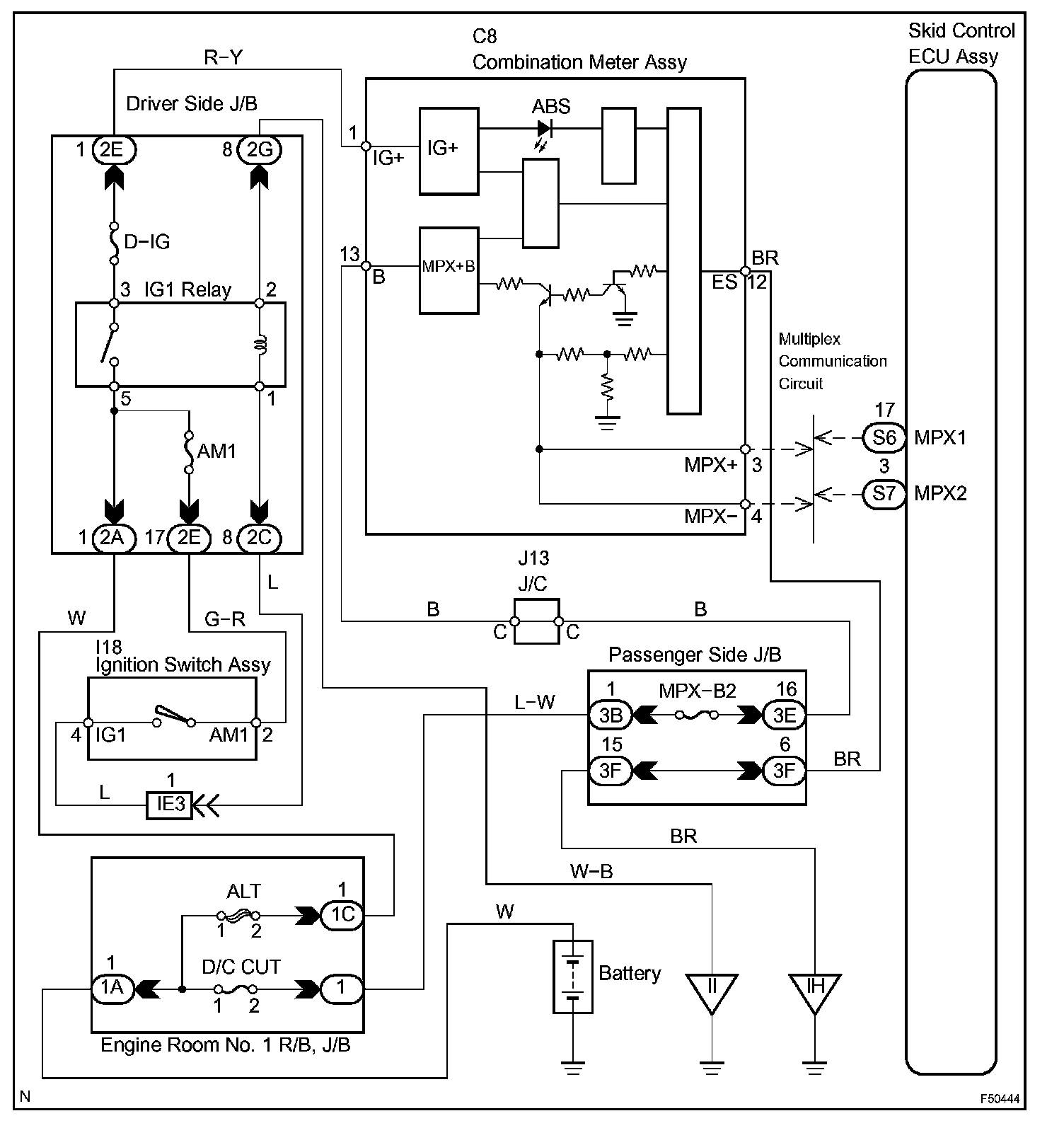

Wiring Diagram:

Step 1-3:

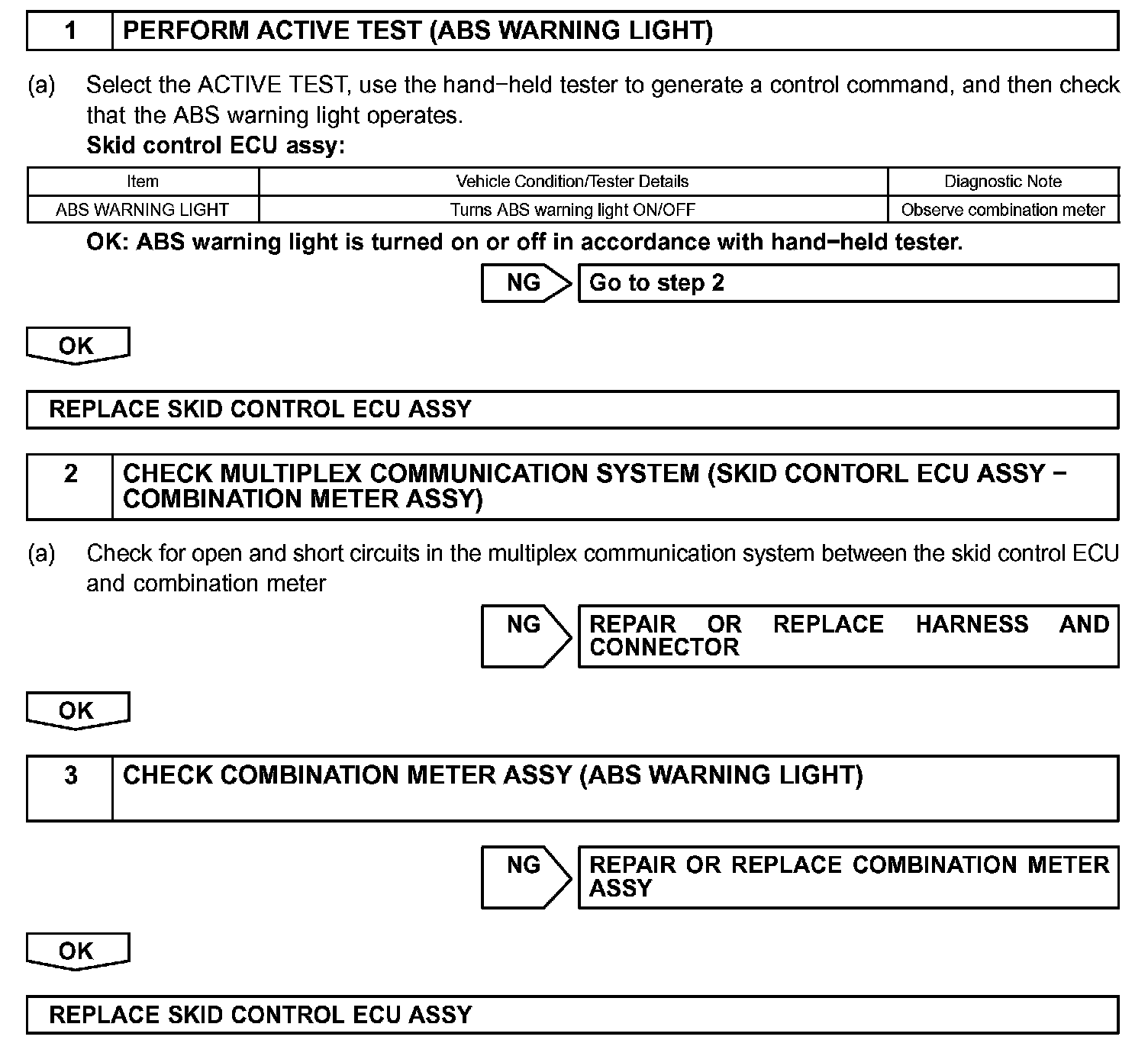

INSPECTION PROCEDURE
