Without Scan Tool

CHECK DTC: When not using hand-held tester:

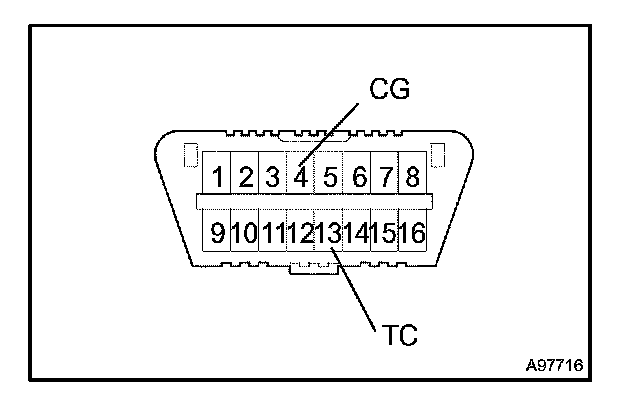

a. Using SST, connect terminals 13 (TC) and the 4 (CG) of the DLC3.

SST 09843-18040




b. Turn the ignition switch ON.
c. Read the DTC from the ABS warning light and VSC warning light on the combination meter.

HINT:

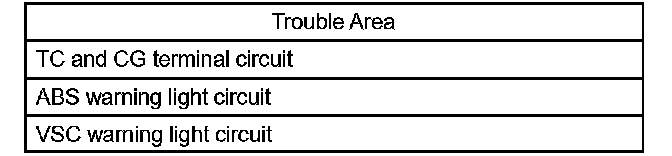

- If no code appears, check the TC and CG terminal circuit, ABS warning light circuit or VSC warning light circuit.
- If more than 1 DTCs are detected at the same time, the lowest numbered code will be displayed first.
- The blinking patterns for a normal system code and trouble codes 11 and 21 are shown on the left.
- The conditions are explained in the Diagnostic Trouble Code chart.




d. After completing the check, disconnect terminals 13 (TC) and 4 (CG) of the DLC3, and turn the ignition switch OFF.
