VSC Off Indicator Lamp, VSC Off Switch Circuit

VSC OFF INDICATOR LIGHT, VSC OFF SWITCH CIRCUIT

CIRCUIT DESCRIPTION

This is the TRAC & VSC control main switch. When the VSC OFF switch is pushed on, TRAC & VSC control turns off and the VSC OFF indicator light illuminates. Also, the VSC OFF indicator light is illuminated when the VSC system is at the fail safe control.

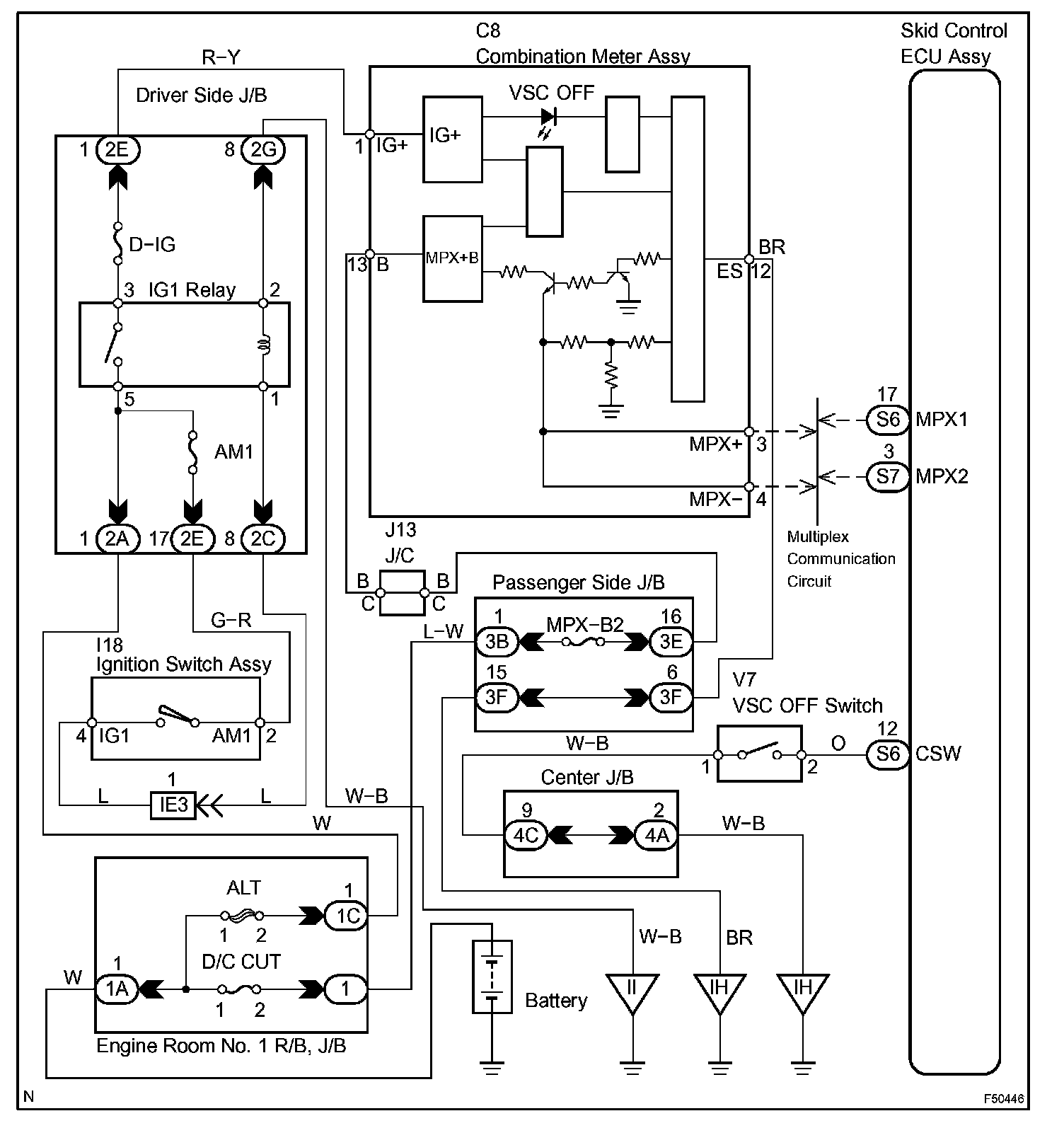

Wiring Diagram:

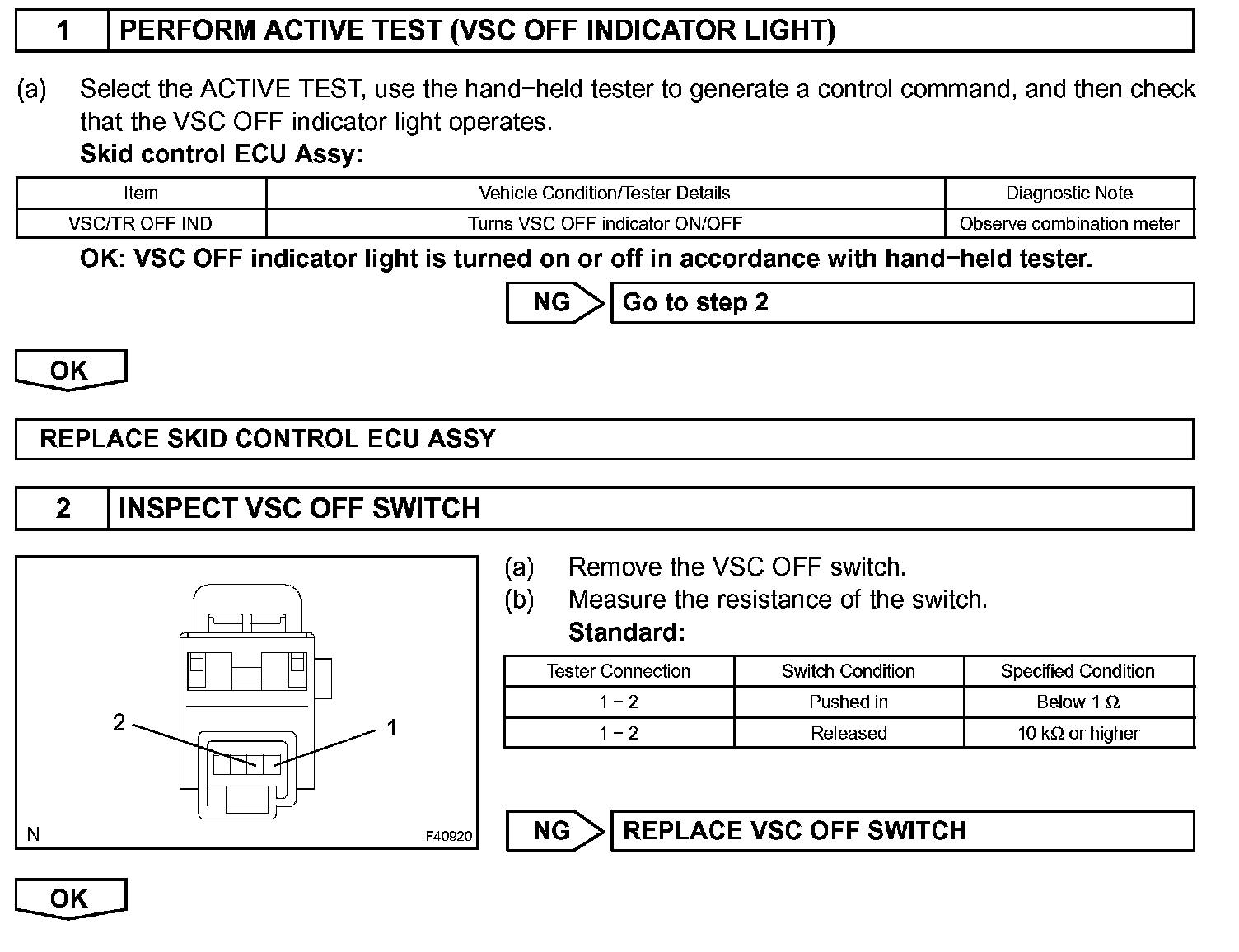

Step 1-2:

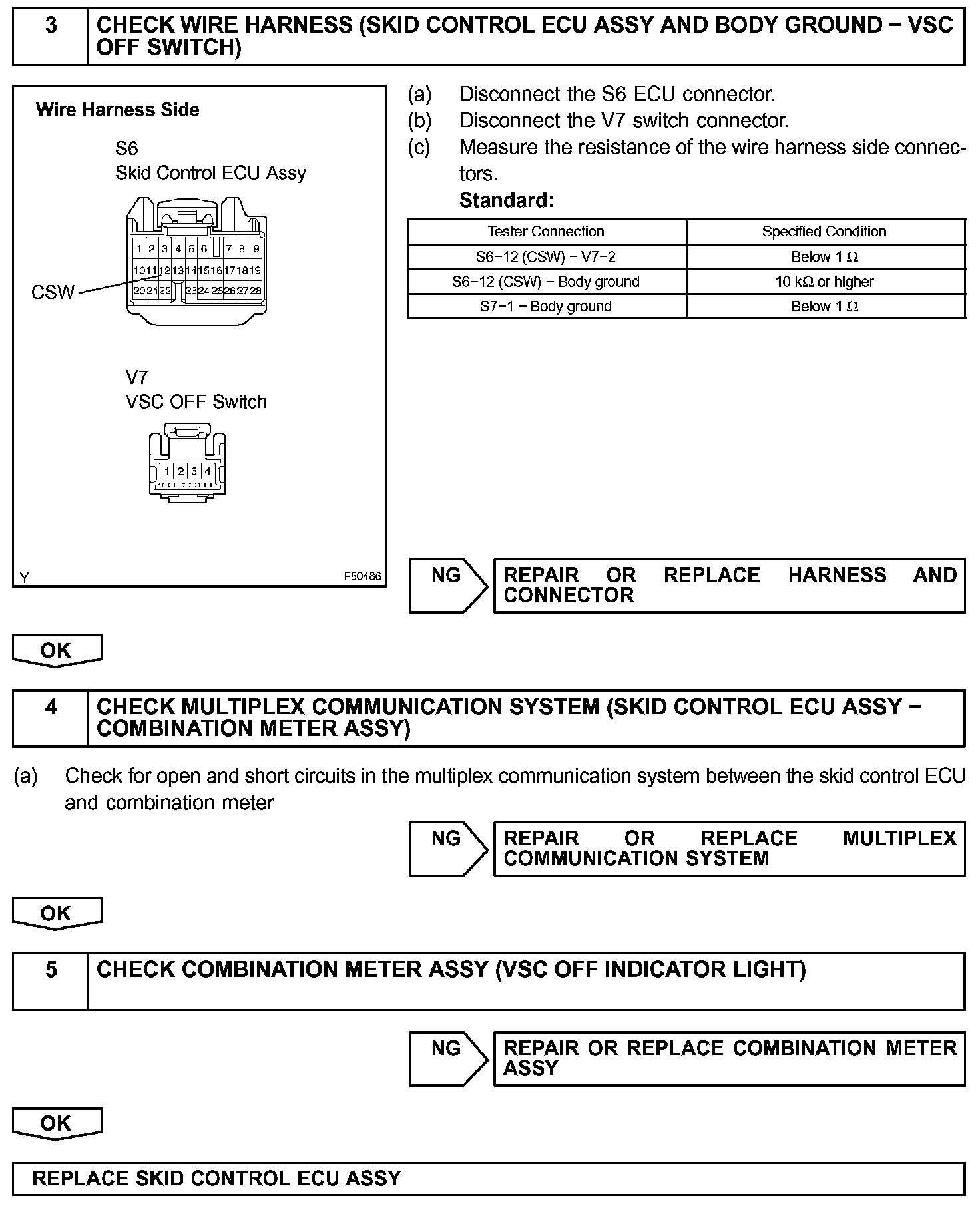

Step 3-5:

INSPECTION PROCEDURE
