Slip Indicator Lamp Circuit

SLIP INDICATOR LIGHT CIRCUIT

CIRCUIT DESCRIPTION

The SLIP indicator light blinks during TRAC & VSC operation.

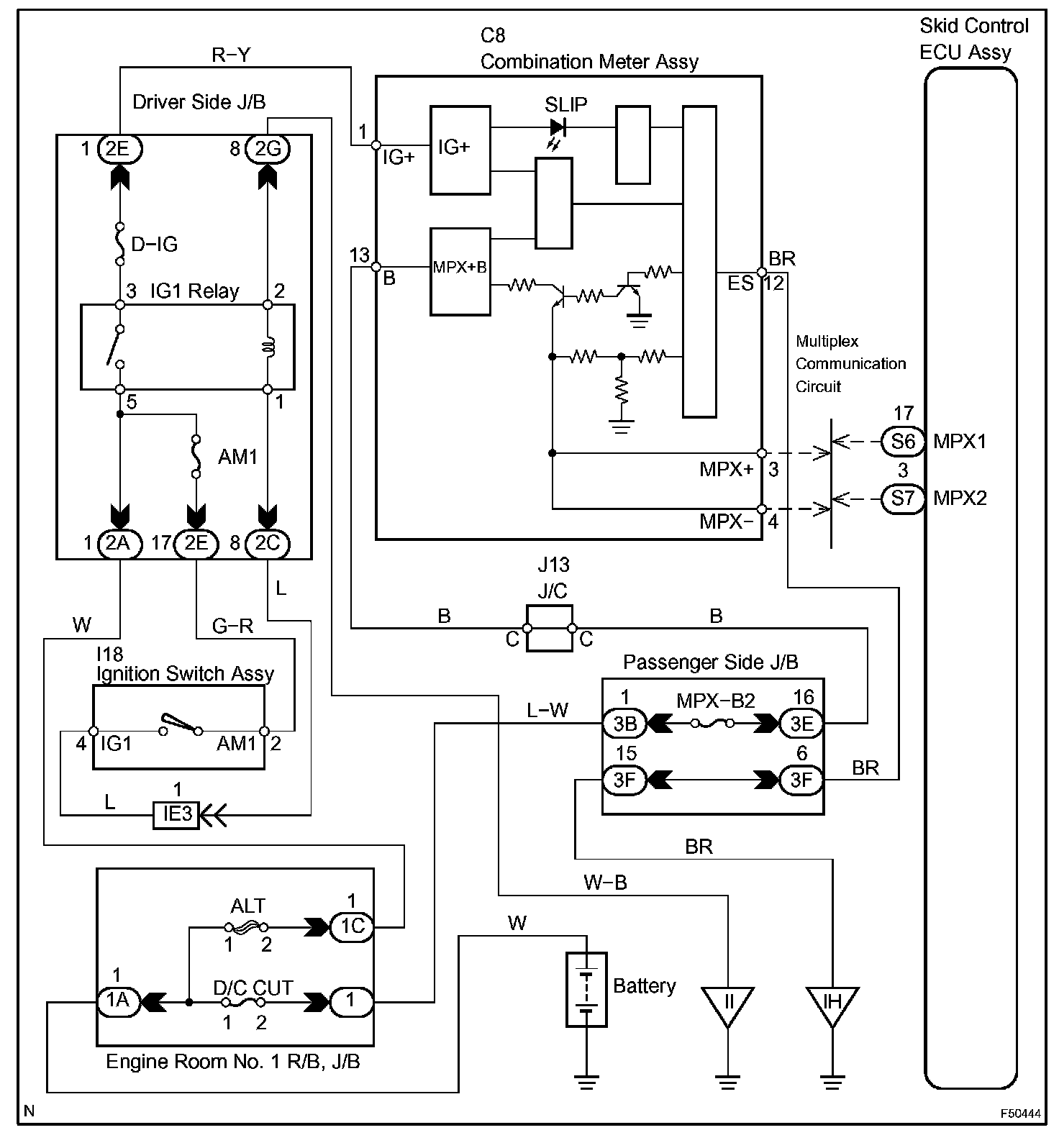

Wiring Diagram:

Step 1-3:

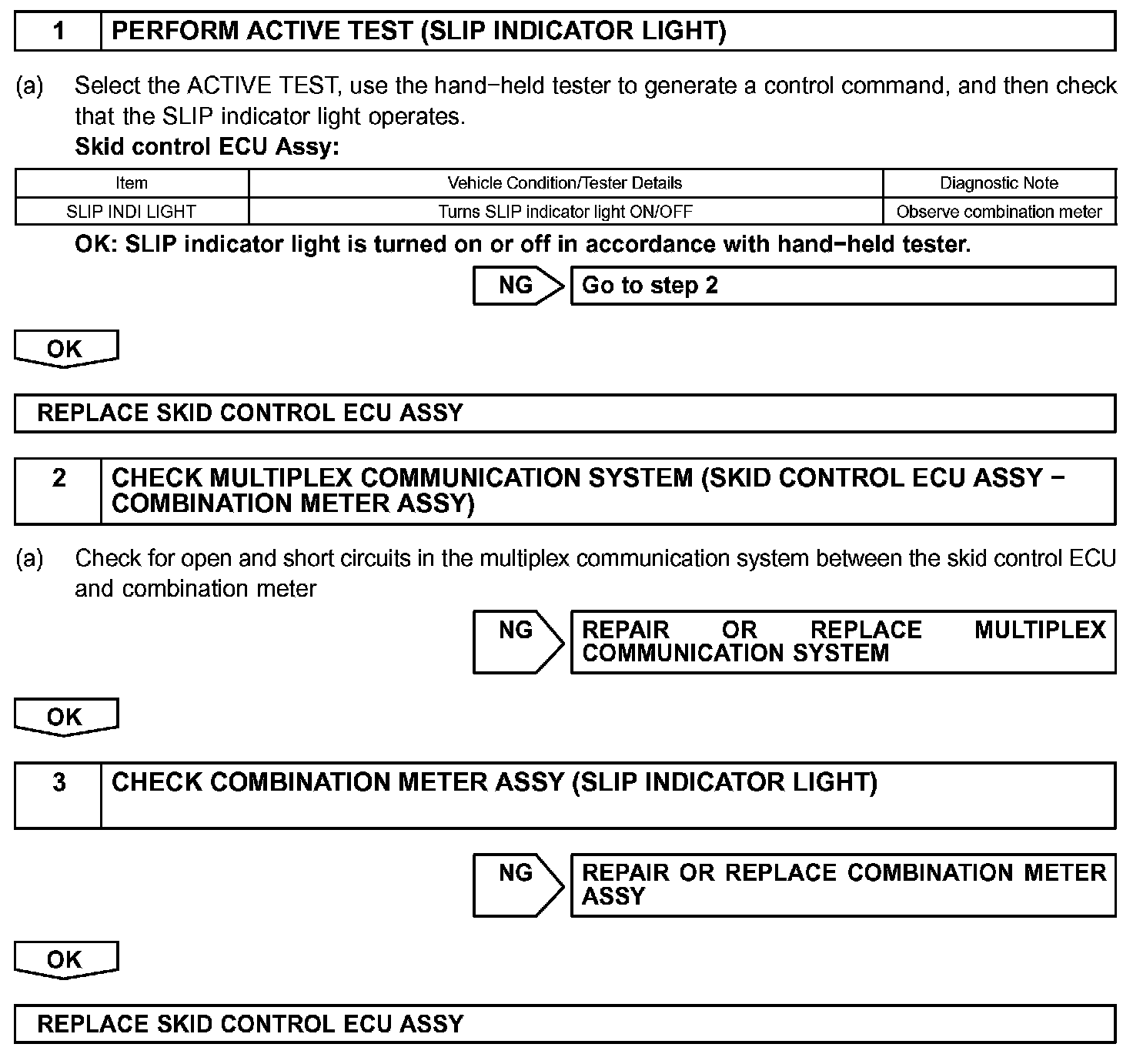

INSPECTION PROCEDURE
