Skid Control Buzzer Circuit

SKID CONTROL BUZZER CIRCUIT

CIRCUIT DESCRIPTION

The skid control buzzer sounds during VSC operation.

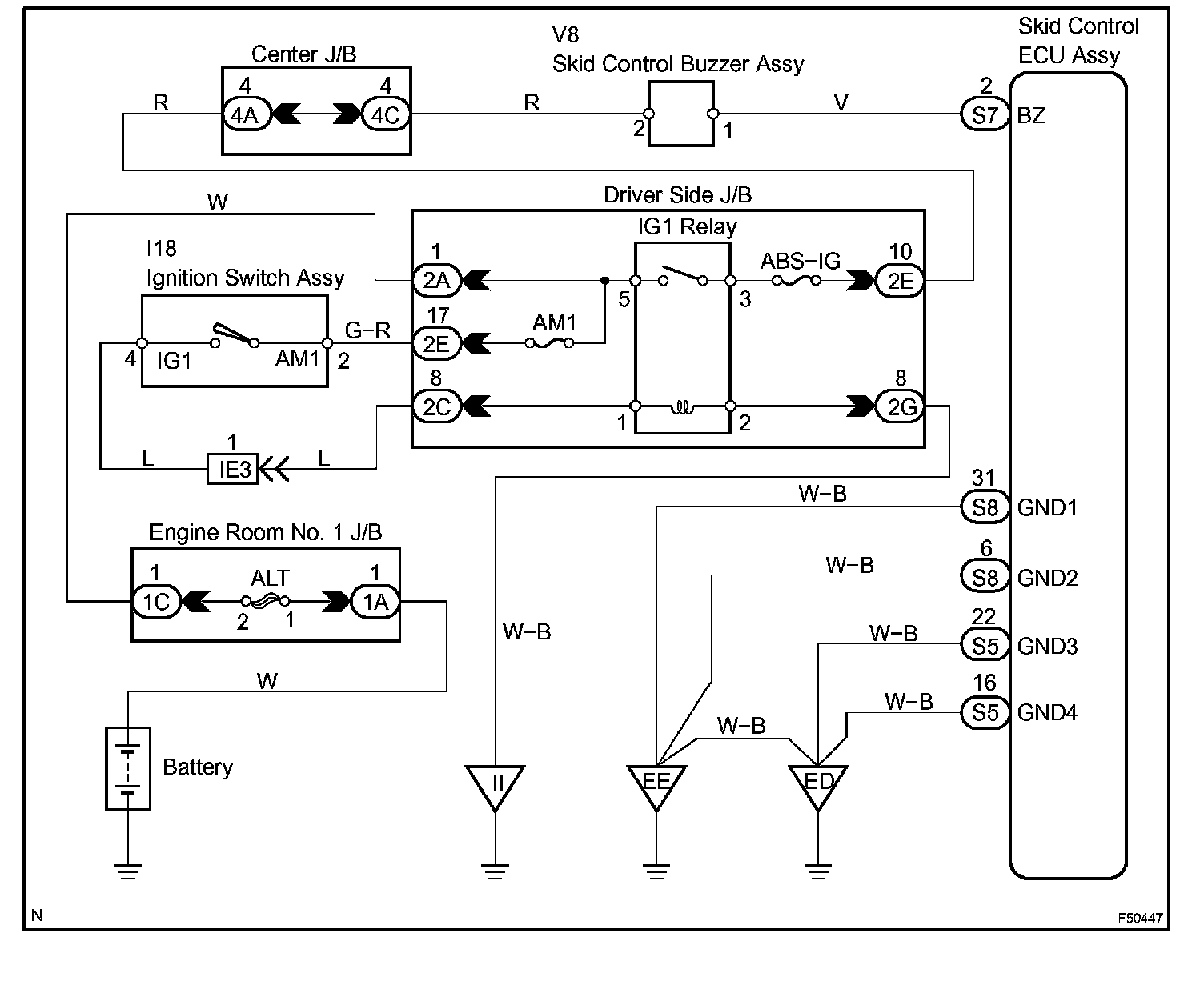

Wiring Diagram:

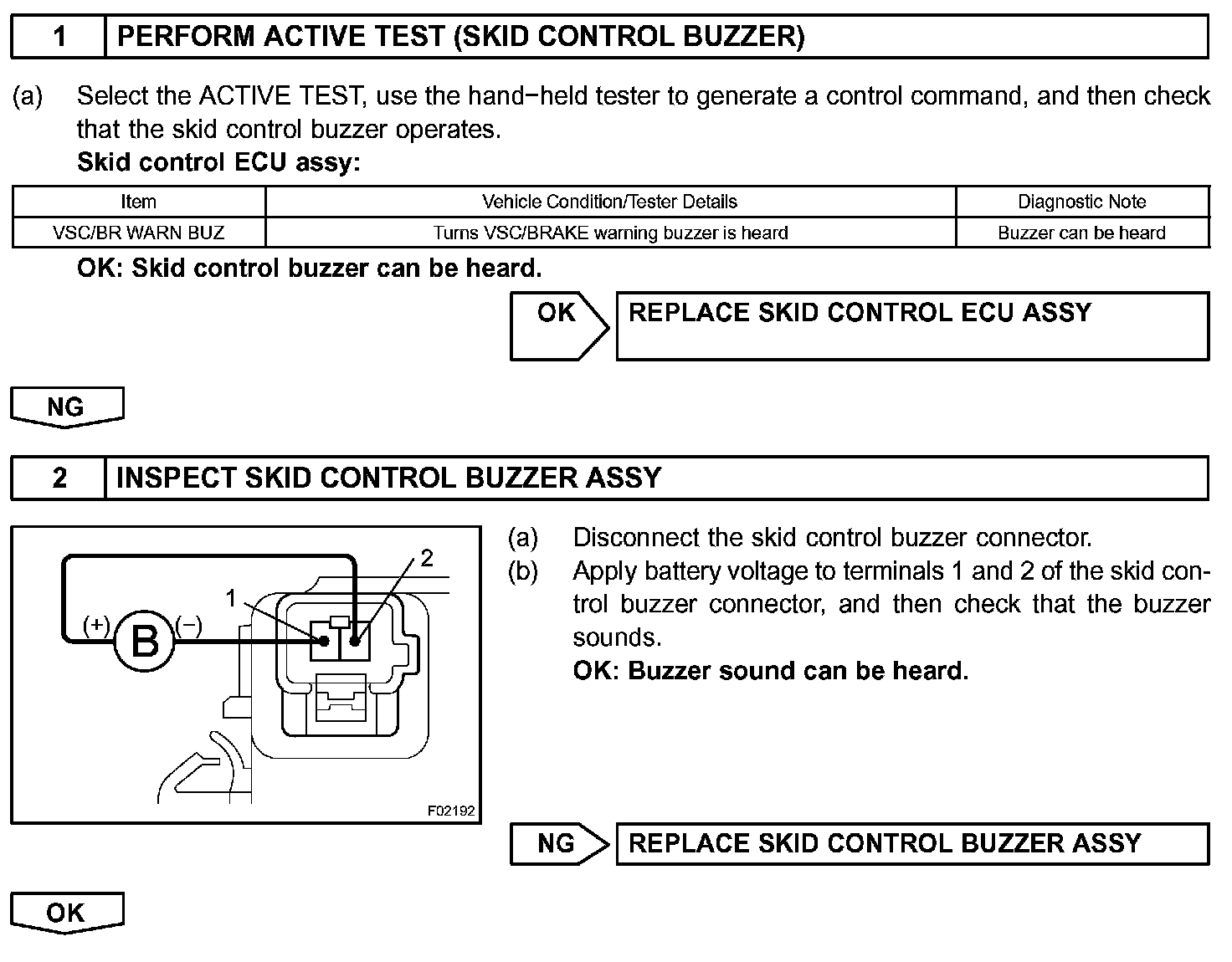

Step 1-2:

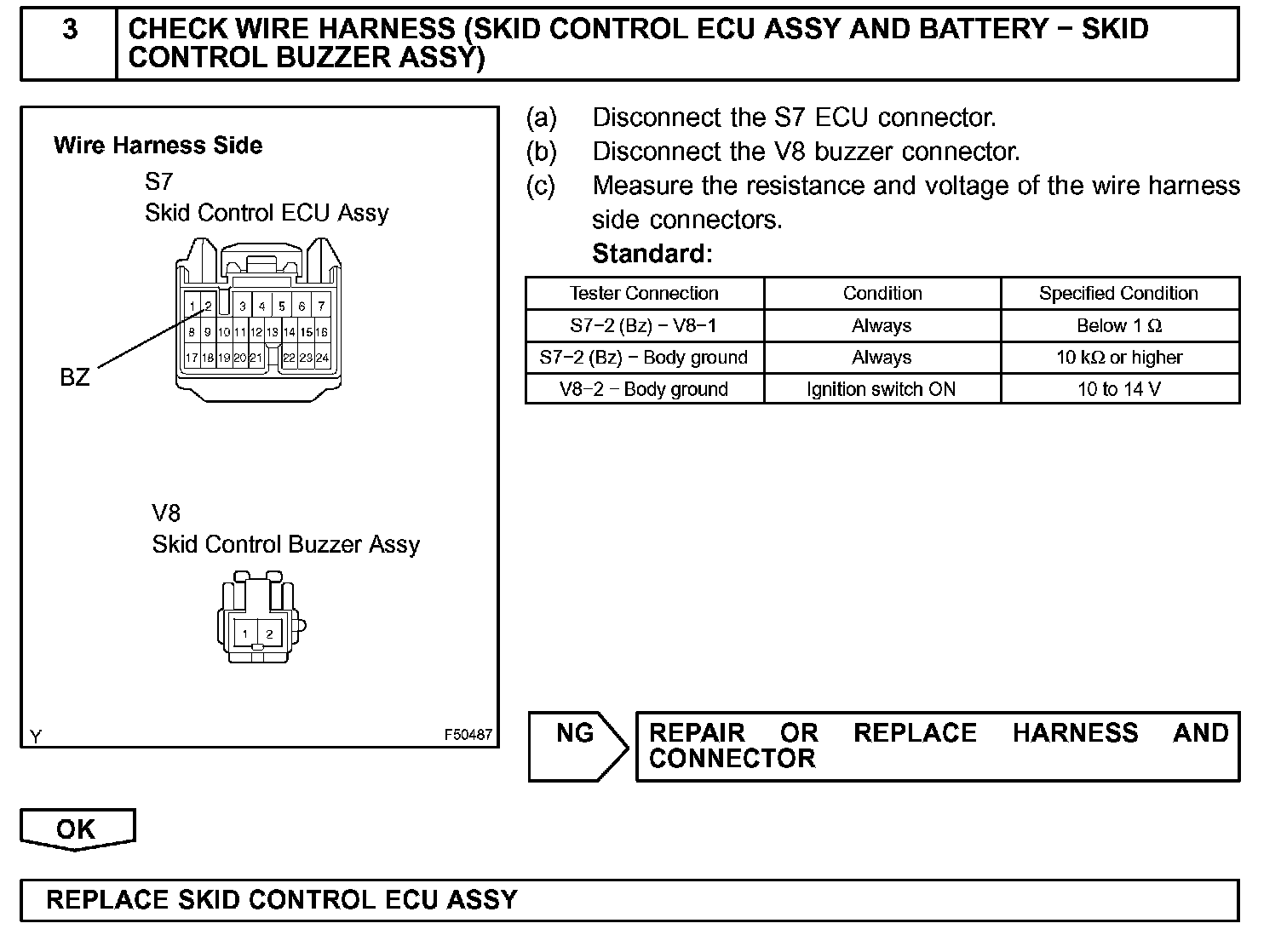

Step 3:




INSPECTION PROCEDURE
