Restoring Operation Is Impossible

RESTORING OPERATION IS IMPOSSIBLE

CIRCUIT DESCRIPTION

When the memory adjusting switches M1 and M2 are pressed, the multiplex network door ECU front LH and RH (driver and passenger door ECU) direct the position control ECU drive each motor until the seat reaches the memorized position.

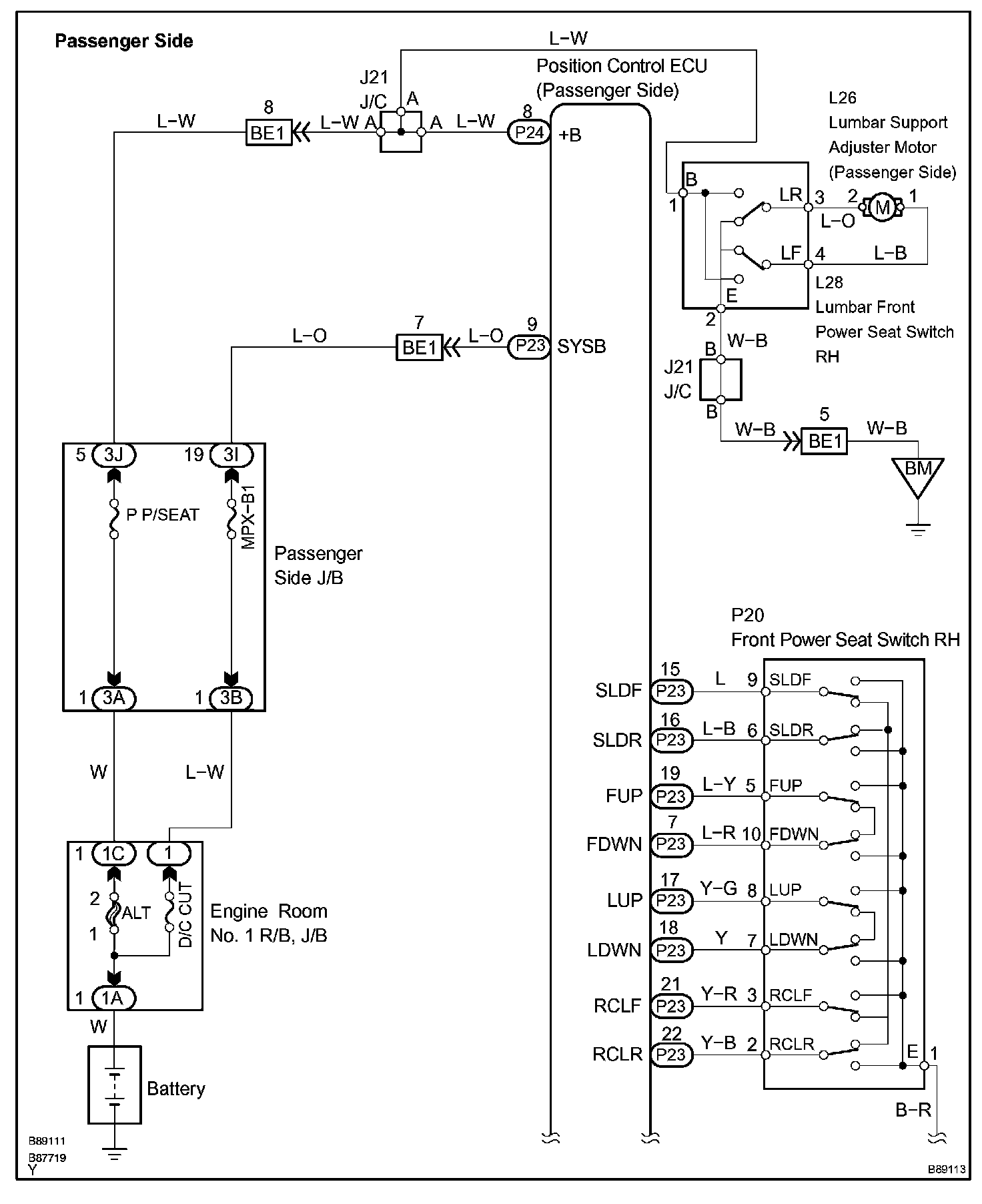

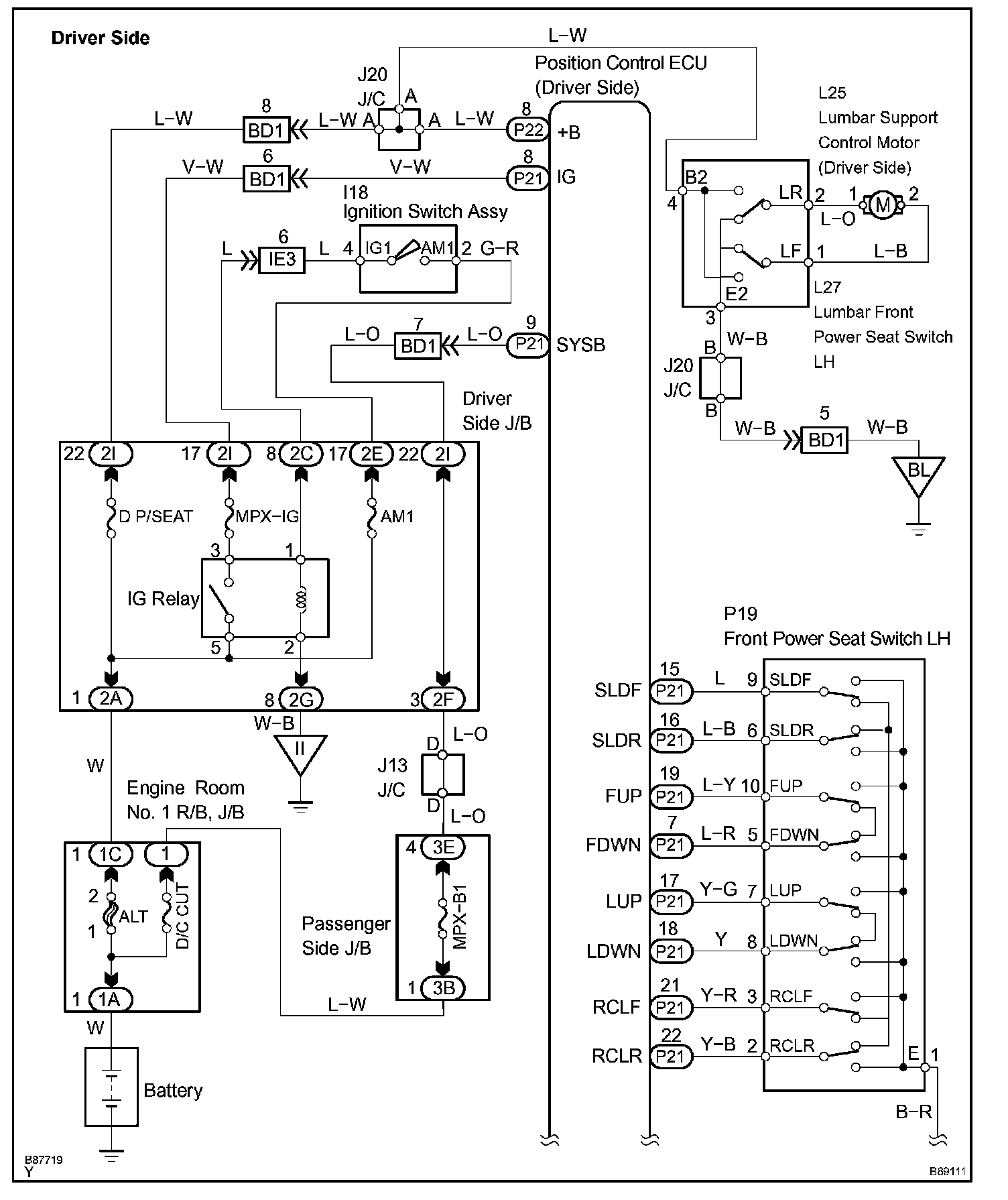

Wiring Diagram (Part 1):

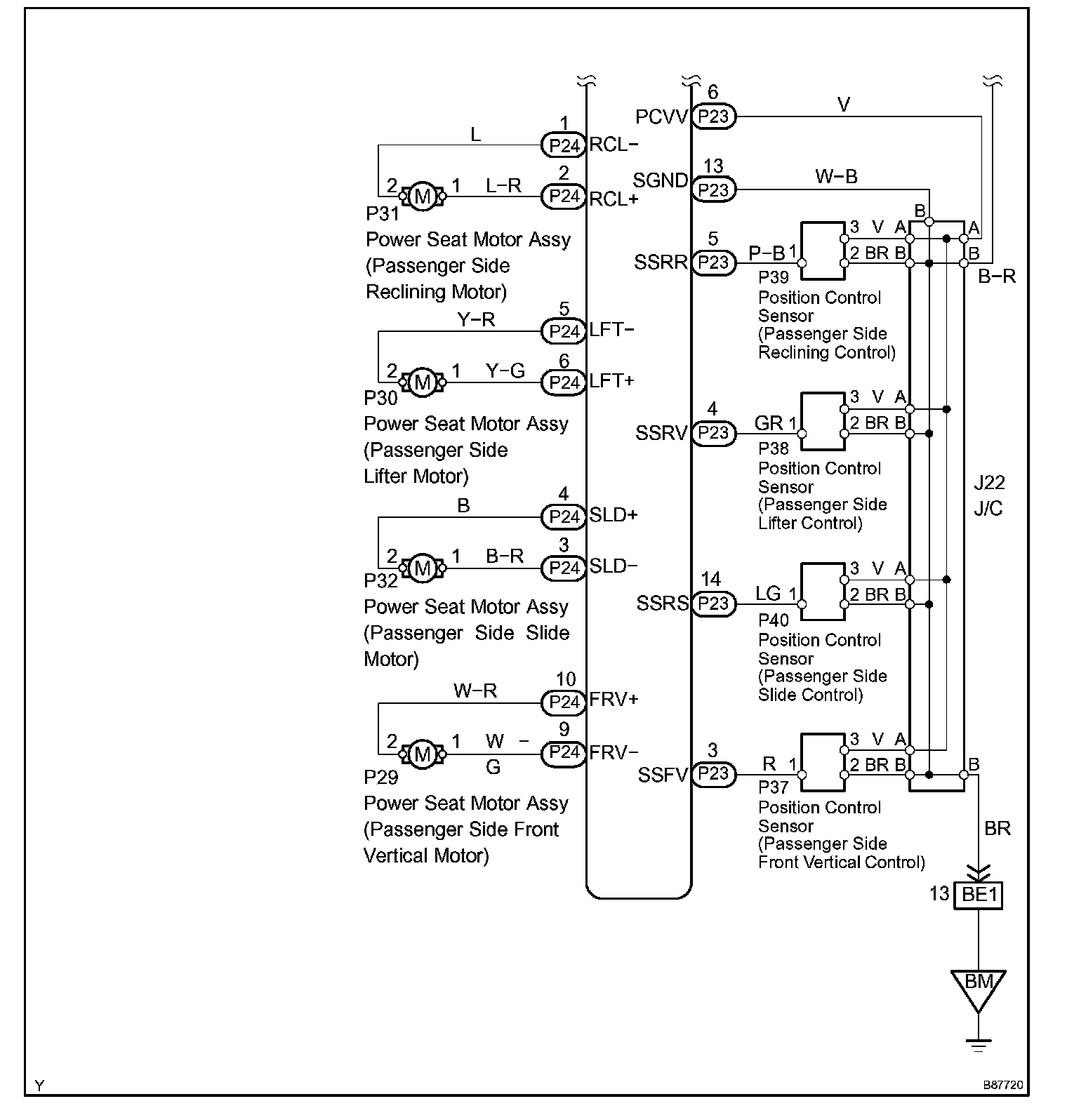

Wiring Diagram (Part 2):

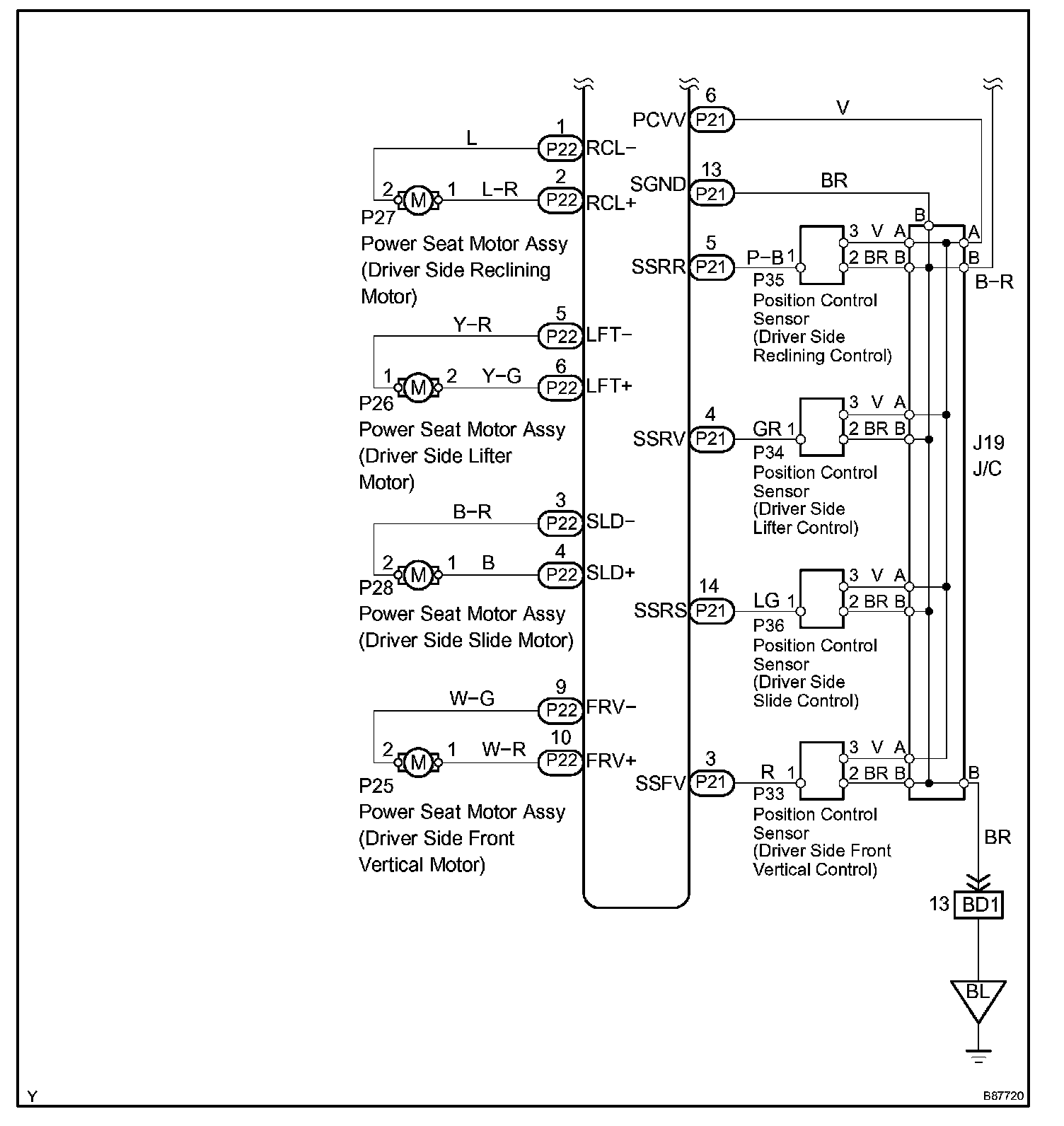

Wiring Diagram (Part 3):

Wiring Diagram (Part 4):

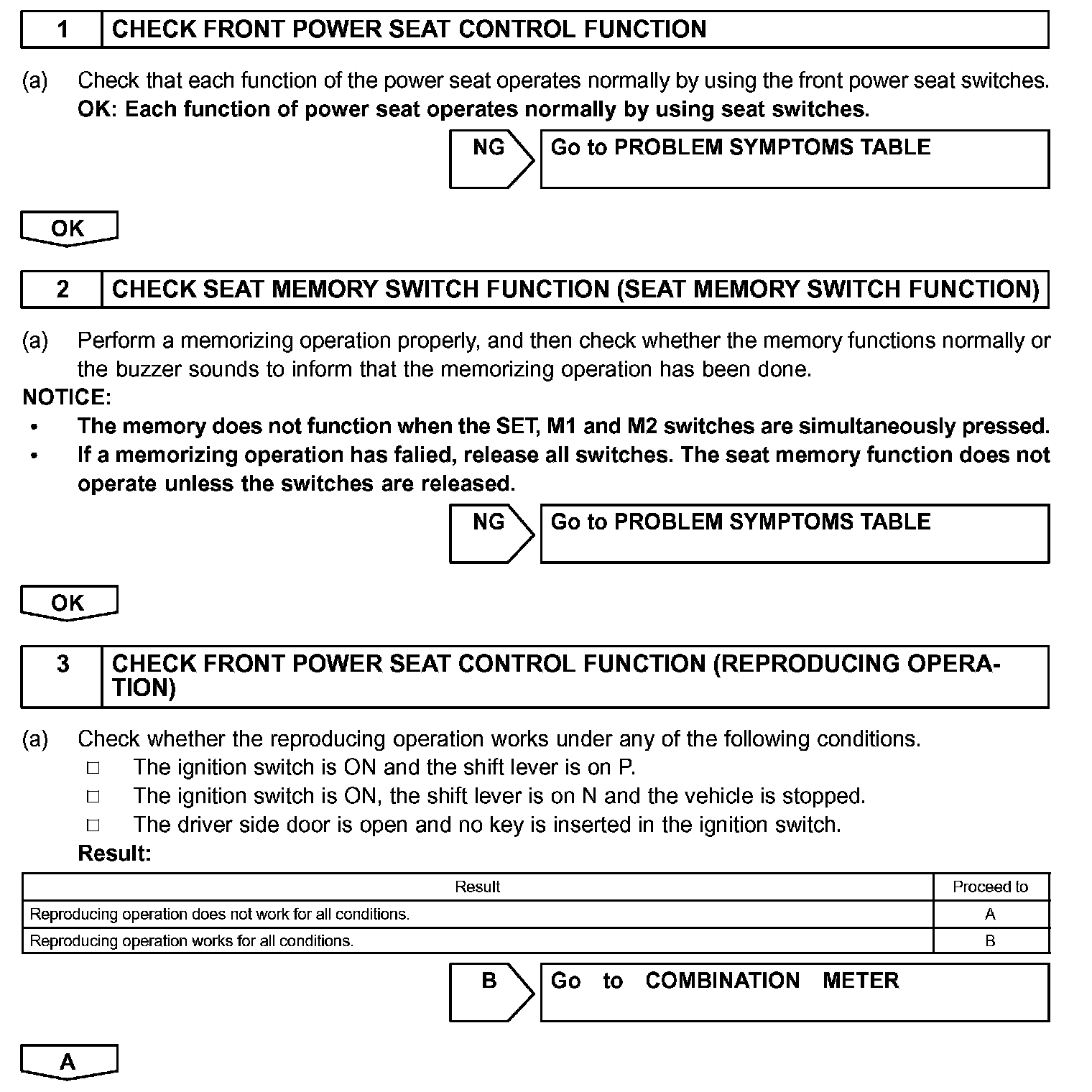

Step 1-3:

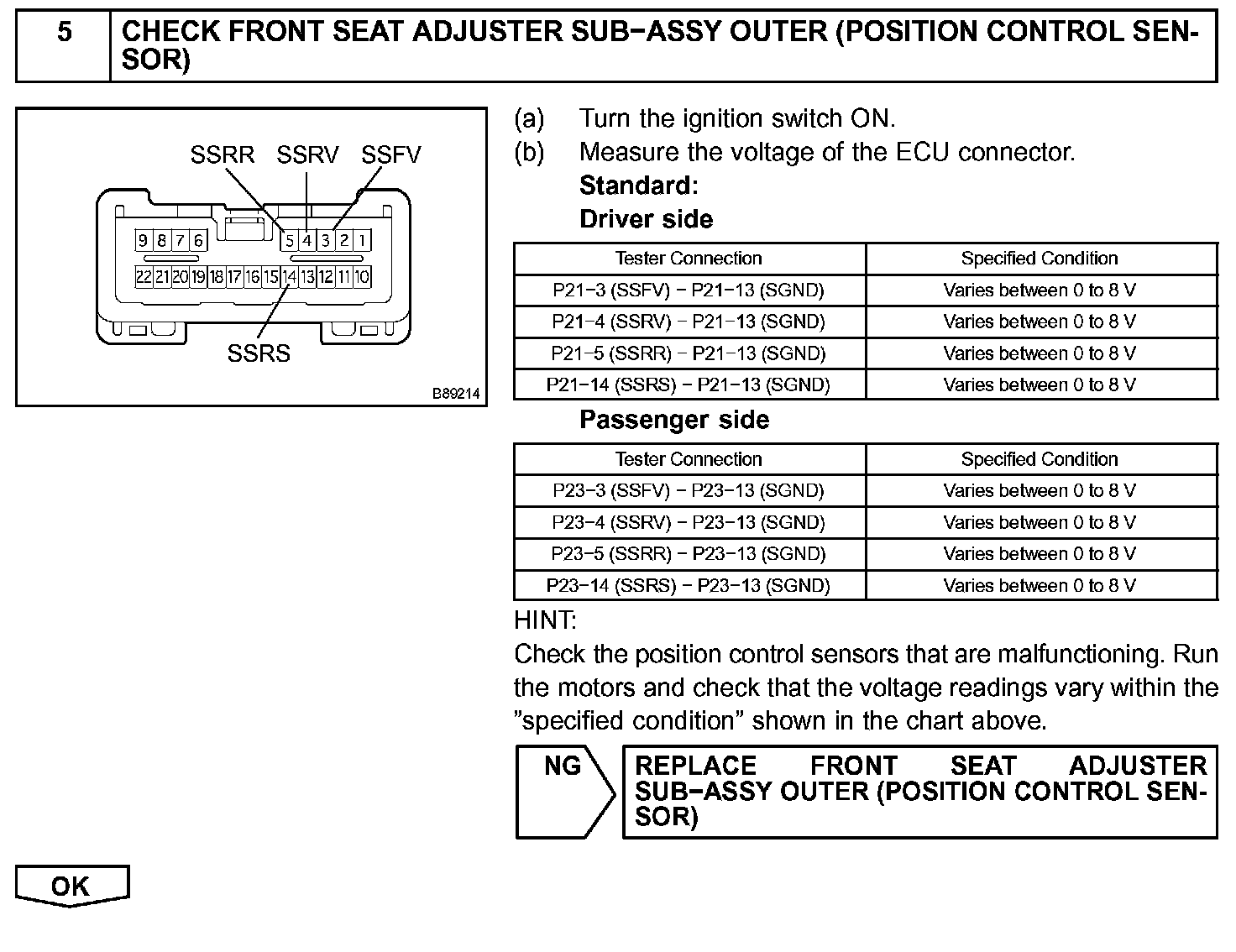

Step 4:

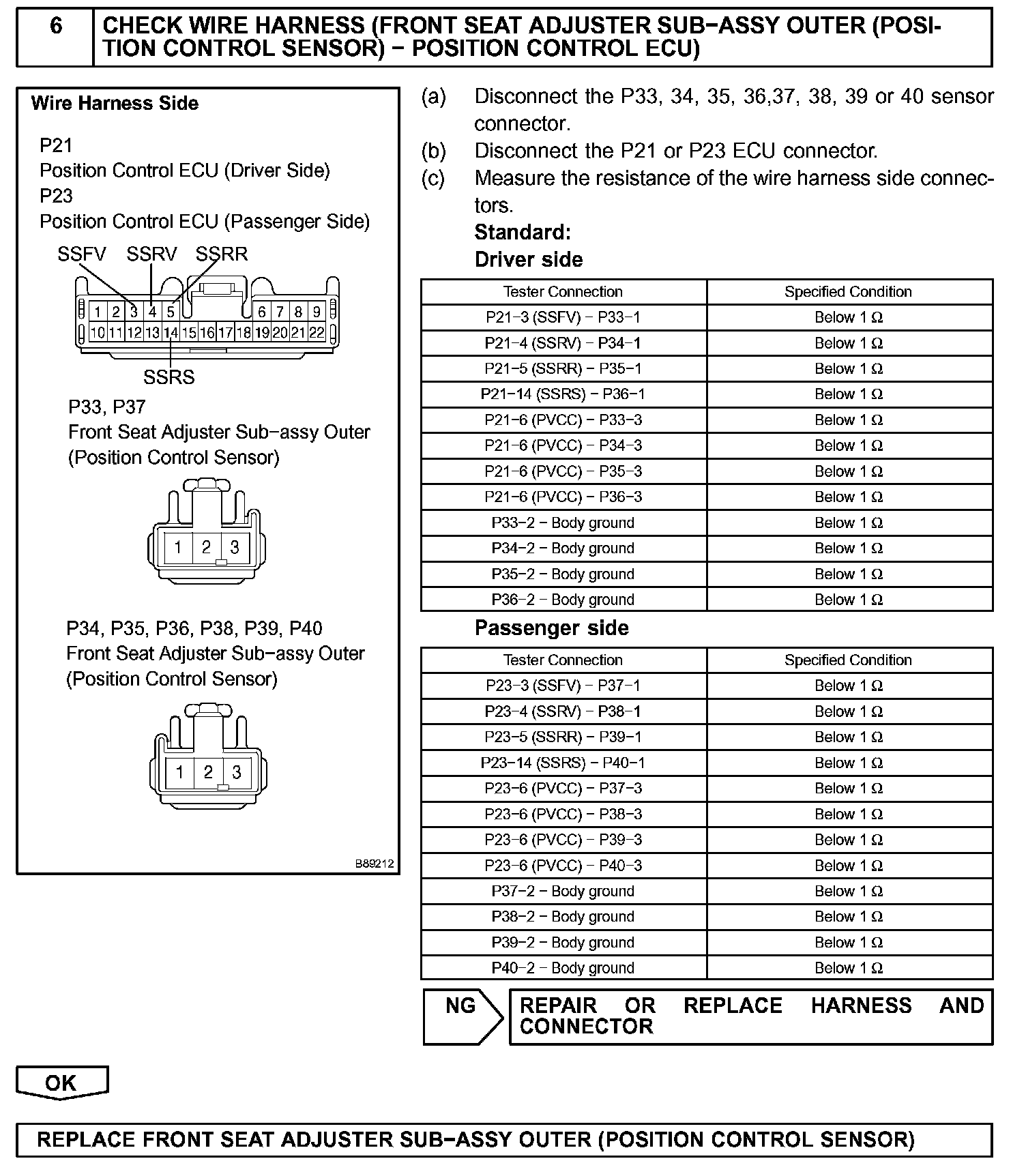

Step 5:

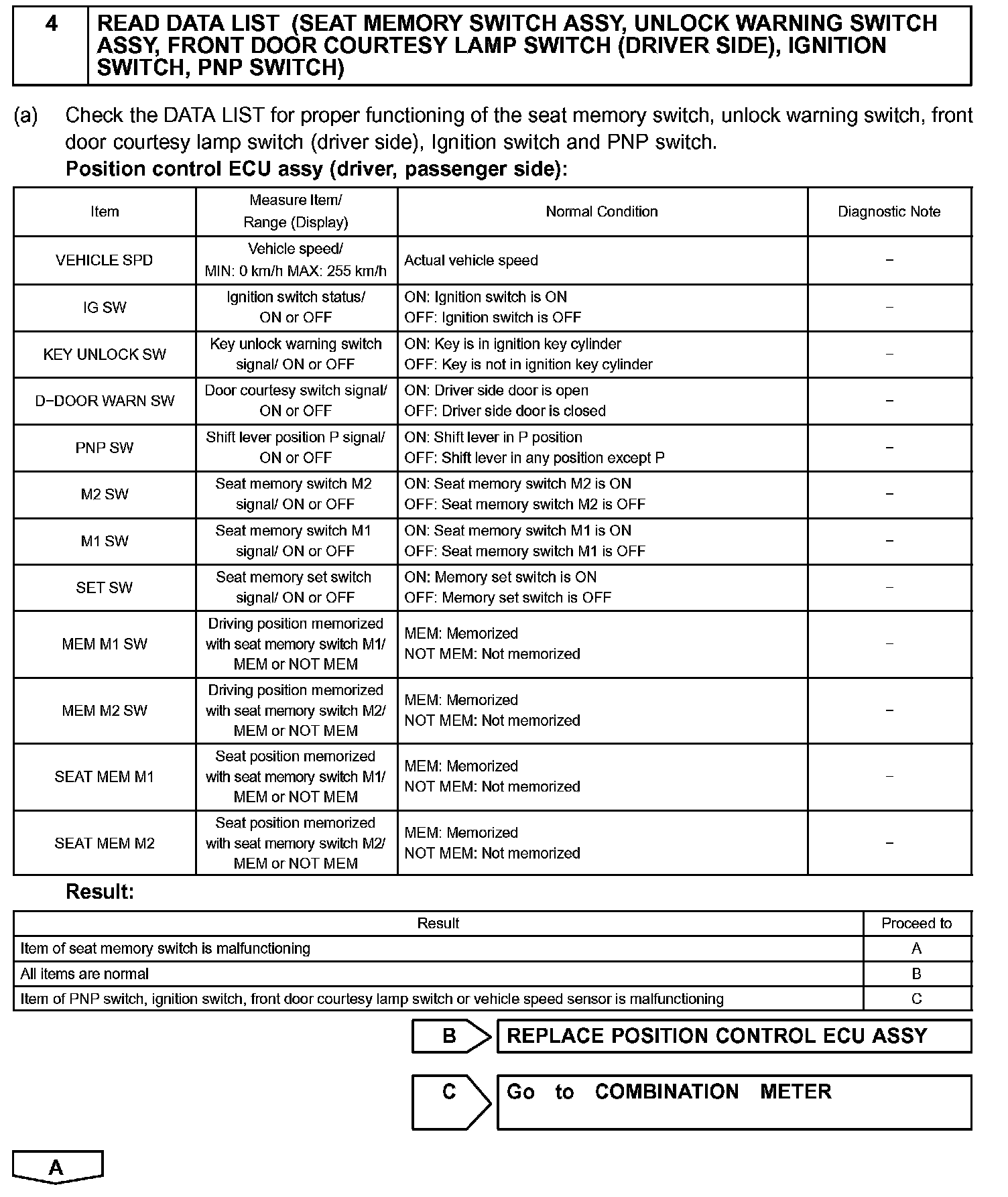

Step 6:

INSPECTION PROCEDURE
