Position Cannot Be Memorized

POSITION CANNOT BE MEMORIZED

FUNCTION DESCRIPTION

When the set button of the memory adjusting switch is pressed, the multiplex network door ECU front directs the position control ECU to memorize the value of each position sensor.

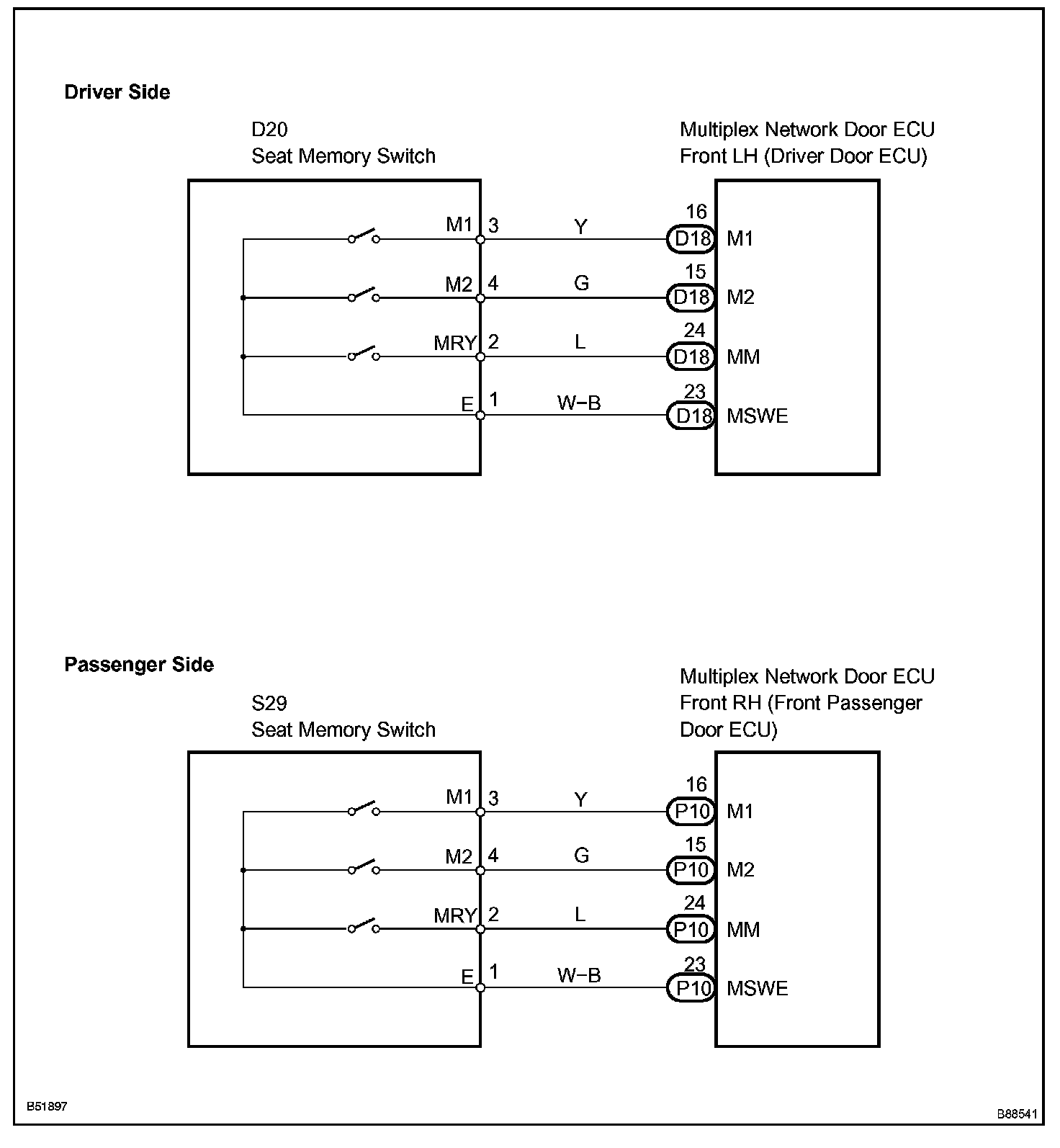

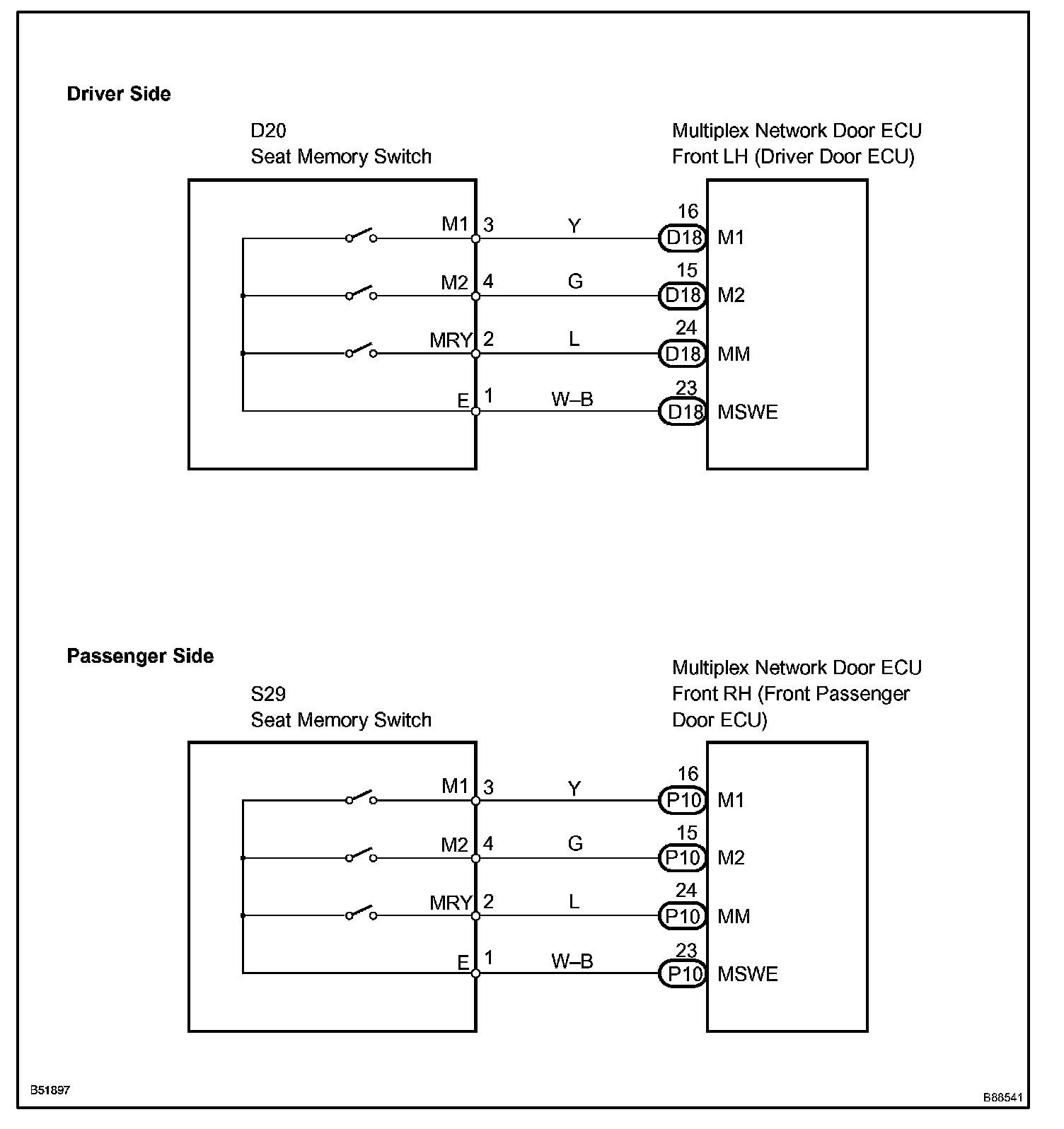

Wiring Diagram:

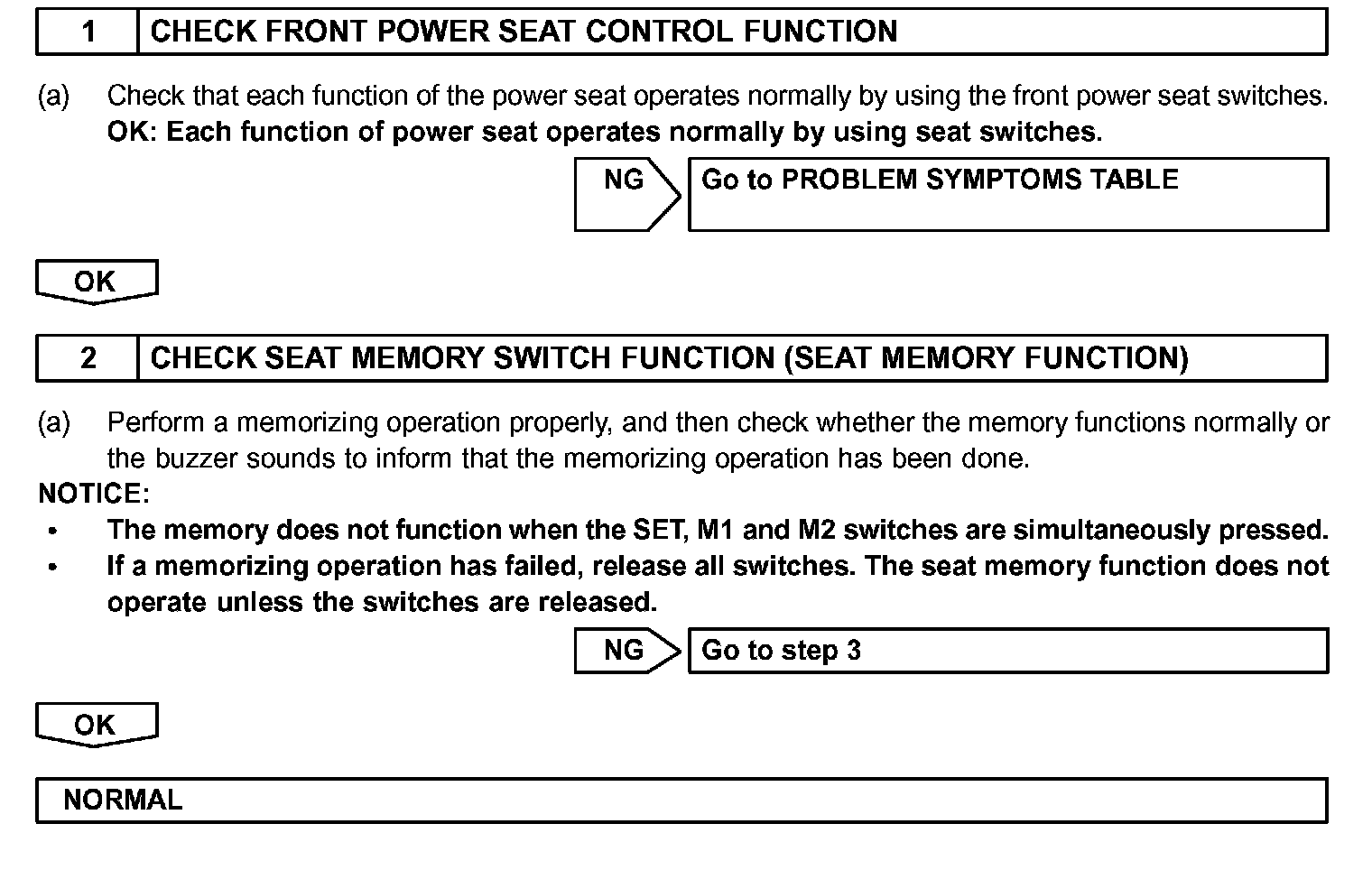

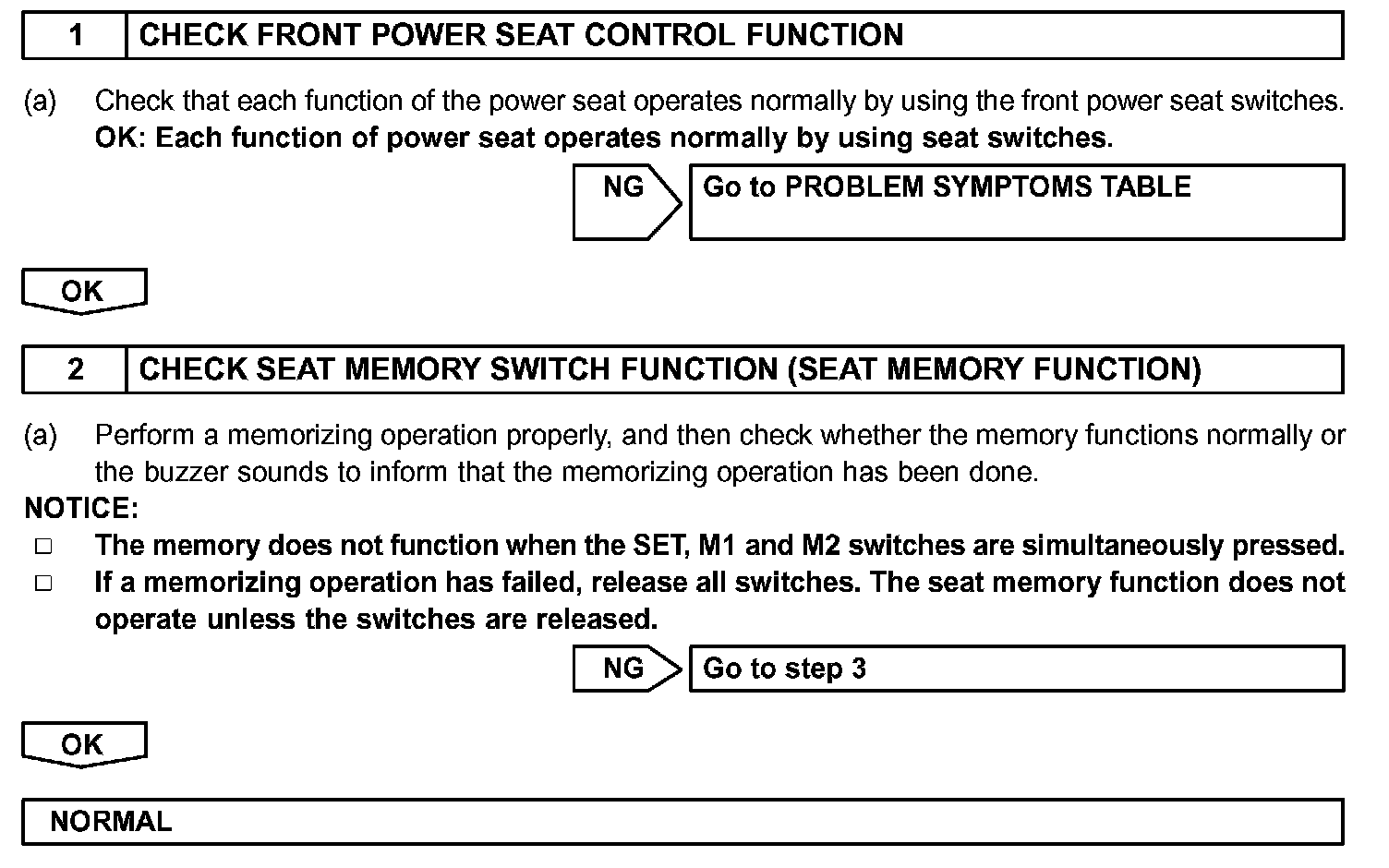

Step 1-2:

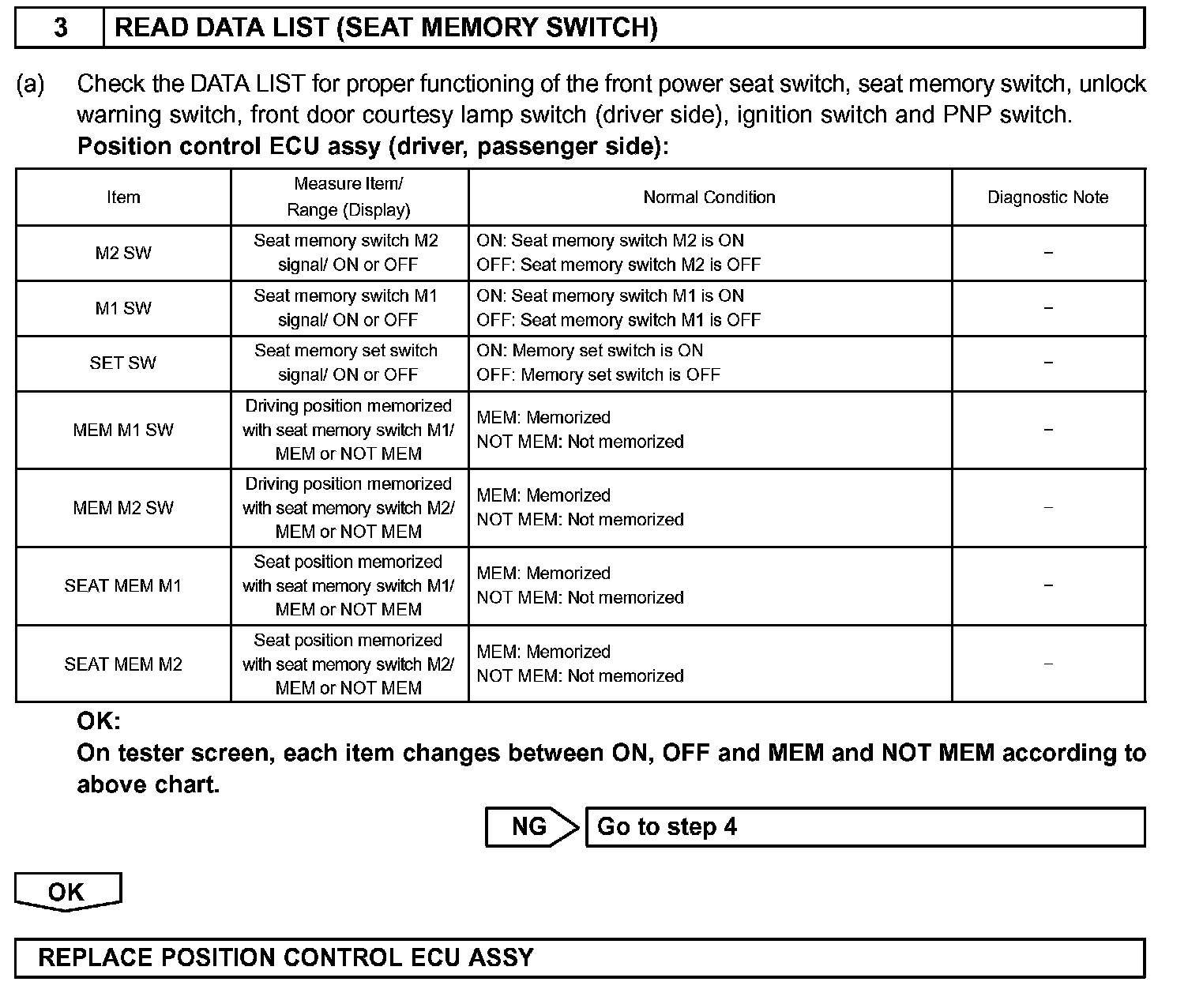

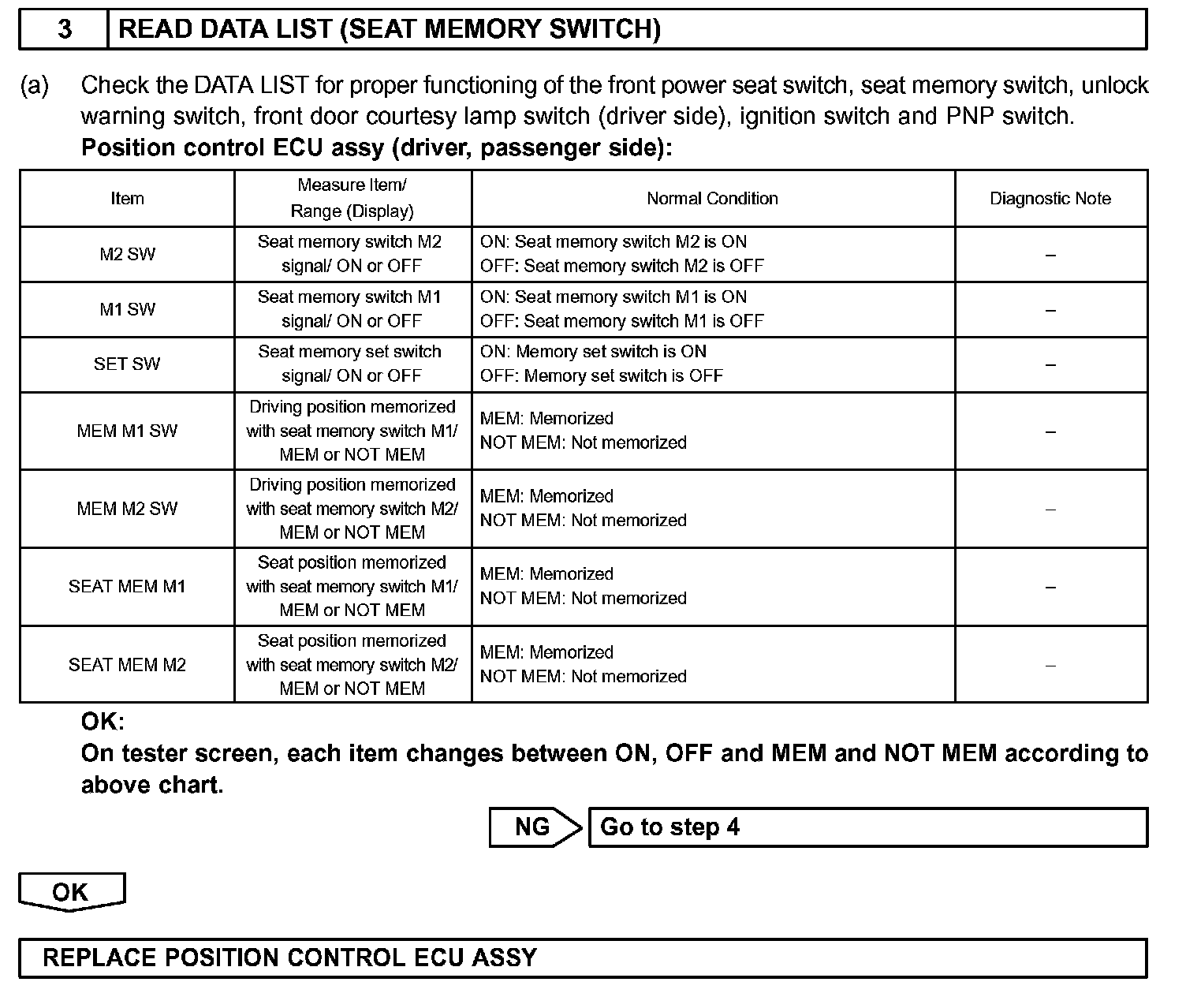

Step 3:

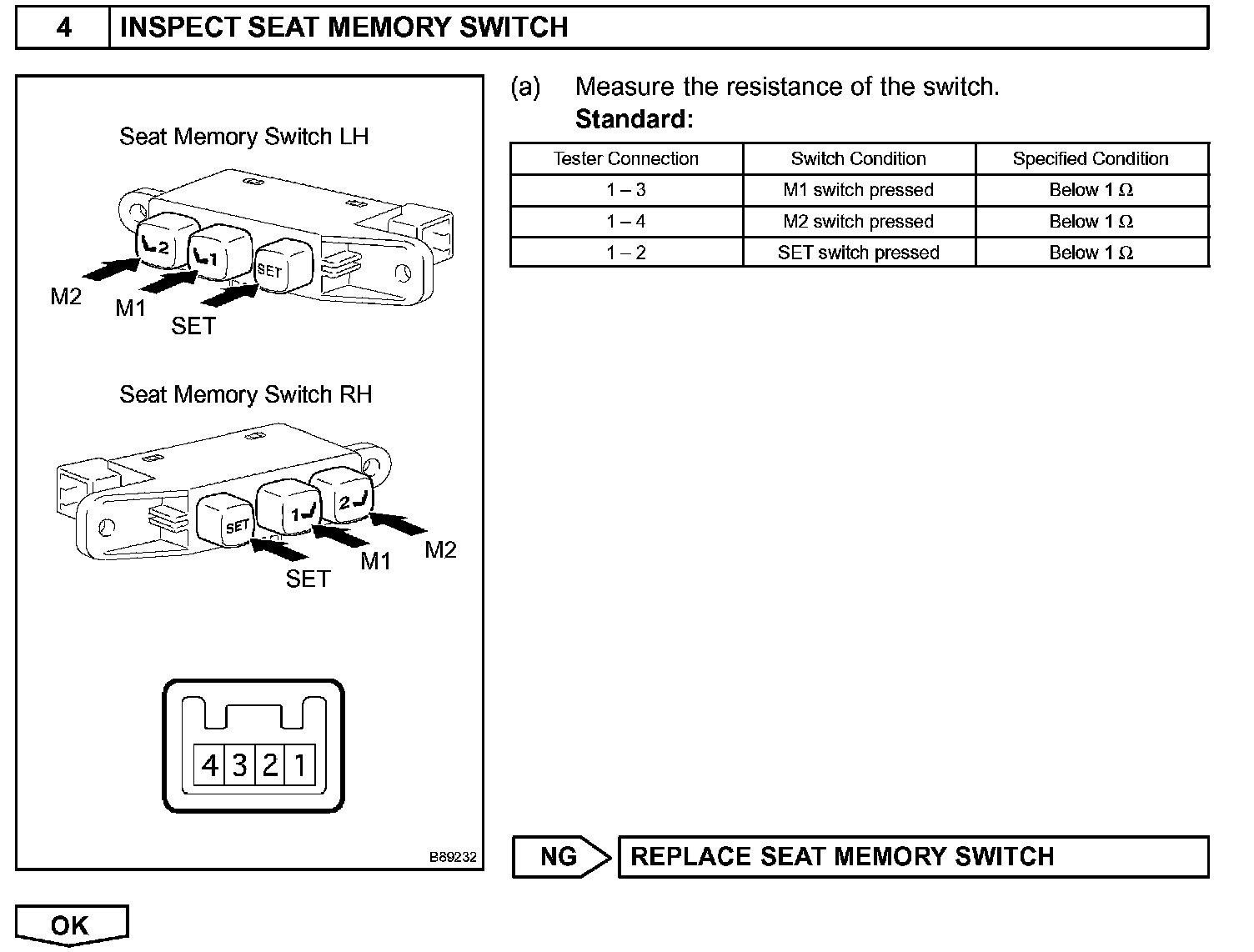

Step 4:

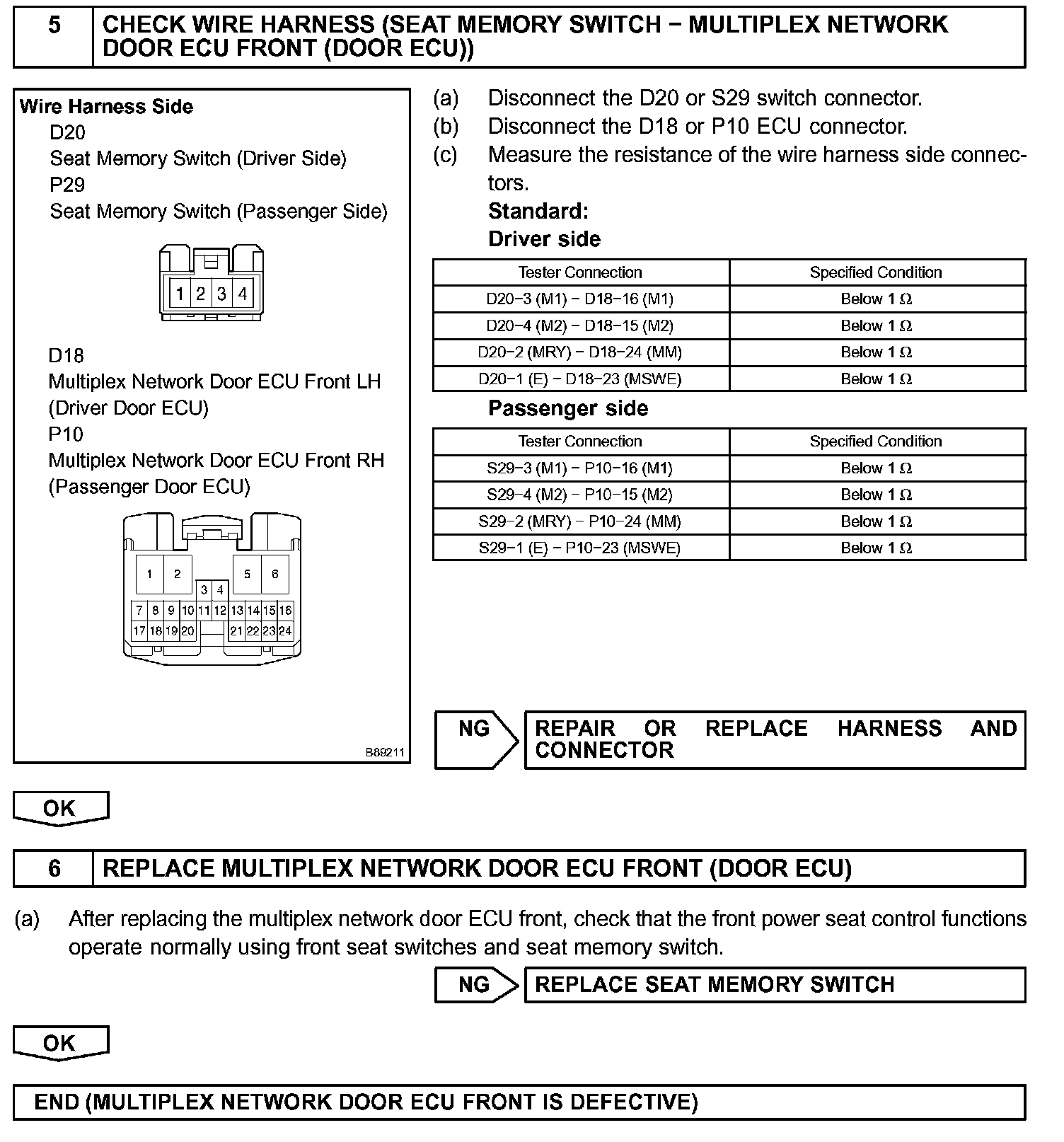

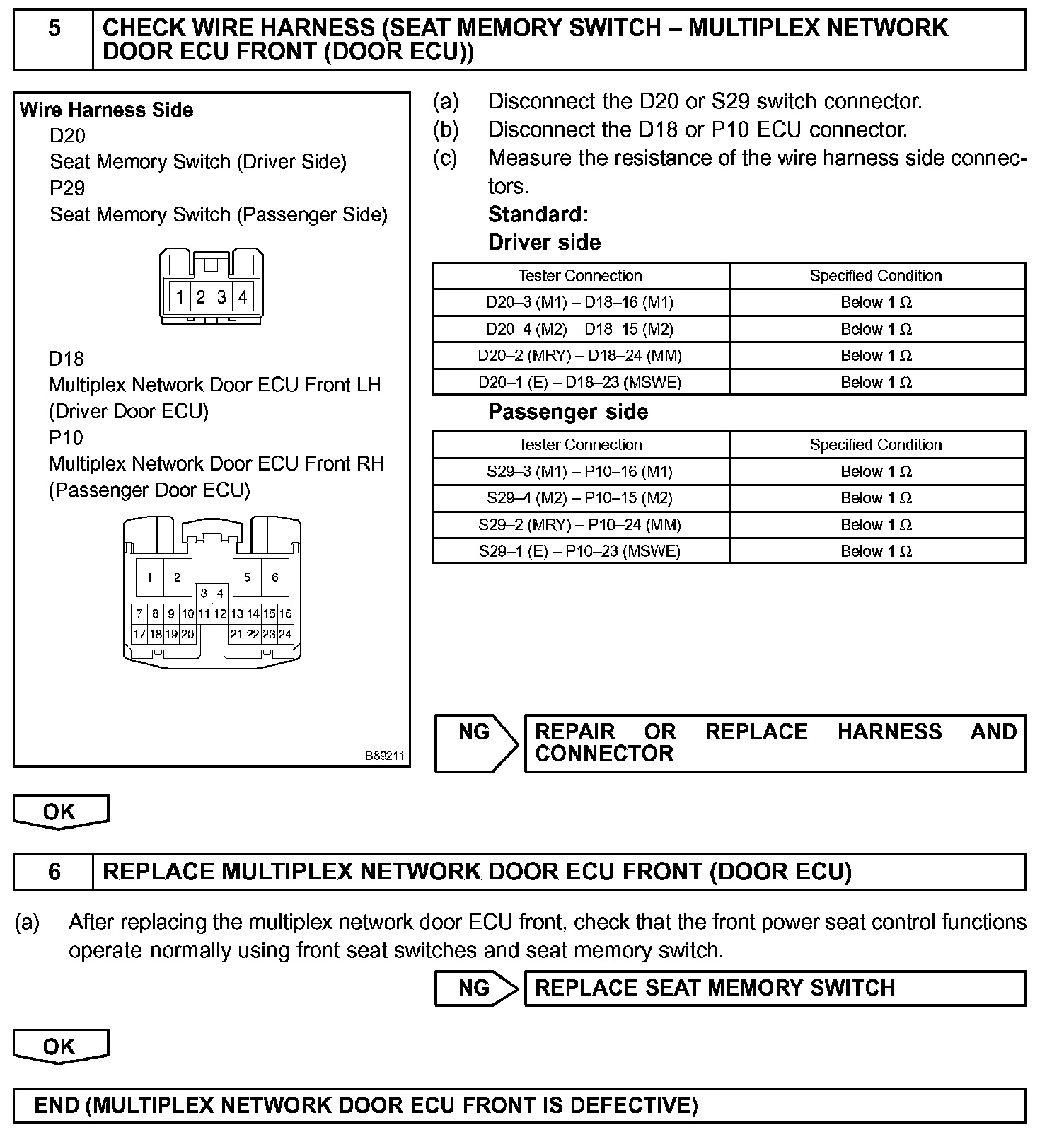

Step 5-6:

INSPECTION PROCEDURE
