Seat Temperature Element: Description and Operation

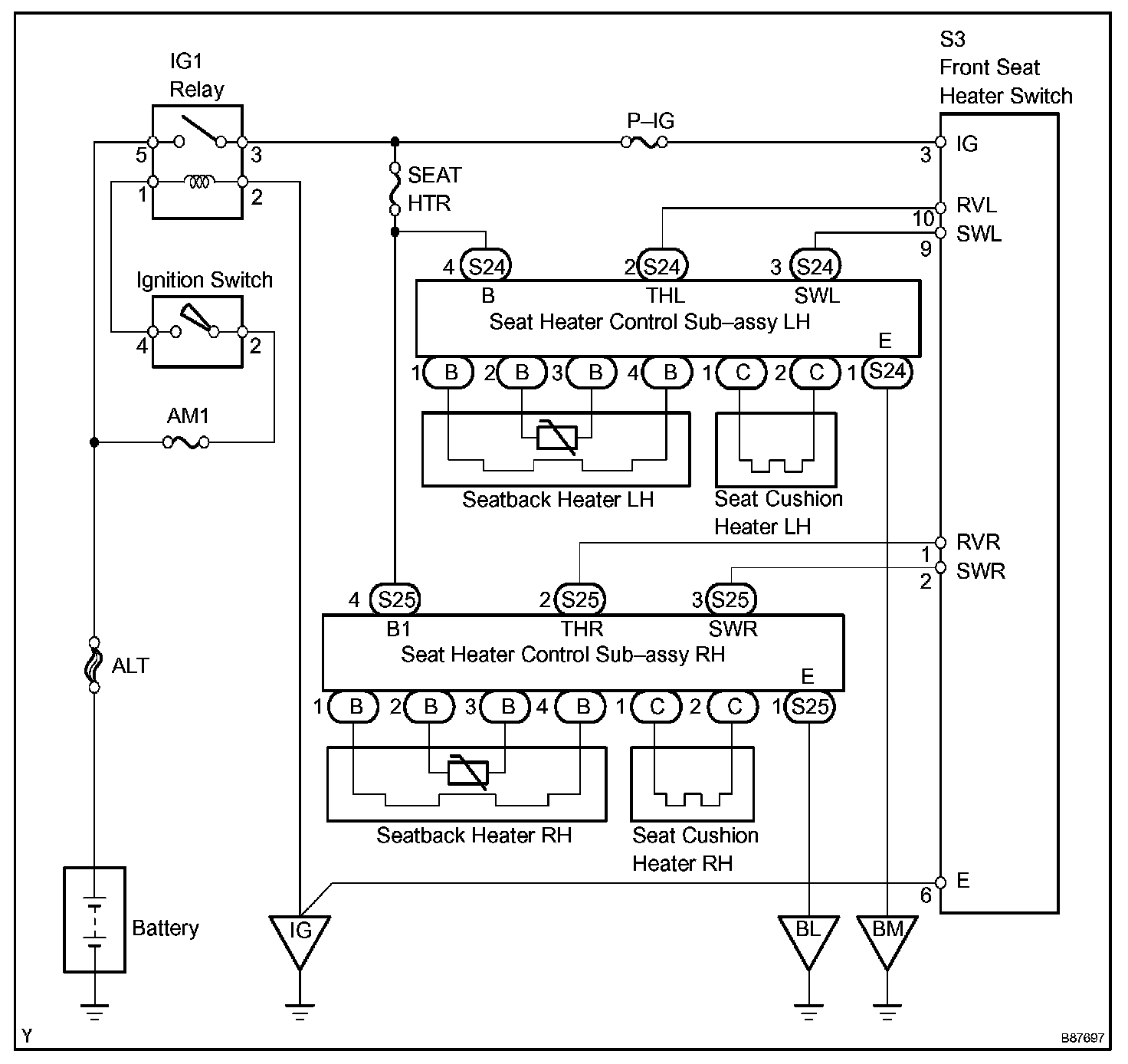

System Diagram:

SYSTEM DESCRIPTION

1. GENERAL
a. By operating the dial-type seat heater control switch, which is located in the console box, the temperature can be controlled steplessly within the range of 30 to 40°C (86 to 104°F).
b. Whether the seat heater is ON or OFF can be determined by the seat heater control switch indicator lamp ON or OFF status, respectively.
c. The seat heater of both seats are controlled by the seat heater ECU, which is located at the respective seat ECU.
