Check Indicator Lamp

CHECK INDICATOR LAMP




a. Prepare the vehicle by satisfying all of the following conditions:
1. Vehicle speed is 5 km/h (3 mph) or less
2. Luggage door opener main switch is ON
3. Tonneau cover switch is ON (Only when roof is open)
4. Luggage courtesy switch is ON

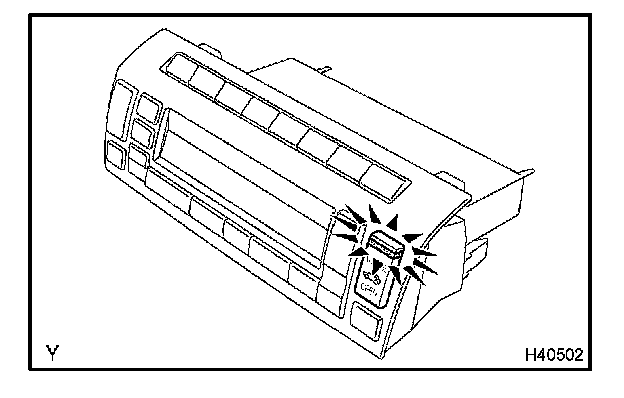

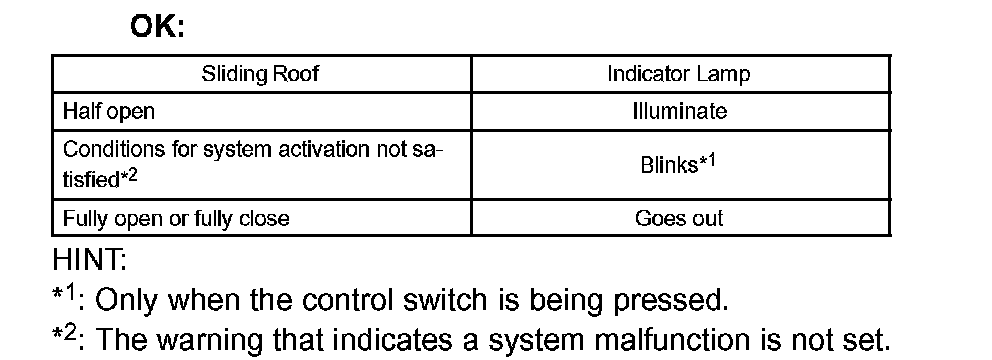

b. Operate the sliding roof using the control switch and check that the indicator lamp operates as described in the table.

If the result is not as specified, the indicator lamp may have a malfunction. Inspect the indicator lamp.
