Home >> Lexus >> 2006 >> SC 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Body and Frame >> Roof and Associated Components >> Convertible Top >> Specifications

Convertible Top: Specifications

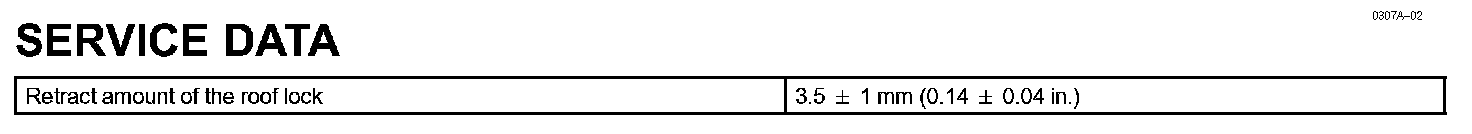

Sliding Roof / Convertible - Service Data:

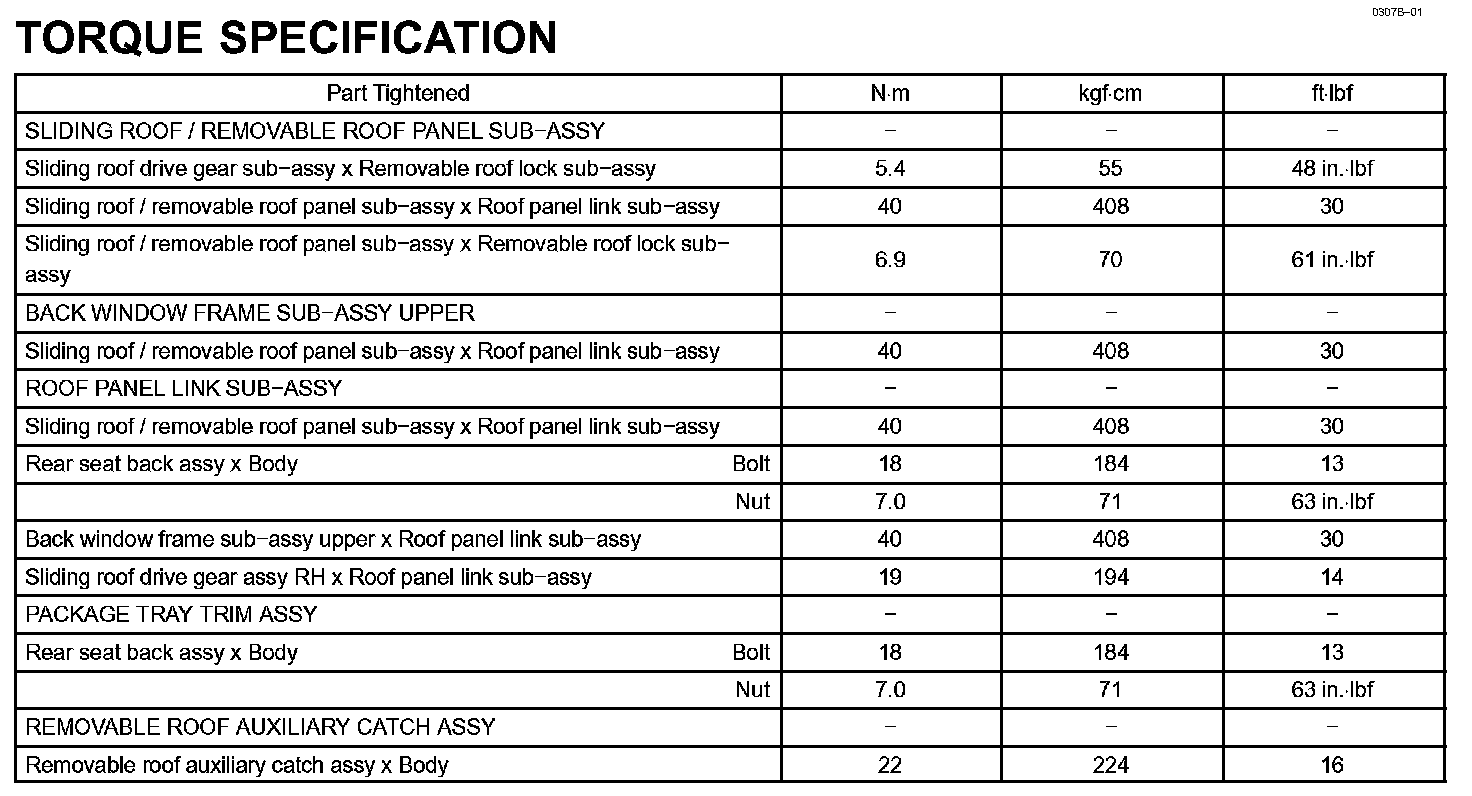

Sliding Roof / Convertible - Torque Specification:

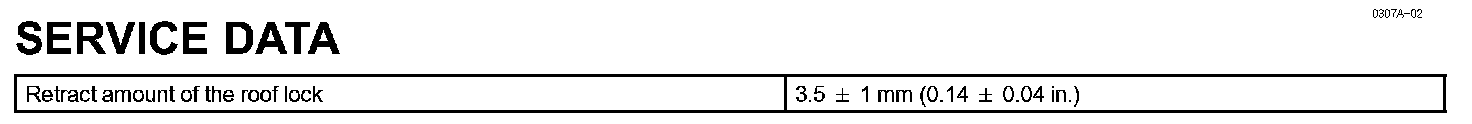

Sliding Roof/Convertible-Service Data:

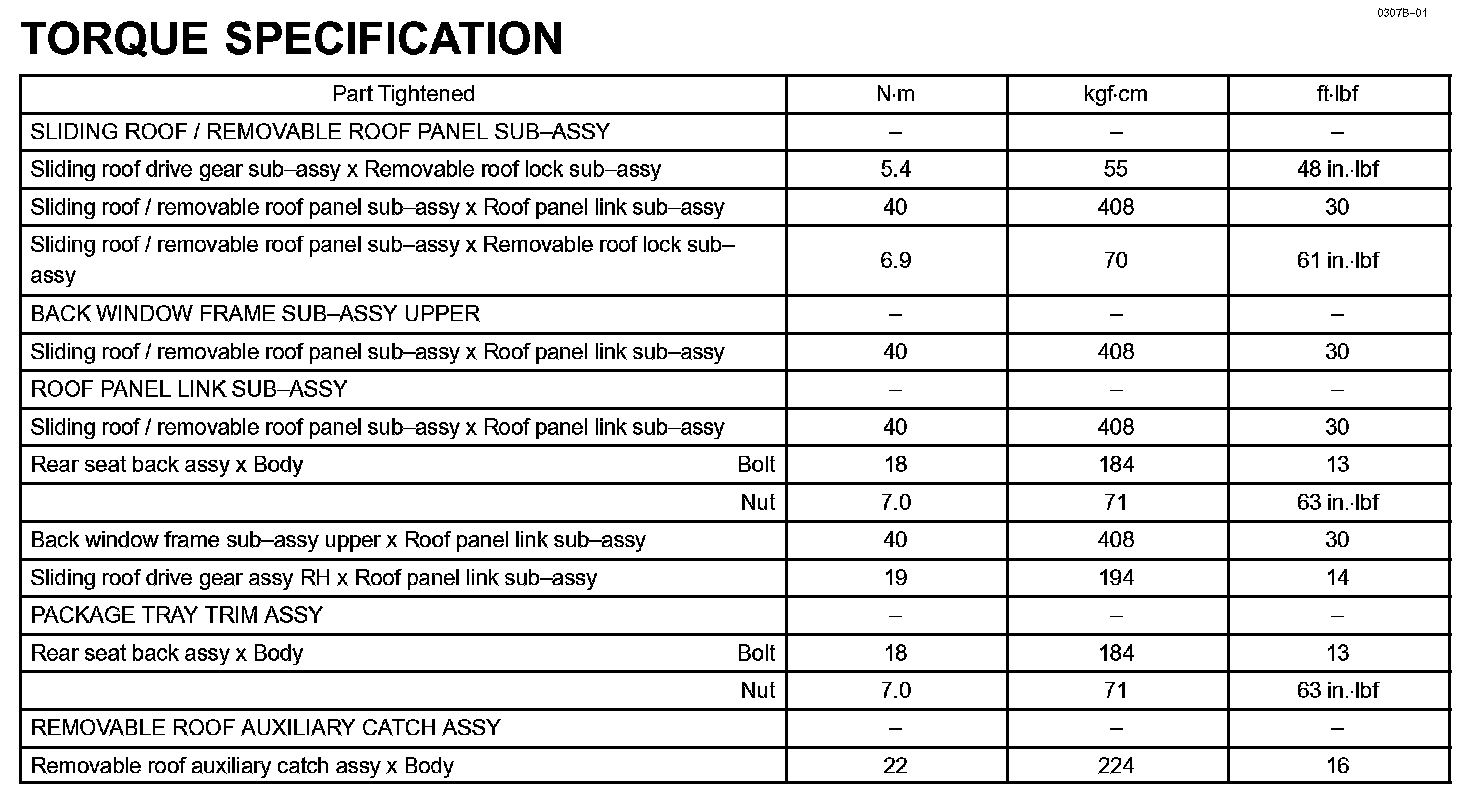

Sliding Roof/Convertible-Torque Specification:
