Either of Driver or Passenger Power Mirror Cannot Be Adjusted Manually
EITHER OF DRIVER OR PASSENGER POWER MIRROR CANNOT BE ADJUSTED MANUALLYCIRCUIT DESCRIPTION
The driver side J/B sends power mirror switch signals through the multiplex communication line to the multiplex network door ECU front LH and RH (driver and passenger door ECU). While the theft warning ECU is sending an ACC signal through the multiplex communication line to the door ECU front LH and RH, the RIGHT, LEFT, UP and DOWN mirror surface operation occurs.

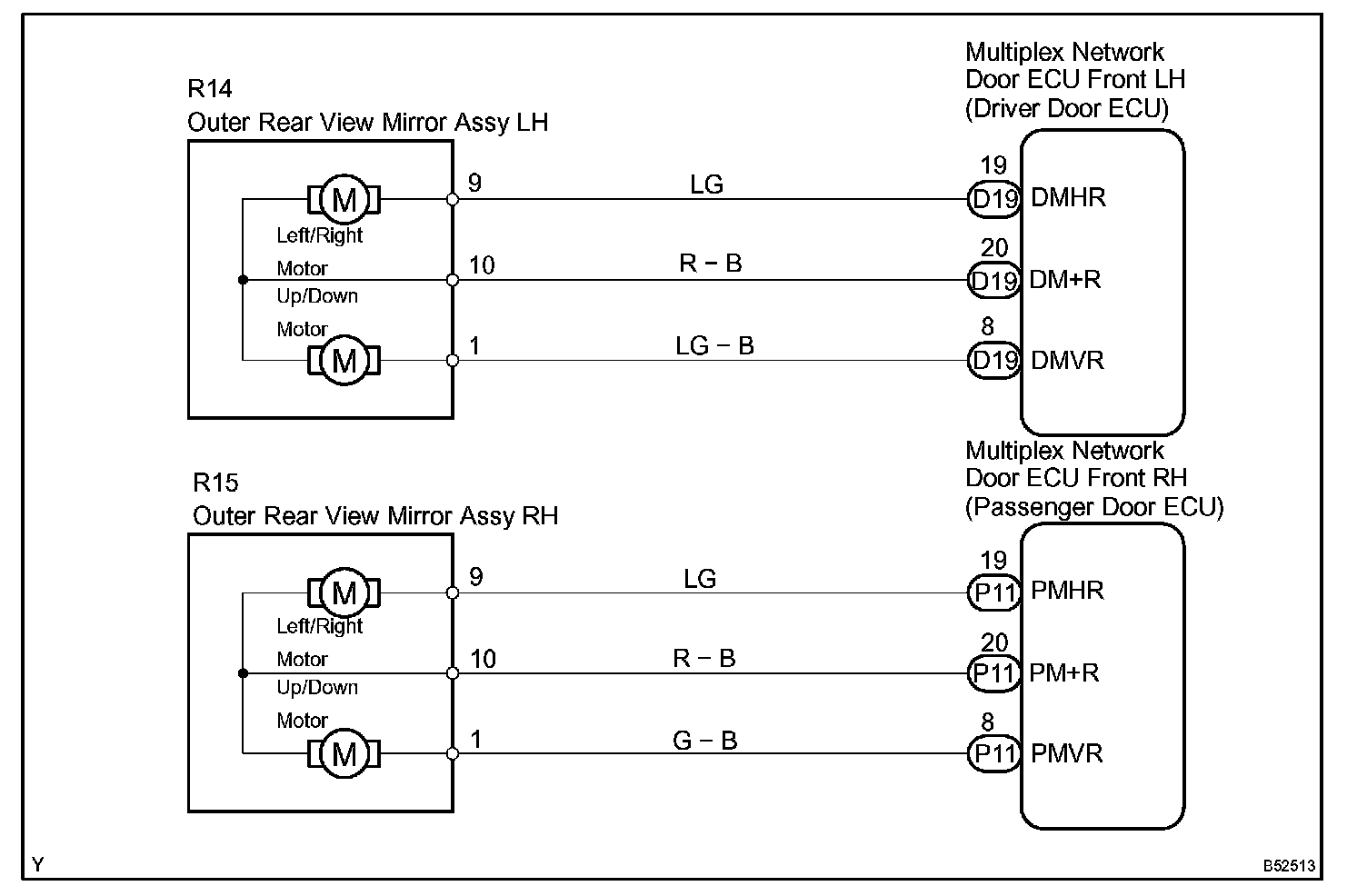

Wiring Diagram:

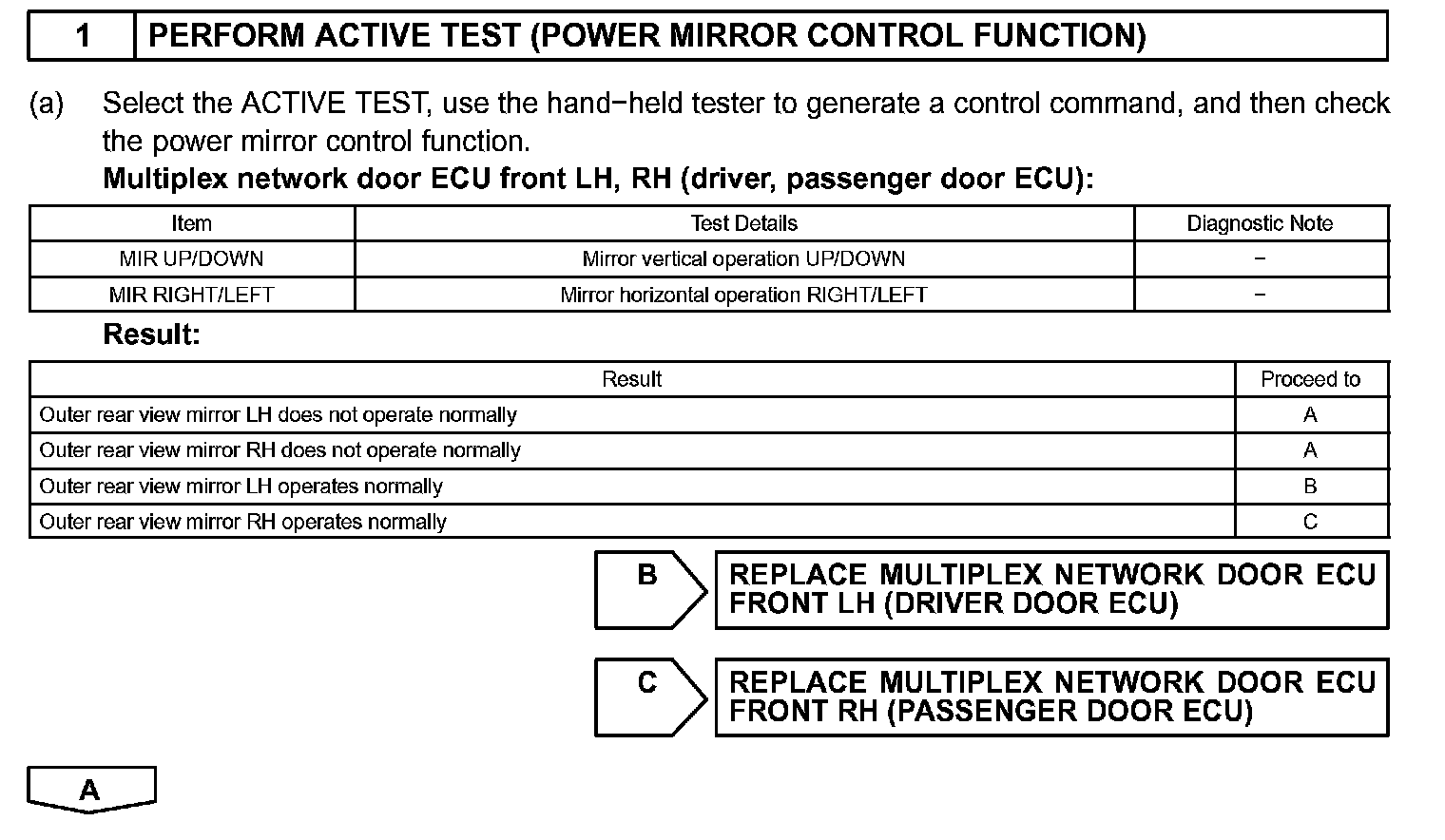

Step 1:

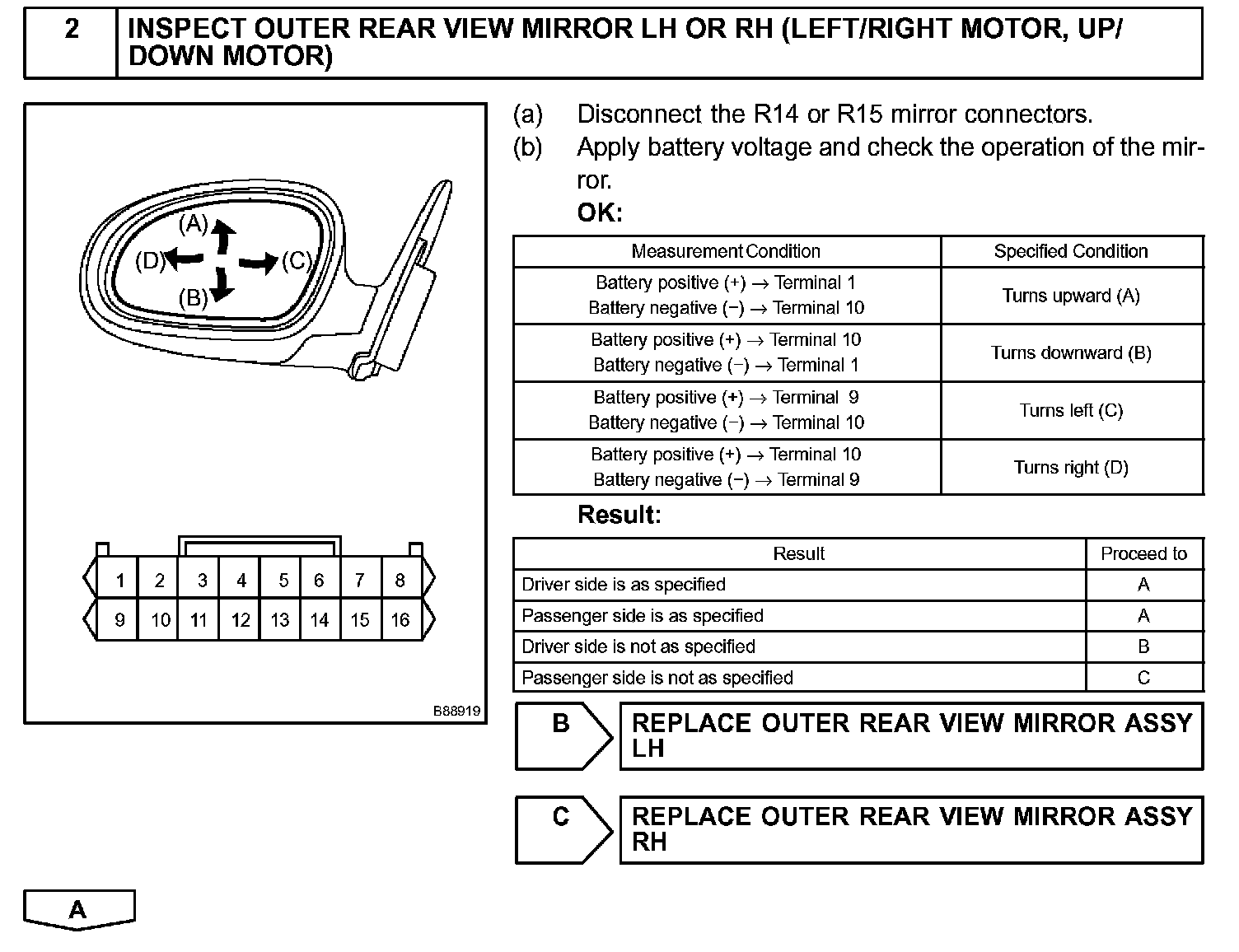

Step 2:

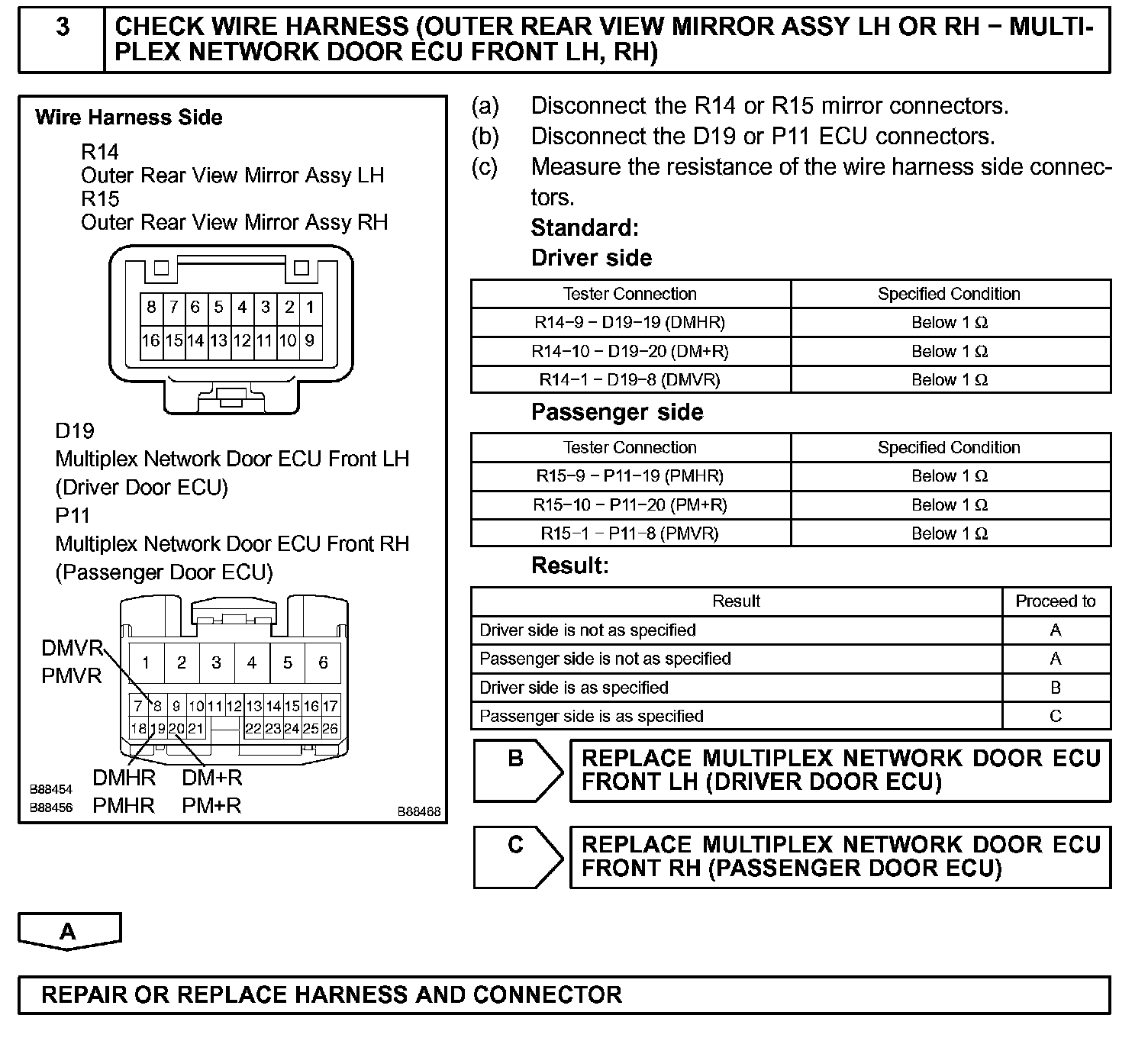

Step 3:
INSPECTION PROCEDURE
