Both of Driver and Passenger Power Mirrors Cannot Be Adjusted Manually

BOTH OF DRIVER AND PASSENGER POWER MIRRORS CANNOT BE ADJUSTED MANUALLY

CIRCUIT DESCRIPTION

The driver side J/B sends power mirror switch signals through the multiplex communication line to the multiplex network door ECU front LH and RH (driver and passenger door ECU). While the theft warning ECU is sending an ACC signal through the multiplex communication line to the door ECU front LH and RH, the RIGHT, LEFT, UP and DOWN mirror surface operation occurs.

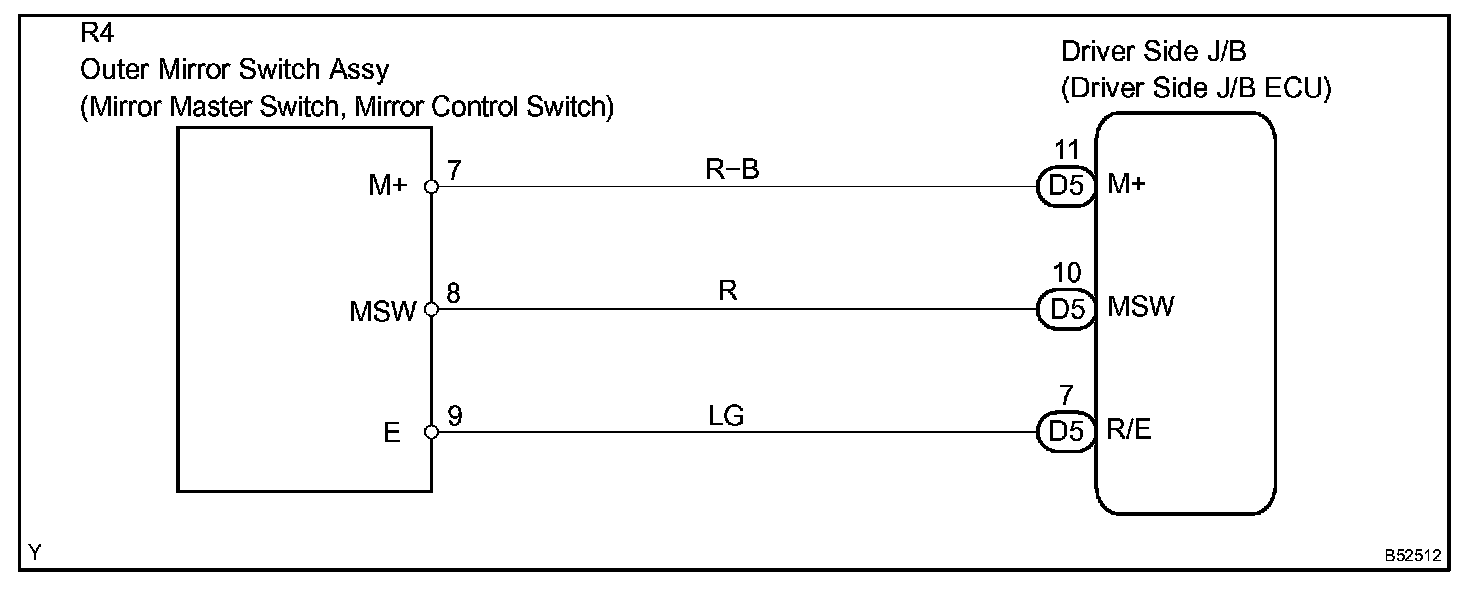

Wiring Diagram:

Step 1:

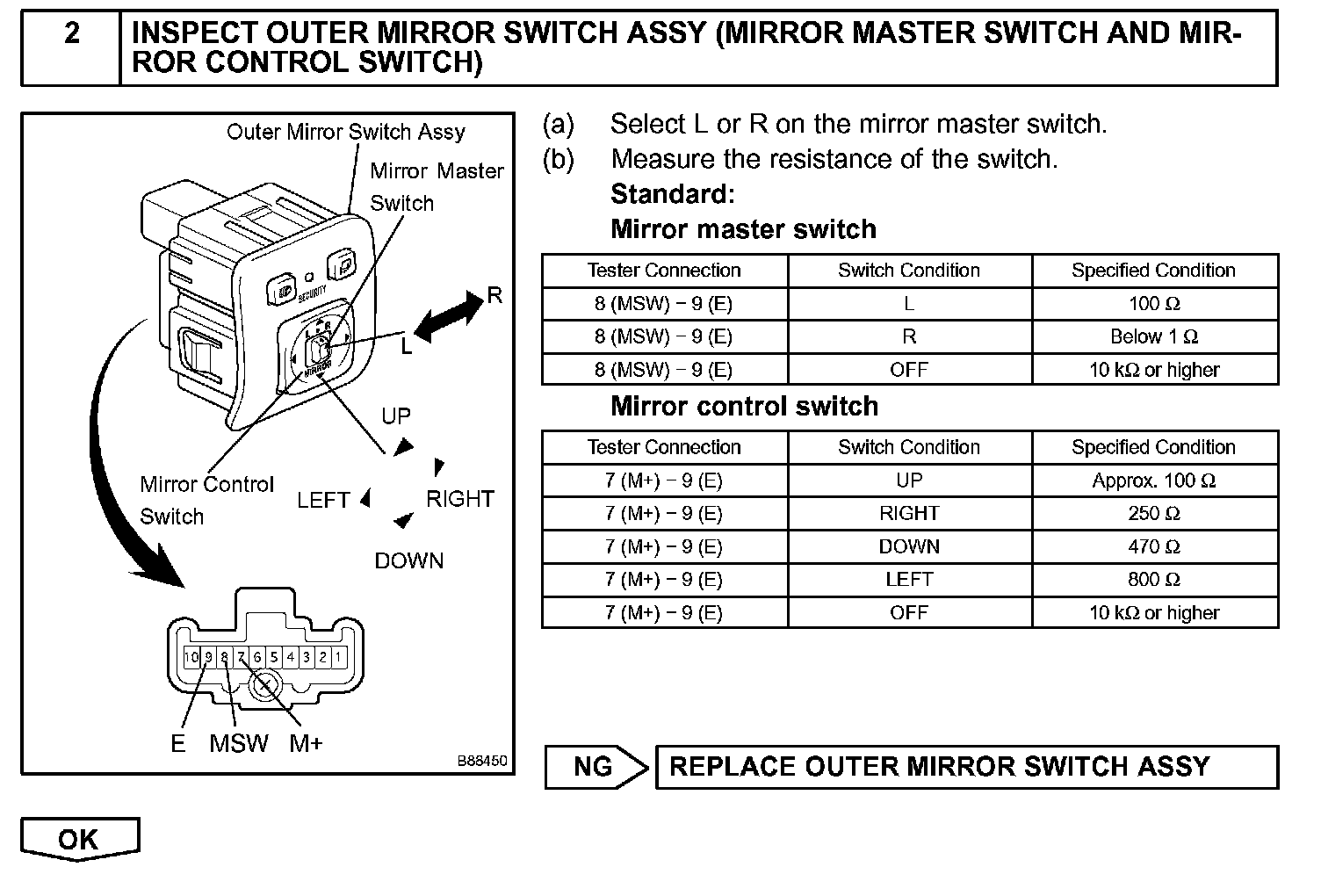

Step 2:

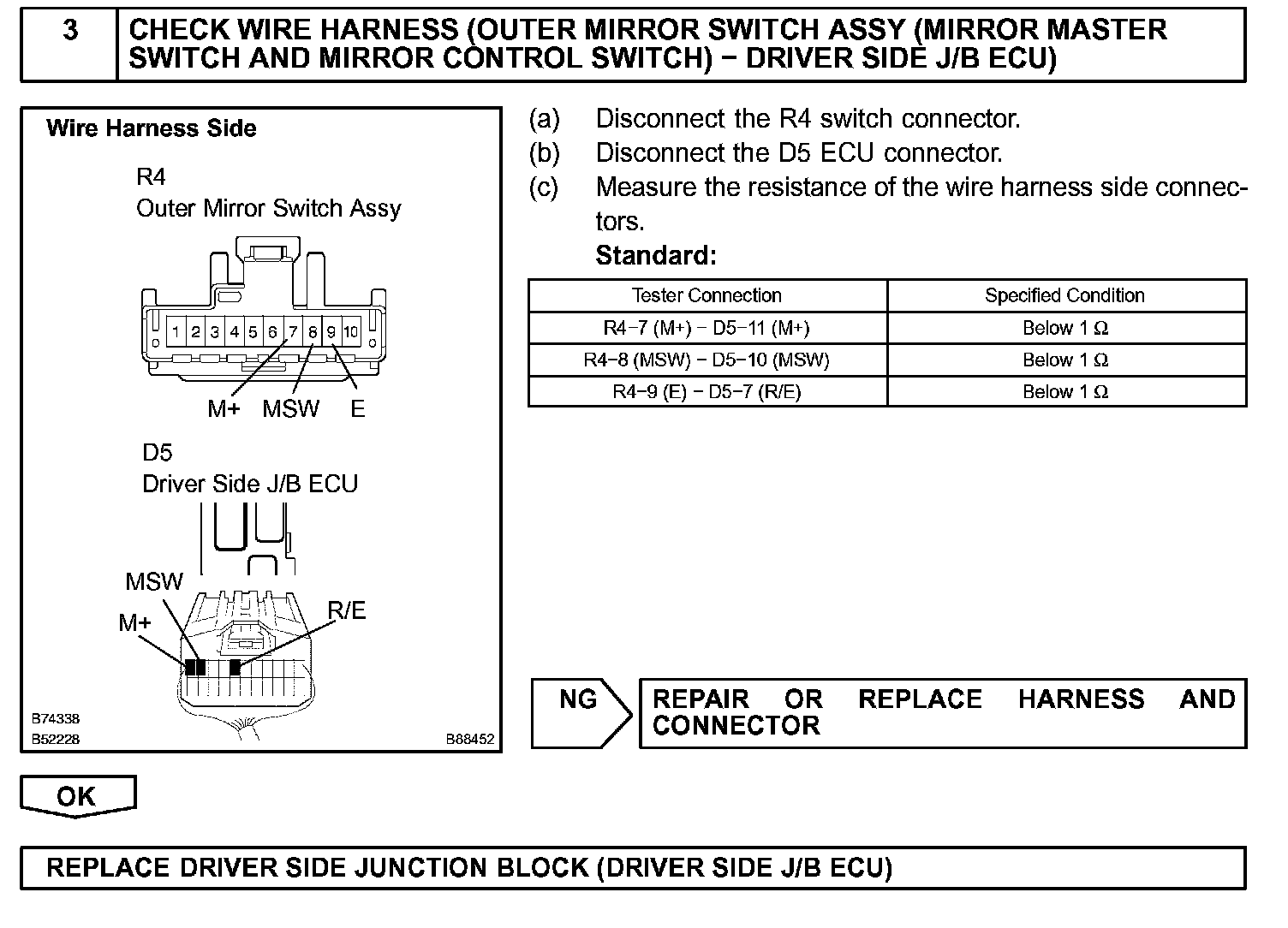

Step 3:

INSPECTION PROCEDURE
