Trunk / Liftgate: Description and Operation

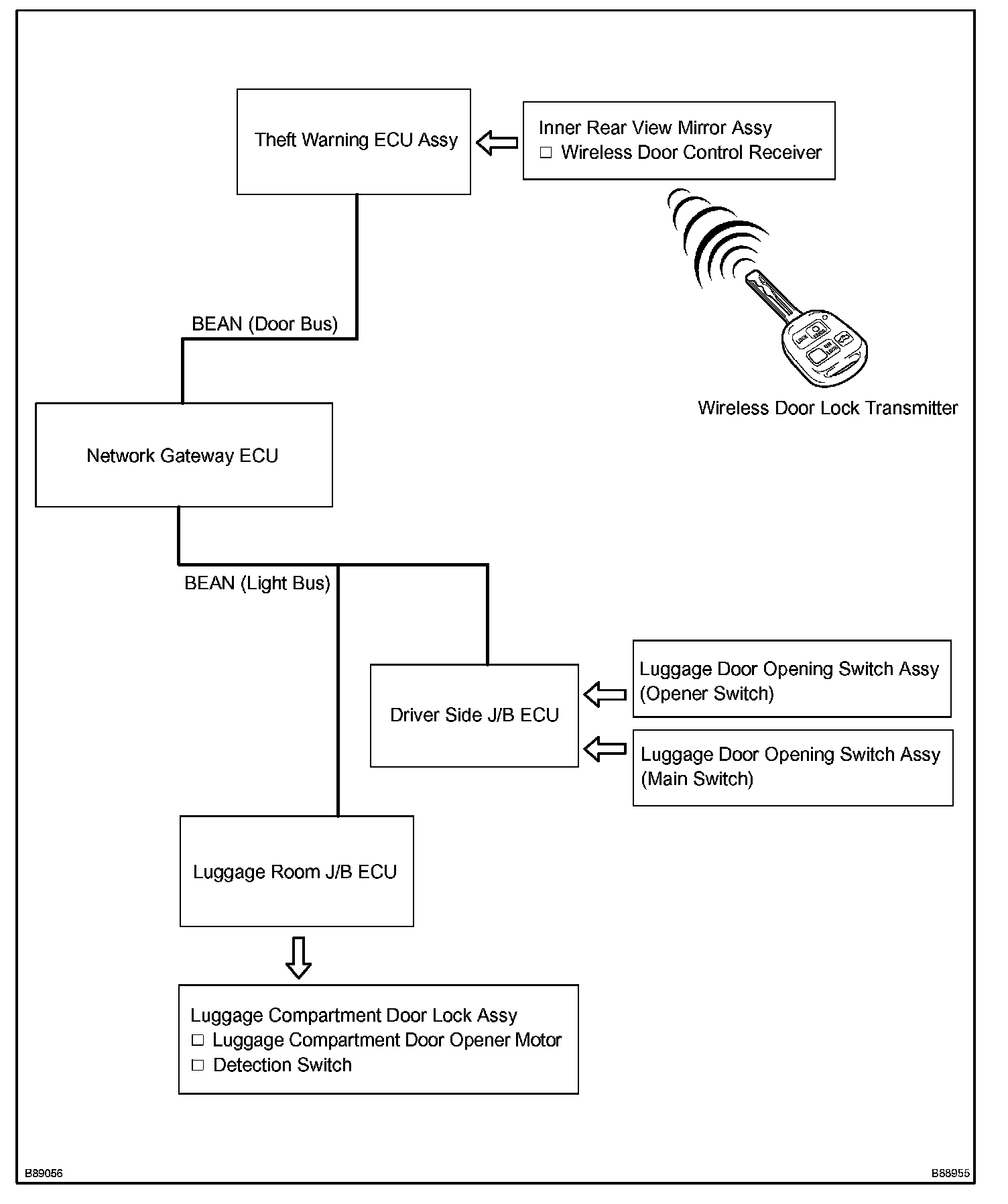

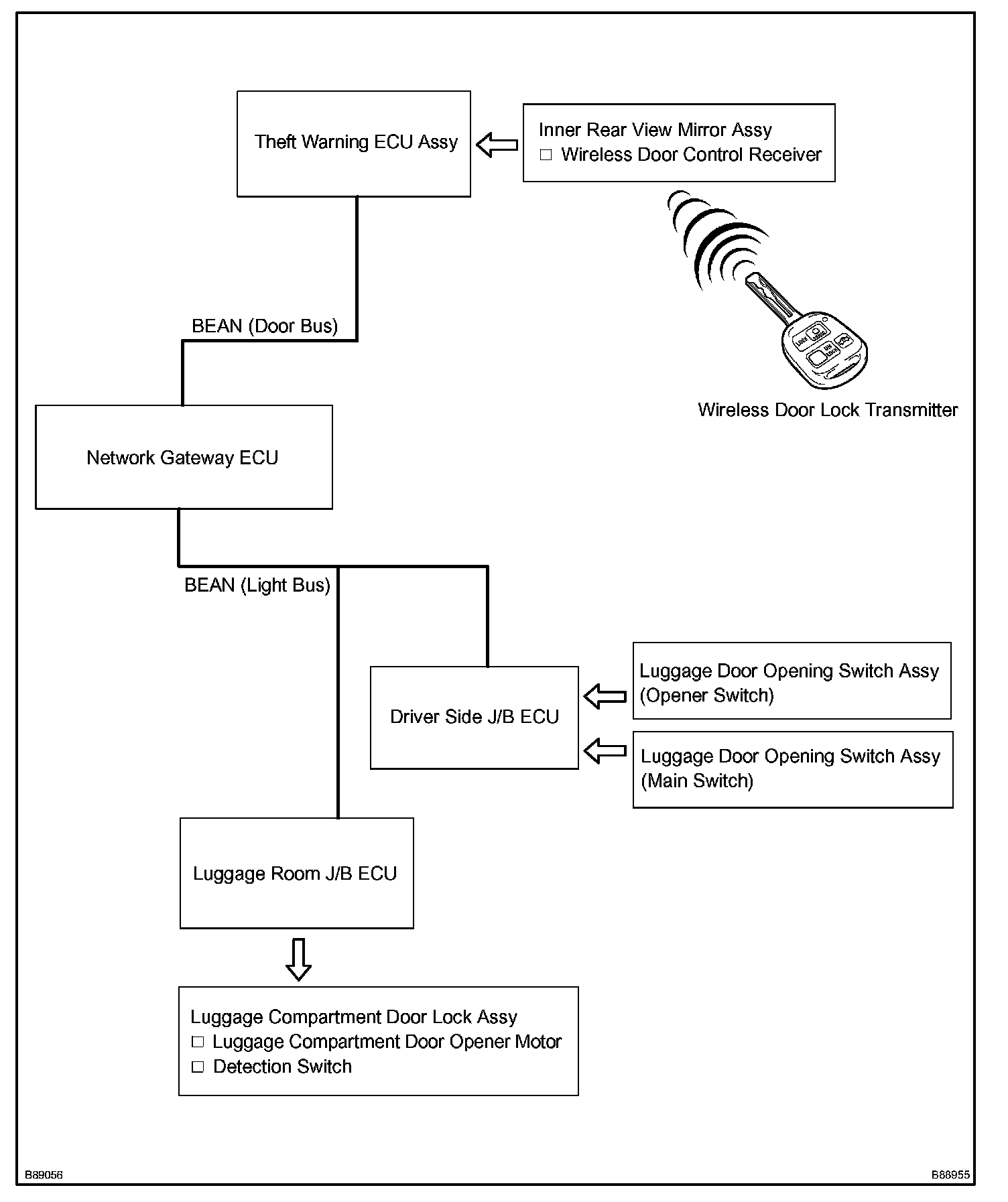

System Diagram:

SYSTEM DESCRIPTION

1. LUGGAGE COMPARTMENT DOOR OPENER SYSTEM DESCRIPTION
The switch signal via the luggage door opening switch is transmitted multiply to the theft warning ECU from the driver's side J/B. Then, when the theft warning ECU recognizes the main key, the luggage room J/B drives the luggage door opening motor.

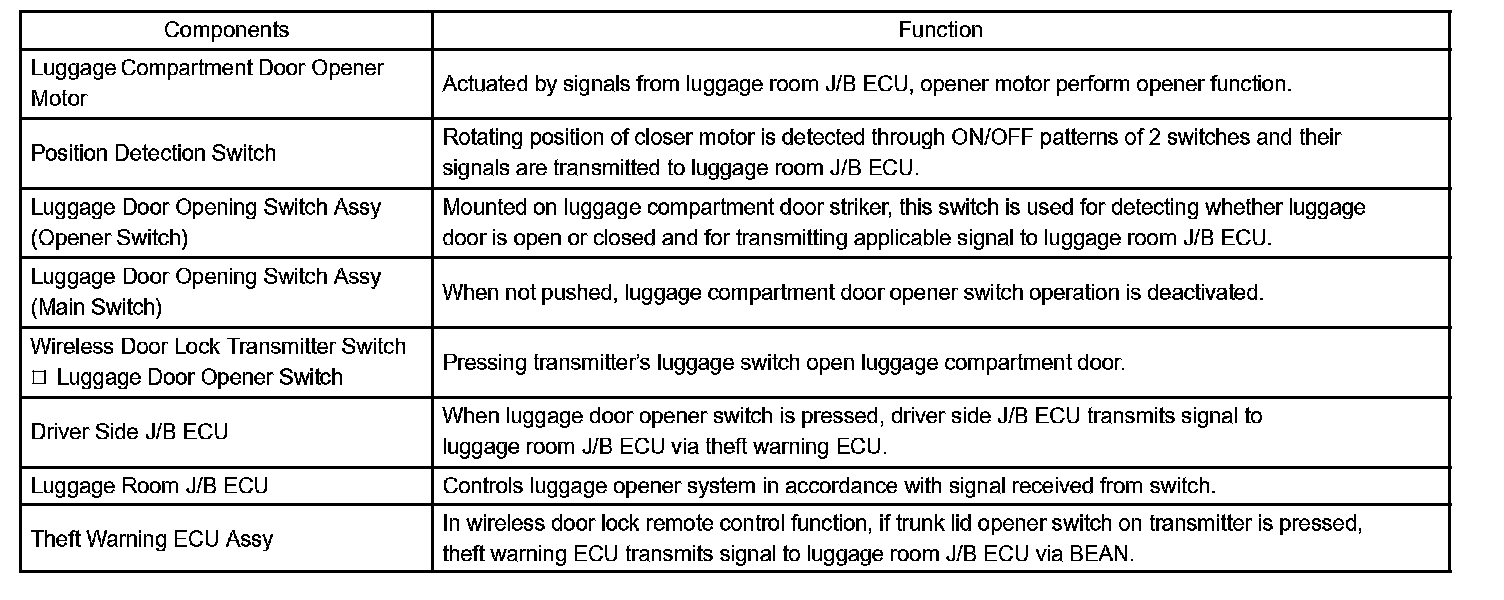

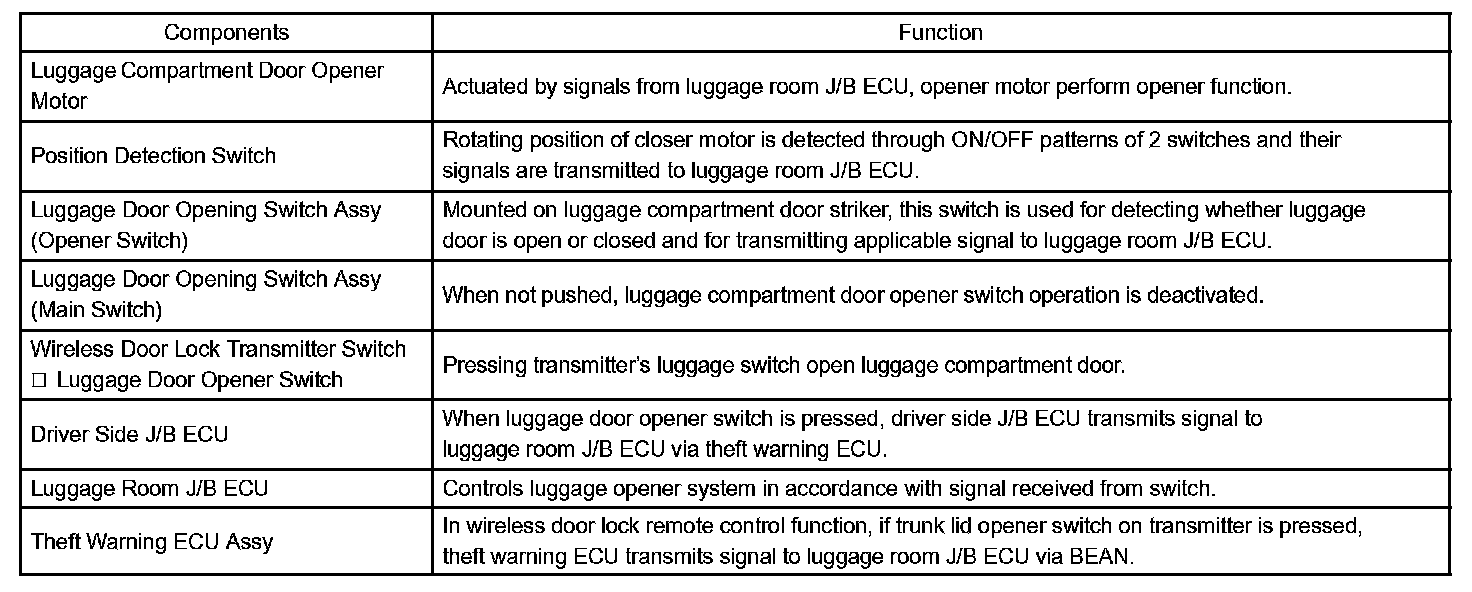

2. FUNCTION OF MAIN COMPONENTS




The luggage compartment door opener system mainly consists of a luggage door lock and the luggage room J/B ECU. The luggage door lock contains switches and a motor. The constituent parts provide the functions listed.
