Fuel Lid Opener Motor Circuit

FUEL LID OPENER MOTOR CIRCUIT

CIRCUIT DESCRIPTION

The circuit opens the fuel lid when the ECU sends signals to the fuel lid opener motor.

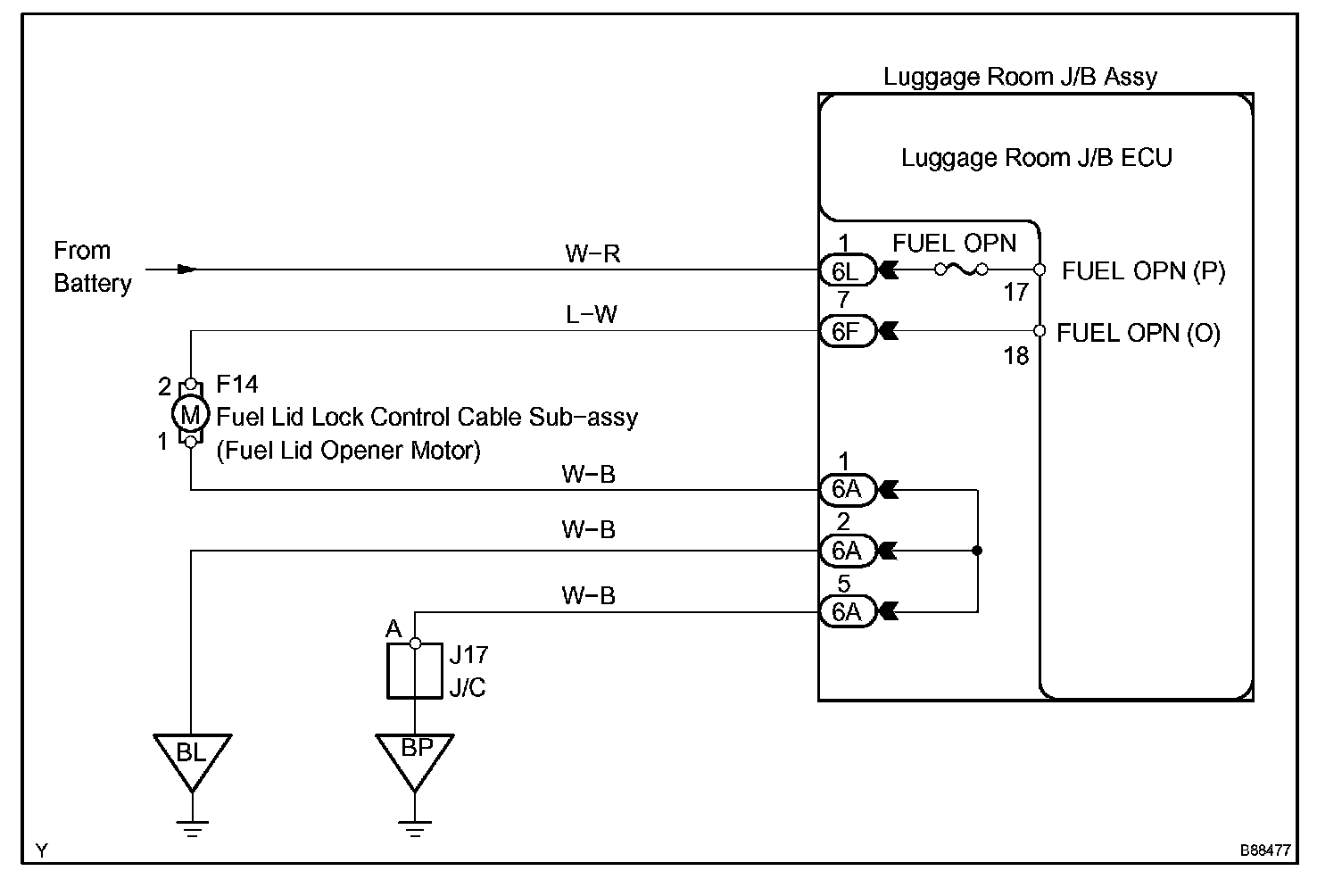

Wiring Diagram:

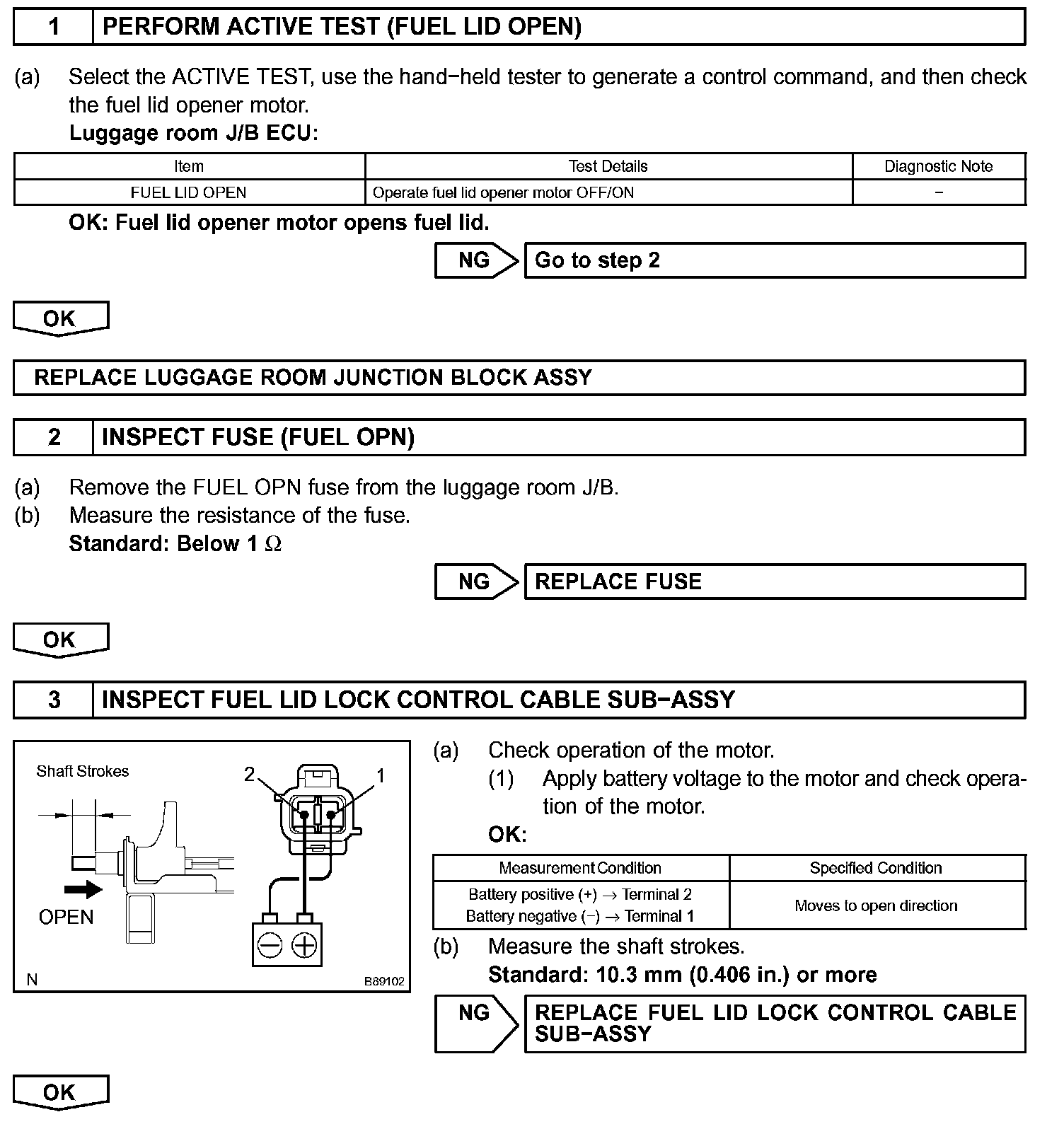

Step 1-3:

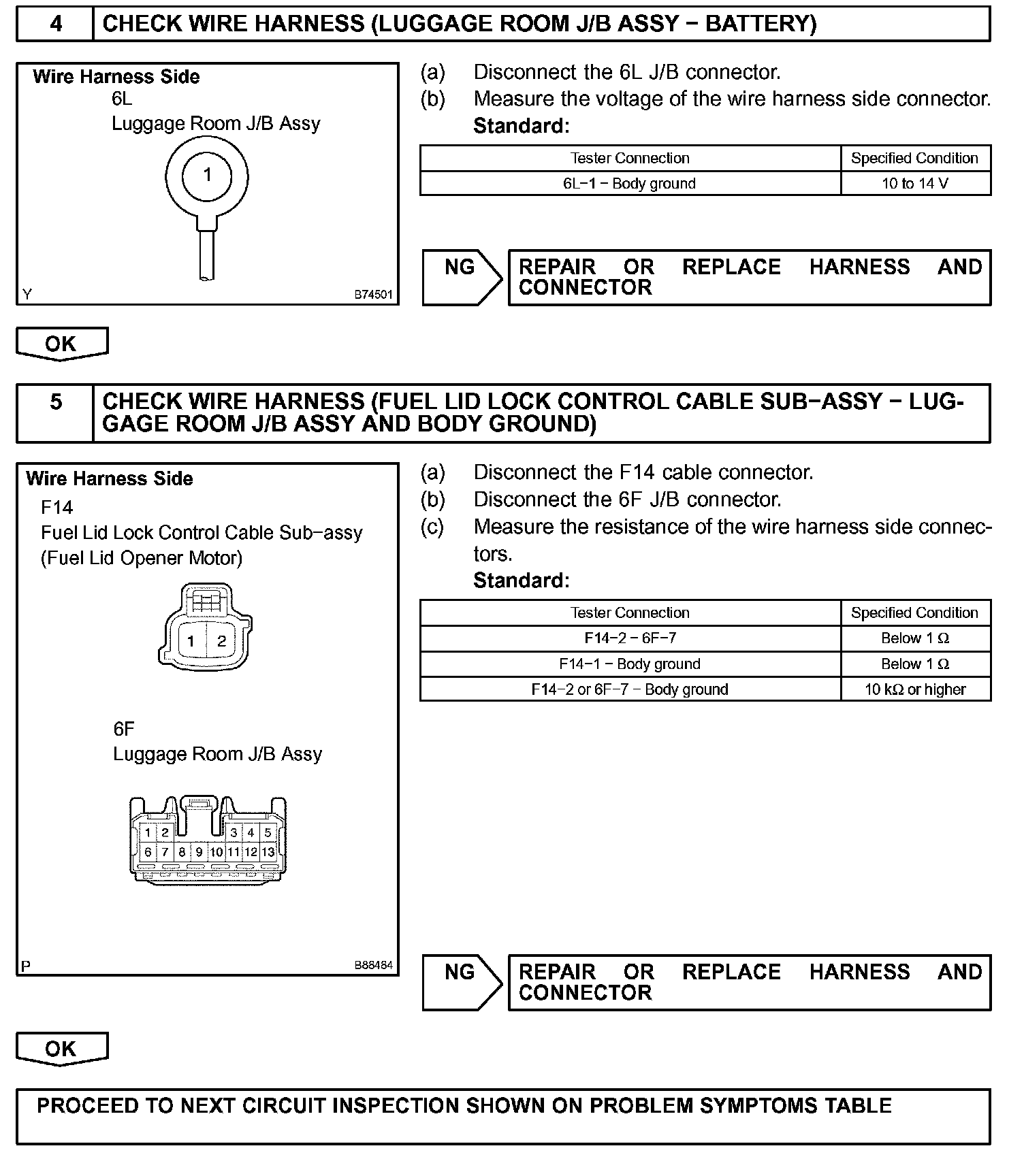

Step 4-5:

INSPECTION PROCEDURE
