Driver Side J/B ECU Power Source Circuit

DRIVER SIDE J/B ECU POWER SOURCE CIRCUIT

CIRCUIT DESCRIPTION

This circuit provides power to operate the driver side J/B.

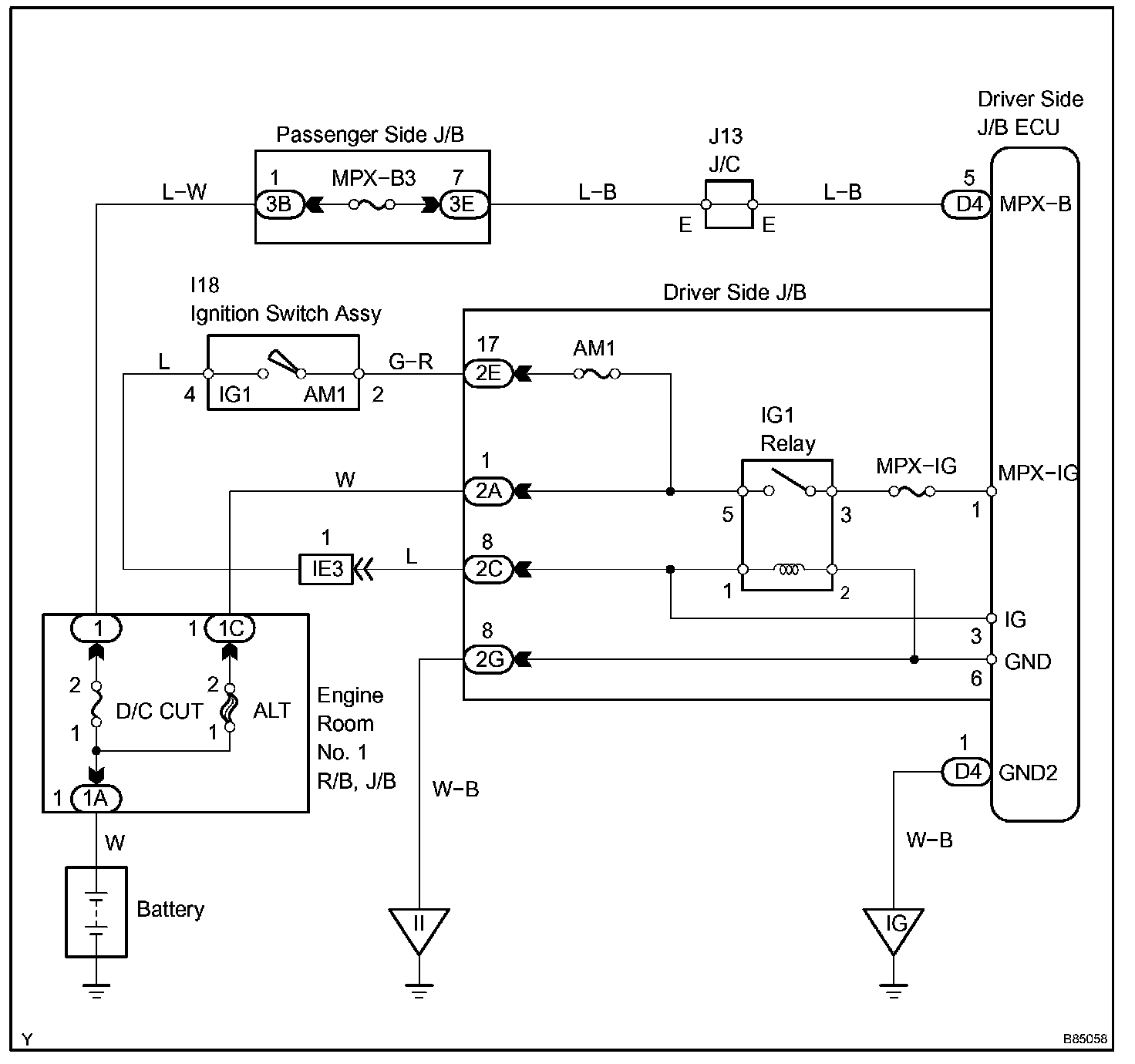

Wiring Diagram:

Step 1-2:

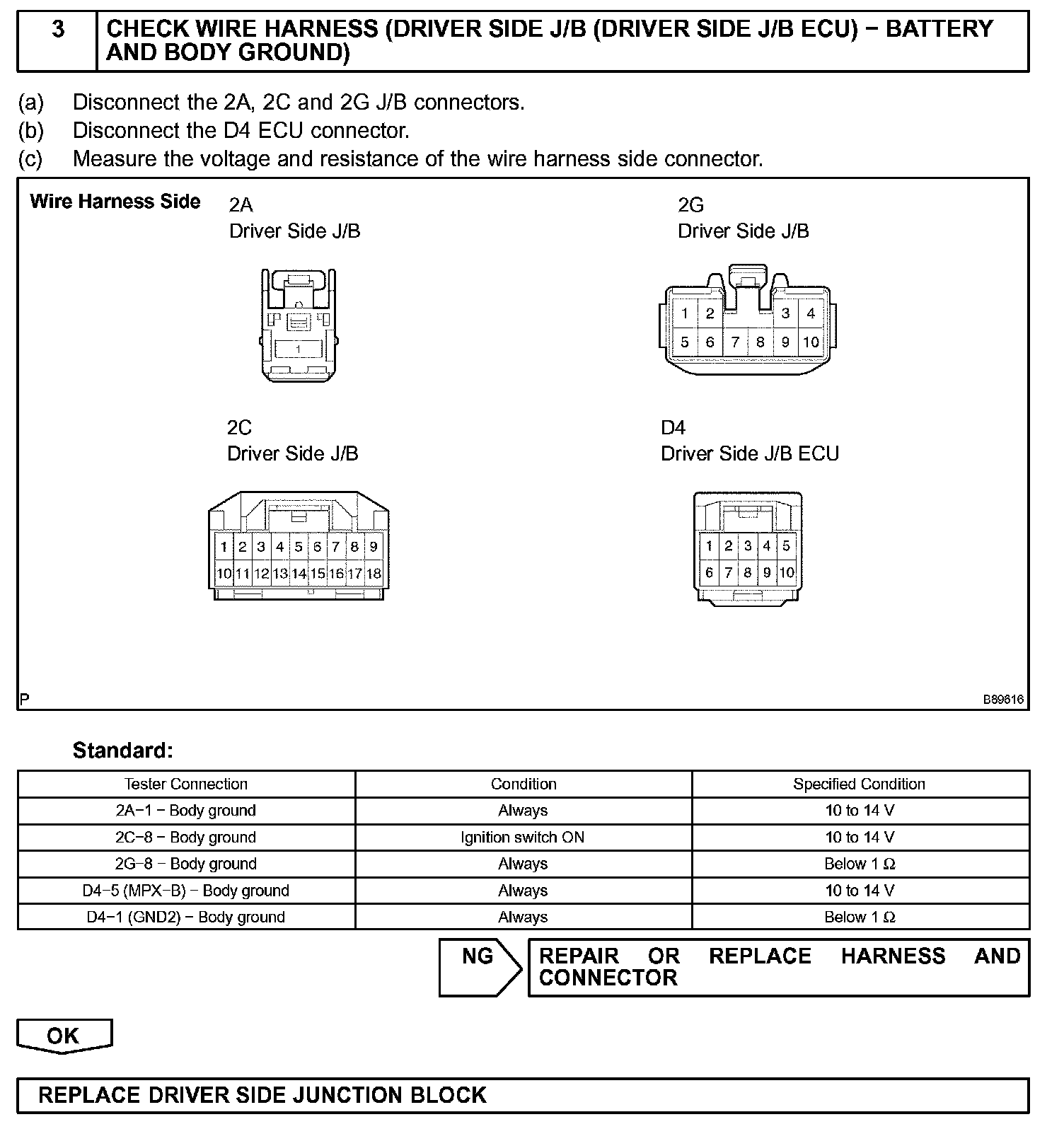

Step 3:

INSPECTION PROCEDURE
