With Headlamp Dimmer Switch on, Steering Pad Switch Is Not Illuminated
With Headlamp Dimmer Switch on, Steering Pad Switch Is Not Illuminated
WITH HEADLAMP DIMMER SWITCH ON, STEERING PAD SWITCH IS NOT ILLUMINATED

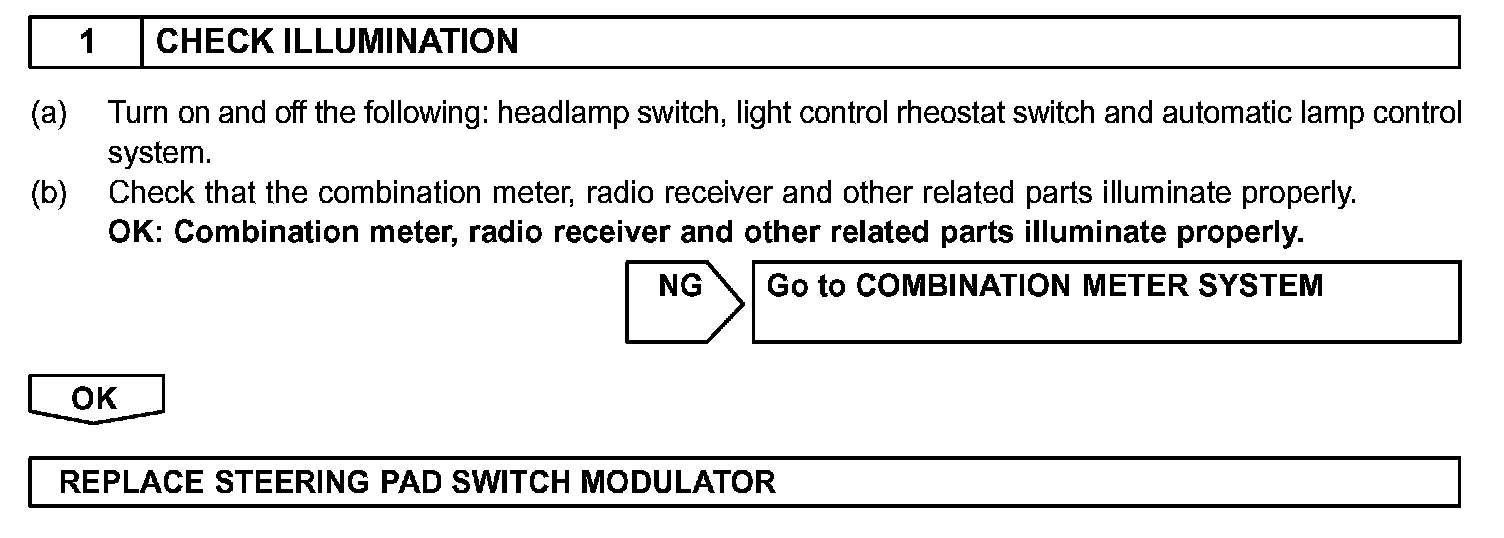

Step 1:
INSPECTION PROCEDURE
