Turning on Lamp Switch Does Not Activate Nighttime Illumination of Radio Receiver
TURNING ON LAMP SWITCH DOES NOT ACTIVATE NIGHTTIME ILLUMINATION OF RADIO RECEIVERCIRCUIT DESCRIPTION
The radio receiver panel illuminates when the lamp control switch is set to the TAIL or HEAD position.

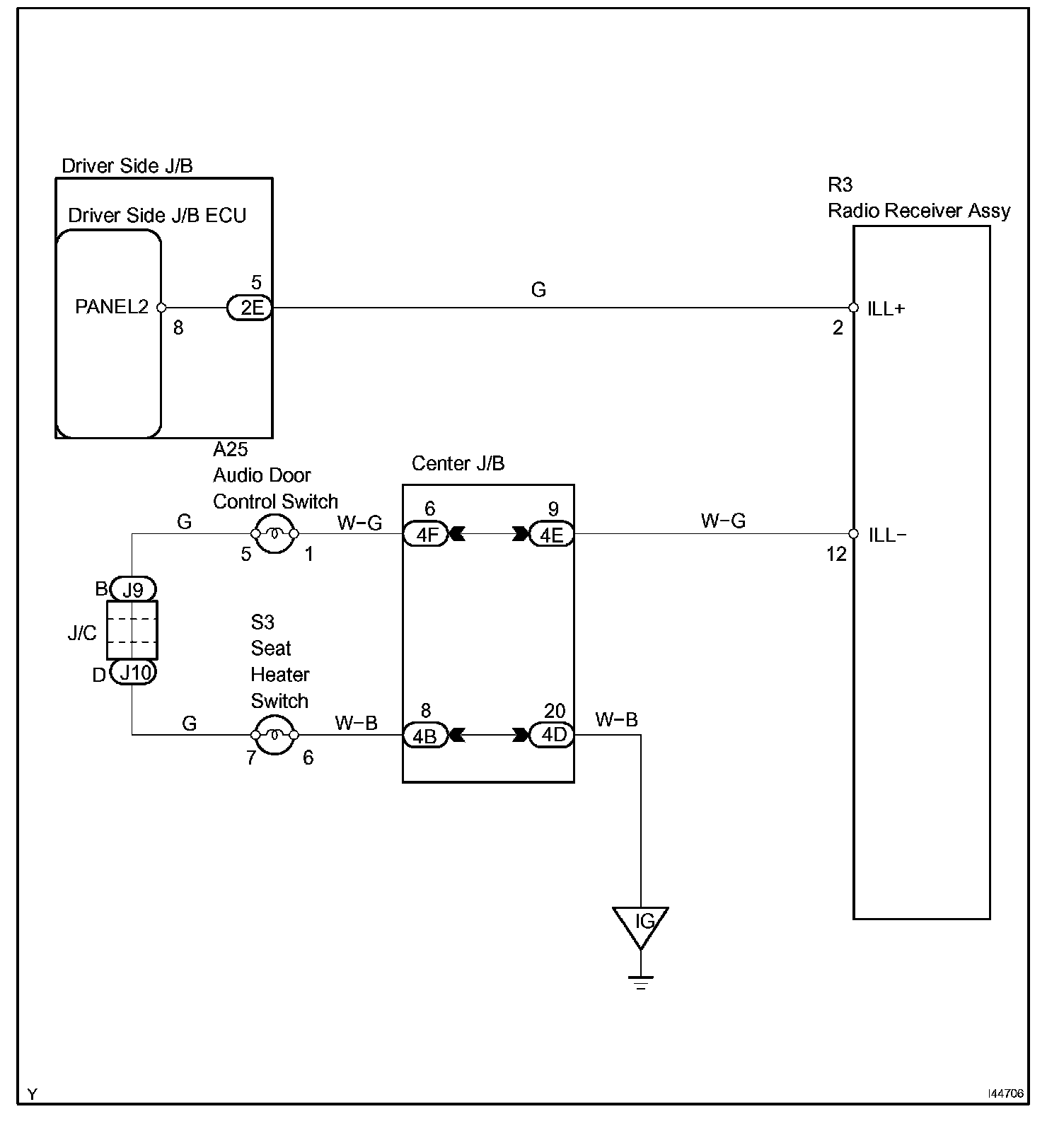

Wiring Diagram:

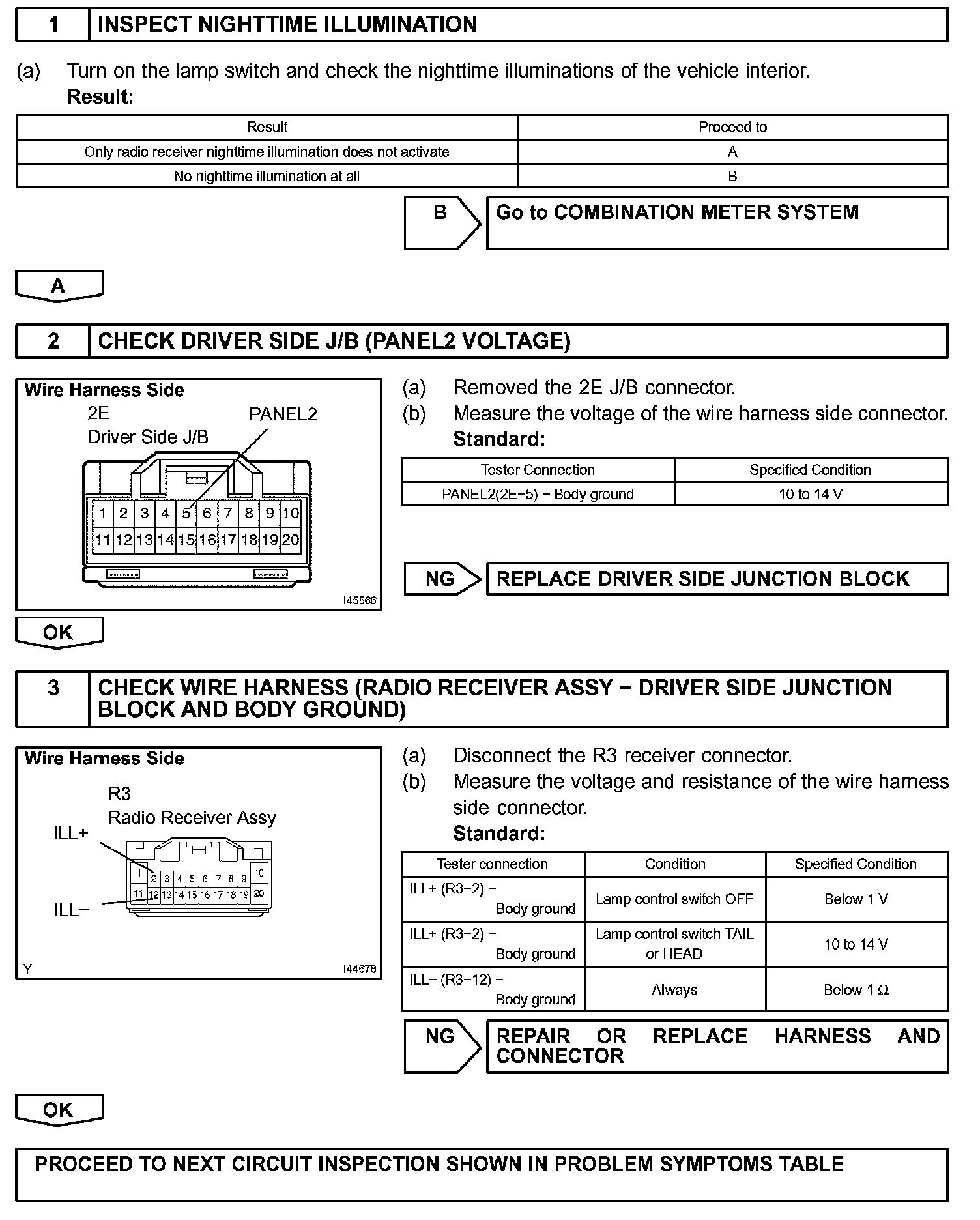

Step 1-3:
INSPECTION PROCEDURE
