Radio Broadcast Cannot Be Received (Poor Reception)
Radio Broadcast Cannot Be Received (Poor Reception)
RADIO BROADCAST CANNOT BE RECEIVED (POOR RECEPTION)

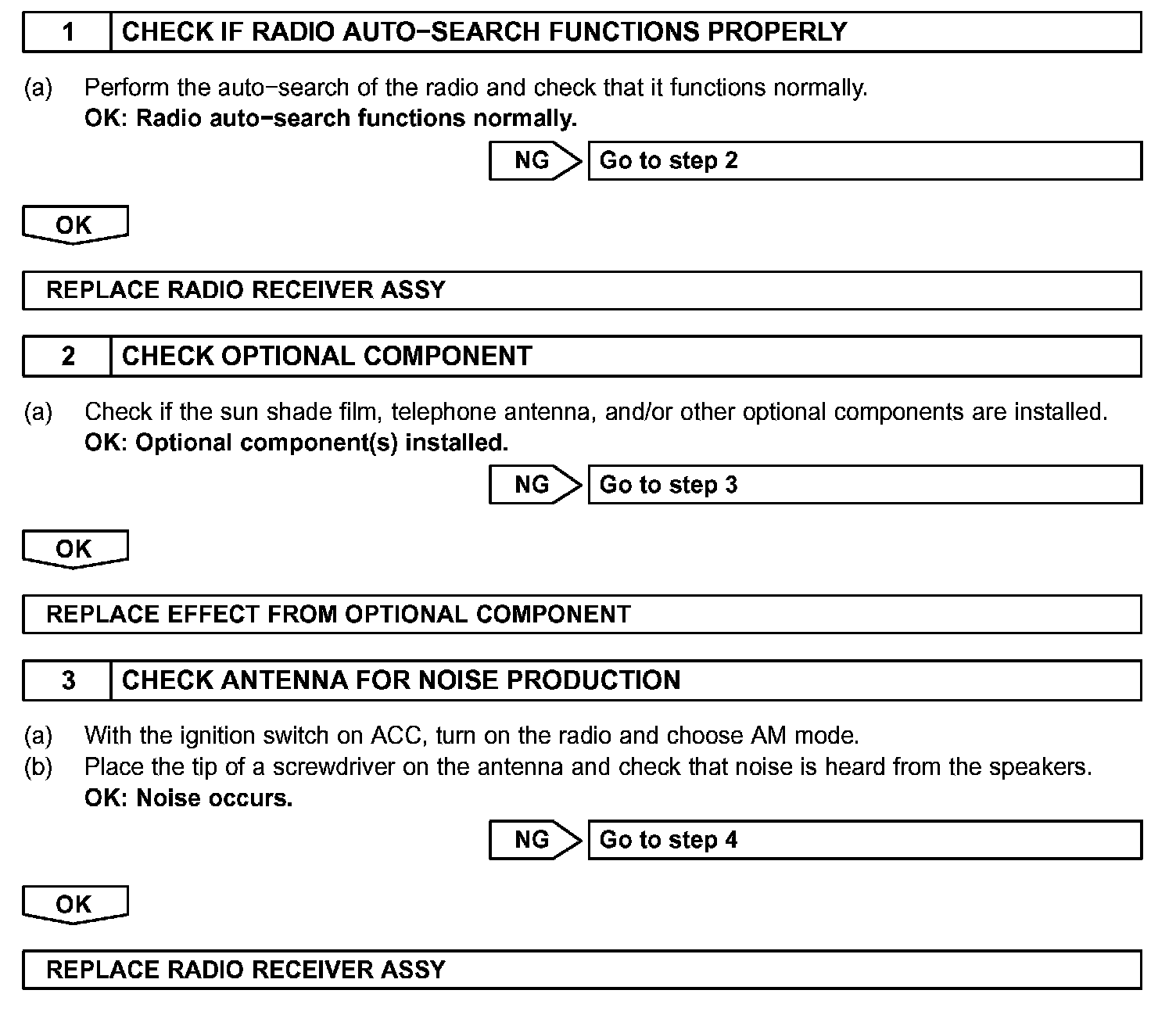

Step 1-3:

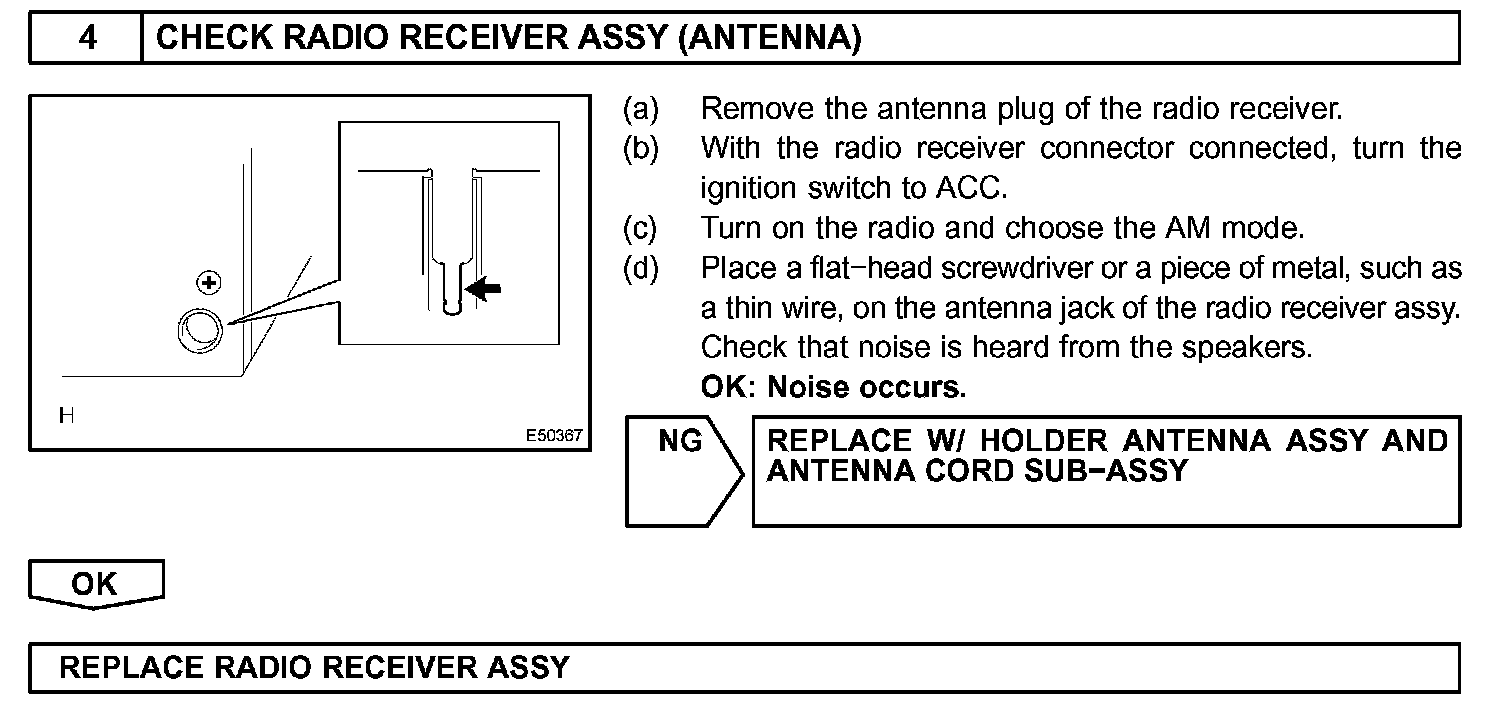

Step 4:
INSPECTION PROCEDURE
