Power Source Circuit (Stereo Component Amplifier Assy)

POWER SOURCE CIRCUIT (STEREO COMPONENT AMPLIFIER ASSY)

CIRCUIT DESCRIPTION

This circuit provides power to the stereo component amplifier.

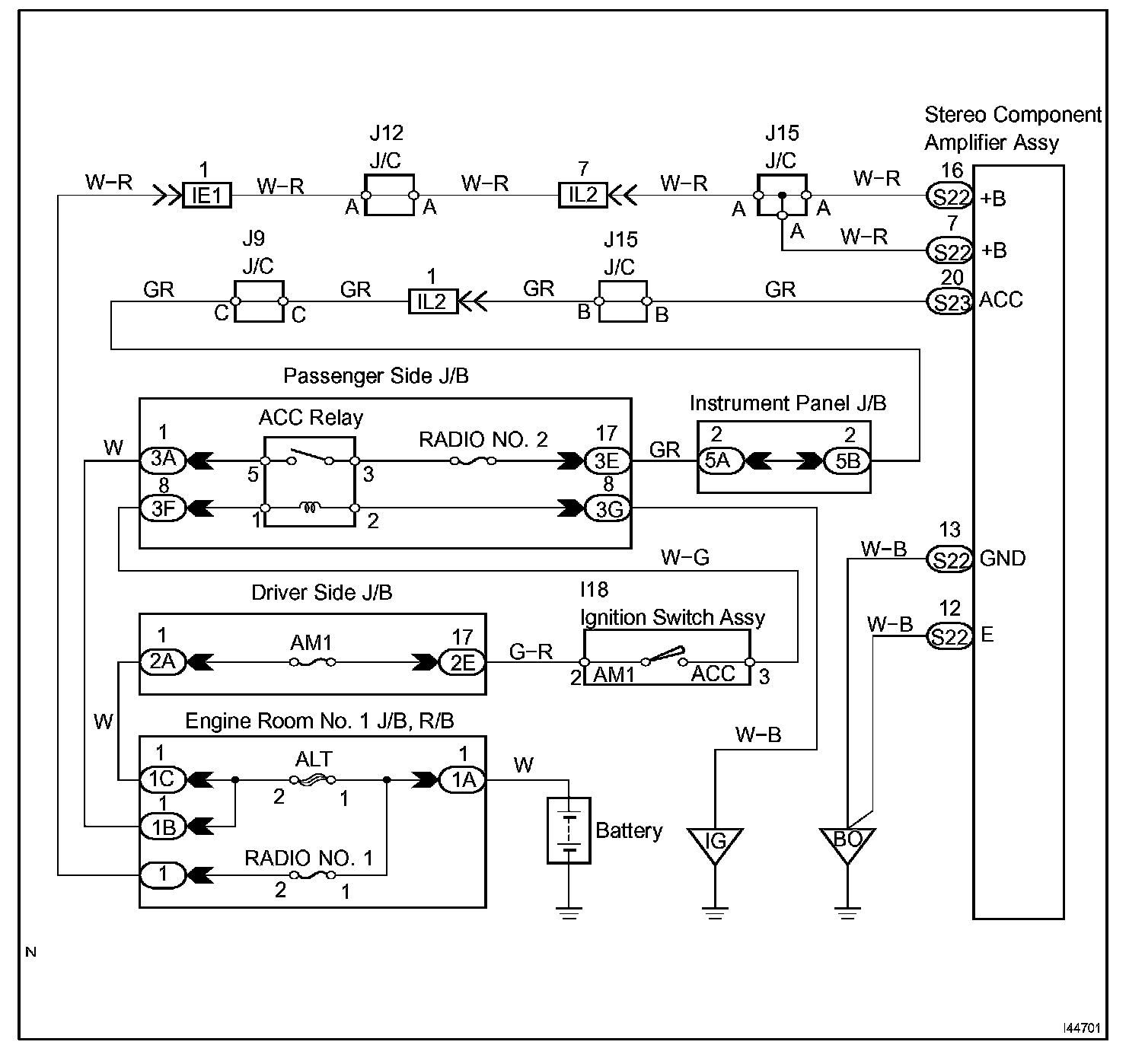

Wiring Diagram:

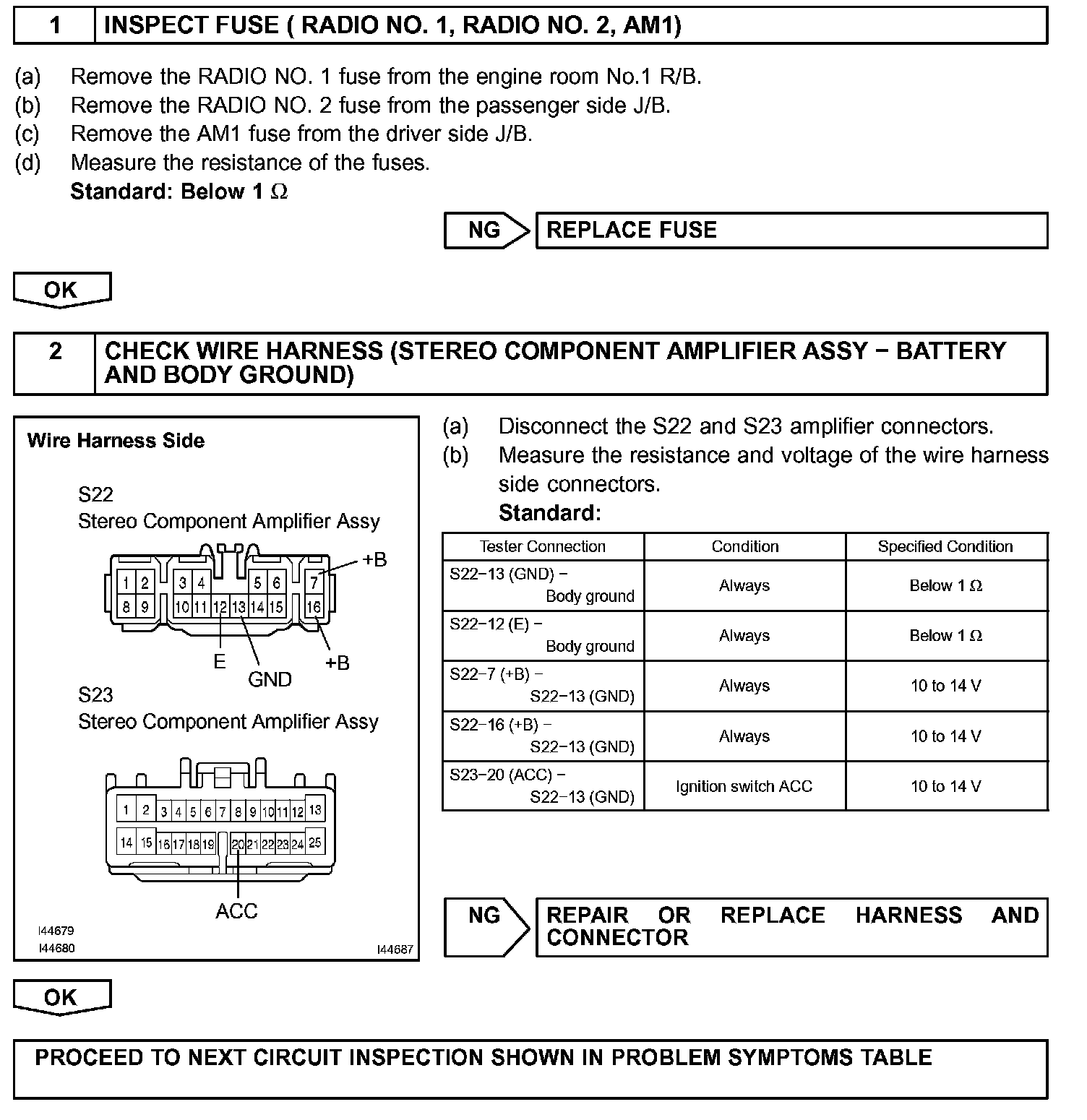

Step 1-2:




INSPECTION PROCEDURE
