No Sound Is Heard Only When Tape or CD Is Played

NO SOUND IS HEARD ONLY WHEN TAPE OR CD IS PLAYED

CIRCUIT DESCRIPTION

The radio receiver sends sound signals to the stereo component amplifier.

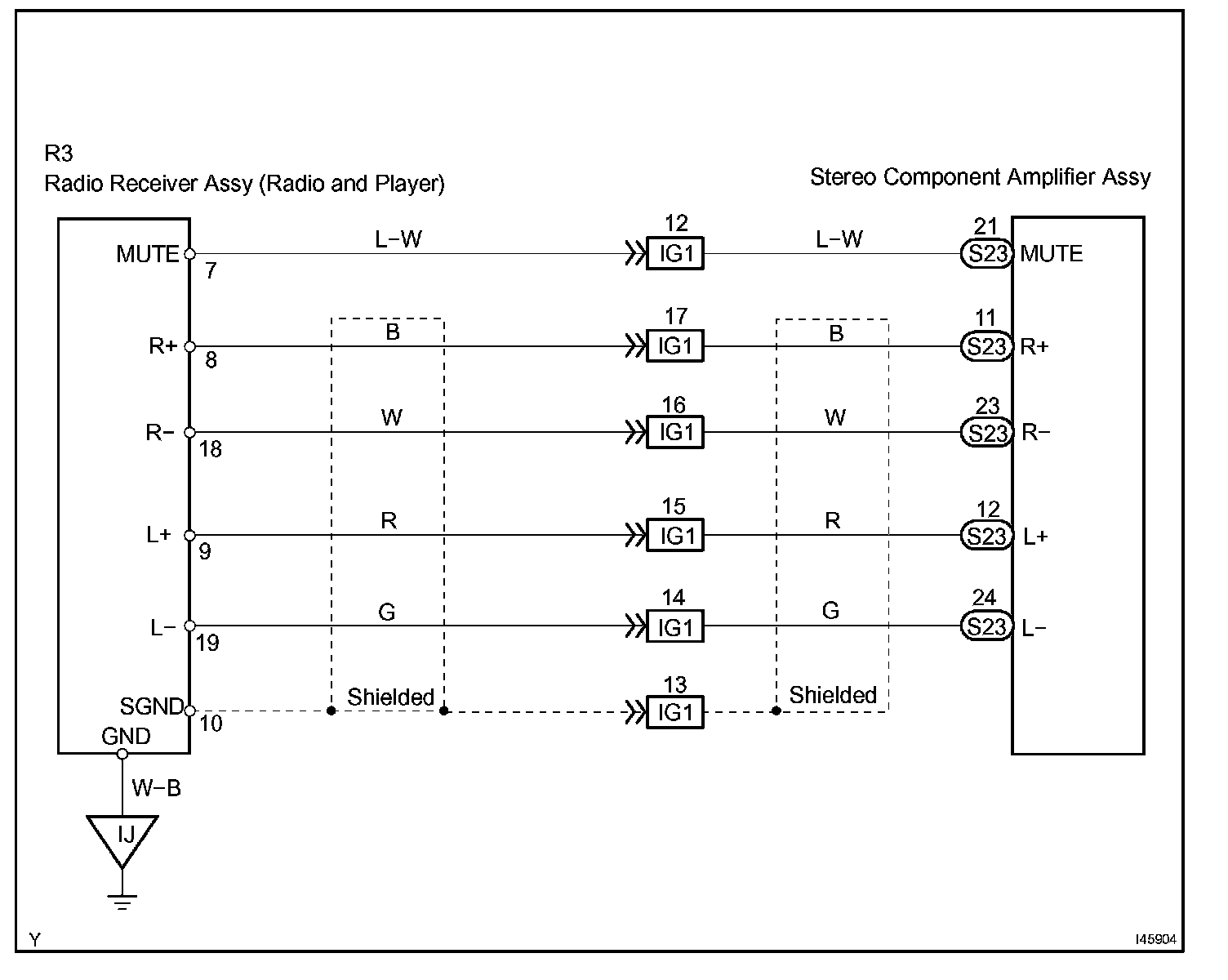

Wiring Diagram:






Step 1-2:

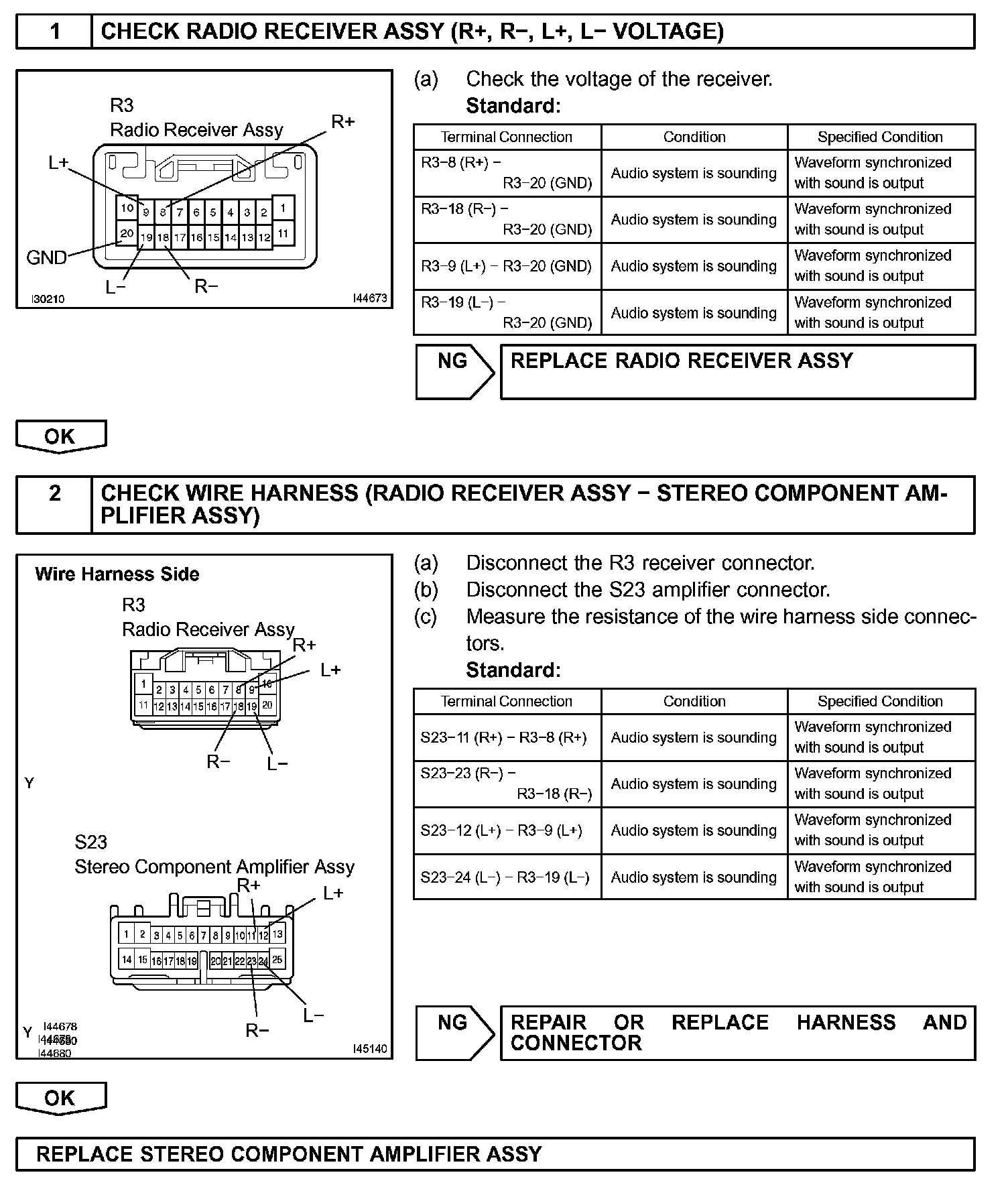

INSPECTION PROCEDURE
