Component Tests

INSPECTION

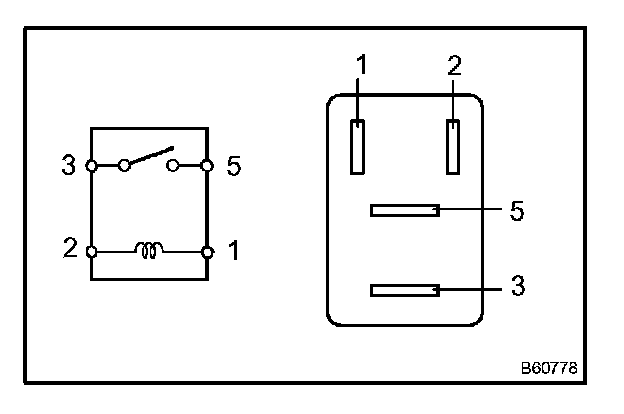

INSPECT RELAY (Marking: ACC)







a. Measure the resistance of the ACC relay.

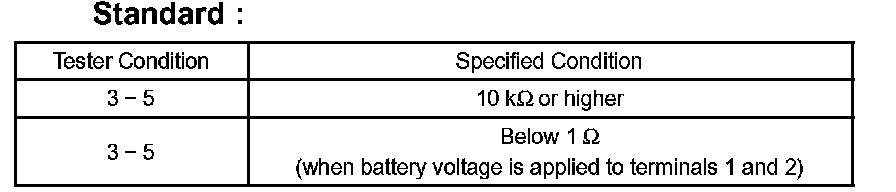

If the result is not as specified, replace the relay.
