Audio Door Control Switch Does Not Operate

AUDIO DOOR CONTROL SWITCH DOES NOT OPERATE

CIRCUIT DESCRIPTION

This circuit provides power to the audio door control switch.

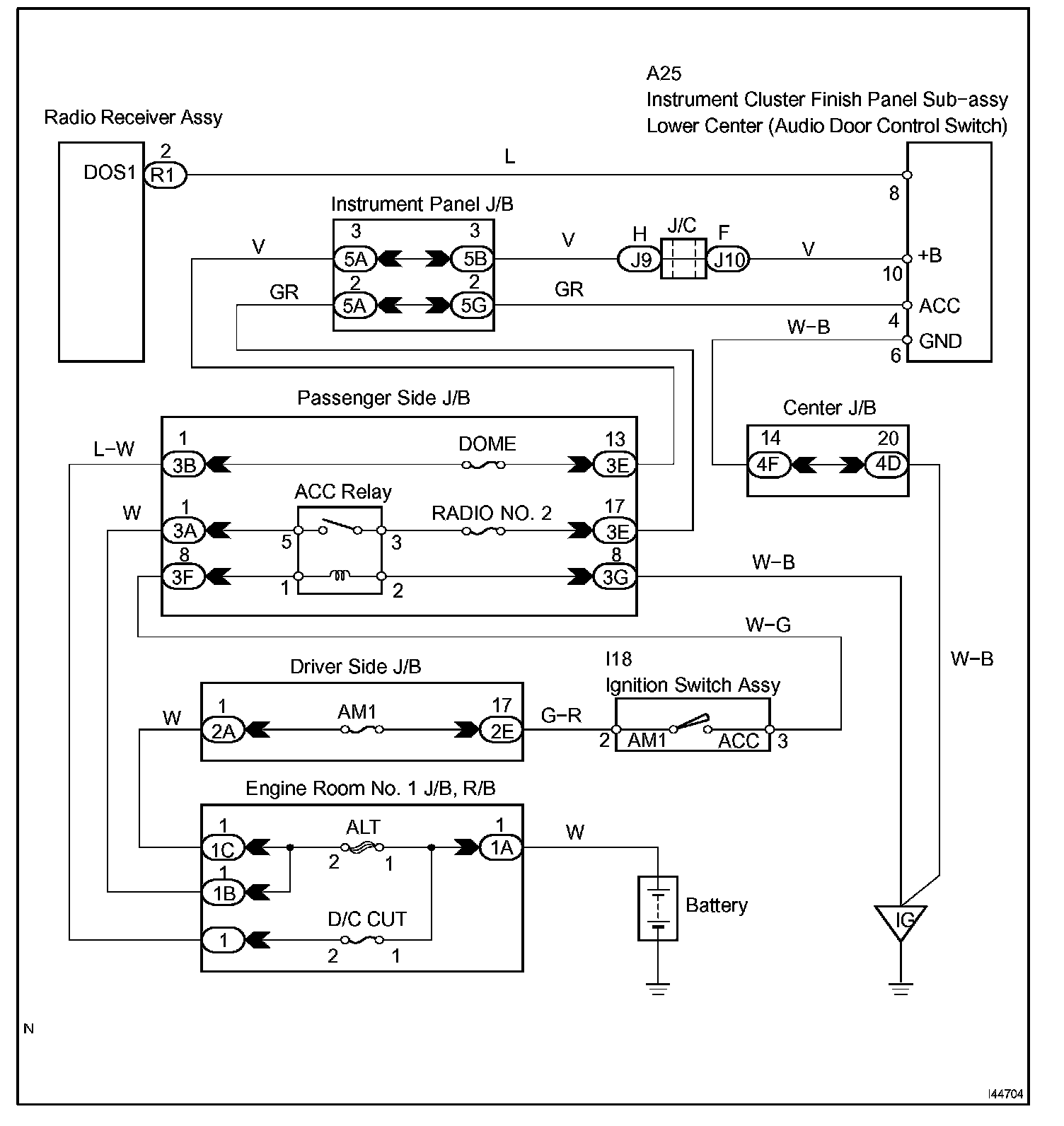

Wiring Diagram:

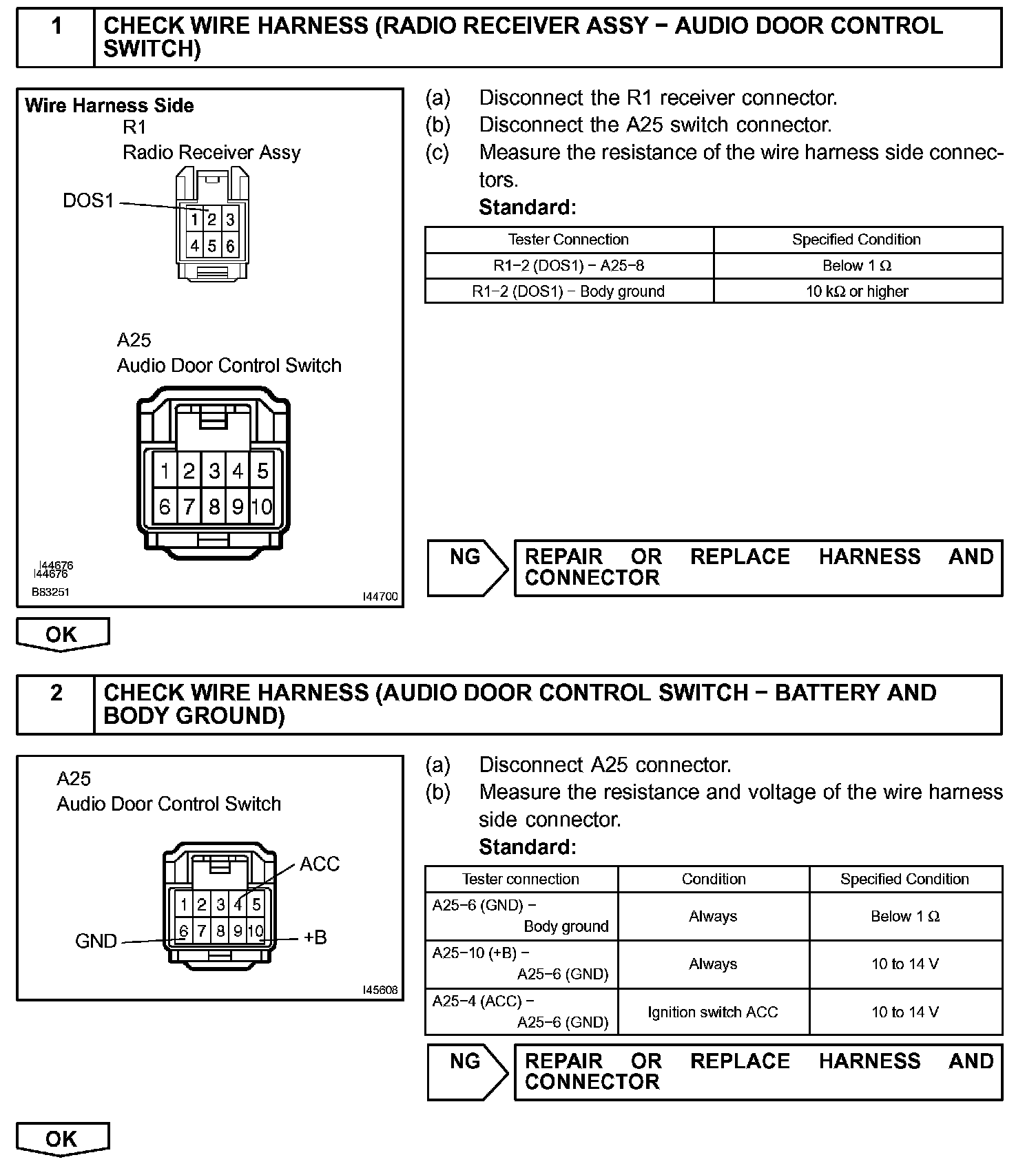

Step 1-2:

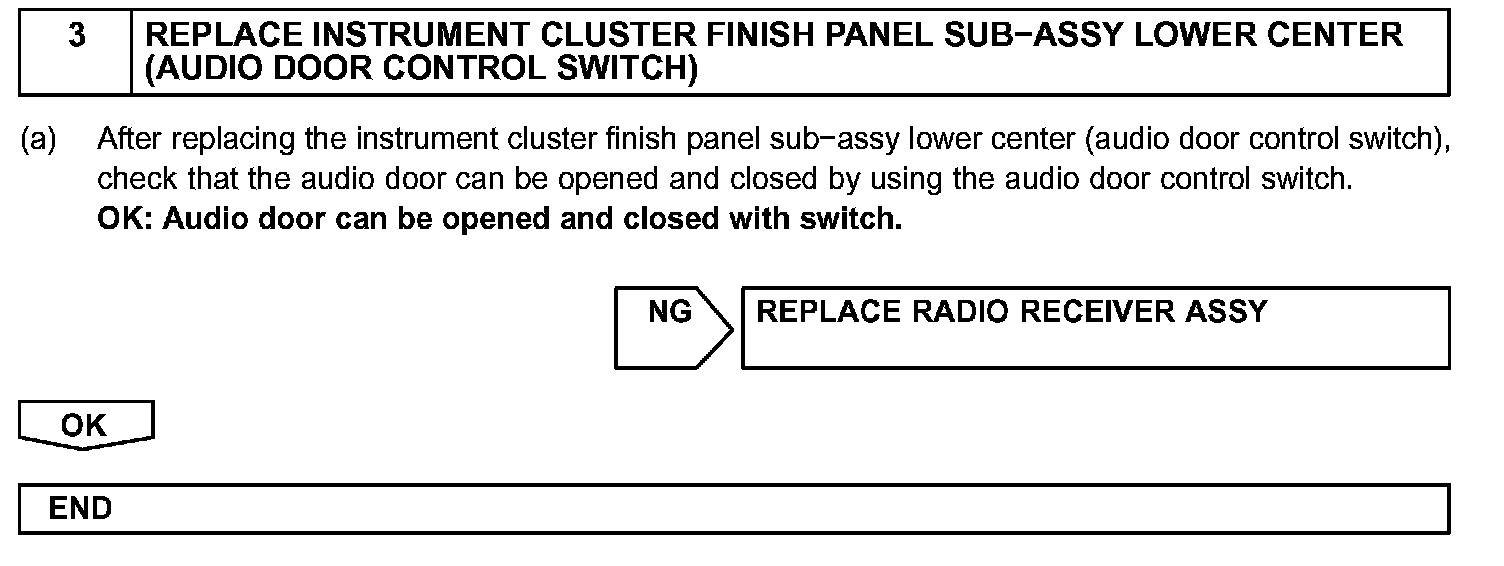

Step 3:




INSPECTION PROCEDURE
