Amp Sound Signal Circuit (Radio Receiver Assy - Stereo Component Amplifier Assy)
AMP SOUND SIGNAL CIRCUIT (RADIO RECEIVER ASSY - STEREO COMPONENT AMPLIFIER ASSY)CIRCUIT DESCRIPTION
The radio receiver sends sound signals to the stereo component amplifier. The amplifier then amplifies the signal, and the amplified signal is sent to the speakers.
If this circuit is open or shorted, no sound will come out of the speakers even if the amplifier and speakers are functioning properly.

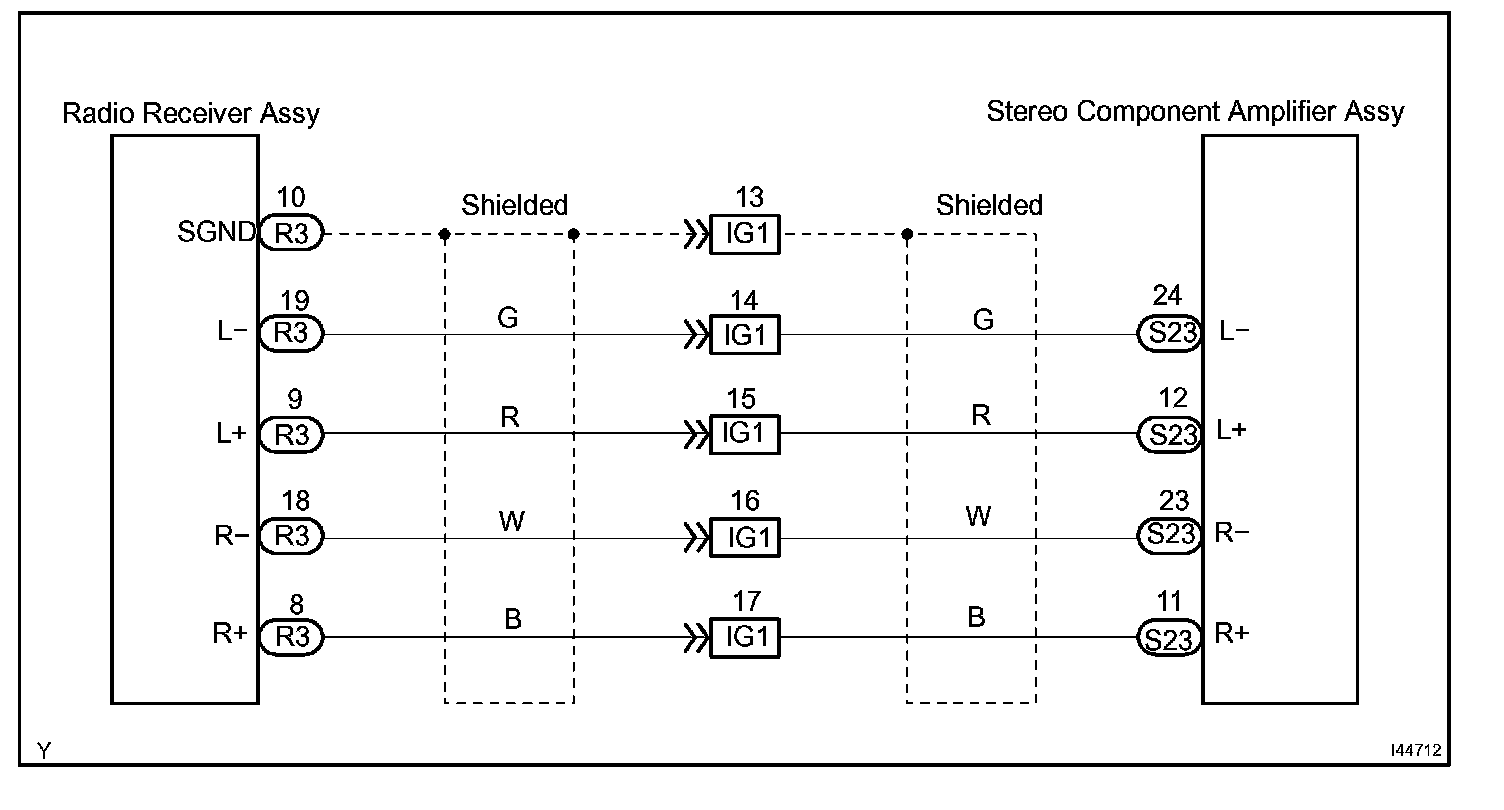

Wiring Diagram:

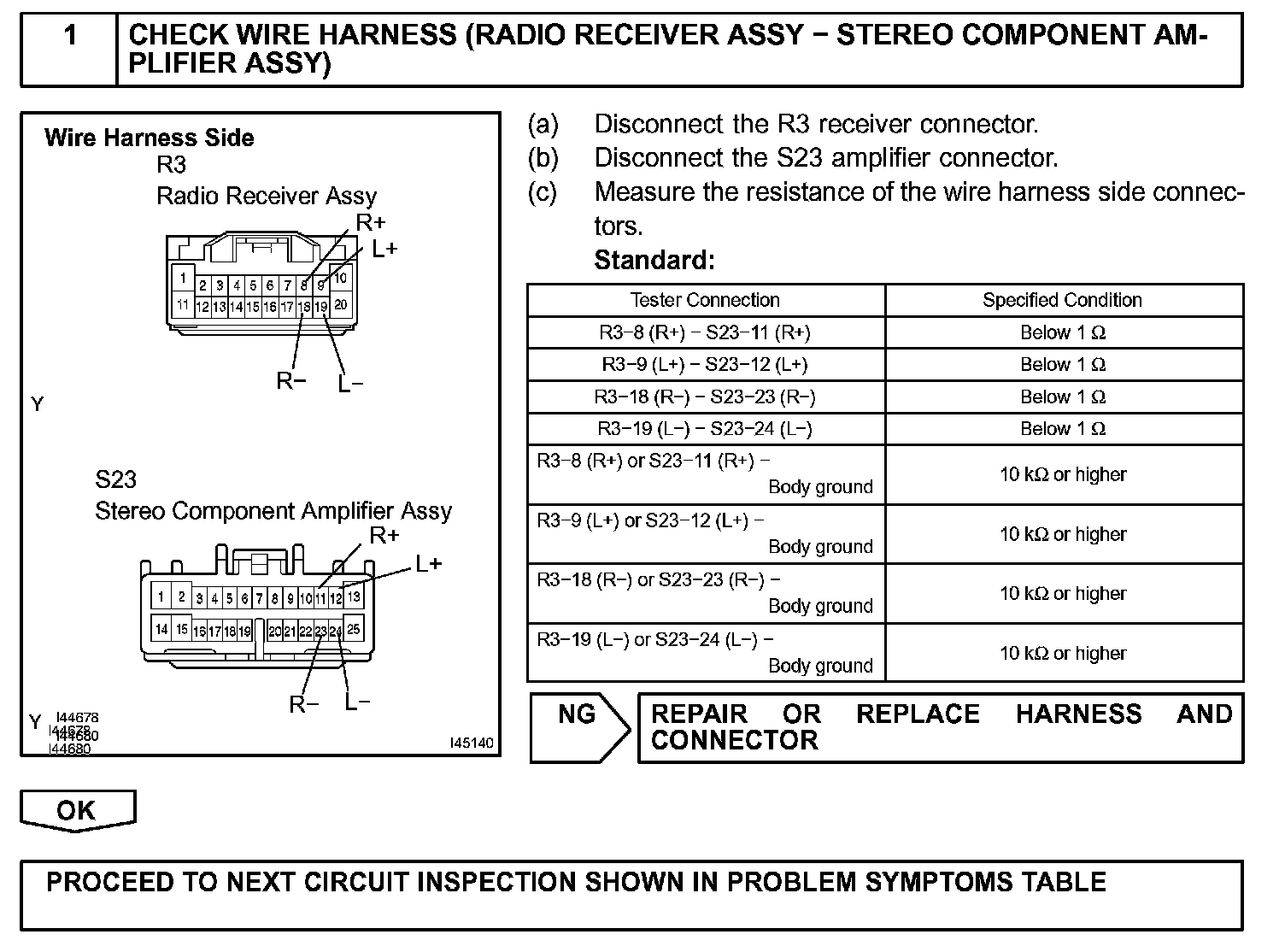

Step 1:
INSPECTION PROCEDURE
