Nighttime Illumination Signal Circuit

NIGHTTIME ILLUMINATION SIGNAL CIRCUIT

CIRCUIT DESCRIPTION

This circuit sends a nighttime illumination signal from the driver side J/B ECU to multi-display.

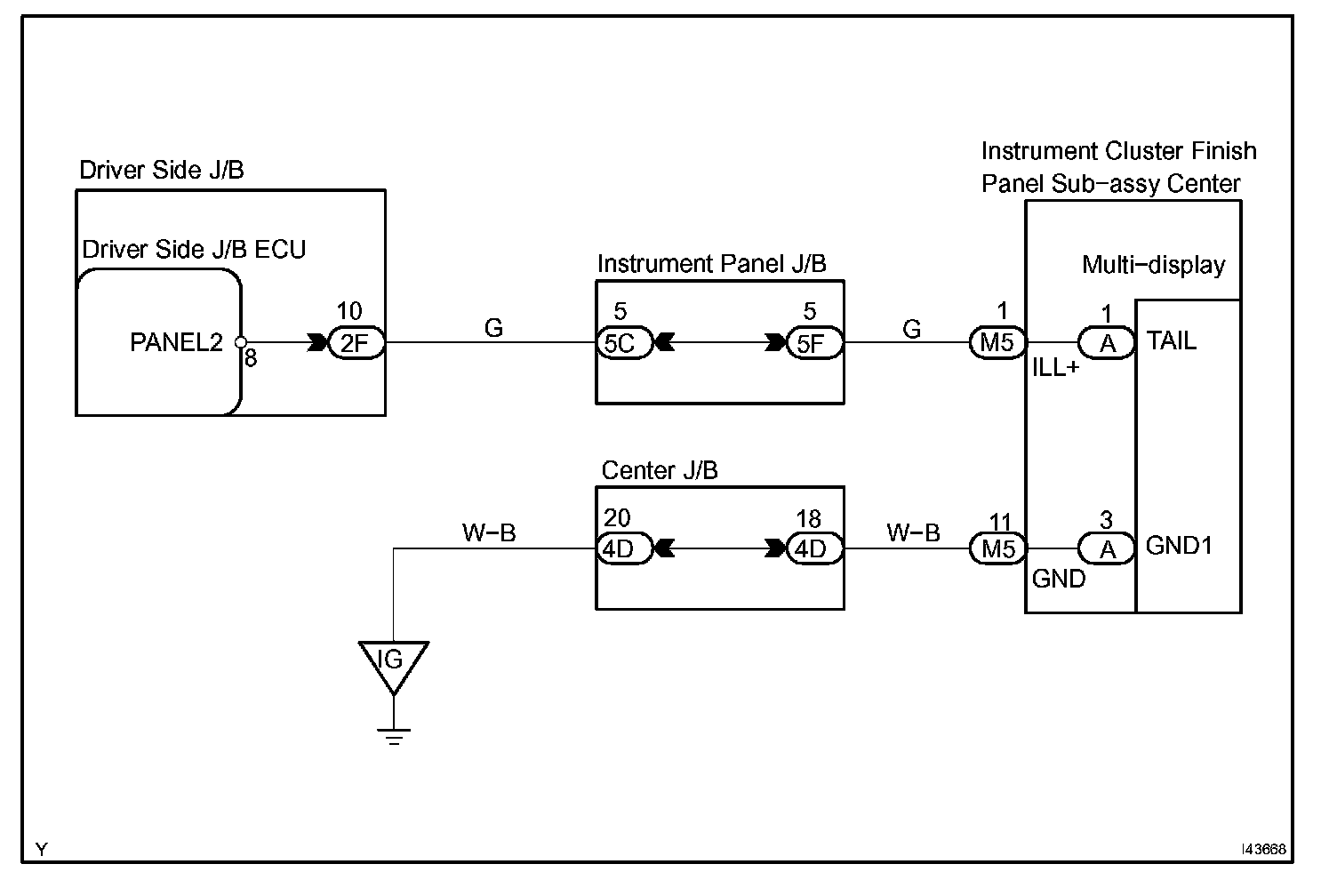

Wiring Diagram:

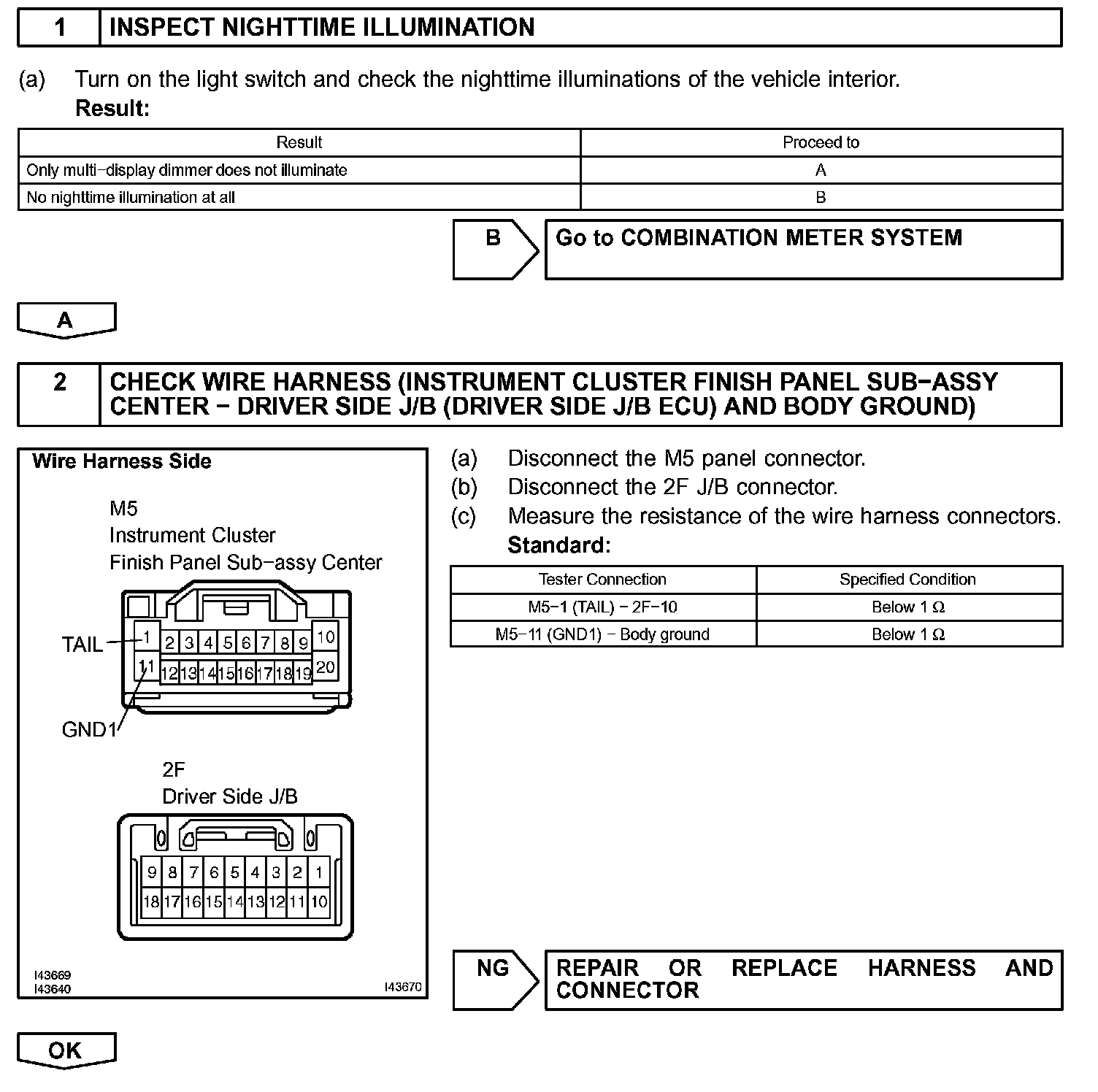

Step 1-2:

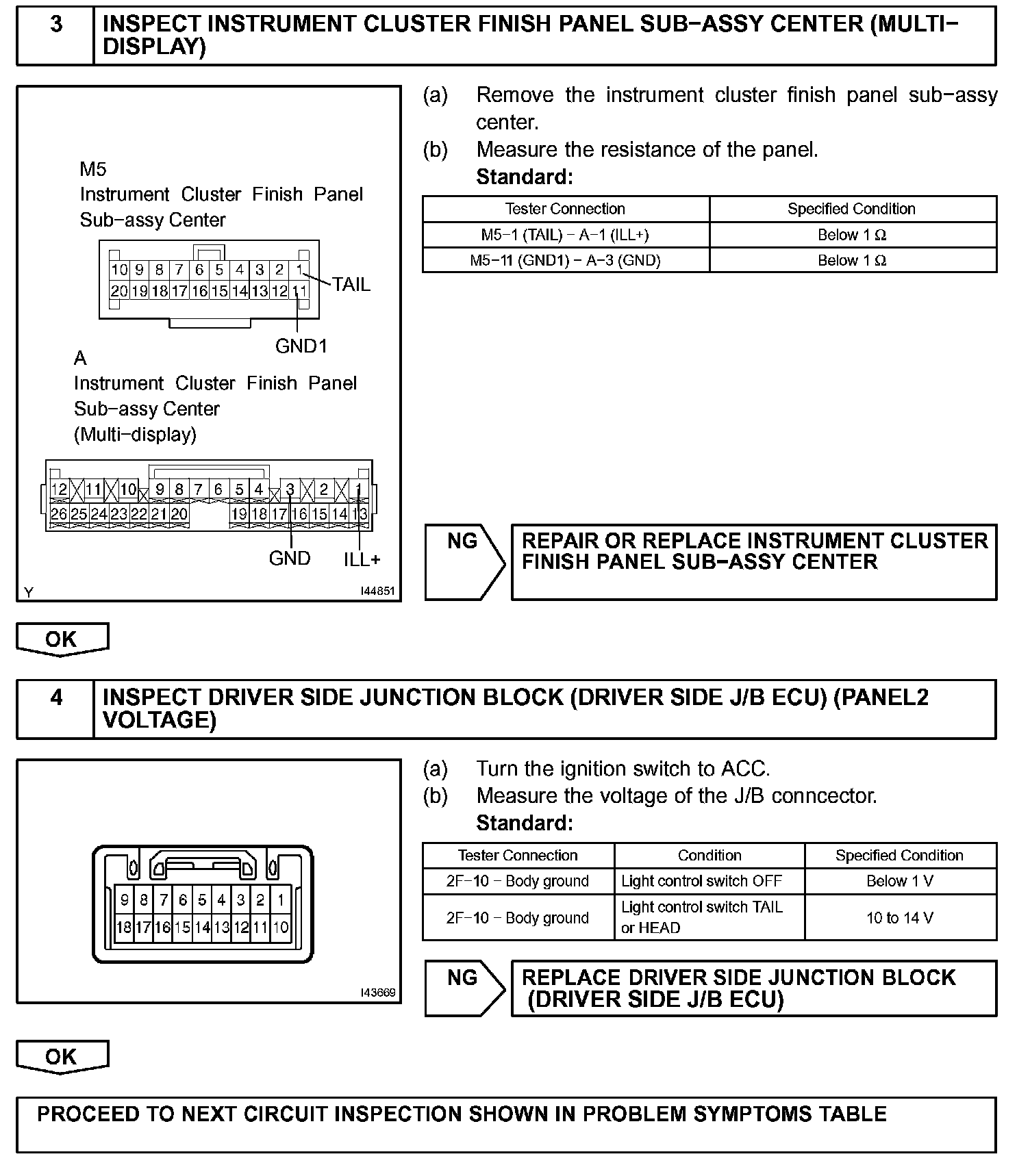

Step 3-4:

INSPECTION PROCEDURE
