Diagnostic Start-Up/Finish

DIAGNOSTIC START-UP/FINISH

HINT:
- Illustrations may differ from the actual vehicle depending on the device settings and options.
- Turn the ignition switch to ACC and then, check that the map is displayed before starting the diagnostic mode. Otherwise, some items cannot be checked.

1. START DIAGNOSTIC MODE
a. There are 2 methods to start diagnostic mode.




b. Method 1
1. Start the engine.

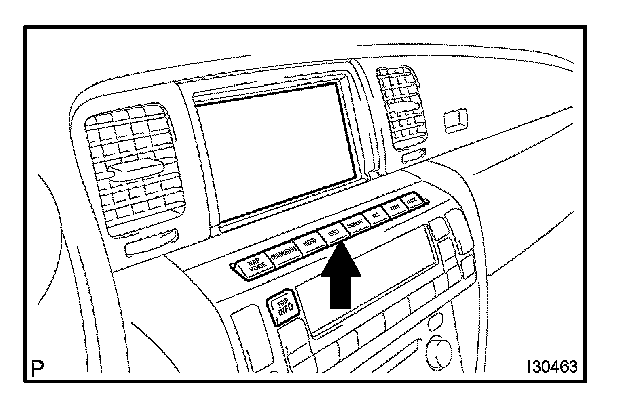

2. While pressing and holding "INFO" switch, operate light control switch in the following order: OFF -> TAIL -> OFF -> TAIL -> OFF -> TAIL -> OFF.
3. The diagnostic mode starts and the service check screen ("System Check Mode") will be displayed. Service inspection starts automatically and the result will be displayed.







c. Method 2
1. Start the engine.
2. Switch to the "Display Check" screen.

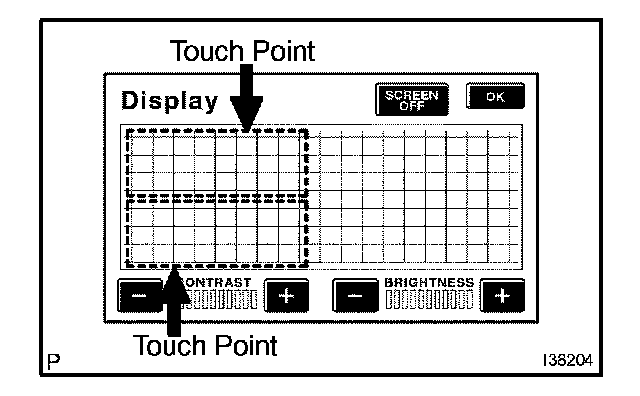

3. From the display adjustment screen, touch the corners of the screen in the following order:
upper left -> lower left -> upper left -> lower left -> upper left -> lower left.
4. The diagnostic mode starts and "Service Check" screen will be displayed. Service inspection starts automatically and the result will be displayed.

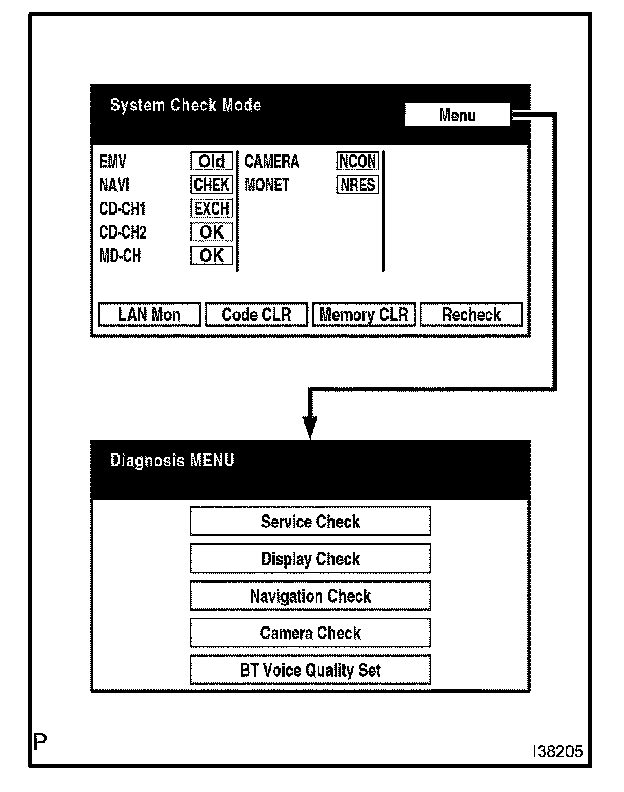

d. Diagnosis MENU
1. Diagnostic screen will be displayed by pressing the menu switch on the service check screen.

2. FINISH DIAGNOSTIC MODE
a. There are 2 methods to exit. Use one of them.
1. Turn the ignition switch OFF.
2. Press and hold the "DISPLAY" switch for 3 seconds.
