Diagnosis Display Detailed Description

DIAGNOSIS DISPLAY DETAILED DESCRIPTION

HINT:
- This section contains a detailed description of displays within diagnostic mode.
- Illustrations may differ from the actual vehicle depending on the device settings and options.

1. SYSTEM CHECK

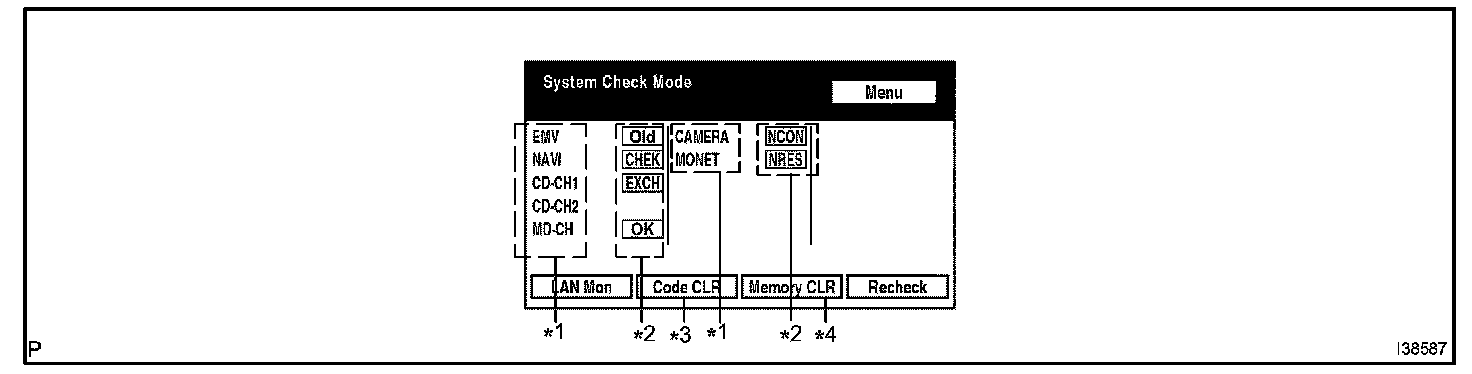

a. System Check Mode Display

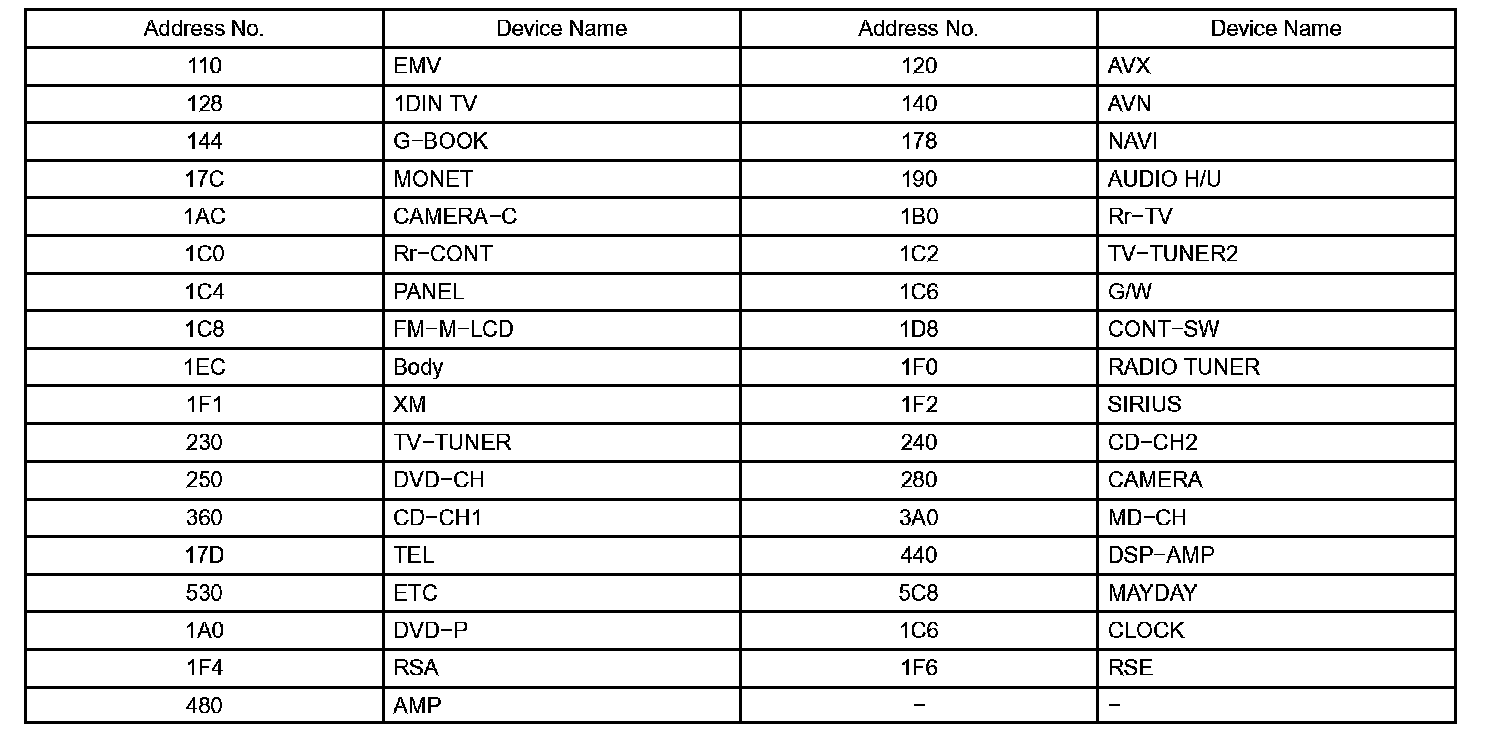

Device Names and Hardware Address/*1

HINT:
- Registered device names are displayed.
- If a device name is unknown to the system, its physical address is shown instead.

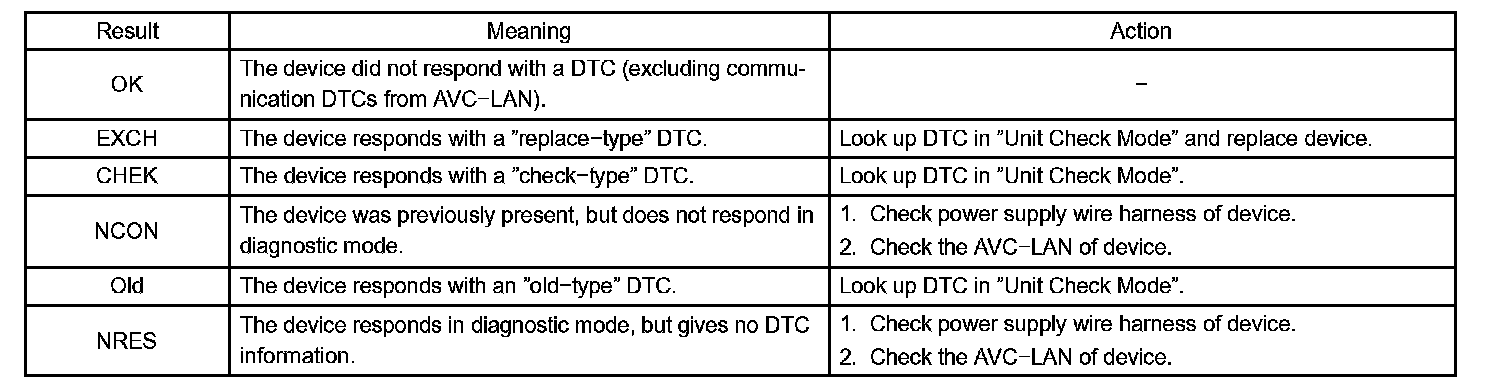

Check Result/*2

HINT: Result codes for all devices are shown.

Code Clear/*3
Present DTCs are cleared.

Memory Clear/*4
Present and past DTCs and registered connected device names are cleared.




b. Diagnosis MENU Display

HINT: Each item is grayed out or not displayed based on the device settings.

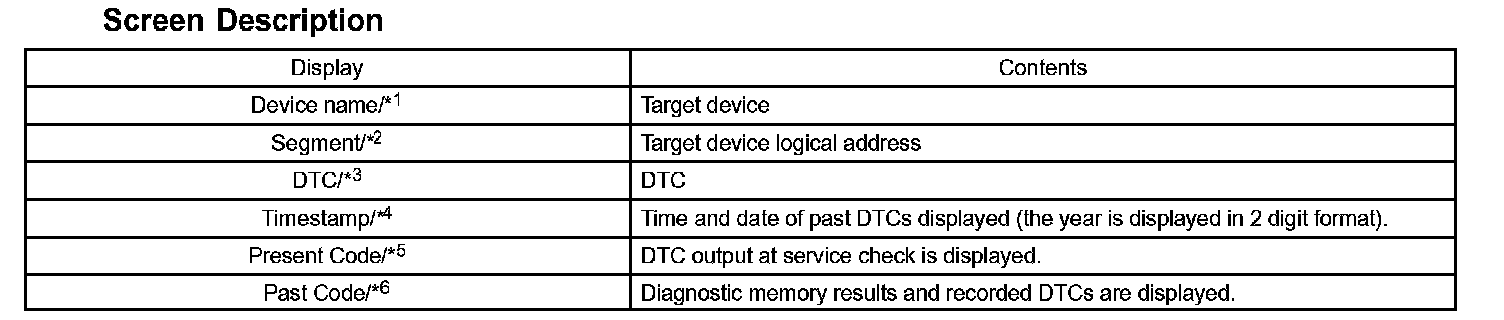

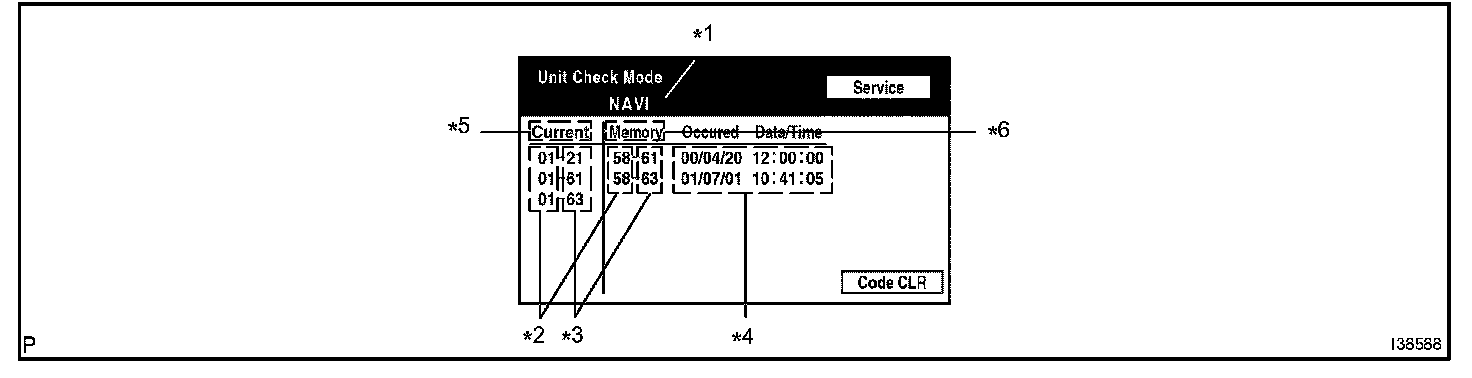

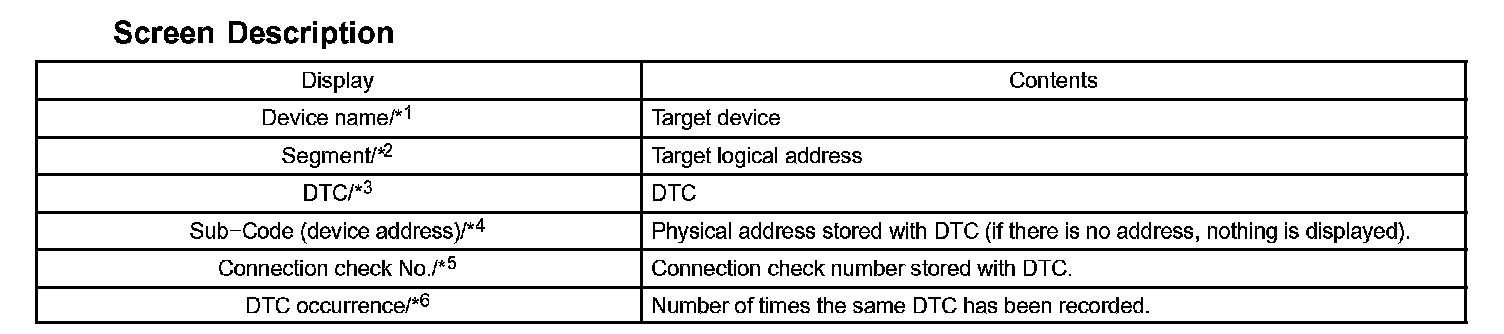

c. Unit Check Mode Screen

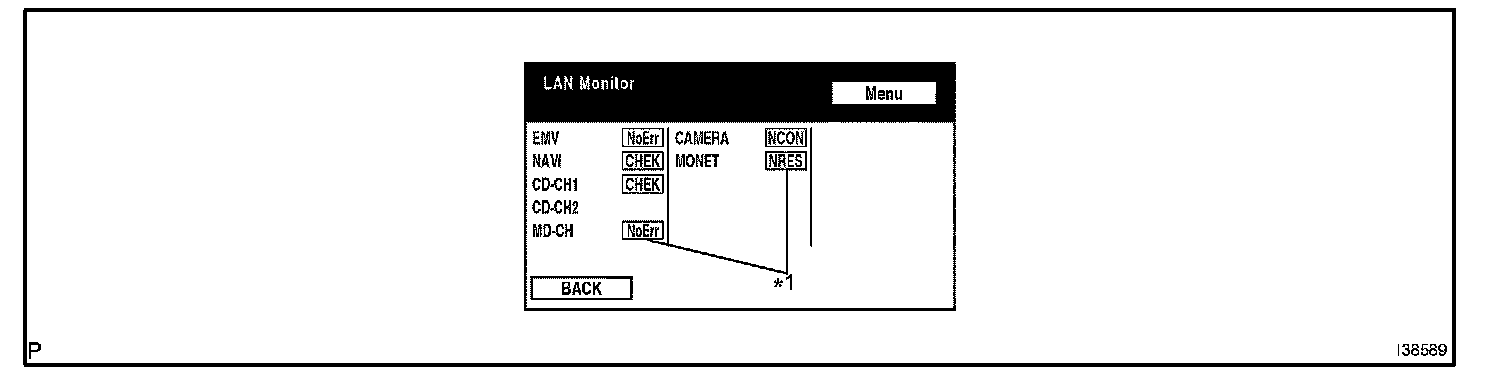

d. LAN Monitor (Original) Screen
Check result/*1

HINT: Check results of all the devices are displayed.

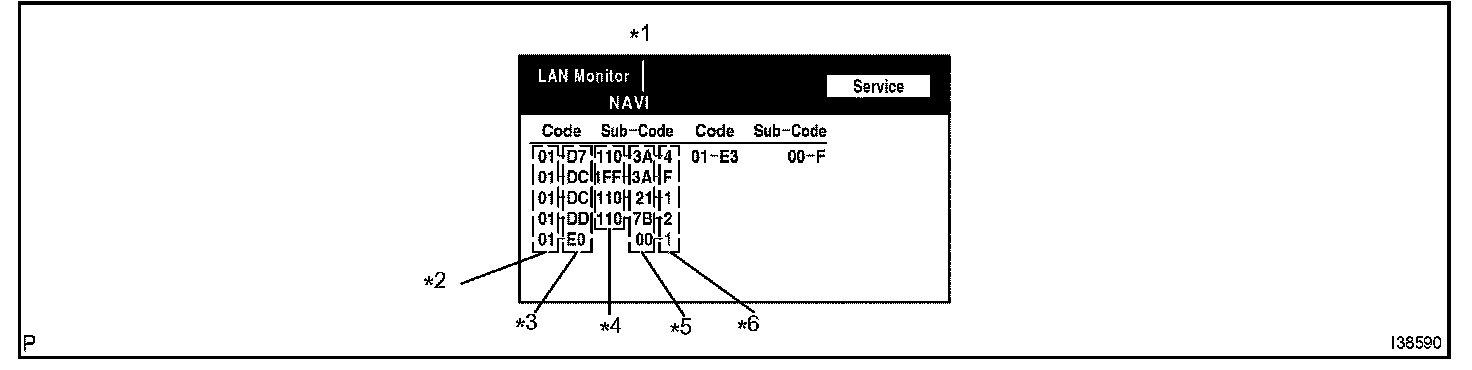

e. LAN Monitor (Individual) Screen

2. DISPLAY CHECK

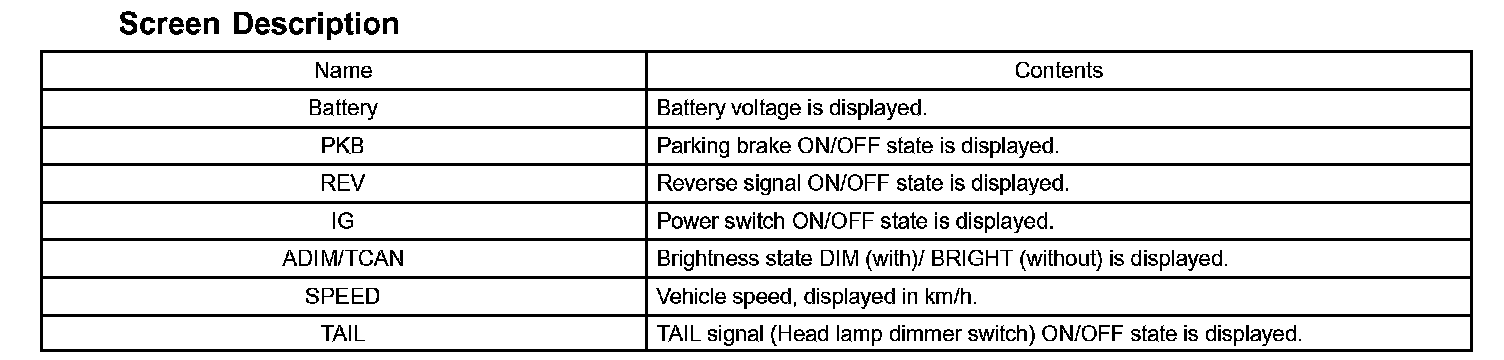

a. Vehicle Signal Check Mode Screen

HINT:
- Only items sending a vehicle signal will be displayed.
- This screen is updated once per second when input signals to the vehicle are changed.

3. NAVIGATION CHECK

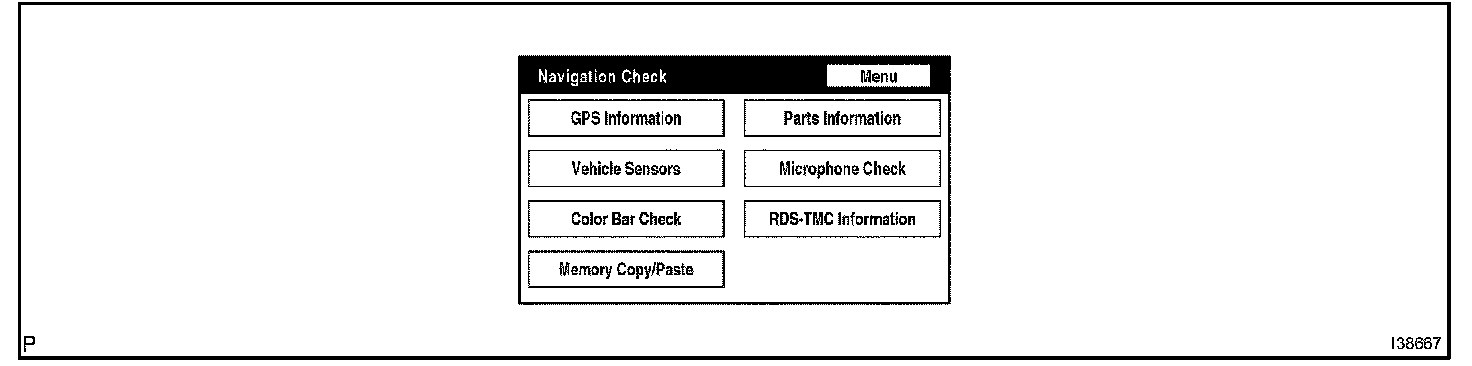

a. Navigation Check Menu Screen

HINT: Each item is grayed out or not displayed based on the device settings.

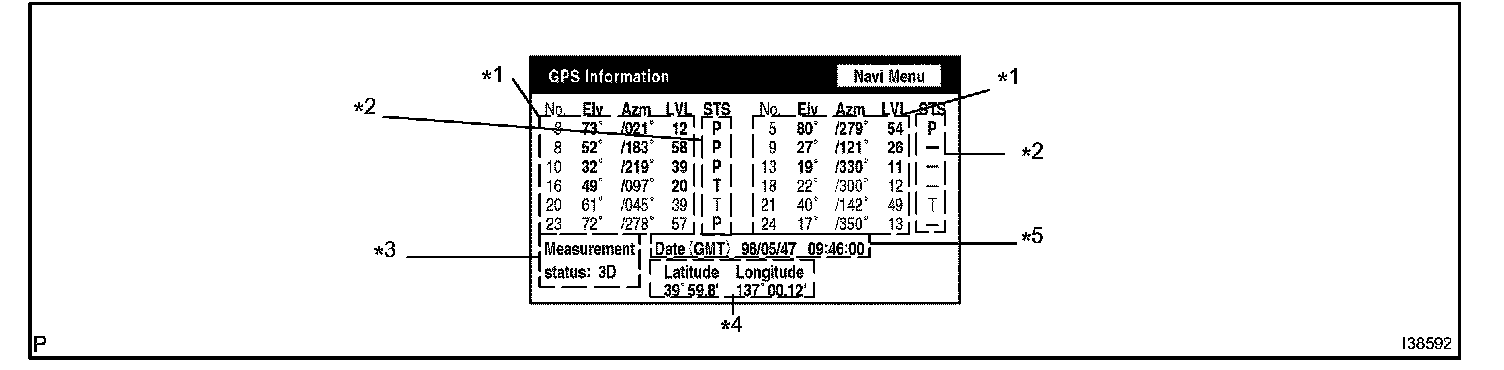

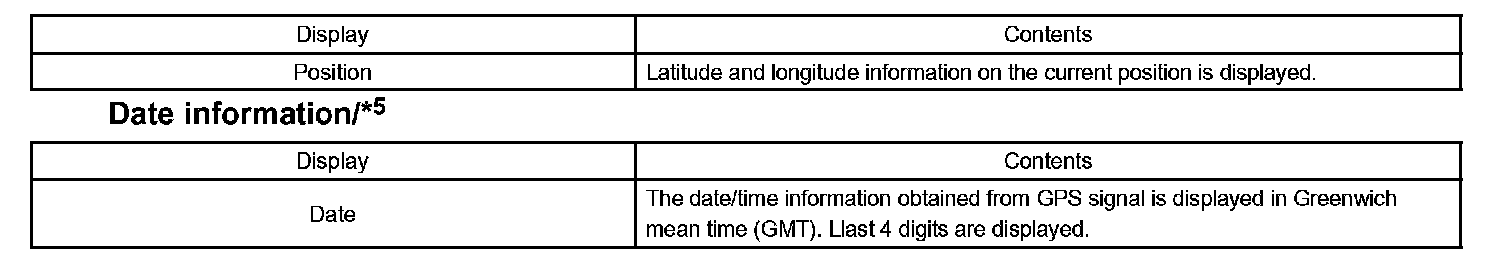

b. GPS Information Screen
Satellite information/*1

Information from a maximum of 12 satellites is displayed on the screen. This information includes the target GPS satellite number, elevation angle, direction and signal level.

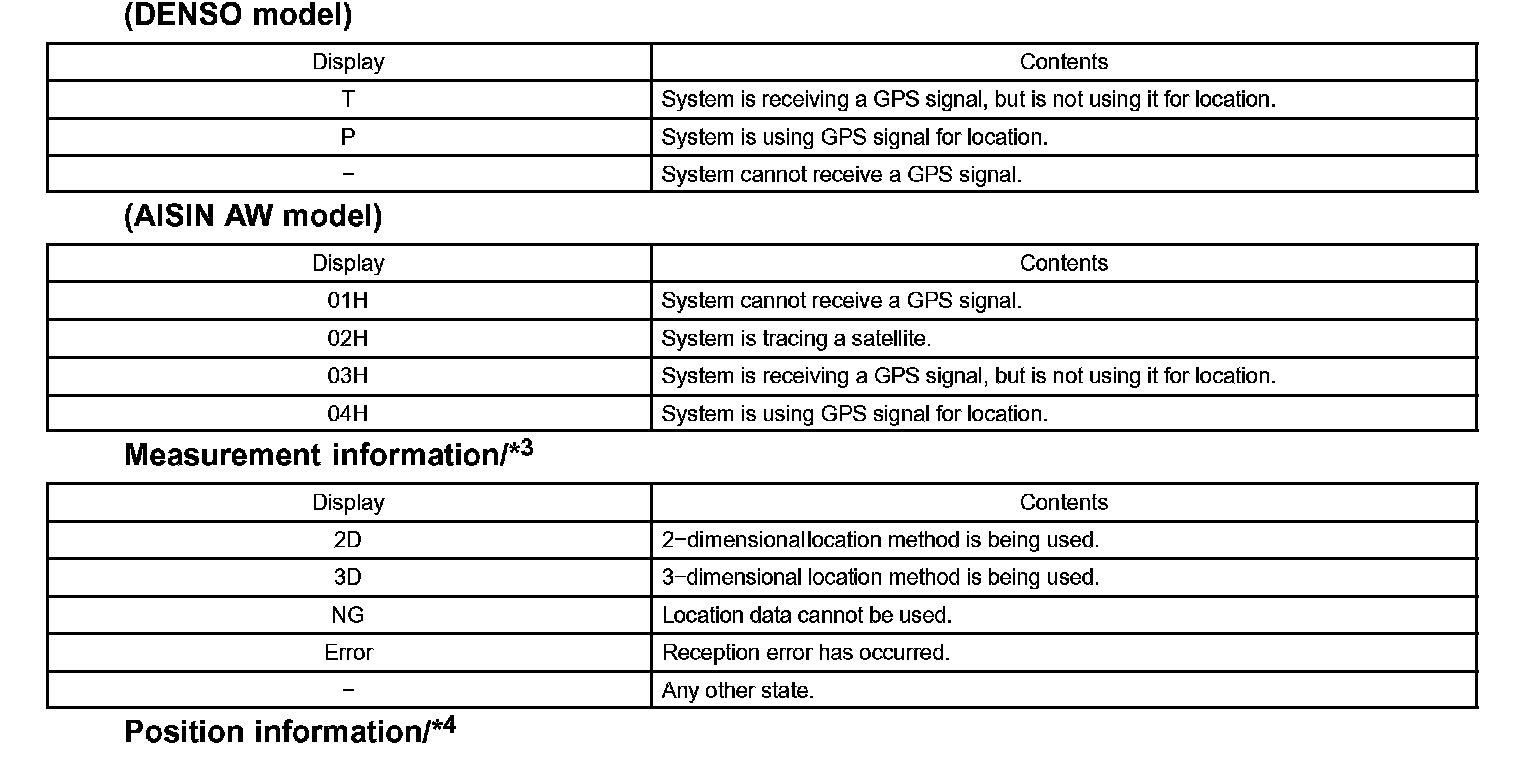

Receiving condition/*2(DENSO model)

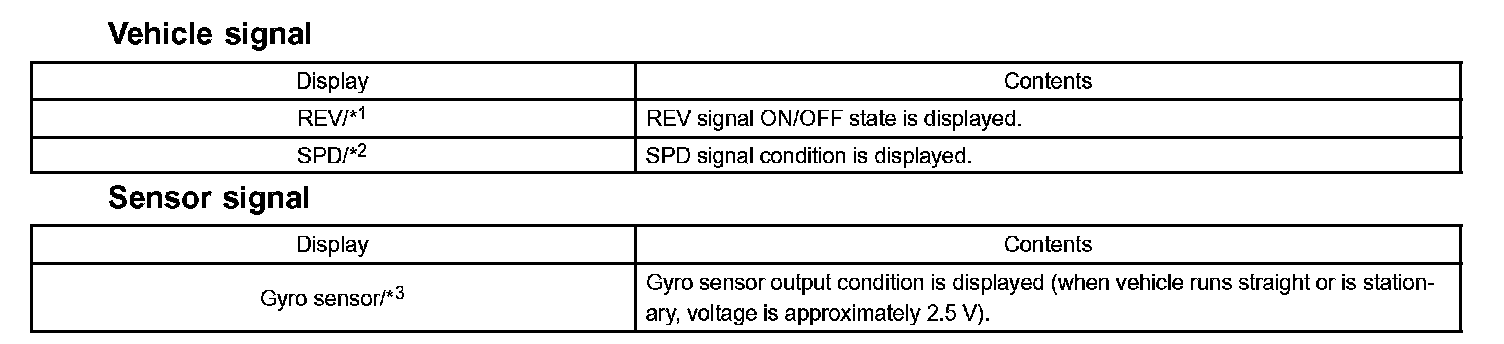

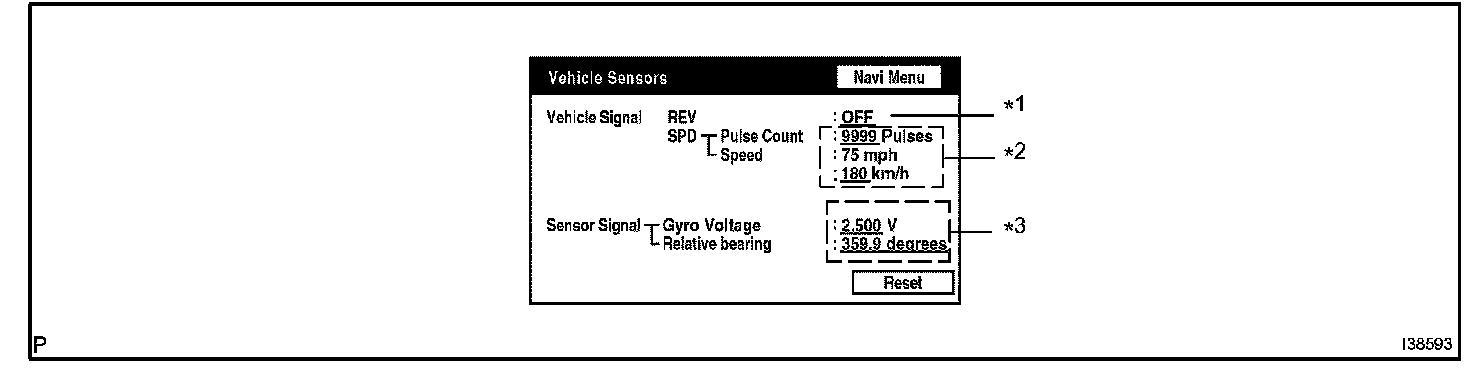

c. Vehicle Signal Check Screen

HINT:
Signals are updated once per second only when vehicle sensor signals are changed.

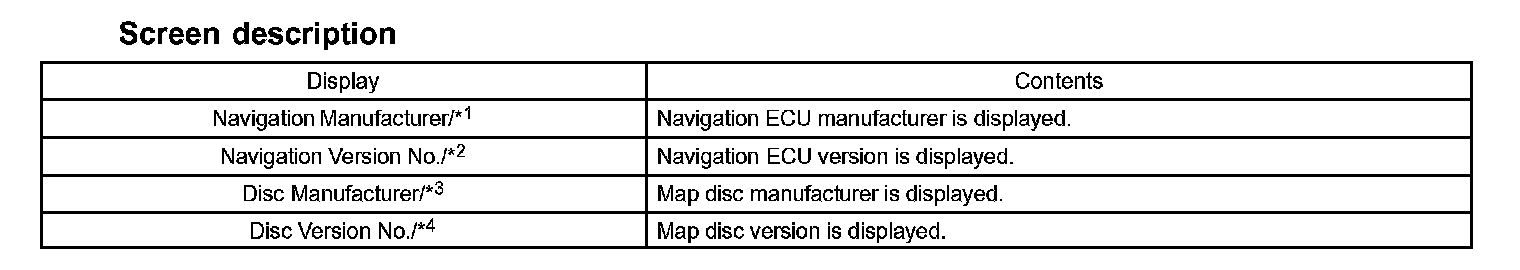

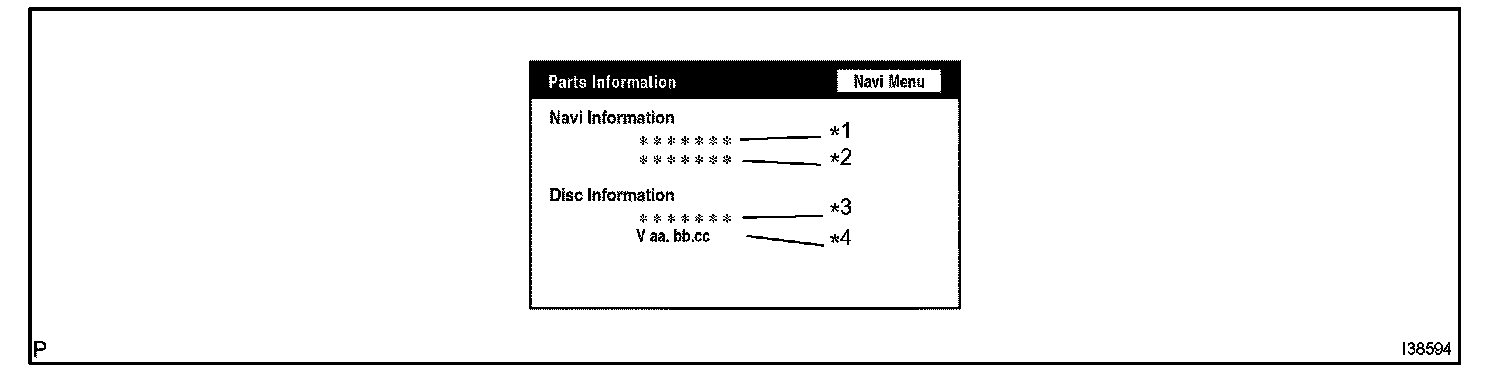

d. Parts Information Screen




e. Memory Copy/Paste Screen

HINT: This function cannot be used on some vehicles.
